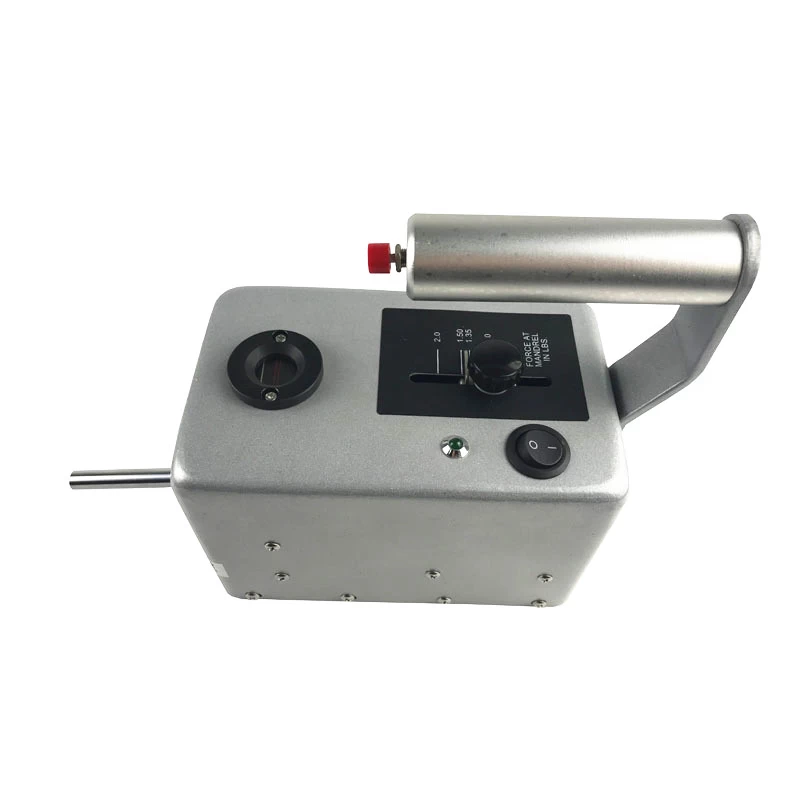

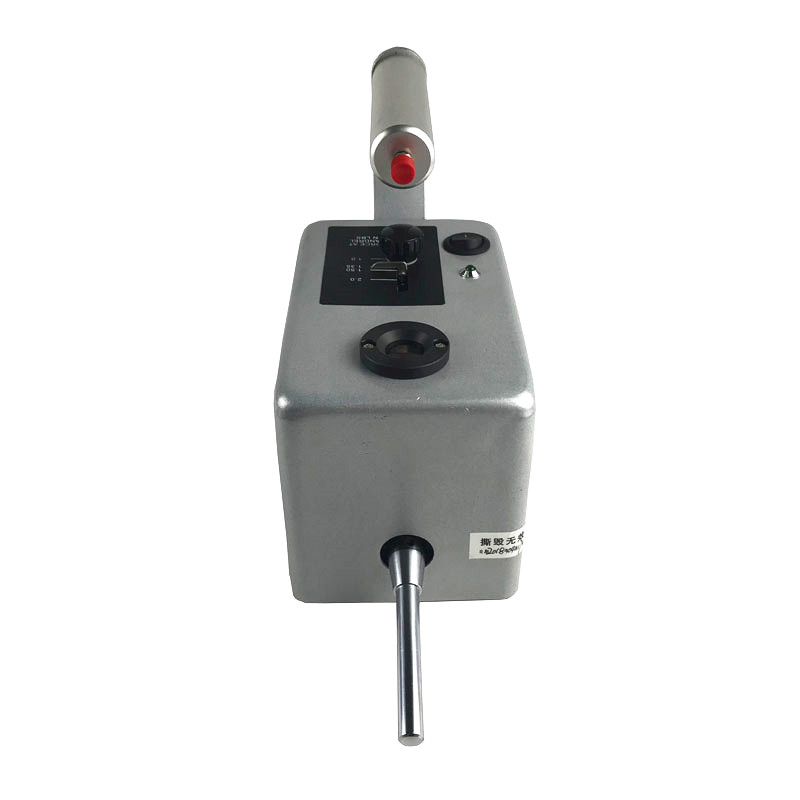

Toy Safety Sharp Edge Tester AT25

Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury.



AT25- Toy Safety Sharp Edge Tester


Application of Toy Safety Sharp Edge Tester

Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury. A self-adhesive PTFE tape is attached to a mandrel, which is then rotated for a single 360-degree revolution along the accessible edge being tested. If the tape is cut in half or longer in length (approx. 13 mm), the edge is identified as a hazardous sharp edge.


Standards of Toy Safety Sharp Edge Tester

EN-71-1 section 8.11, ASTM F963 section 4.7, 16CFR 1500 section 49, ISO 8124-1 section 5.8, GB6675-2 section 5.8


Key Specification of Toy Safety Sharp Edge Tester

Model

AT25 Toy Safety Sharp Edge Tester

Speed

1.00±0.08 In/s

Fixed force

1.35LB

Power supply

12V 50HZ

Dimension

29*19*10cm

Weight

5kg

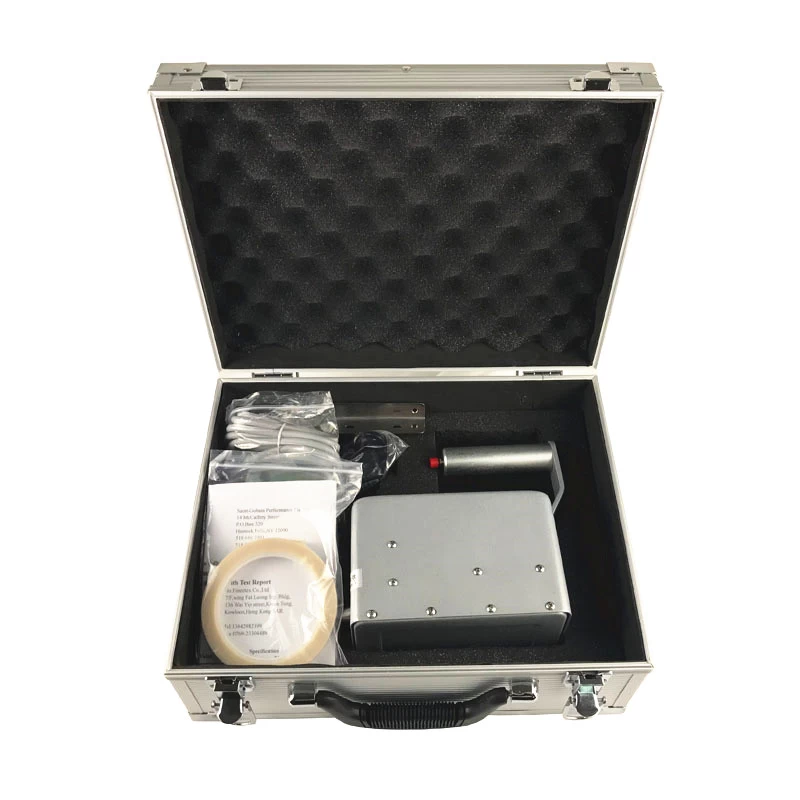

Standard Accessories of Toy Safety Sharp Edge Tester

Standard Accessories

Pedal activated switch

1set

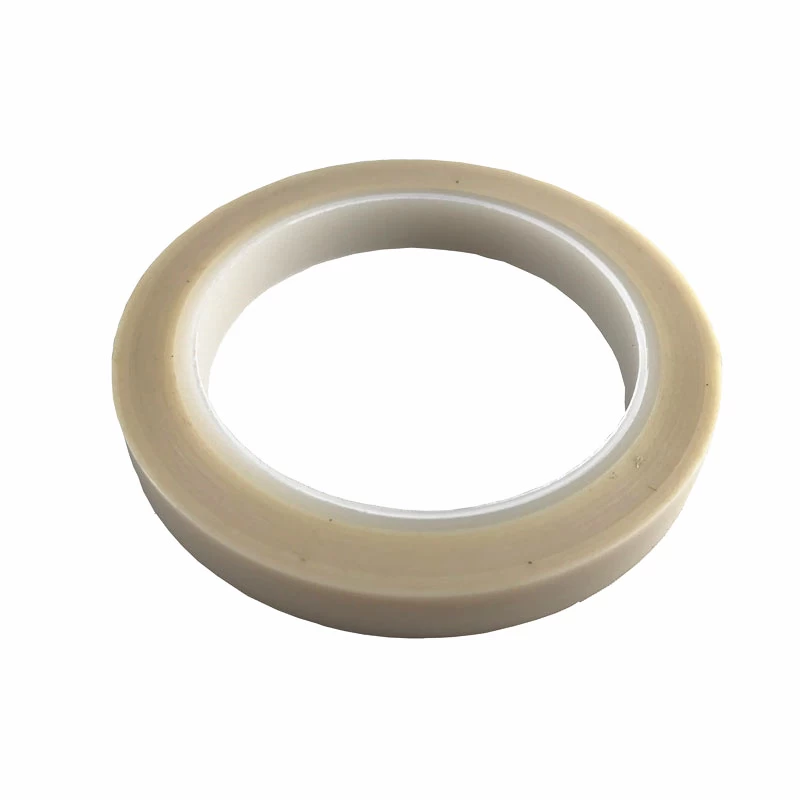

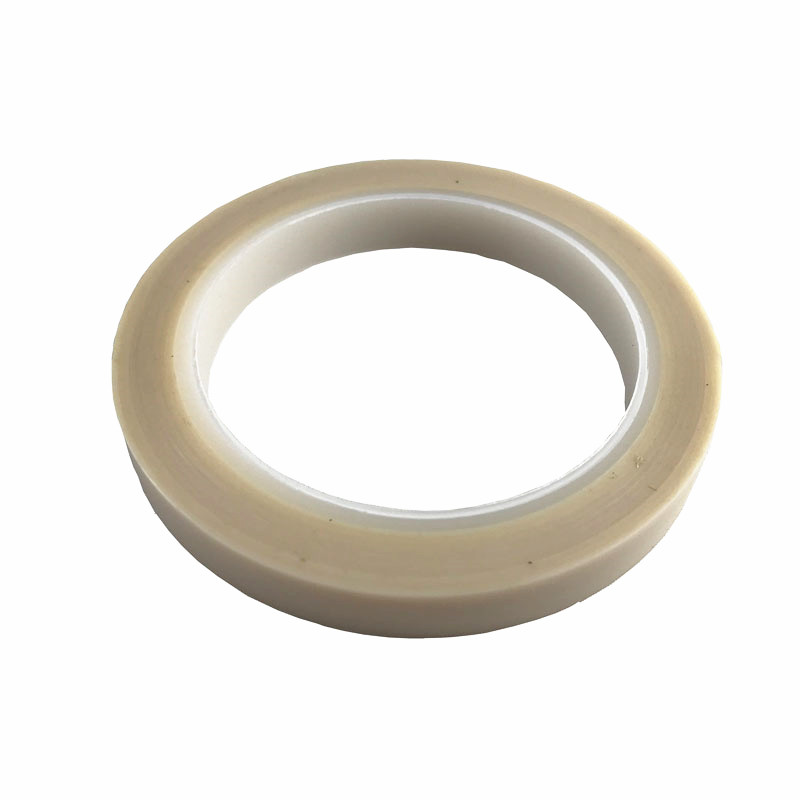

PTFE tape

1pc

Tabletop fixed device

1set

Power line

1pc

Related products

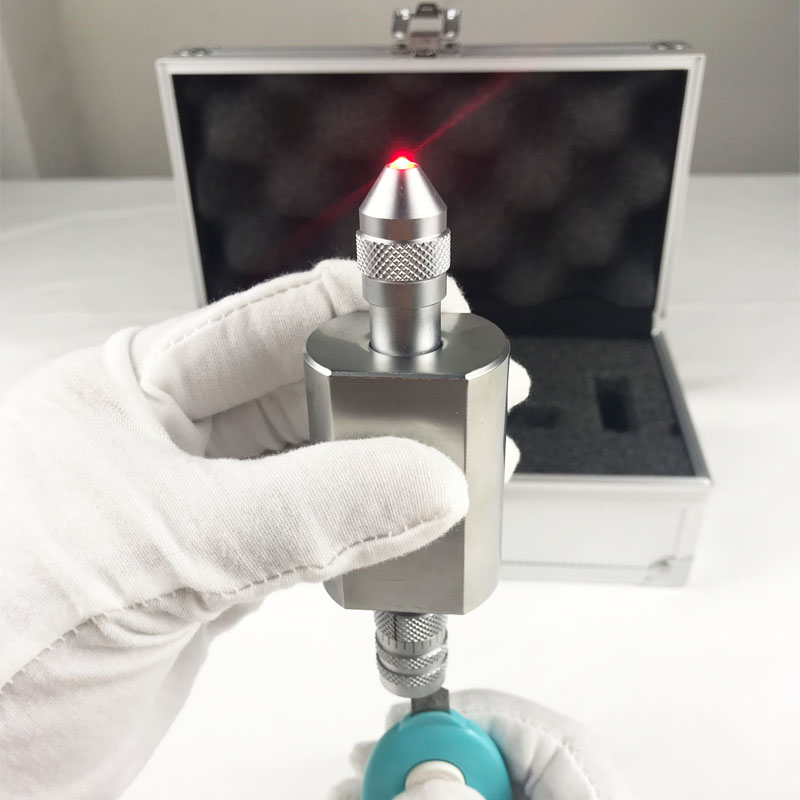

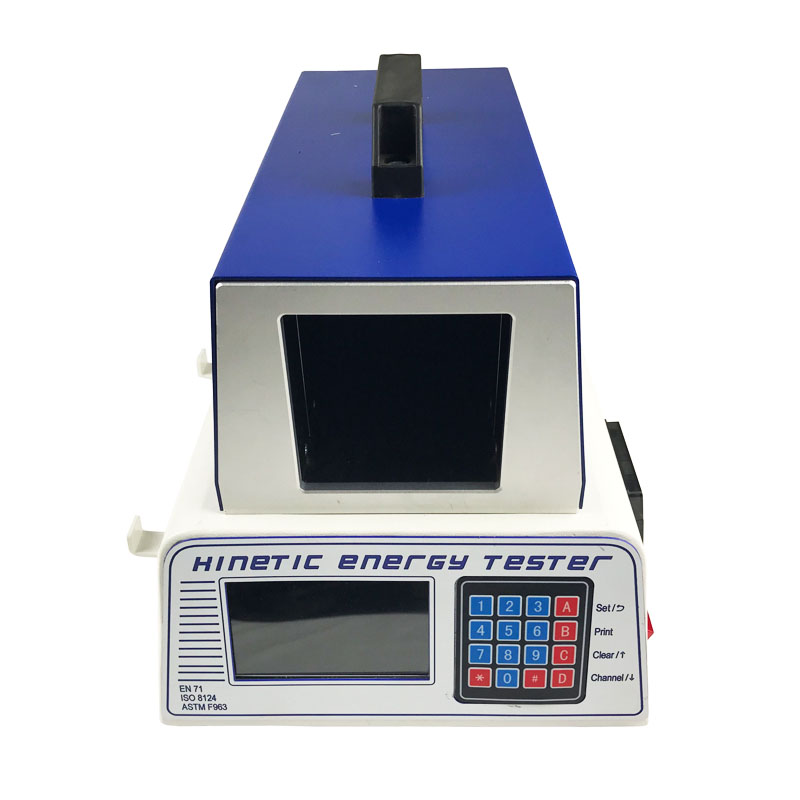

Toy Safety Small Part Cylinder                    Toy Sharp Point Tester             Kinetic Energy Tester
