Toy Tester Jaw Entrapment Risk Test Fixtures GT-MB13
Product Introduction
Application:
It is used for determine whether there is the risk of jaw entrapment in handles and steering wheels that are located such that they are accessible for teething in the following categories of toys intended for children under 18 months of age: activity tables intended to be played with by a standing child, large bulky toys, stationary floor toys, push toys intended to be pushed by a child walking upright, and ride-on toys.
Standards: ASTM F963
|
Dimensions
Test Requirements
|

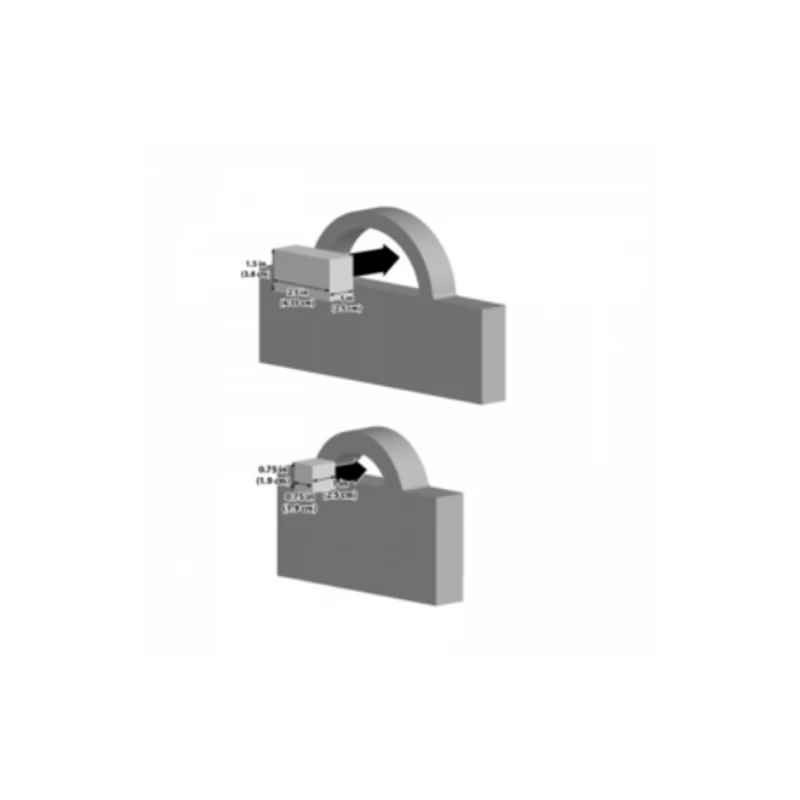

1.Openings in handles and steering wheels that allow a 0.75 by 0.75 by 1 in. test fixture to pass completely through must also allow a 1.5 by 2.5 by 1 in. test fixture to pass completely through.
2.The test fixture shall be oriented such that the 0.75-in. (1.9-cm) dimension and the 2.5-in. (6.35-cm) dimension is parallel with the major dimension of the handle or steering wheel opening.
|

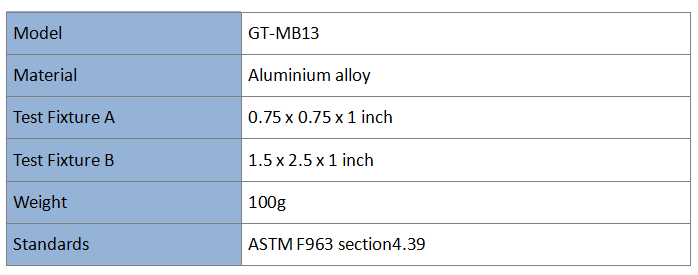

Key Specifications
Application Industry
All kinds of children products can be tested on the Jaw Entrapment Risk Test Fixtures
