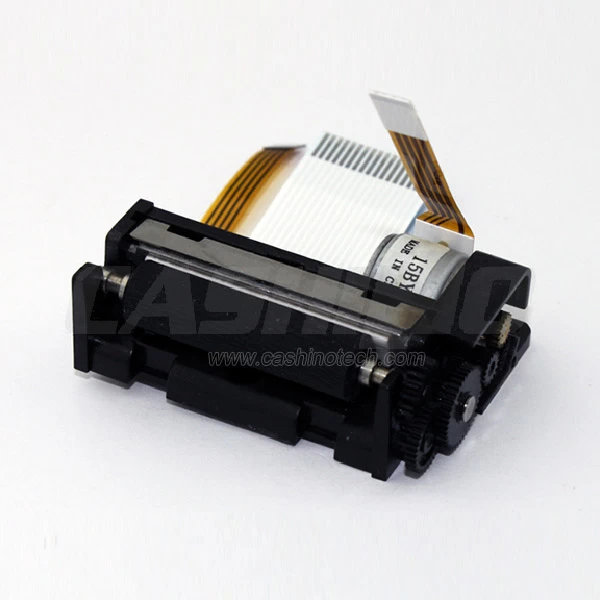

TP-100 37mm thermal printer mechanism
Feature:
Paper width:37±0.5mm
Compatible with PORIT-M100H
Easy paper load
Compact design
Very light
Paper ending detect
Low Noise
Drive voltage:4.2 to 8.5VDC
Mechanism life(100KM)
High speed(50mm to 75mm/s,8.5V)
Printing width 24mm
Specification:
Type
|
TP-100
|
Print method
|
Thermal dot line printing
|
Resolution (dots/mm)
|
8
|
Dot per line (dots/line)
|
192
|
Speed (mm/sec)
|
75(8.5V)
|
Print width/Paper width(mm)
|
24/37
|
Head temperature detect
|
Via thermistor
|
Paper detect
|
Via photo interrupter
|
Life span
|
Pulses
|
100 million
|
Structure life (km)
|
100
|
Dimensions (W X D X H) (mm)
|
47 x 33.2x 15.2mm
|
Weight (g)
|
Approach 23.5
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
