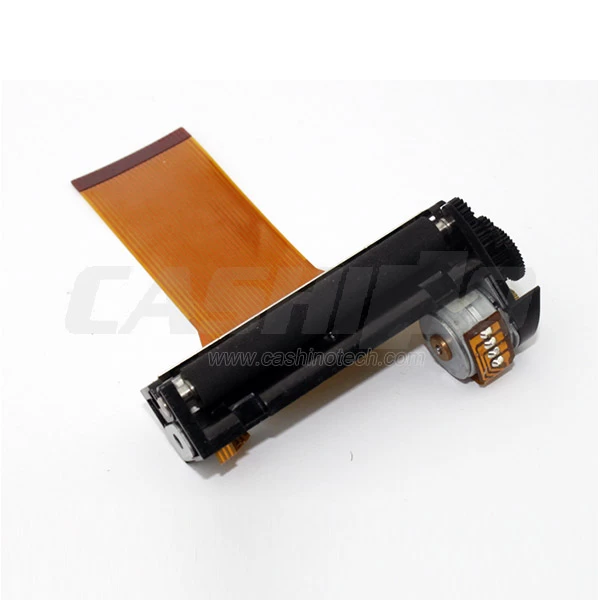

TP-200V 58mm thermal printer head
Feature:
Compatible with PORTI-M200V
Paper width:57±1mm
Easy paper load
Compact design
Low Noise
With paper detect
Mechanism life(50KM)
Printing width 48mm
High speed (80mm/sec, MAX)
Specification:
Type
|
TP-200V
|
Print method
|
Thermal dot line printing
|
Resolution (dots/mm)
|
8
|
Dot per line (dots/line)
|
384
|
Speed (mm/sec)
|
90(8.5VDC)
|
Print width/Paper width(mm)
|
48/58
|
Head temperature detect
|
Via thermistor
|
Thermal Printer head detect
|
Via photo interrupter
|
Paper detect
|
Via photo interrupter
|
Life span
|
Pulses
|
100 million
|
Structure life (km)
|
50
|
Operation voltage range (V)
|
Head logic (Vdd)
|
2.7 ~ 5.25
|
Head and motor drive(Vp)
|
4.2 ~ 8.5
|
Dimensions (mm)
|
68.4W*16.9D*31H
|
Weight (g)
|
Approach 35
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
