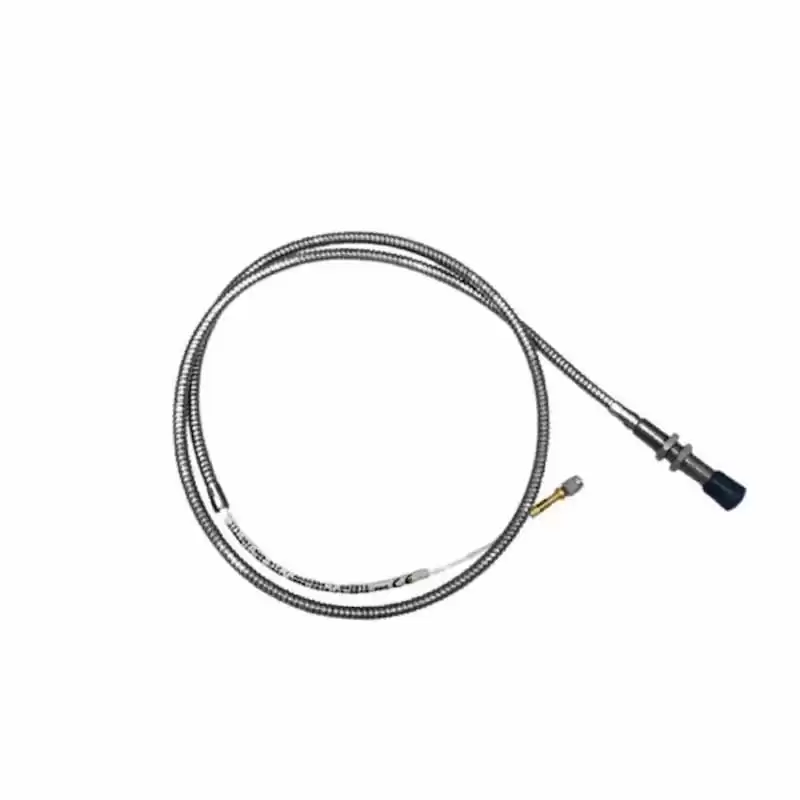

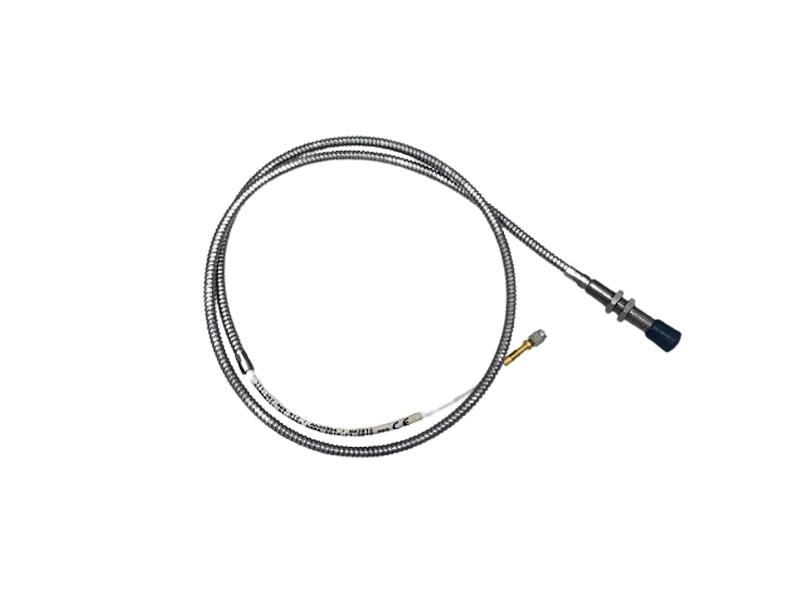

TQ402 111-402-000-013 Proximity Transducer
» The TQ402/TQ412, EA402 and IQS450 form a proximity measurement system, This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.
» The TQ 402 and TQ 412 transducers can be matched with a single EA 402extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
KEY FEATURES AND BENEFITS
» TQ 402 conforms to API 670 recommendations
» Non-contact measurement system based on eddy current principle
» Certified for use in potentially explosive atmospheres
» 1 m, 5 m and 10 m systems
» Temperature compensated system
» Voltage or current output with protection against short circuits
» Frequency response: DC to 20 kHz (−3 dB)
» Measuring range: 2 or 4 mm
» Temperature rang
Technical Specifications
| Part Number |
111-402-000-013 |
| Ordering Information |
TQ402 |
| Product Catalog |
Vibration Monitoring |
| Description |
Proximity Transducer |
| Voltage |
−20 to −32 V |
| Current |
−13 mA ± 1 mA |
| Dimension |
16 cm × 16 cm × 12 cm |
| Weight |
0.8 kg |
