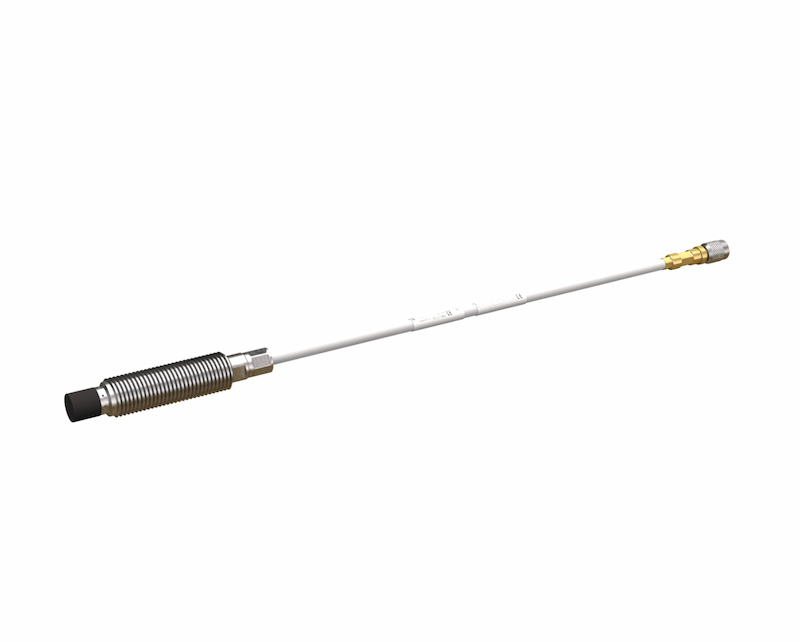

TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05 Proximity Sensor
The TQ902 proximity sensor is a high-quality, high-reliability sensor for use with an EA902 extension cable and IQS900 signal conditioner, which provides either a voltage output or a current output.
The TQ902 is a standard-mount sensor that is designed and built for long-term use in environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).

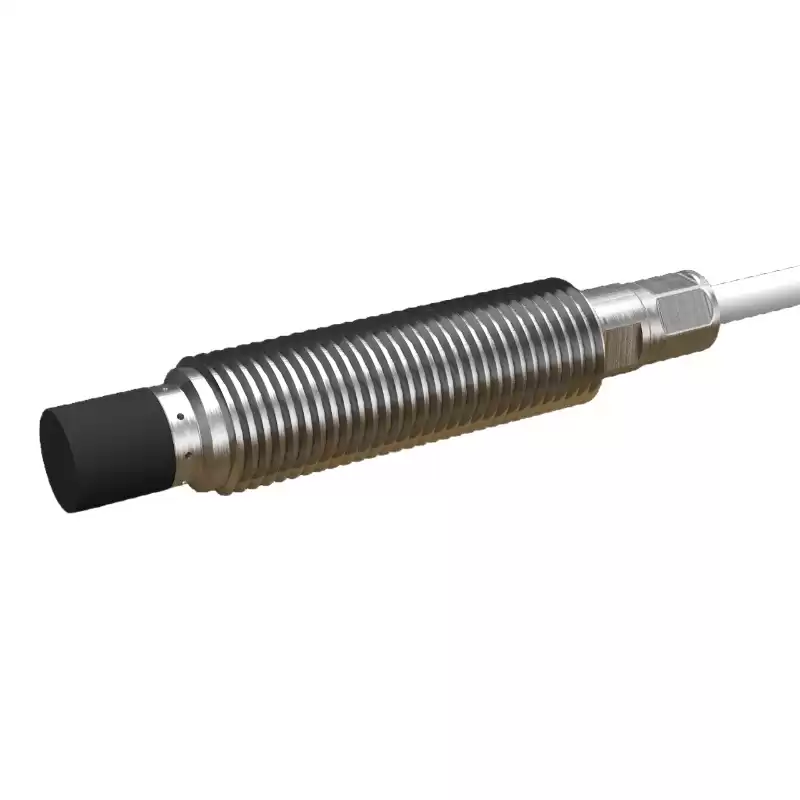

The active part of a TQ902 proximity sensor is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic.
The TQ902 is intended for standard-mount, sensor bodies are available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector. A TQ902 sensor's integral cable and the EA902 extension cables are available in various lengths, which can be combined to obtain a particular total system length (TSL) for an application.
Optional interconnection protectors (IP172), junction boxes (JB118) and other housings are available for the mechanical and environmental protection of the connection between a TQ902 sensor's integral cable and a EA902 extension cable.
Features
· Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
· 2 or 4 mm measurement range (Ø8.2 mm sensor)
· −40 to 180 °C operating temperature, IP68 protection rating
· 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
· Versions certified for use in potentially explosive atmospheres
· Conforms to API 670 5th edition
Technical Specifications
| Manufacturer |
VM |
| Part Number |
TQ902 |
| Ordering Information |
111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05 |
| Product Catalog |
Vibration Monitoring |
| Description |
Proximity Sensor |
| Voltage |
24 Vdc |
| Current |
25 mA |
| Dimensions |
8.2 mm x 1000 mm |
| Weight |
1 kg |
