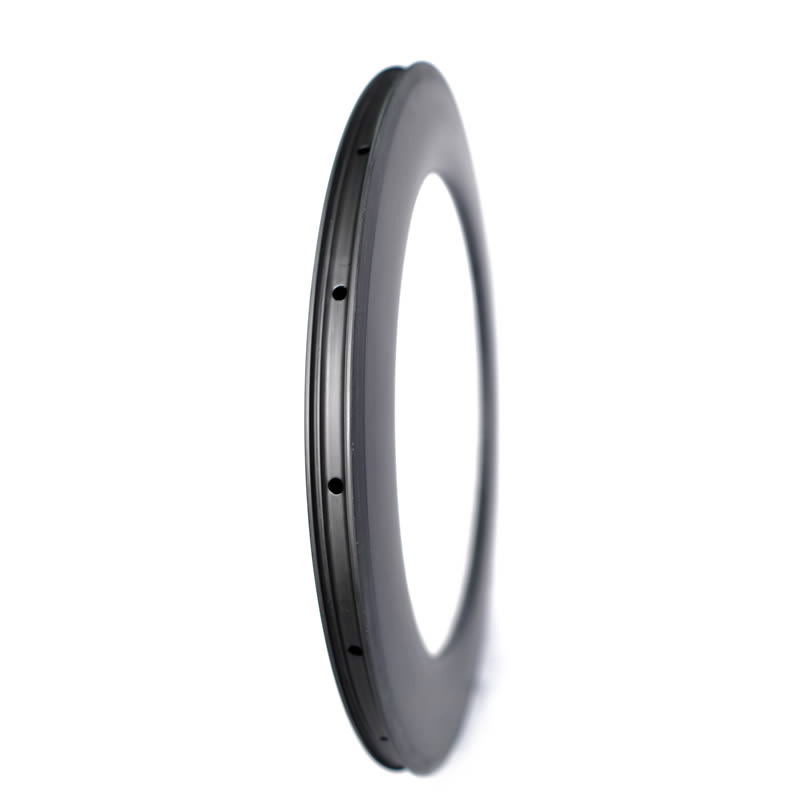

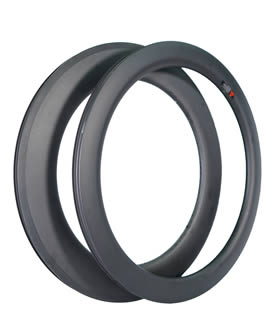

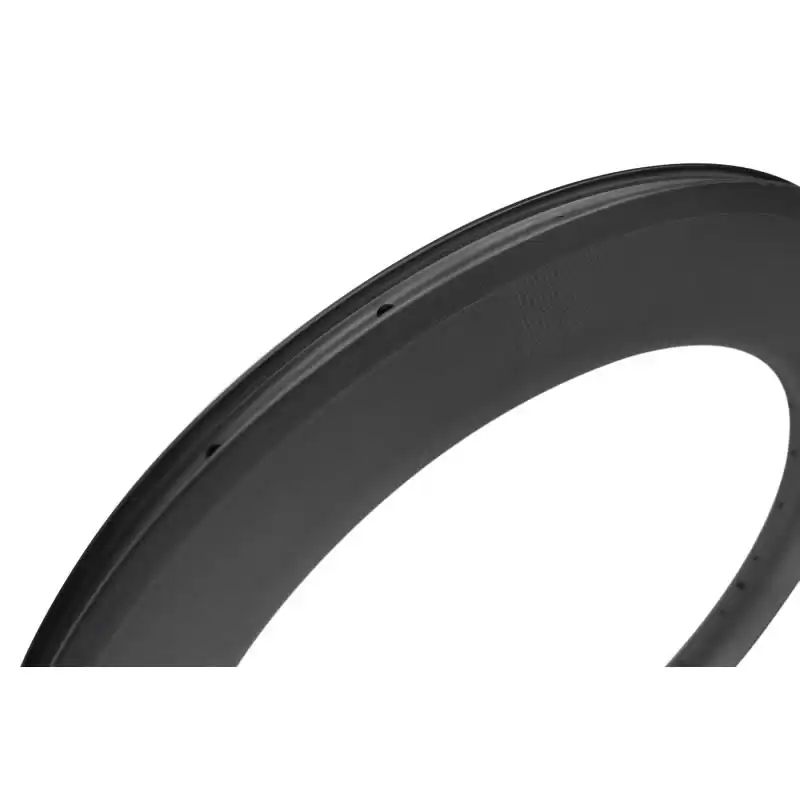

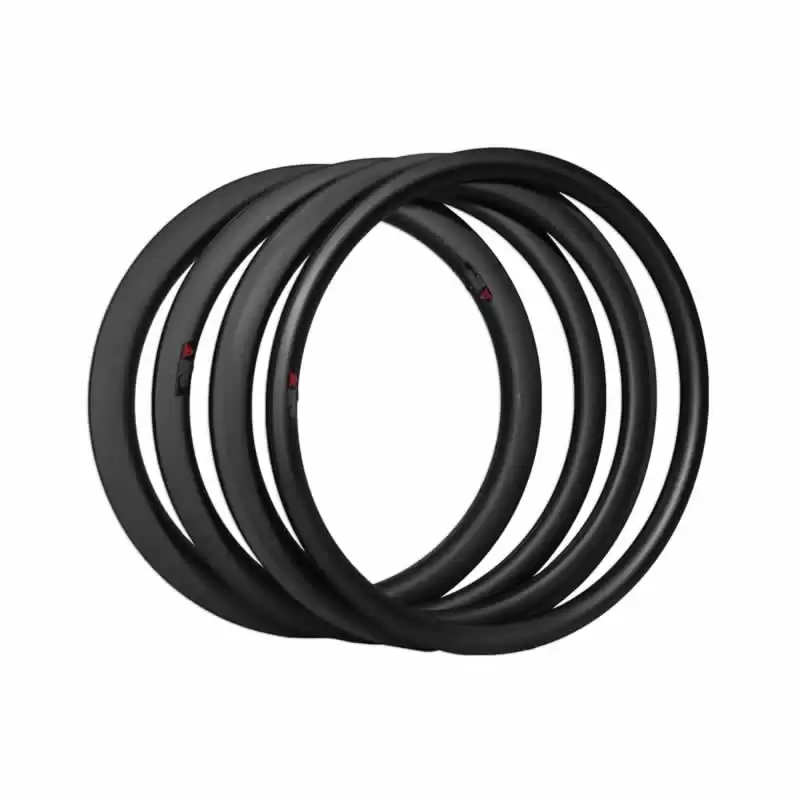

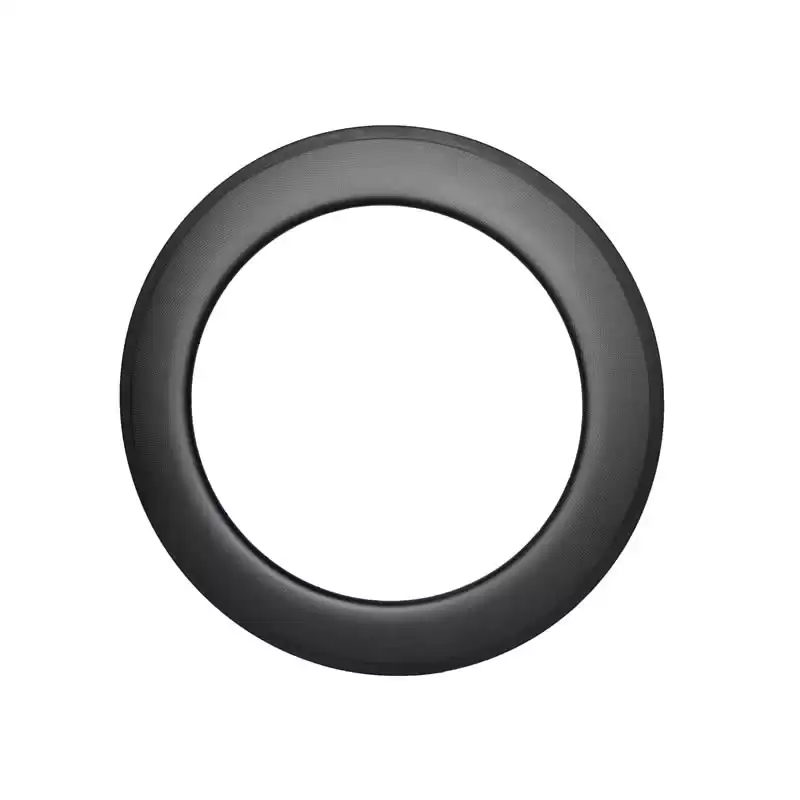

Product Model：700C Classical 88mm Deep Track bike carbon rims
88mm Deep carbon tubeless rims is the classic rims with 25mm wide U shape.Made of Full carbon Toray T700.The deeper rims are faster,better for aerodynamic and stiffness.88mm Deep rims comfort in Road triathlon and track bikes.if you are choosing the track carbon rims,this model is very OK.The rim used 250°C High TG resin system,better for the braking system.
Our Factory offer high quality carbon clincher rims with competitive price.Different braking surface can be made for you.
Features:
1.High TG resin temperature with 250°C brake track from braking in road bicycle clincher wheels.
2.Full Toray T700 & T800 carbon fiber, Super lightweight rims,best strength to weight ratio with no expense spared.
3.The new style of 88mm Deep clincher rims have faster braking heat elimination.
4.Wide U sahpe design,classical standard model for track Triathlon bike wheels.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different patterns of brake surface .
7.The manufature for High quality carbon clincher carbon rims .
8. 5 years warranty
Specification:
|
Model
|
TR45C-25
|
TR45C-27
|
|
Size
|
700C
|
700C
|
|

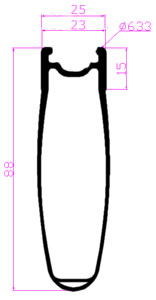

Sectional Drawing
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
88mm
|
88mm
|
|
Wide
|
23mm
|
25mm
|
|
Weight
|
730+/-15g
|
730+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
464mm
|
464mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>300kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*21-25c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|

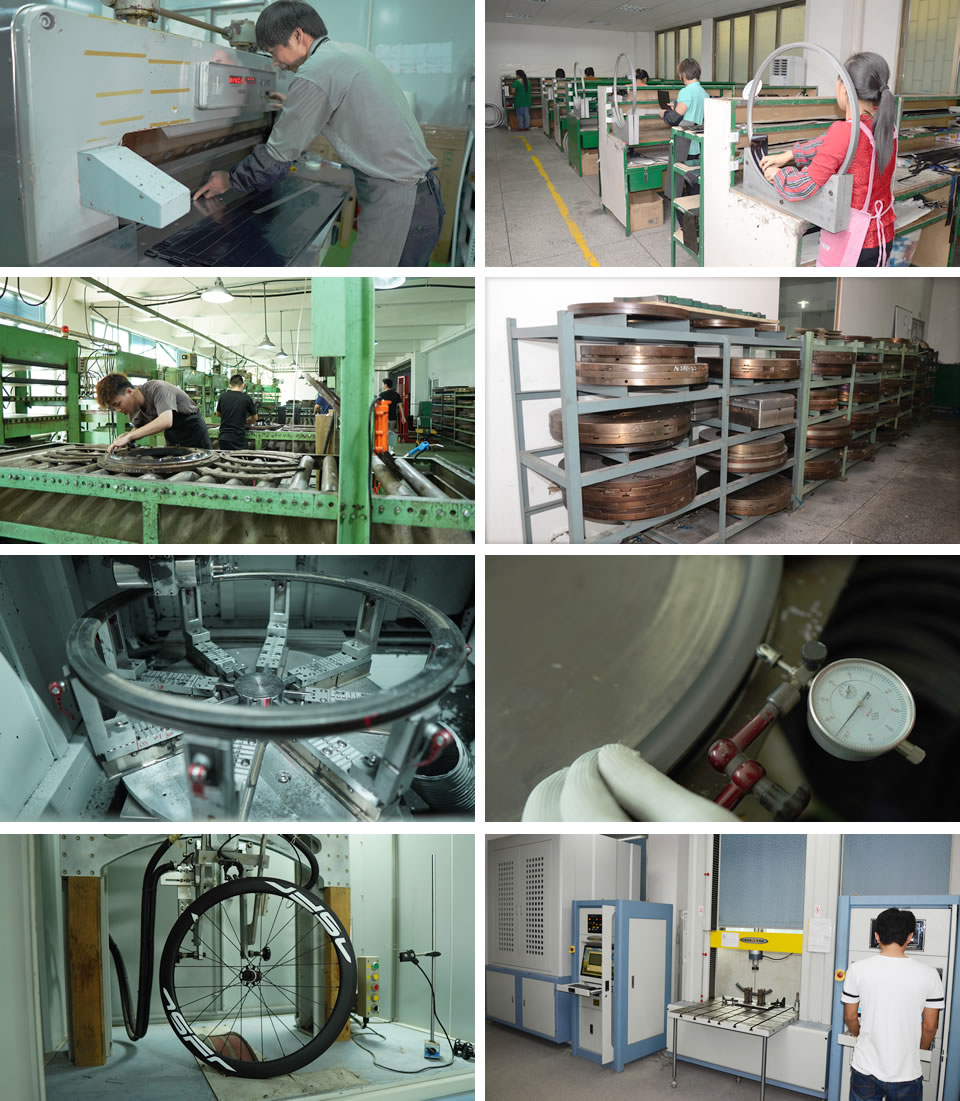

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
