Overview

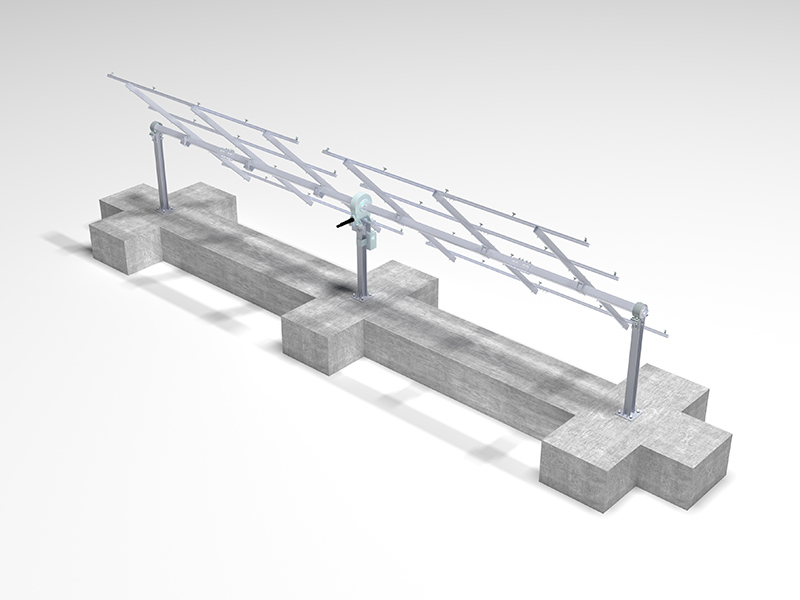

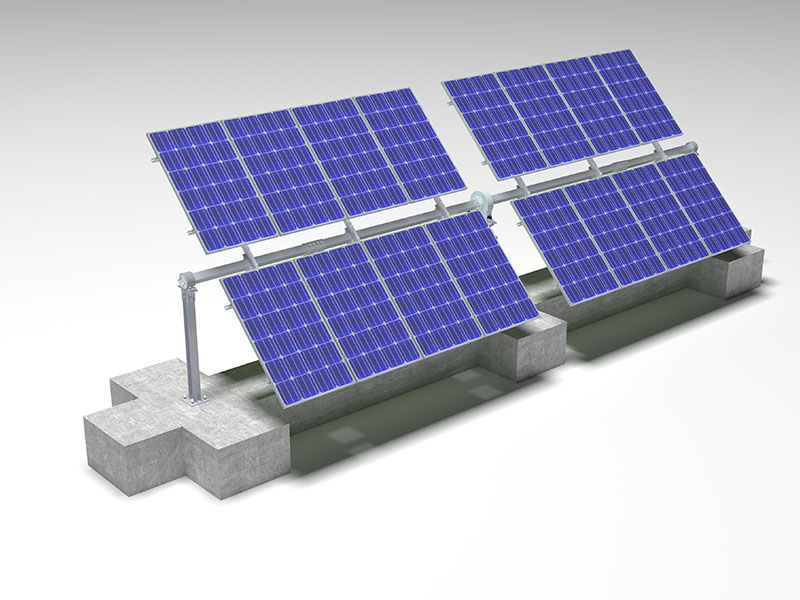

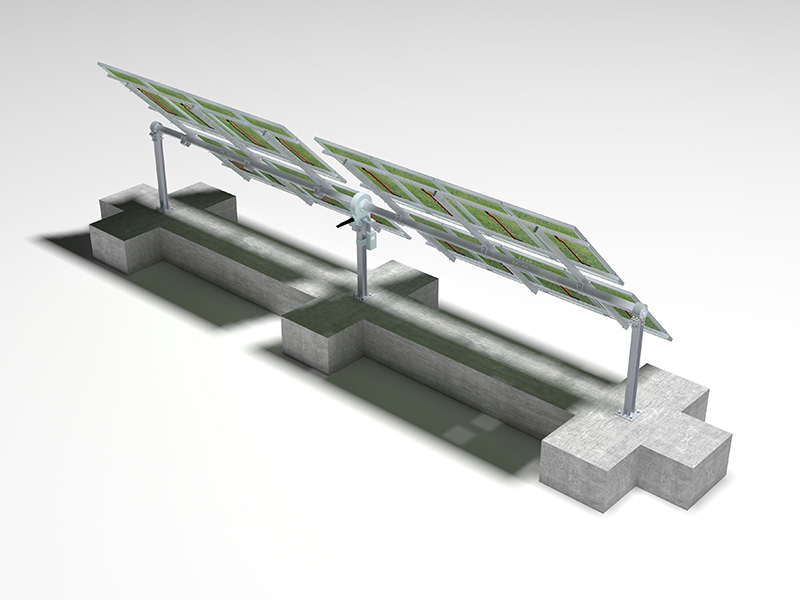

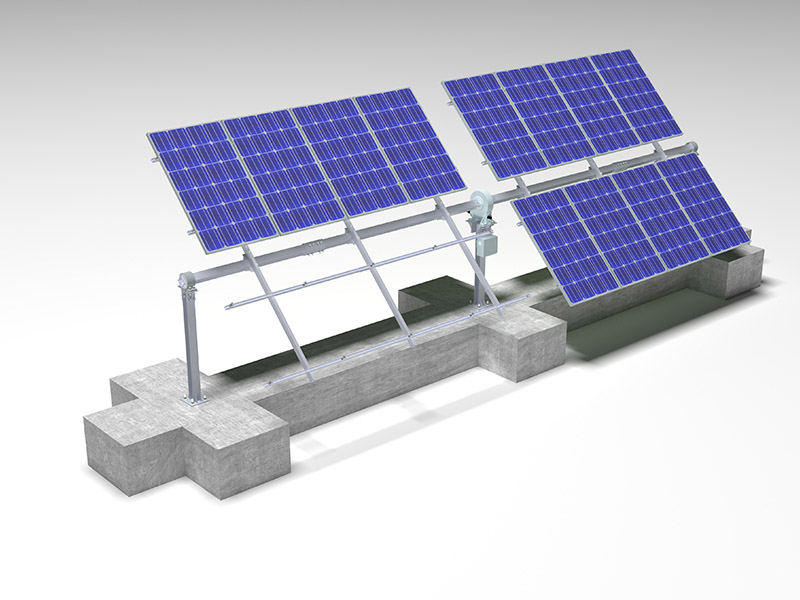

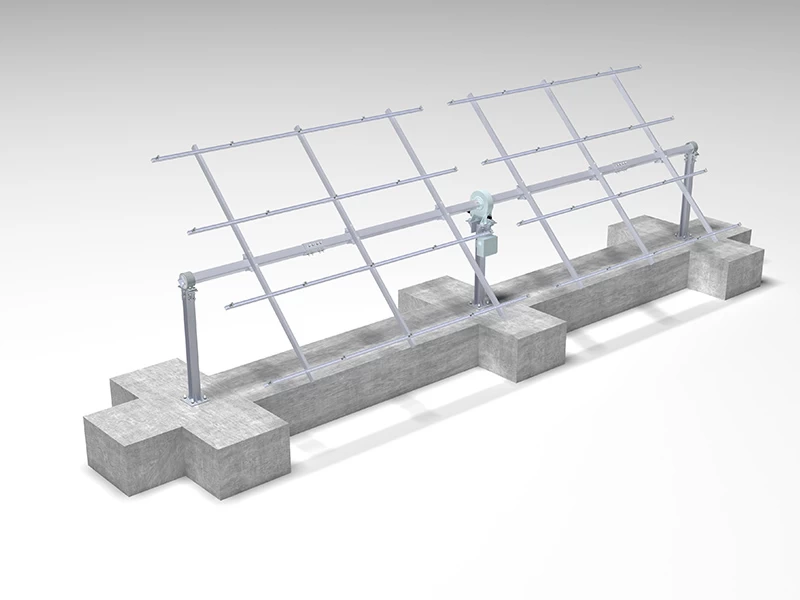

MRac Smart Horizontal Single Axis Tracking Solar PV Mounting System is mainly
applied to large-scale solar power plant at low latitude areas. One motor and
control system make the whole solar module array track automatically. The
unique linkage structure and slewing bearing ensure the stability of the whole
system, low failure rate and maintenance cost. It is a good choice for large-scale
solar power plant with roughly 20% power generation, comparing to fixed
system.
Features
1.Automatic Tracking without Manual Debugging
With good environmental adaptability, no affection by rainy and cloudy
weather;Wide Range of tracking angle improves the power generation .
2.Equipped with GPS to Ensure the Accuracy of Time
High weather resistance contributes to safe and stable operation
between -40℃-85℃The excellent electromagnetic compatibility design
makes the system stable and reliable.
3.Remote Communication, Group Control for Multi-Equipment
Automatically identify the failure, with automatic self-protection and
alarm；Quadruple over-current protection ensures the safety of the
whole system
4.Customized System Configuration Available
It can be designed according to customer’s specific requirement.
|
Technical Parameter
|
|
GPS Module
|
Acquire longitude, latitude and accurate time automatically,
|
|
|
and be Compatible with Beidou Satellite Positioning System
|
|
Install Capacity
|
<25KWP
|
|
Tracking Angle
|
±60°
|
|
Wind Resistance
|
<22m/s
|
|
Tracking Algorithm
|
Astronomical Algorithms +Tilt Sensors
|
|
Ground Clearance
|
400mm+
|
|
Power Supply
|
DC24V
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Steel Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
