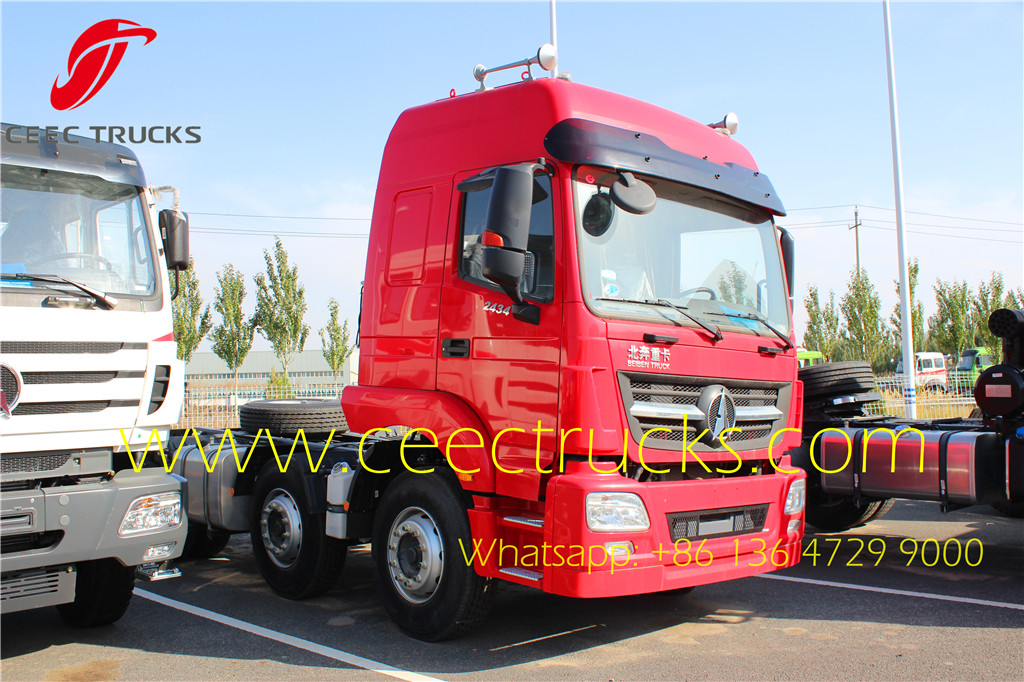

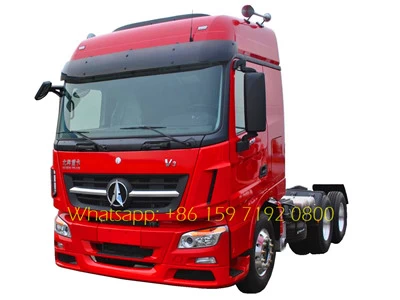

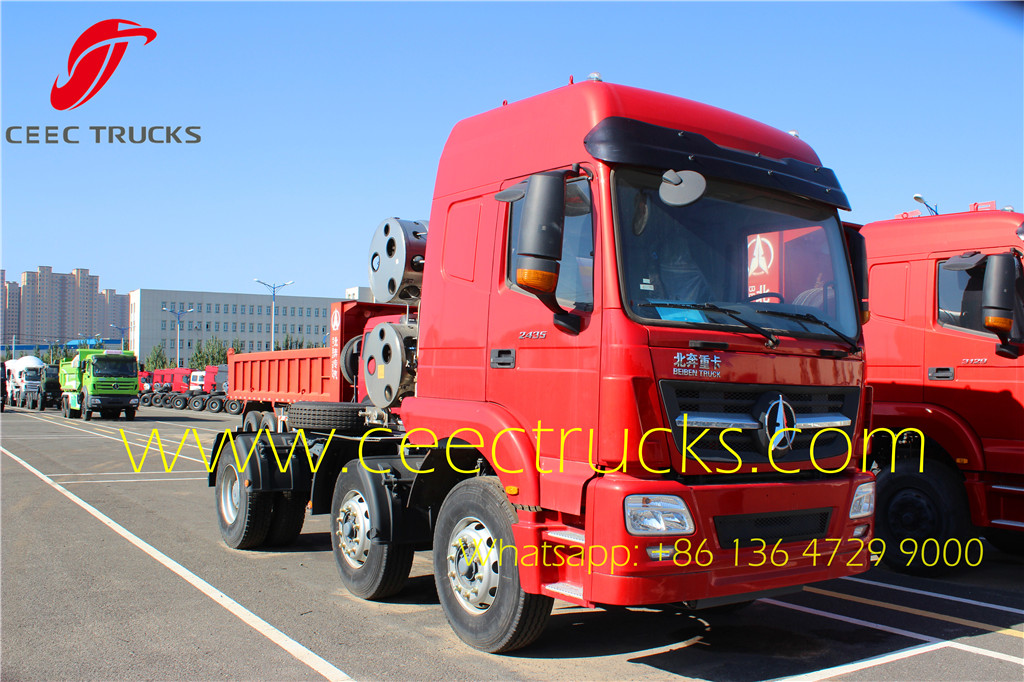

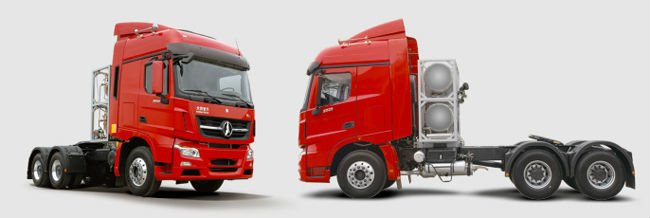

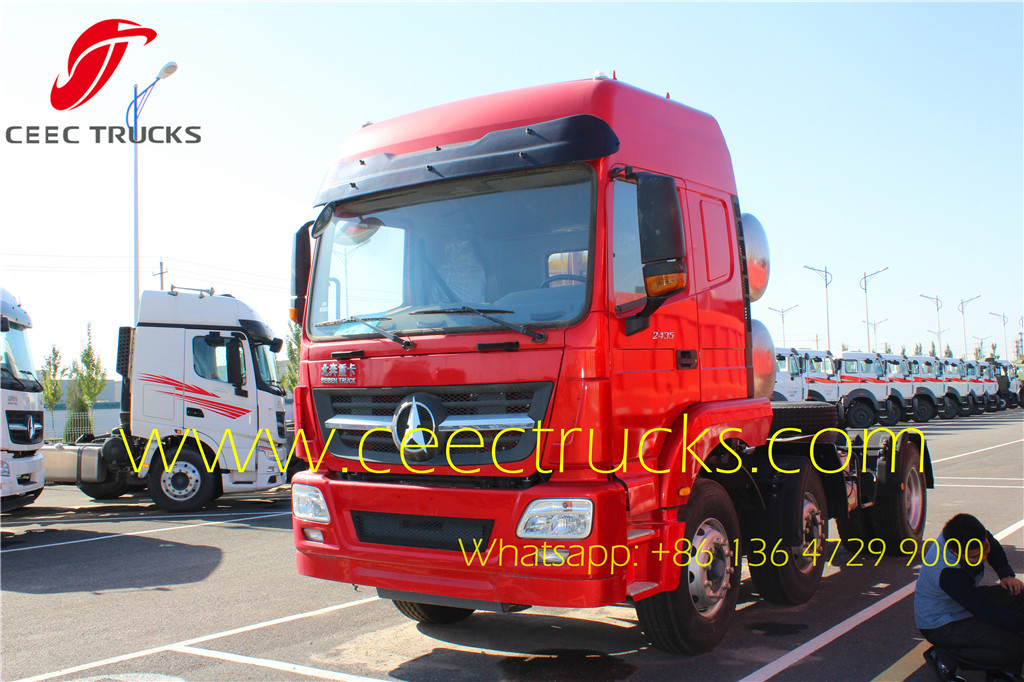

Beiben 2538 V3 Tractor Truck
Advanced features for Beiben 2538 V3 prime mover:
★ German BENZ actros CABIN .The beiben V3 tractor truck cabin was designed by the same design team of the Mercedes Actros, and is similar to the Actros. Clean, simplistic and comfortable with a full sleeper cabin.
★World famous Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12 engine is designed with Austria's AVL and utilizes BOSCH Common Rail as its fuel system, similar to MAN and Cummins.
★ ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT
★Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle. The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.
★ ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania and Volvo trucks.
China famous brand beiben 2538 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation
Similar key words: beiben 2538 tractor truck, north benz 2538 prime mover, beiben 2538 towing truck, beiben 2538 trailer truck. kenya beiben 2538 tractor truck, tanzania beiben 2538 tractor truck, china beiben 6*4 drive v3 tractor truck supplier, baotou beiben V3 tractor truck manufacturer. africa beiben NG80 tractor truck
| Dimension
|
7240*2500*3600mm
|
| Approaching angle/Departure angle
|
16/60°
|
| Overhang(front/rear)
|
1515/825mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
110km/h
|
| Curb weight
|
8800kg
|
| Max towing weight
|
40000kg
|
| Max loading on fifth wheel, Permitted(kg)
|
16070kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.380，water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail
|
| Displacement
|
9.876L/Diesel
|
| Stroke
|
126/155mm
|
| Max. power
|
250/2100 (kw/rpm)
|
| Max.torque
|
1780/1200-1500（Nm/rpm）
|
| Emission stantard
|
EuroIII
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|

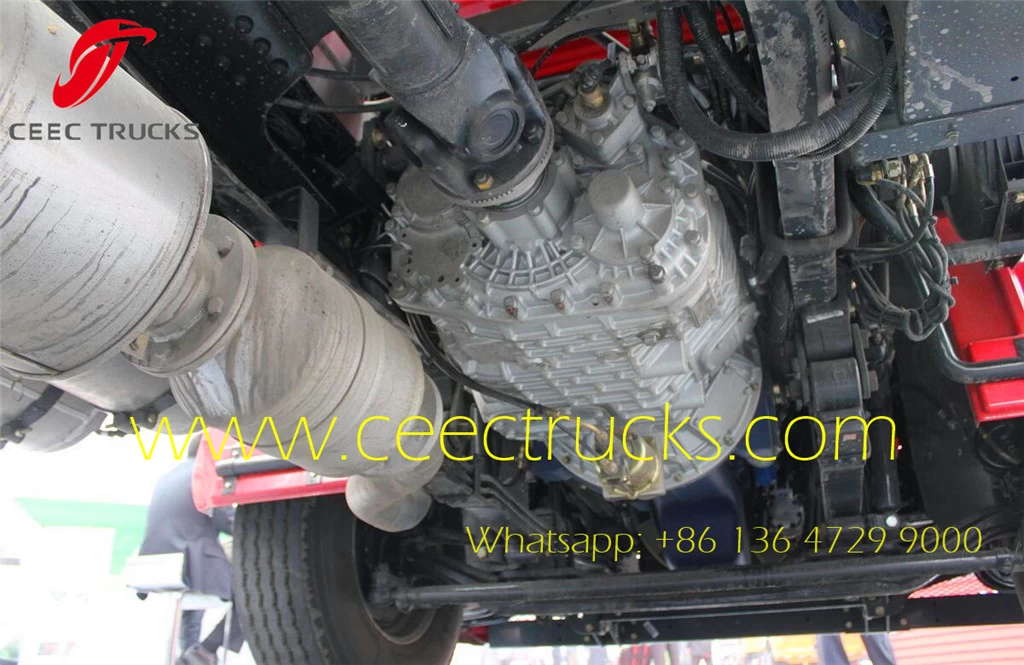

| Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|

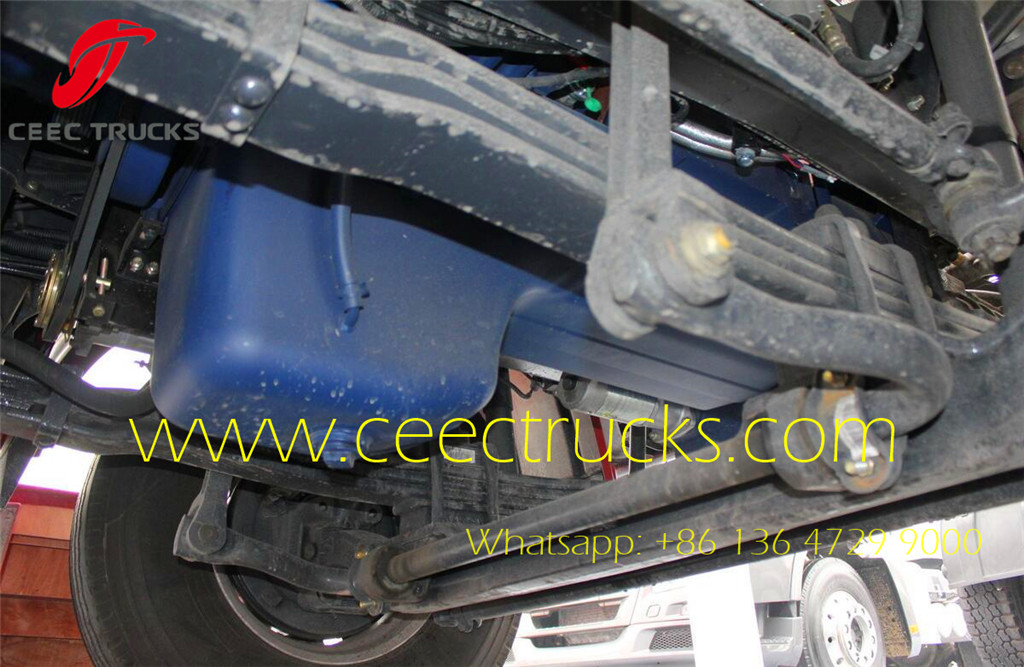

| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
ZF8098 ,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|

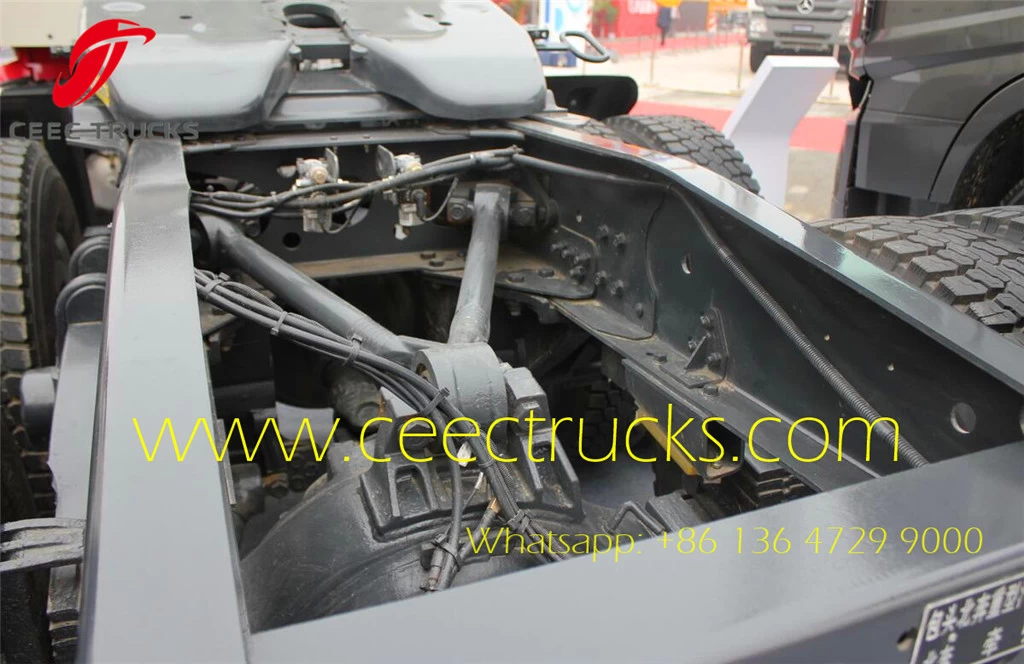

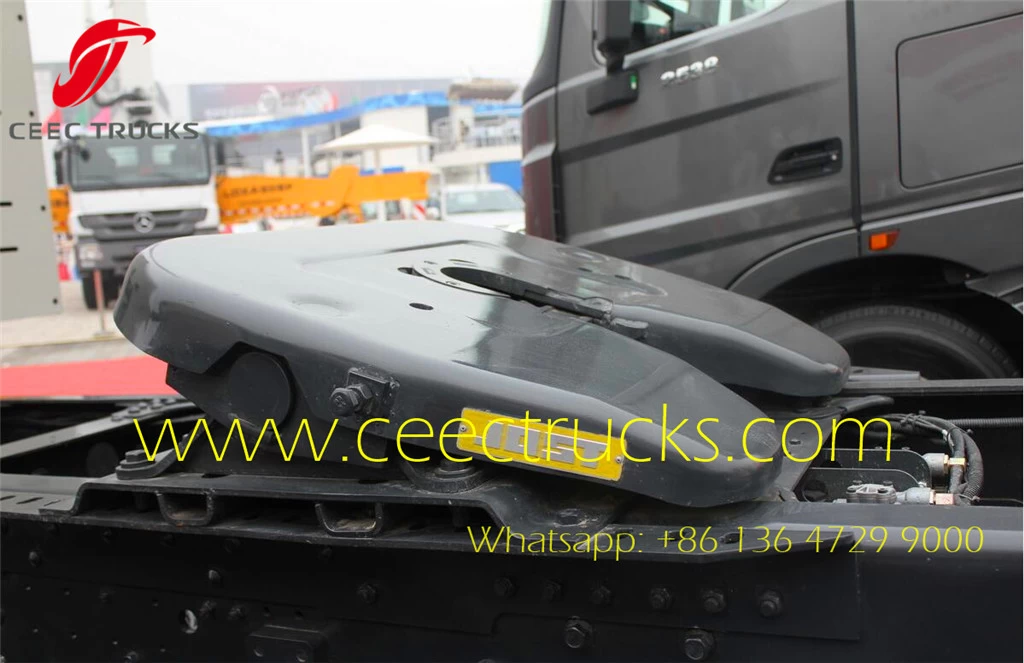

| The Fifth wheel
|
Model
|
JOST ∮90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|

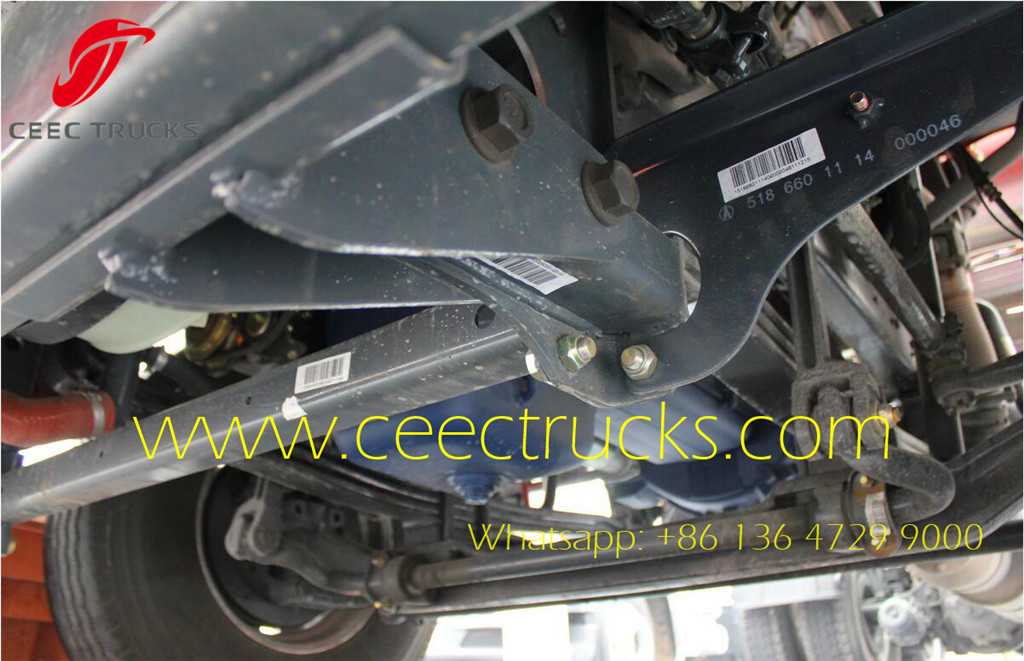

| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

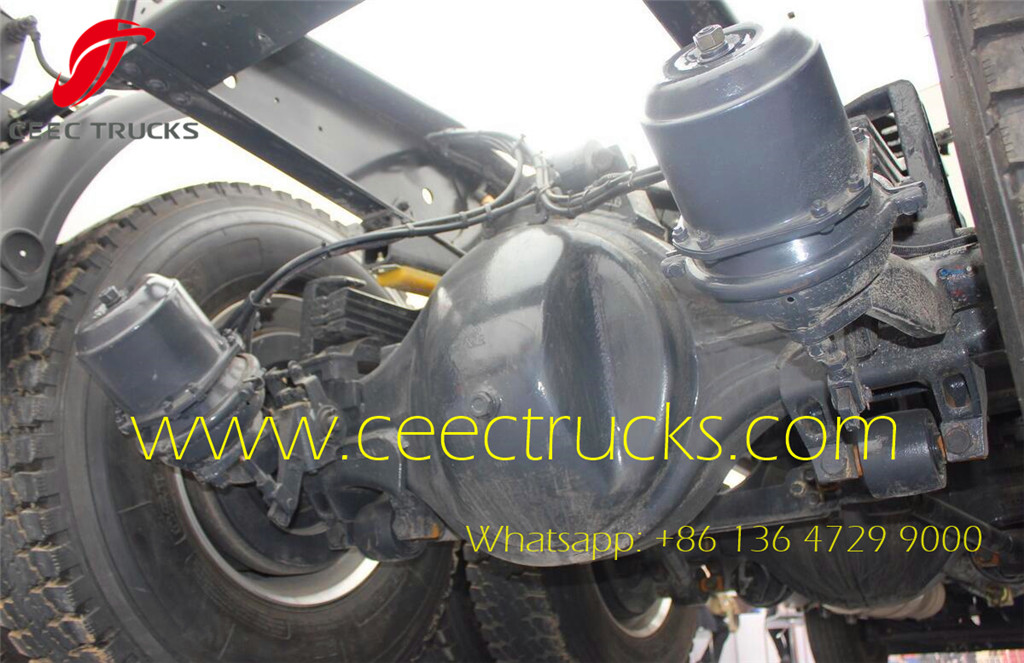

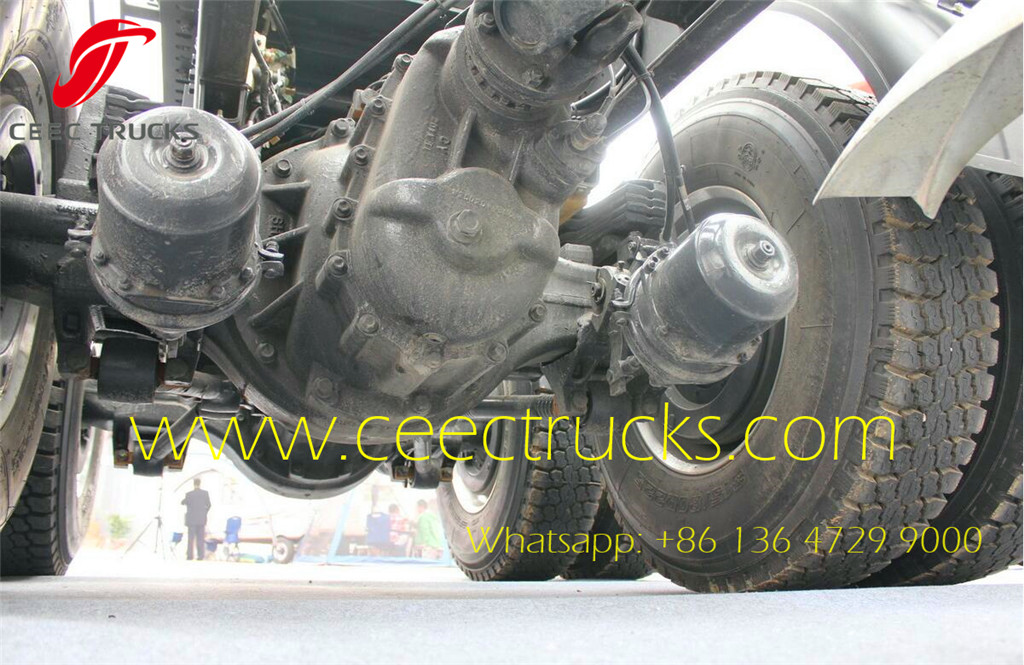

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

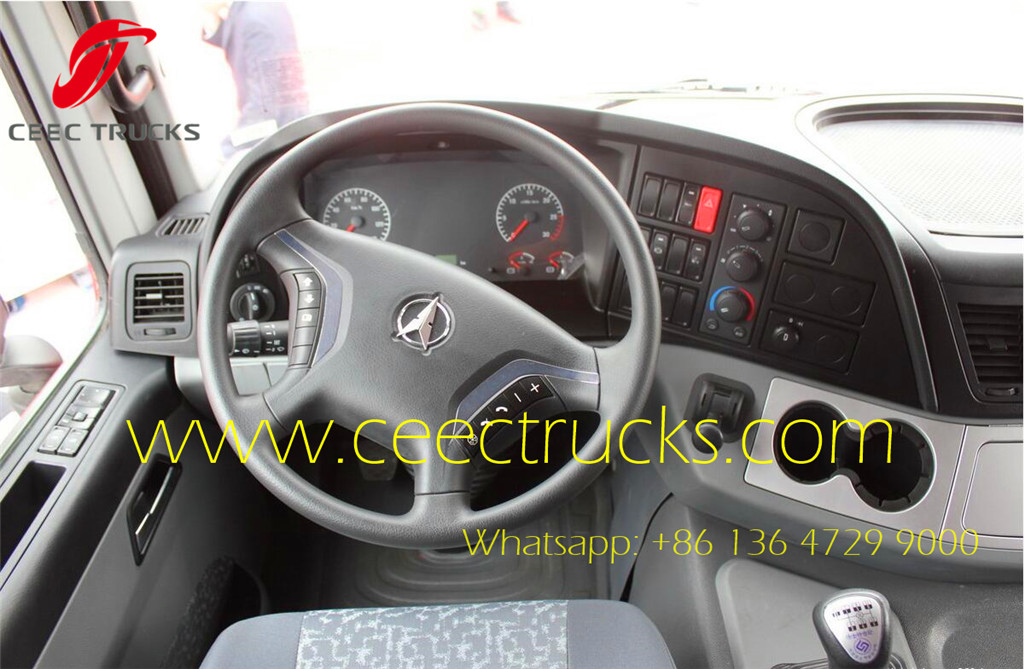

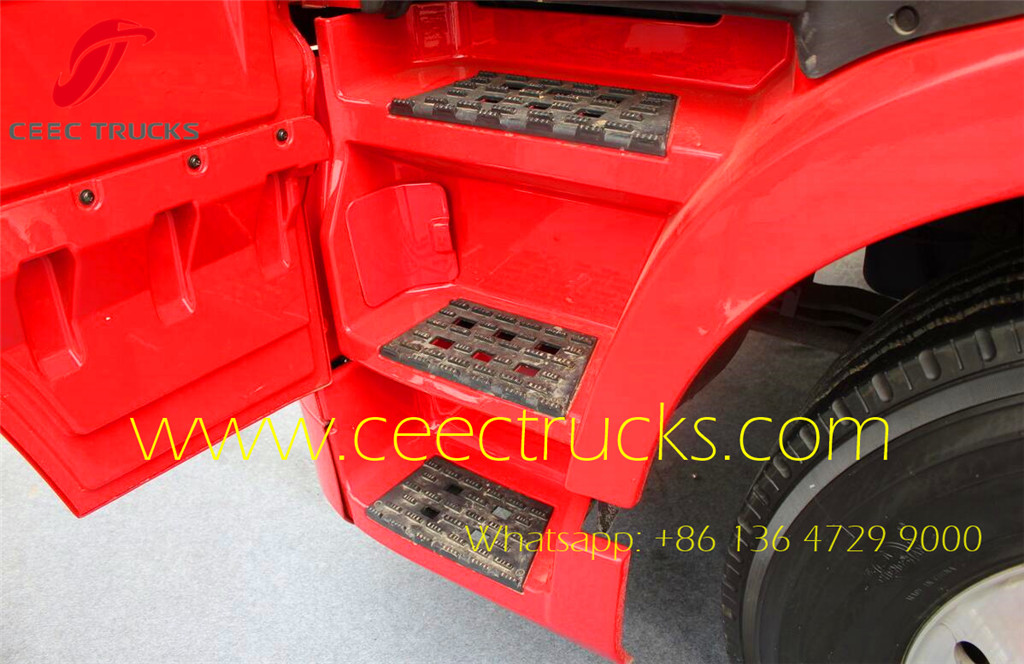

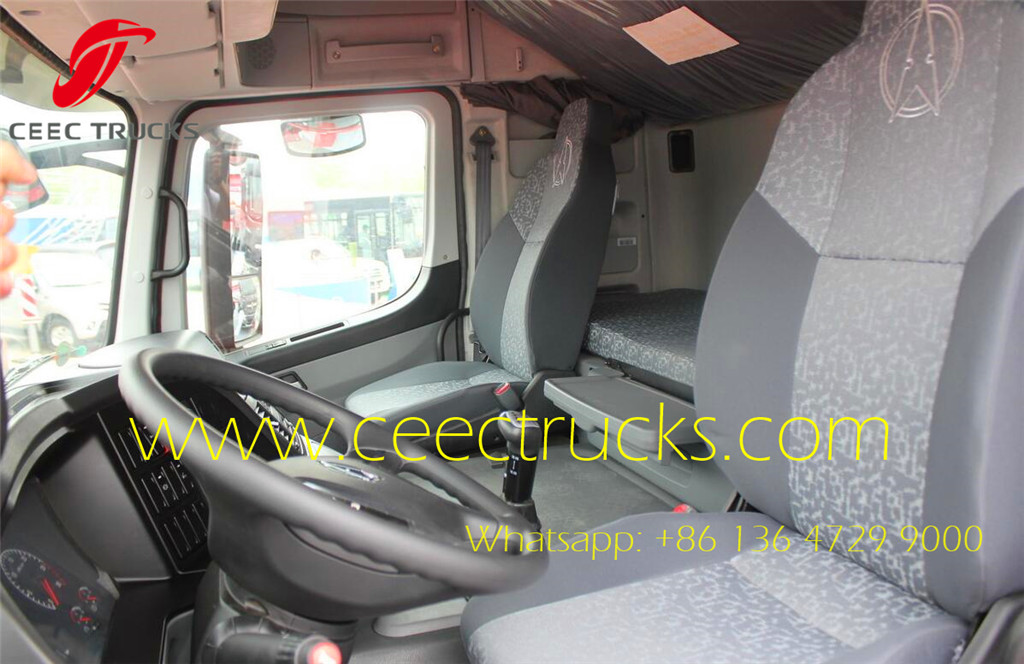

| Cabin
|
V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|

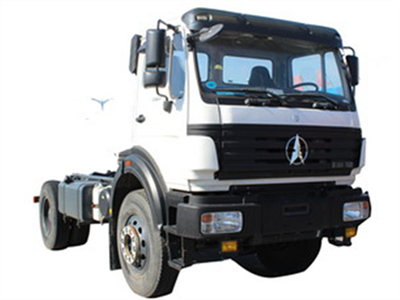

Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
