Size
Optional 290*290mm 390*390mm 400*500mm
Main Tube
Optional 50*3mm 50*2mm
Loading
500-1000kgs According to Size
Function
Concert, Show, Wedding, Exhibition, etc
Package
Bubble Air Film or Hard Cardboard
Certification
TUV, ISO, SGS, Ce
Transport Package
Air Bubble Film
Specification
SGS TUV ISO

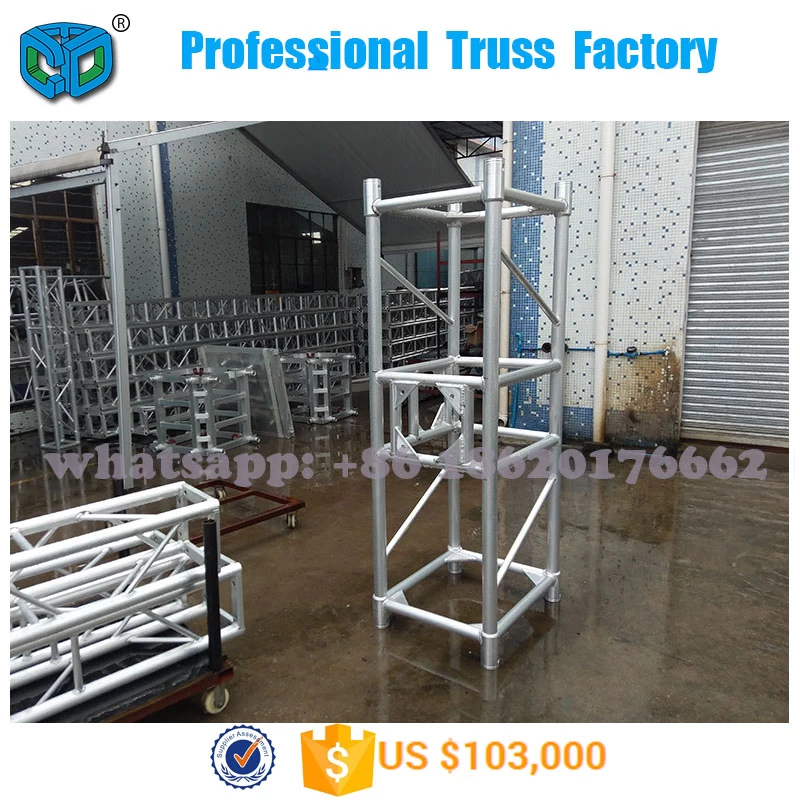

Truss Description:
Chaodastage has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are
designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage
truss structures prepared for high loading.
Chaodastage truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and
manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and
video to teach you how to use these truss.
Truss Advantages:
1. Spigot connection way, easily and quickly installation
2. Make sure delivery time
3. Cooperate with supplier over 5 years, keep quality stable
4. Aluminum material report by SGS
5. TUV & CE certificate
6. Factory audited by SGS
7. Get ISO 9001: 2008 quality manage system
What A Event Management !
|
product
|
material
|
size
|
main tube
|
brace tube
|
Vice tube
|
Shape
|
length
|
Spigot aluminum truss
|
Aluminum Alloy 6061-T6/6082-T6
|
290*290mm
|
50*3mm
|
20*2mm
|
20*2mm
|
square/traingle/ladder/Arch
|
0.5-4m
|
|
350*350mm
|
50*3mm
|
25*2mm
|
25*2mm
|
|
390*390mm
|
50*3mm
|
25*2mm
|
25*2mm
|
|
400*400mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
400*500mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
400*600mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
450*450mm
|
50*3mm
|
50*2mm
|
25*2mm
|
Specification:
|
Aluminum Alloy 6061-T6/6082-T6
|
|
Main Tube
|
Vice Tube
|
Brace Tube
|
|
50x4mm/50x3mm
|
50x2/30x2mm
|
20x2/25x2/30x2mm
|
|
Tube size base on truss size or customer's request
|
|
Span(m)
|
symmetrical load(kg)
|
Deflection(mm)
|
Centre Load(kg)
|
Deflection(mm)
|
|
2
|
1800
|
10
|
1300
|
10
|
|
3
|
1500
|
25
|
1060
|
20
|
|
4
|
1200
|
40
|
880
|
30
|
|
5
|
880
|
55
|
620
|
40
|
|
6
|
750
|
65
|
380
|
65
|
|
8
|
510
|
80
|
195
|
85
|
|
10
|
410
|
95
|
120
|
95
|
|
12
|
210
|
110
|
95
|
105
|
Chaoda has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.
Chaoda truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and video to teach you how to use these truss .
Installation:
Test report:
Packing and shipping:
Factory:
FAQ:
1. Q: What certificate do Chaoda Truss have?
A: SGS and TUV certification.
2. Q: What is the terms of payment?
A: We accept Western Union, by T/T, 30% of invoice value as deposit, 70% balance paid before shipment, and some others.
3. Q: Where is the loading port?
A: Port Huangpu in Guangzhou or Ports in Shenzhen.
4. Q: What is your packaging?
A: Air bubble film or carton or flight case.
5. Q: How long the deliver time?
A: General it is about 5-15 days.
6. Q: What is your after-sales service?
A: Free parts provided once broken within one year.
7. Q: Do Chaoda Truss accept OEM order?
A: Yes, we welcome OEM order as well.
