Traditional Steel Formworks
Panel Plate thinckness: 3mm
Rib Plate thickness: 4-5mm
Steel Grade: Q235
Finishing: Painted
Mean of Formwork Jointing: By U-clips or By Pins.
Common Size of steel formworks:

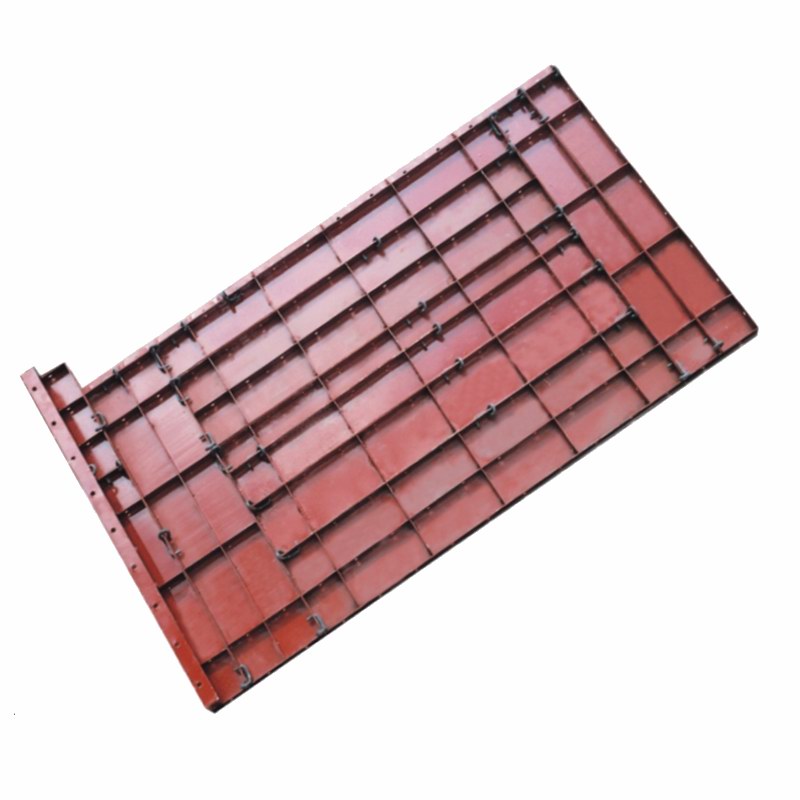

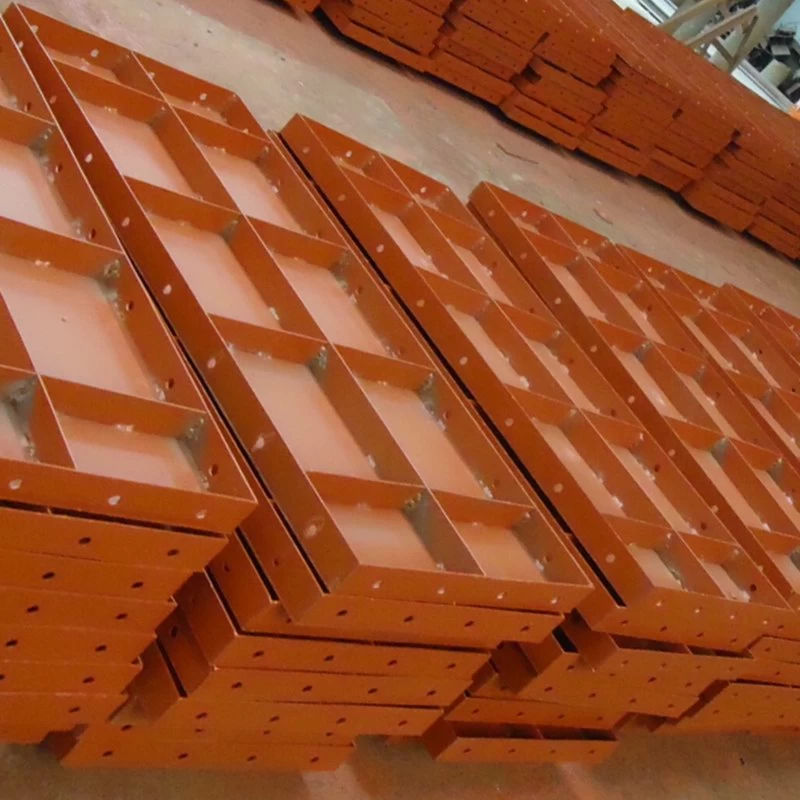

1. FLAT FORMWORK
|
Width(mm)
|
100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 800
|
|
Length (mm)
|
450, 600, 750, 900, 1200, 1500, 1800
|
|
Rib Height (mm)
|
55
|
2. INSIDE CORNER FORM
Width (mm)
|
150x150, 100x100,
|
|
Length (mm)
|
450, 600, 750, 900, 1200, 1500
|
|
Rib Height (mm)
|
55
|

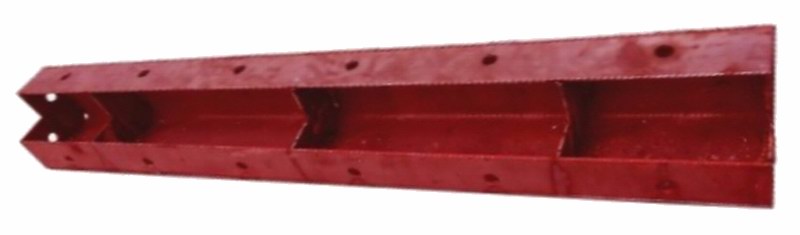

3. OUTSIDE CORNER FORM
|
Width (mm)
|
150x150, 100x100
|
|
Length (mm)
|
450, 600, 750, 900, 1200, 1500
|
|
Rib Height (mm)
|
55
|
4. ANGLE CORNER FORM
|
Width (mm)
|
50x50
|
|
Length (mm)
|
450, 600, 750, 900, 1200, 1500
|
|
Rib Height (mm)
|
55
|

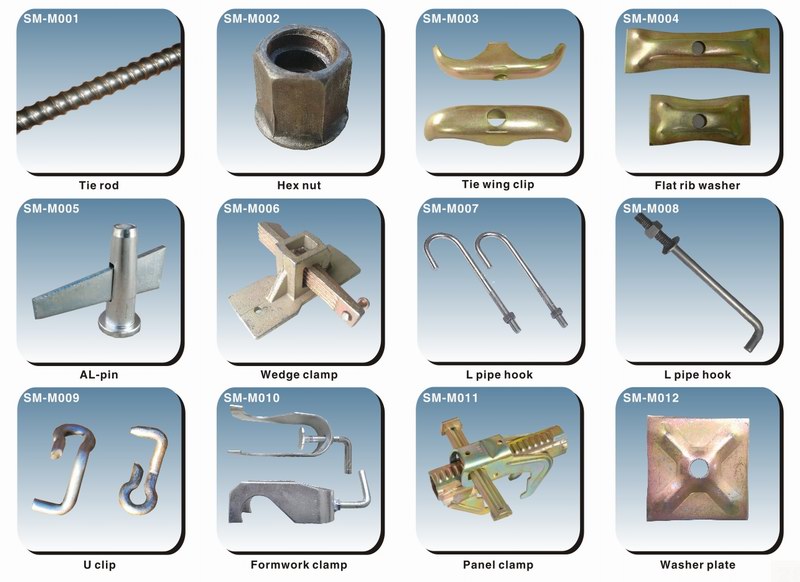

5. FORMWORK ACCESSORIES
