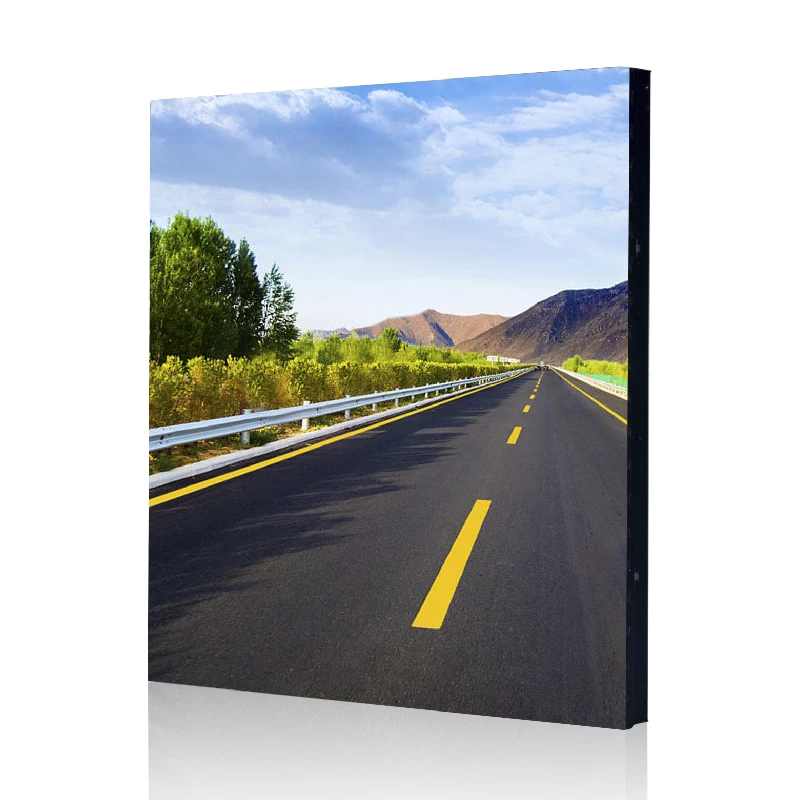

Traffic Signs Message LED Display DIP346 High Brightness 7500cd P16 Outdoor Transportation Screen
Features of 960x960mm cabinet size outdoor rental screen P16:
1、High brightness reach to 7500cd/㎡.
2、High waterproof and dust-proof with IP65.
3、Good heat dissipation and cost-effective.
4、SMD3535 for outdoor usage with big viewing angle.
5、Side lock system with quick and seamless installation.
SPECS
Pixel Pitch
|
16mm
|
LED Package
|
DIP346
|
Pixel Density
|
3,906 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 7500cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
256x256mm
|
Cabinet Size
|
1024x1024mm
|
Cabinet Material
|
Iron
|
Viewing Distance
|
16-100M
|
Drive Mode
|
static
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
