Transportation Vibration Tester GT-M11

Transportation Vibration Tester is used to simulate the goods in transit, encounter different road conditions such as bumpy, uphill, downhill, cornering, etc.


  • standardISTA, ASTM D999
  • certificate ISO 9001, UKAS, CE


Transportation Vibration Tester

Applications:

The Transportation Vibration Tester GT-M11 is to simulate the goods in transit, encounter different road conditions such as bumpy, uphill, downhill, cornering, etc., products in the car produce the collision between goods and goods or goods and car and the extrusion between goods and goods, etc., causing damage to the products, so that the quality of goods and goods packaging can be further improved. Mainly used for vibration test of toys, electronics, furniture, gifts, ceramics, communications, equipment, computers and car parts.


Standards:

  ISTA

  ASTM D999


Feature

1. Have buffer start function, work medium noise very low.

2. Digital meter shows the vibration frequency

3. Synchronization silencing belt transmission

4. The sample clamping adopts guide rail type, easy to operate and safe

5. The machine base adopts heavy channel steel with vibration damping pads, easy to install, operate steadily, no need to install foot screws

6. Dc motor speed regulation, smooth operation, strong load capacity

7. Rotary vibration (commonly known as monkey type), Accord with standard of Europe and the United States transportation

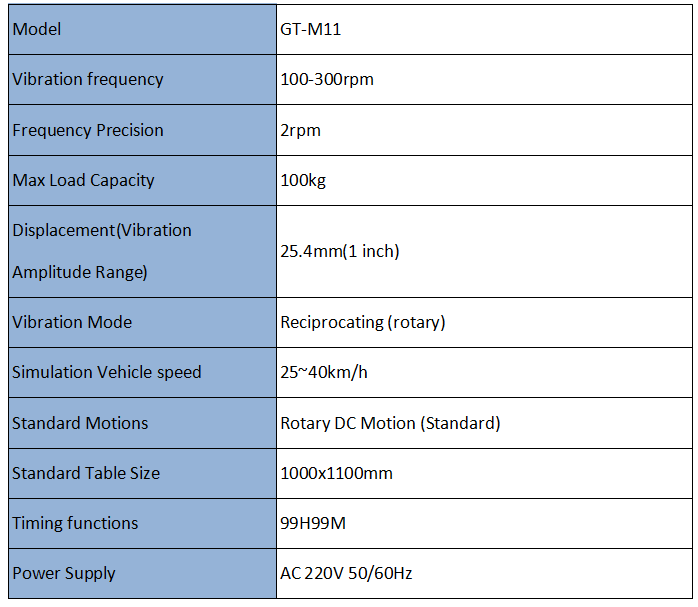

Key Specifications

Transportation Vibration Tester GT-M11



The purpose of Transportation Vibration Tester:

The purpose of Transportation Vibration Tester is to make a series of controllable vibration simulations in the test, to test whether the product can withstand the influence of transportation or vibration, and also to determine the product design and functional requirements.


Notes:

1) When putting the sample on the platform, be sure to put it firmly and tighten the screw lock;

2) During the test, when the sample is found to be unclamped, it should be re-clamped after stopping the machine, and it is strictly forbidden to operate when the machine is not stopped;

3) Put the sample in the middle of platform as much as possible;

4) The sample should not exceed the testing platform and should not be overloaded.

Transportation Vibration Tester

Transportation Vibration Tester
