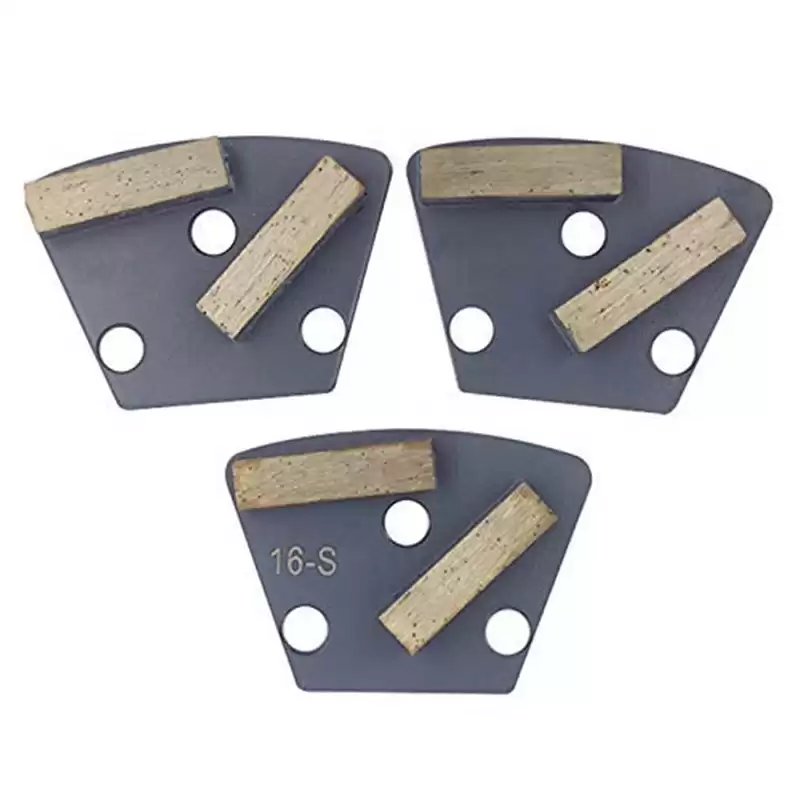

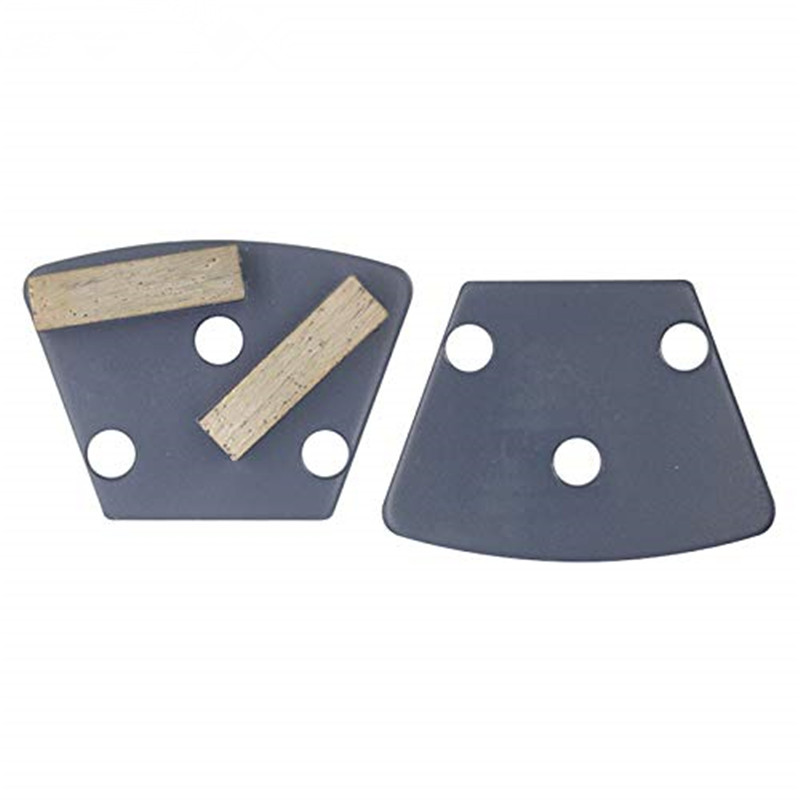

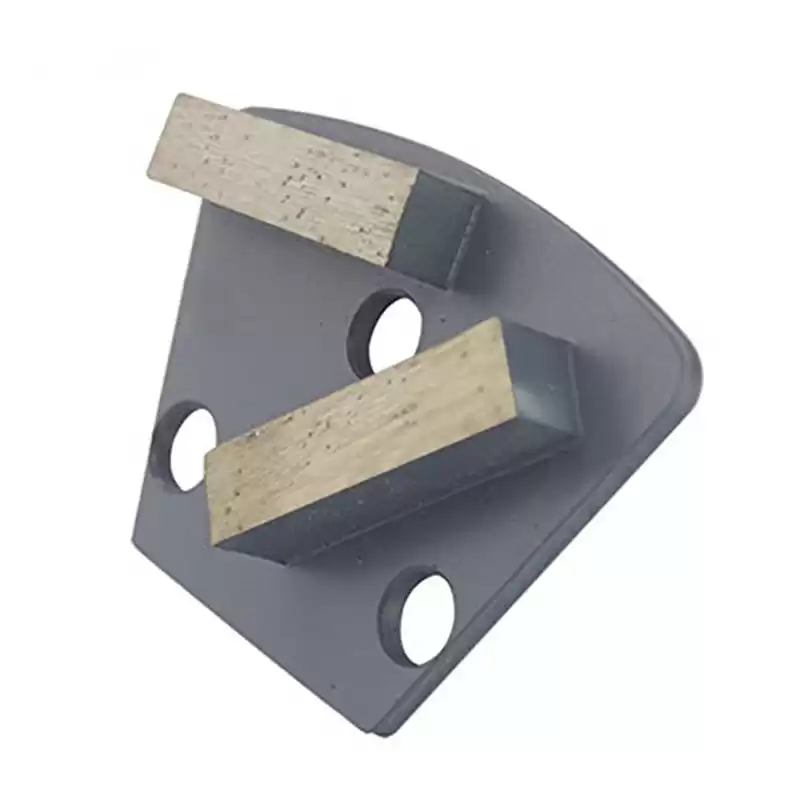

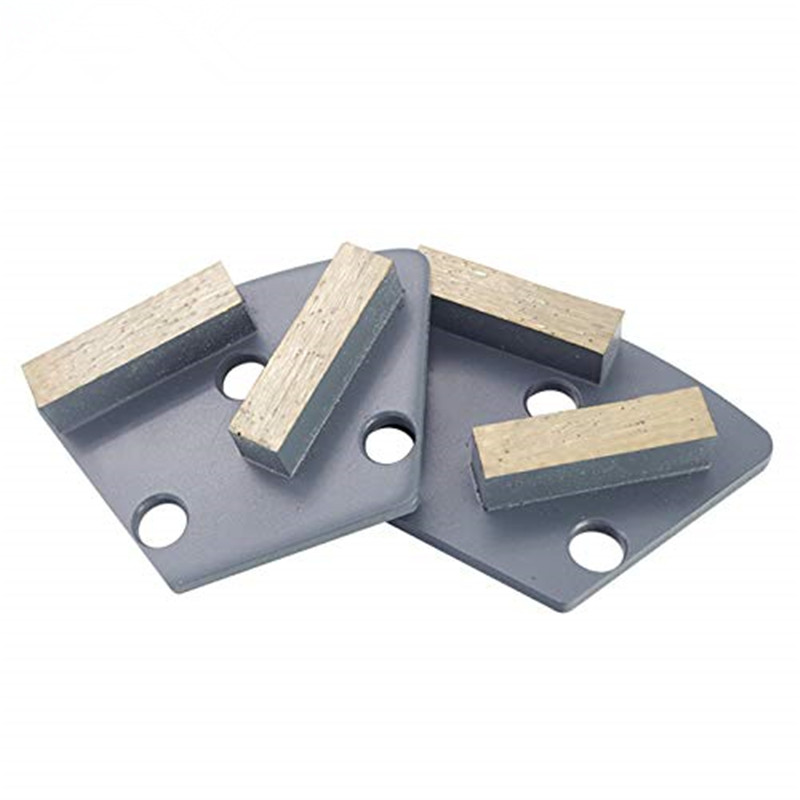

TRAPEZOID DIAMOND CONCRETE GRINDING SHOES FOR FLOOR GRINDER
DESCRIPTION:
JINSHAN trapezoid diamond grinding shoes are designed for ASL floor grinding machines. There are two excellent 10mm height diamond segment bars which provide high performance and long lifespan.
SPECIFICATIONS:
Available grits: 6# 12# 16# 25# 40# 80# 120# 150# 170# 200# 230# 320# 400#
Segments size: 40x10x10mm
Segments number: 2pcs
Application: for grinding concrete and terrazzo floor.

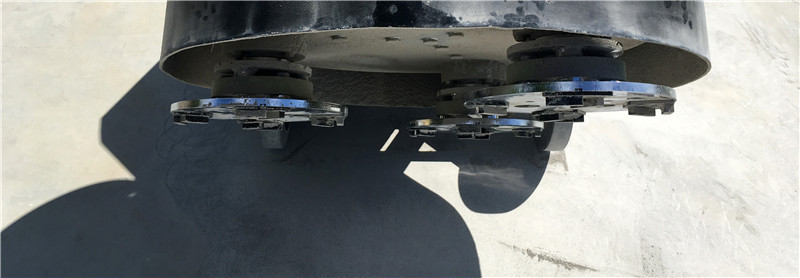

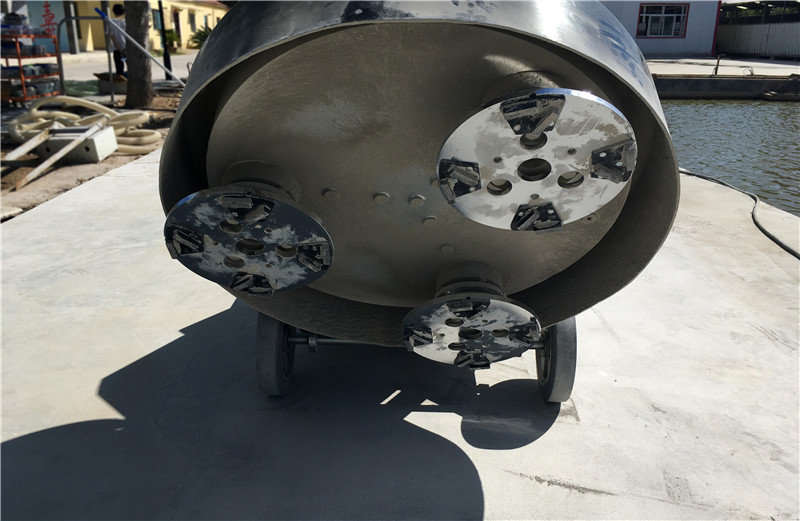

Applied machines: suit for most floor grinders, like ASL, etc
PACKING DETAILS:
1.9pcs per box
2.12 boxes each carton
FEATURES:
1.Different hardness bonds can be provided for different kinds of floor.
2.High efficient for the roughest situations such as the removal of very persistent coating.
3.Excellent wear resistance, lower cost, better surface finish.
SUMMARY OF BASIC FLOOR POLISHING STEPS:
Remove existing coatings (for thick coatings, use a 16- or 20-grit diamond abrasive or more aggressive tool specifically for coating removal, such as a T-RexTM).
Seal cracks and joints with an epoxy or other semi-rigid filler.
Grind with a 30- or 40-grit metal-bonded diamond.
Grind with an 80-grit metal-bonded diamond.
Grind with a 150-grit metal-bonded diamond (or finer, if desired).
Apply a chemical hardener to densify the concrete.
Polish with a 100- or 200-grit resin-bond diamond, or a combination of the two.
Polish with a 400-grit resin-bond diamond.
Polish with an 800-grit resin-bond diamond.
Finish with a 1500- or 3000-grit resin-bond diamond (depending on the desired sheen level).
Optional: Apply a stain guard to help protect the polished surface and make it easier to maintain.
FAQ:
How much is this trapezoid grinding shoes?
The prices of this grinding shoes are vary from different grits, please contact us for more information regarding price.
