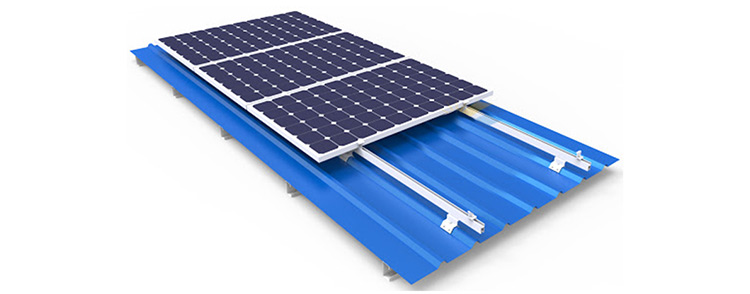

Trapezoid Metal Solar Roof Mounting System
Trapezoidal roof sheeting is an efficient and cost-effective roof covering material most commonly used on roofs over 5 degrees pitch. This makes it a common roof covering for factories and large stores and more. Combined with photovoltaic energy system, making full use of the roof can not only protect the environment and utilize renewable resources, but also increase revenue. existing metal roof it makes trapezoidal roofs a great option for solar PV.

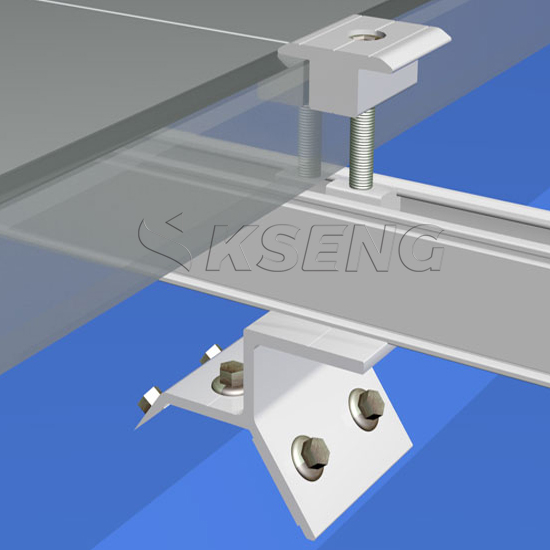

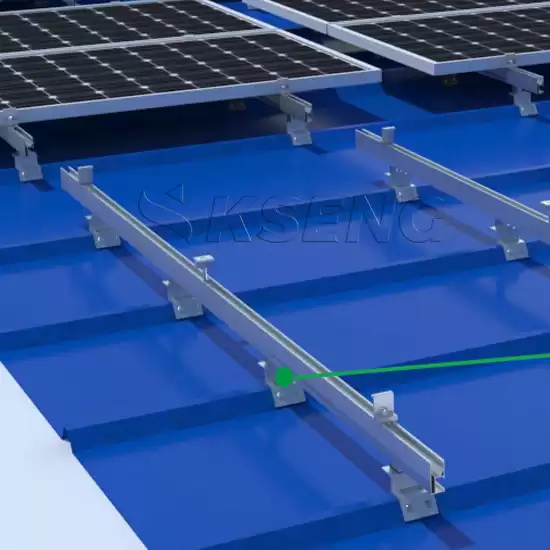

The most common and cost-effective solution is to secure short rail lengths, normally aluminum, directly to the roof surface with thin sheet screws or rivets then place the panels directly on these rails and hold them in place with the use of panel clamps.
Solar metal roof mounting with clamps are suitable for roofs with trapezoidal metal panels. It can speed up the installation speed, improve competitiveness and improve reliability. The system fully complies with the international standards for wind and snow load and corrosion resistance is achieved through anodized structural grade aluminum and stainless steel components,making it suitable for various climate regions. The metal clamp installation system provides a perfect solution for installation on metal roofs. The roof is fixed using high-strength metal fixtures, which is almost suitable for most metal roofs.
|
Material:
|
Aluminum 6005-T5& SUS 304 Stainless Steel
|
|
Application:
|
Trapezoid Metal Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/UL/CE/SGS
|
Pv Modules:
|
Framed or Frameless
|
Anti-Corrosive:
|
Anodized
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Components:
|

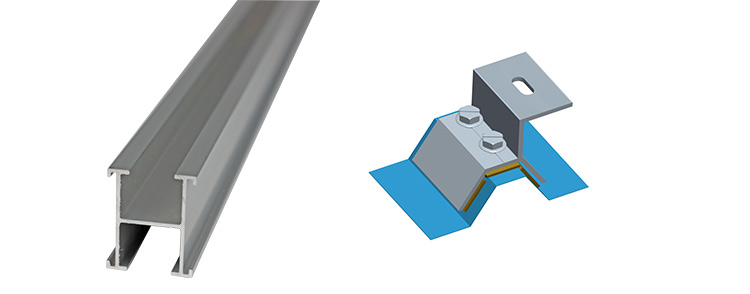

Trapezoid Solar Clamps, H Shape Rails, Solar Mid End Clamps etc.
|
