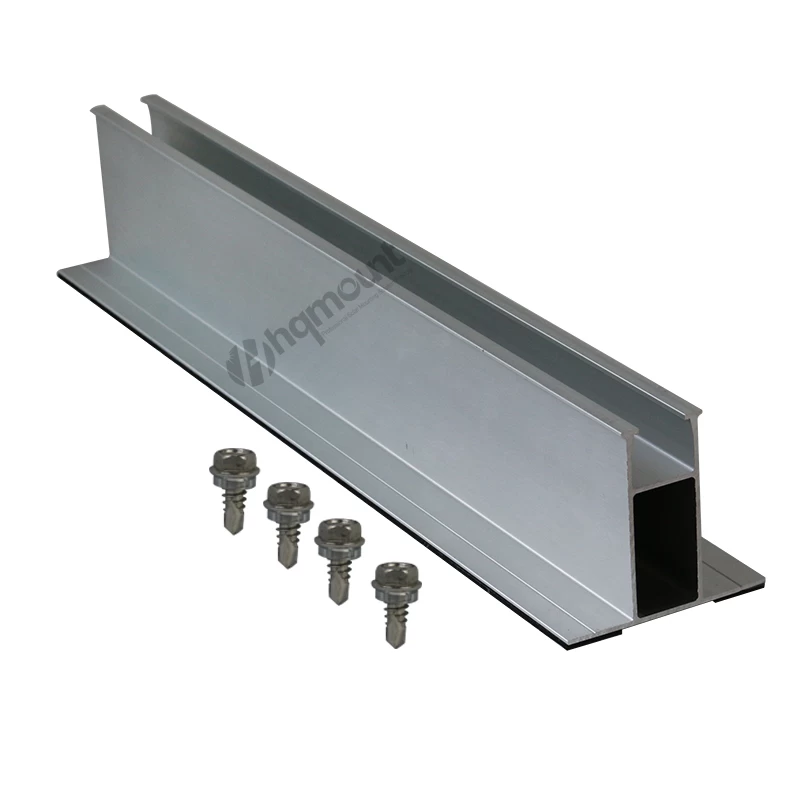

Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM

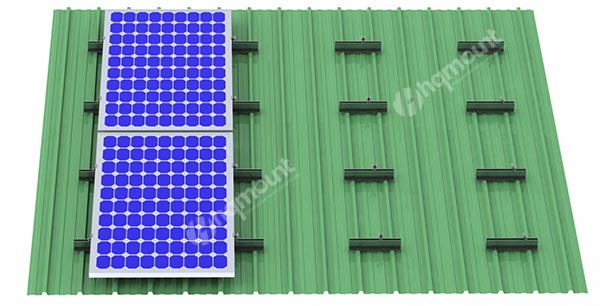

Suitable for corrugated metal roofs with trapezoidal roof profile-solar panels arranged in portrait/ landscape mode.

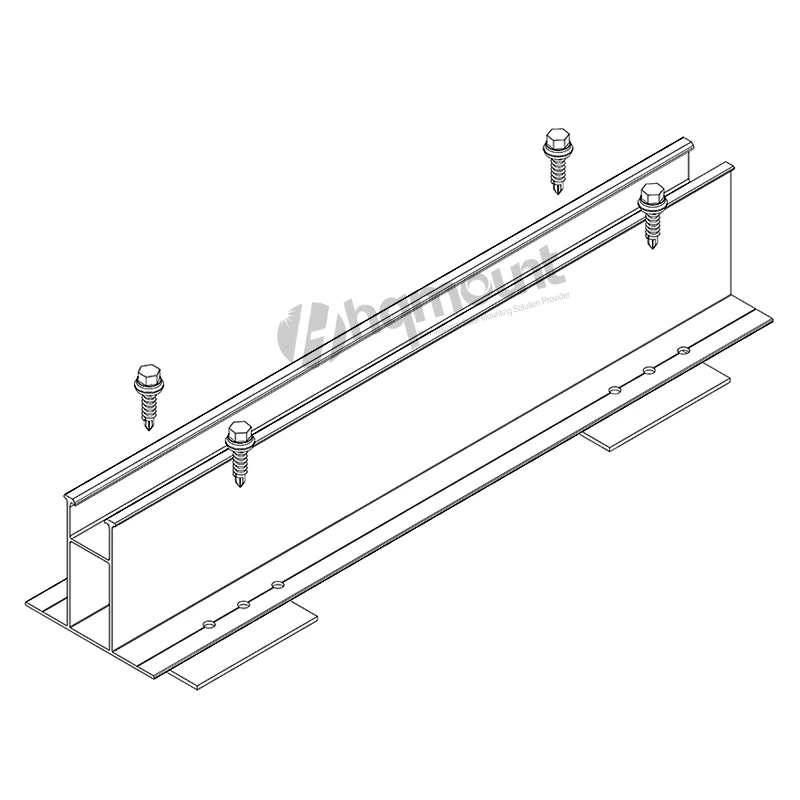

Mounting structure components include:
Slotted rails

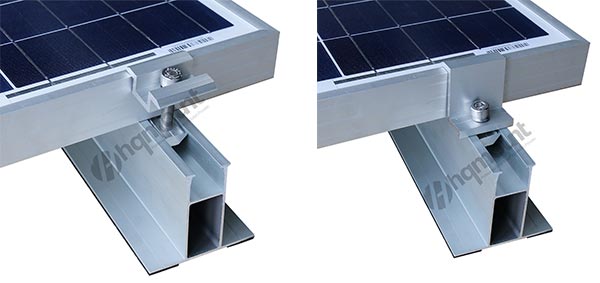

End and mid clamp
Rubber gasket
Nut and bolts
|
Product name
|
Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM
|
|
Install Site
|
Trapezoidal Metal Roof /Corrugated Metal Roof
|
|
Applicable Module
|
Framed or Frameless
|
|
Max Wind Speed
|
up to 60m/s
|
|
Snow Load
|
Up to 1.4KN/m2
|
|
Material
|
Aluminum alloy
|
|
Module Orientation
|
Portrait or Landscape
|
|
Warranty
|
12 Years warranty
|
|
Duration
|
25 years
|
Advantages:
1. Mini rail supports solar panel without aluminum rail.
2.Three parts only, save 40% installation time at least.
3.Easy to mount with screw.
4.Anti-corrosion and rust-resistance.
