Trapezoidal Metal Roof Solar Mounting System

Trapezoidal Metal roof mounting system is designed for trapezoidal shape metal roof sheet. It can be well fixed on rooftop,directly without aluminum rails to save cost.









 Trapezoidal Metal Roof Solar Mounting System

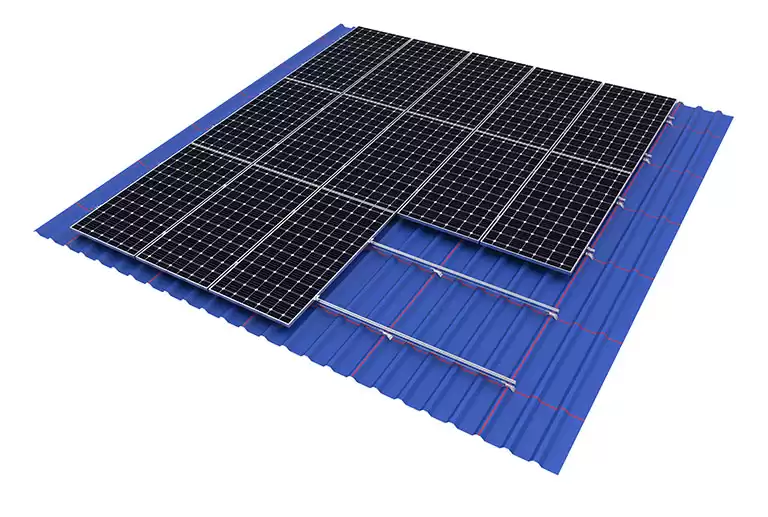

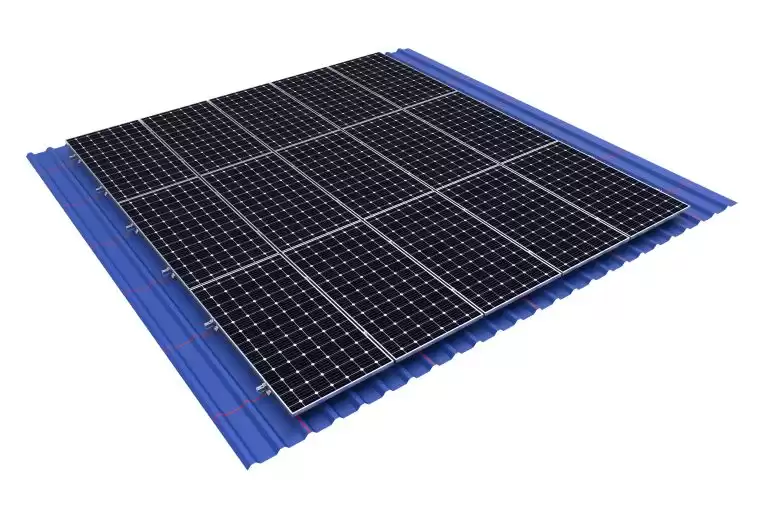

          Trapezoidal metal roof mounts is suitable for trapezoidal metal roofs solar mounting installation. It is usally applied to commercial and industrial trapezoidal roof solar projects. The system can achieve stable and strong connection between roof support structure and solar panel with modular patented mounting structure design.Pre-assembled kits save installation time and cost on site.


☆ Safety and Good Stability

The system designed by skilled engineers can meet the international standards, The main support components should be tested to ensure the strength ,stable and safe,
☆ Easy installation
All components are pre-install which help saving labor cost and time
☆ Various Solution
This system is customized  to fit for the trapezoidal metal roof size with proper trapezoidal clamps.


Technical Parameters


Installation Site: Trapezoidal Metal Roof
Material: SUS304, AL6063-T5/6005-T5
Tit Angle: Flushed with roof,up to 60 deg
PV Modules: Framed, Frameless
Module Layourt: As Designed Portrait and Landscape
Wind load: 60m/s
Snow Load: 1.4KN/m2
Building height: up to 20m
Standards: AS/NZS 1170& DIN 1055
Warranty: 10 years warranty

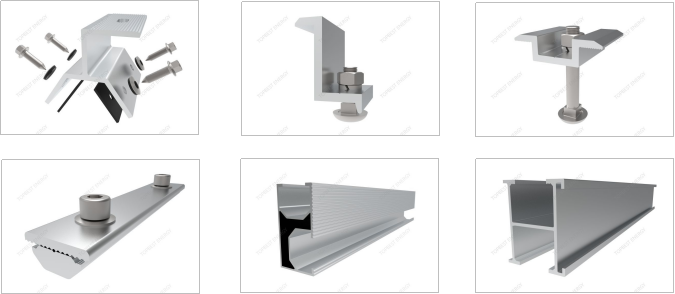

Components

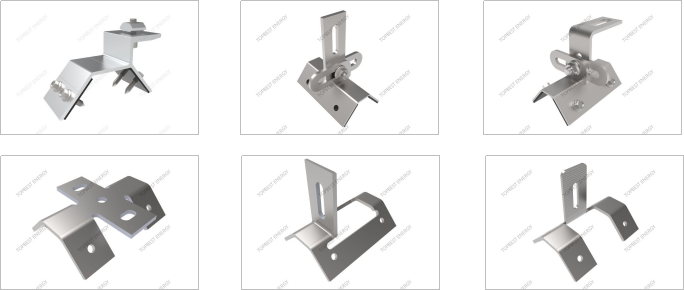

Optional Trapezoidal Clamps
