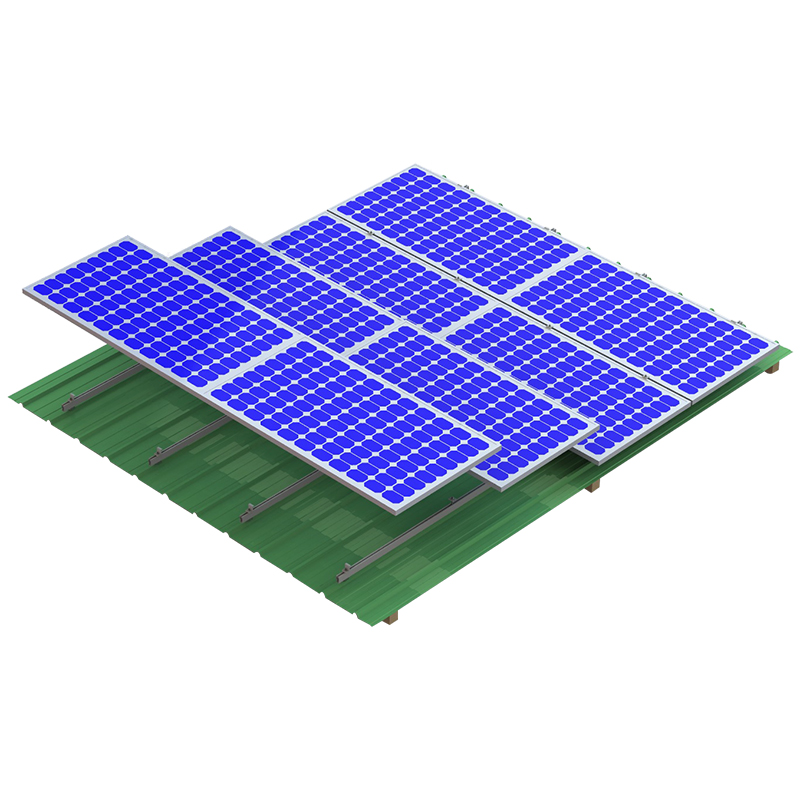

Installation Site：Pitched metal roof
Building Height：Up to 20m
Max Wind Speed：60 m/s
Snow Load：Up to1.4KN/m2
standards：JIS C8955:2011 and AS/NZS 1170
Material：SUS304 & AL 6005-T5
Color：Natural
Anti-corrosive：Anodized
Warranty：12 years warranty
Duratiom：More than 20 years

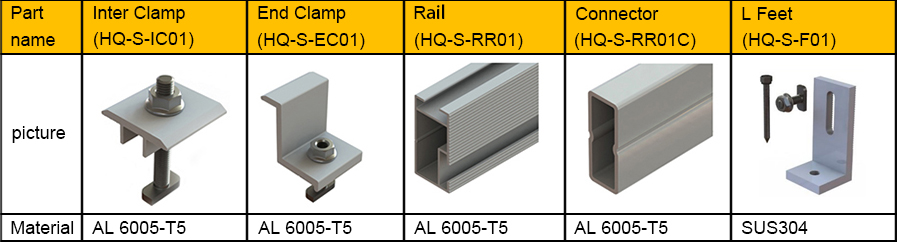

Components List

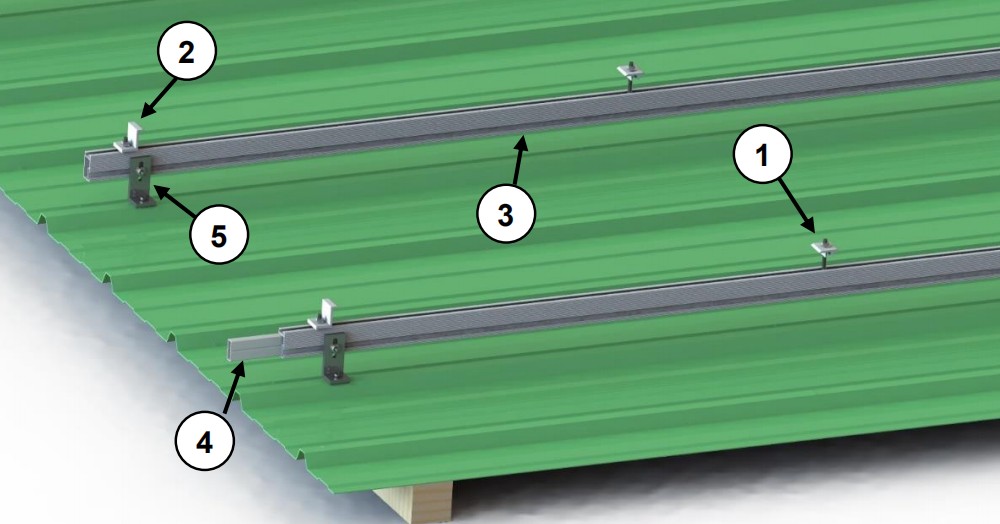

Overview of system components
1. Inter Clamp
2. End Clamp
3. Rail
4. Connector
5. Hook

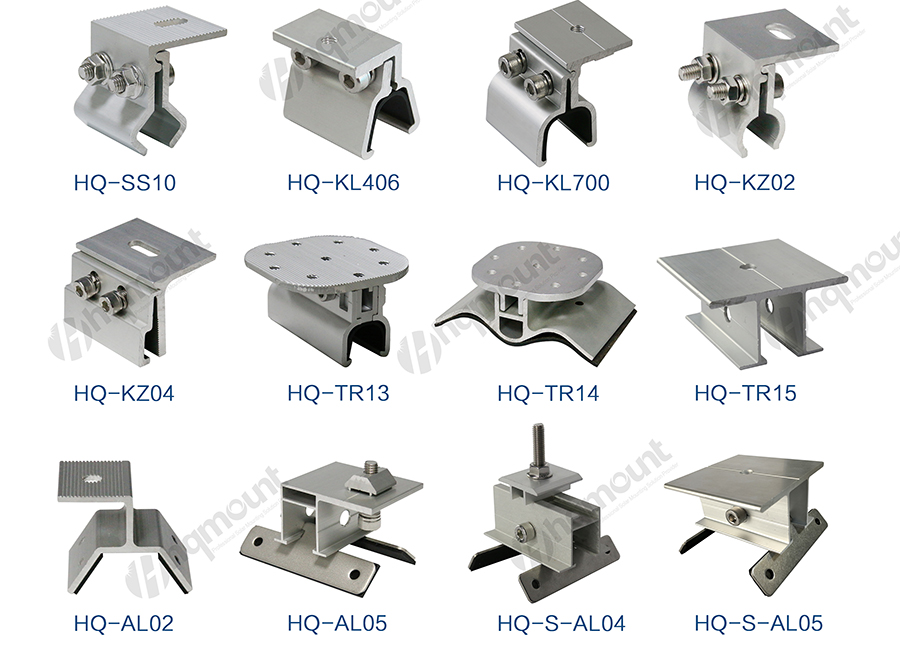

L Feet installation

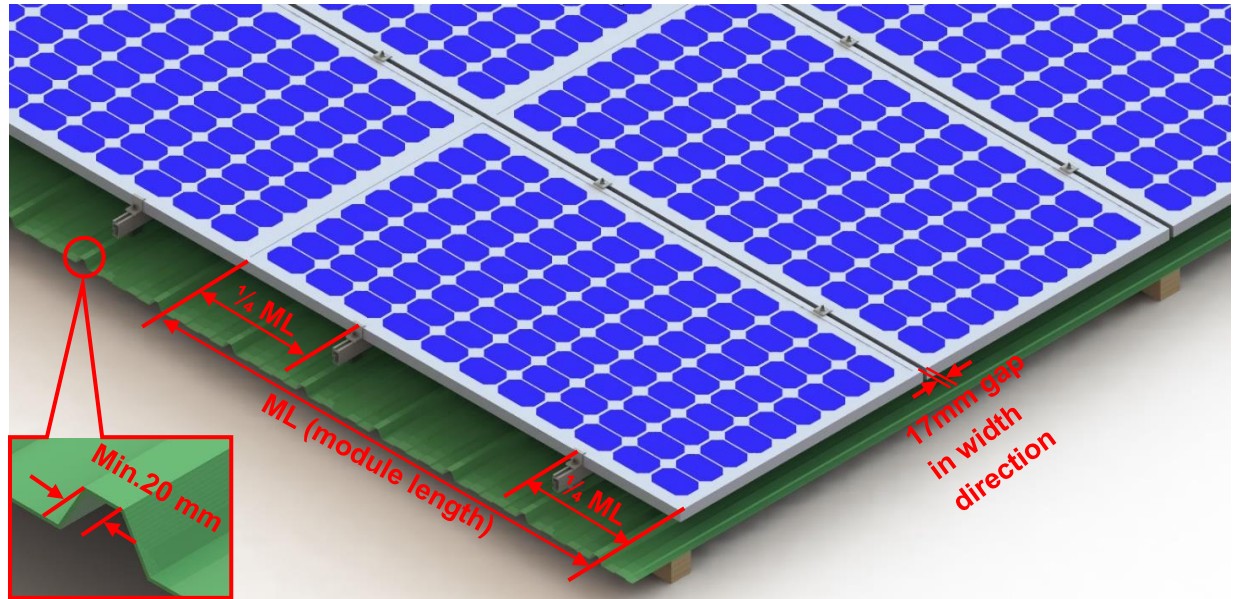

− The top edge of trapezoidal roof should be 20mm minimum in length.
− It is suggested to fix solar panel with ¼ of total panel length between the end edge
and rail.
− The gap between two solar panels is ideally 17mm in width direction.

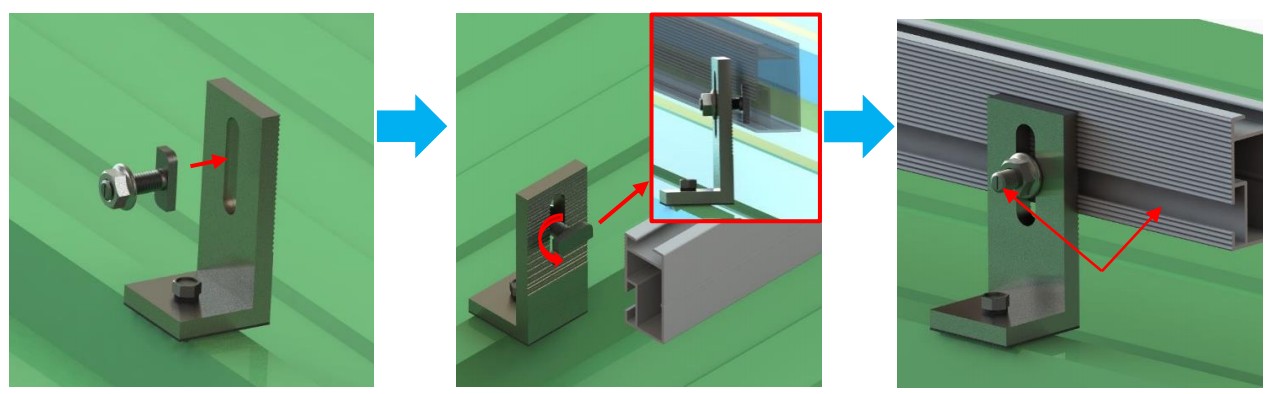

Fix the rail to L feet
a.Plug the bolt through the groove of L feet.
b.Attach the bolt into the groove of rail, rotate the bolt to engage the groove.
c.Fasten the bolt to fix the rail, make sure the mark at the bottom of the bolt is vertical to the groove.

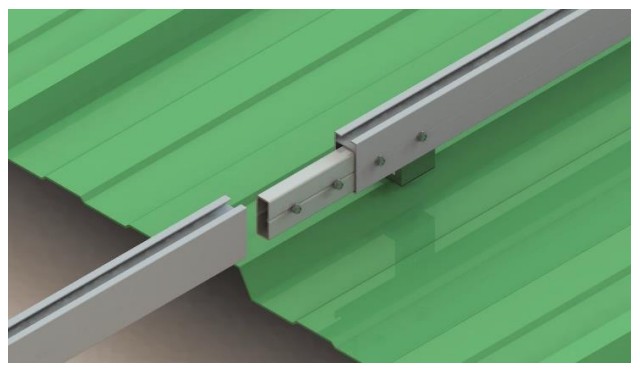

Installation of two rails with connector
Connect two rails together, slide the connector on the rear side of the pre-assembled rails halfway to the side, then fasten with four pieces of self tapping screw firmly.
