 City Trash Compactor Vehicle SINOTRUK 20 CBM


Refuse collector Garbage Compactor SINOTRUK (20 CBM)


Function:

City garbage compactor truck SINOTRUK 20 CBM (also called as Rear loader garbage truck, garbage compacting truck, refuse compactor truck, rubbish compactor truck, industrial garbage truck, garbage collection truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- SINOTRUK truck chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Refuse collector Garbage Compactor SINOTRUK (20 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

SINOTRUK

Overall Dimension

10070 * 2500 * 3480 mm

GVW / Kerb Weight

25,000kg / 13,680kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

SINOTRUK

Power

300 HP (221KW)

Displacement

9726 ml

Emission Standard

Euro 2or 3

Chassis

Drive Type

6X4, (left hand drive or Right hand drive)

Transmission

9 speed levers with 1 reverse

Wheelbase/No. of axle

4350+1300 mm / 3

Tire Specification

10.00-20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

20  CBM

Fill Hopper Capacity

2.3 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.



  technical drawing for 3 Ton Isuzu Garbage Truck With Compactor


Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck

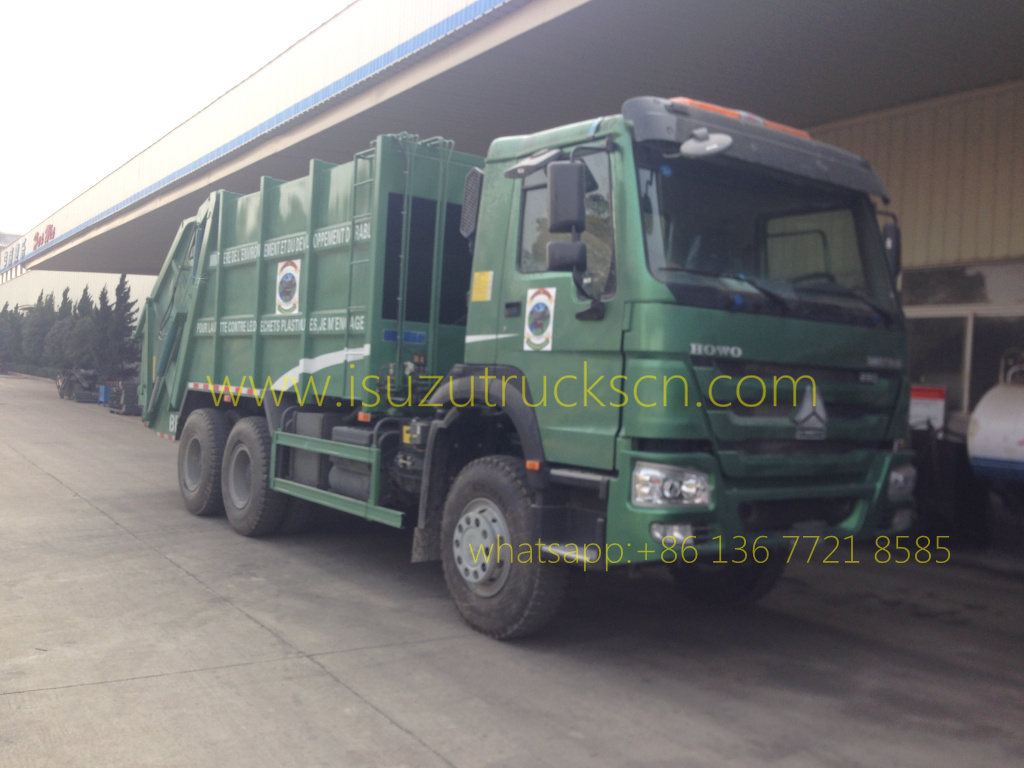

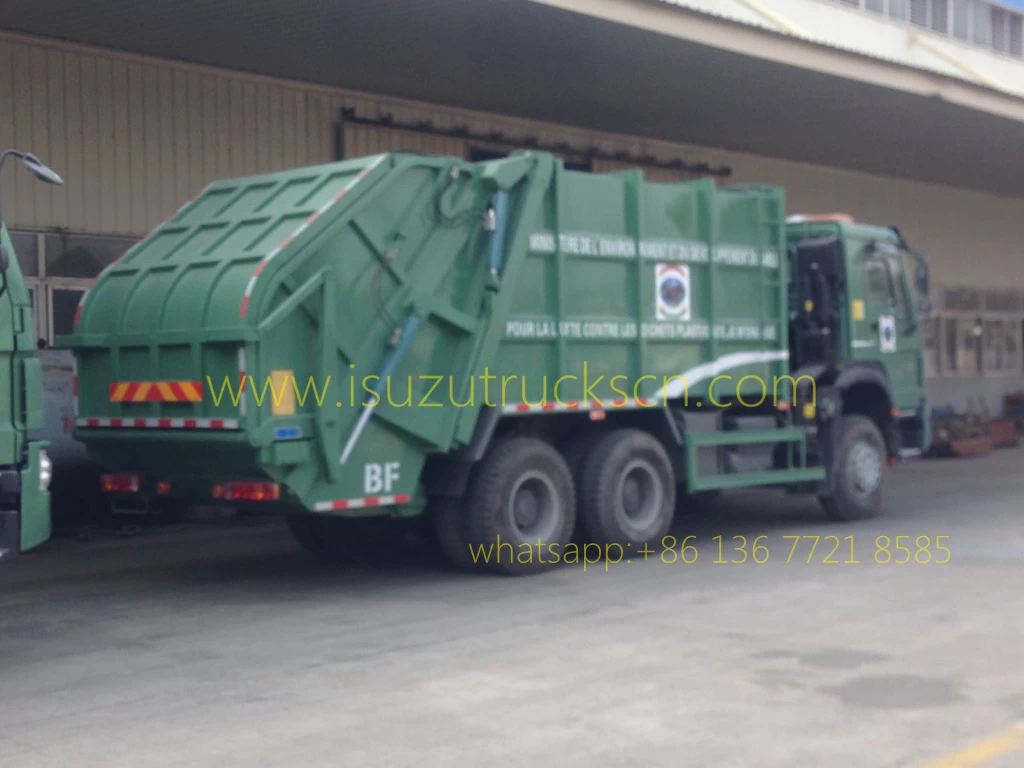

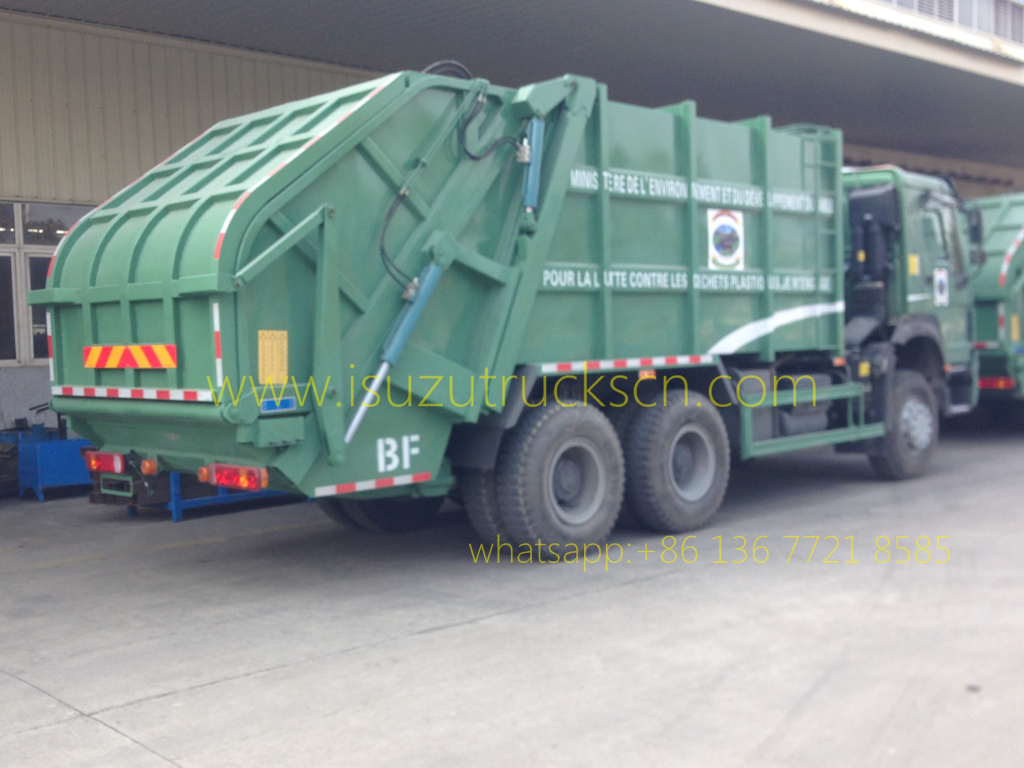

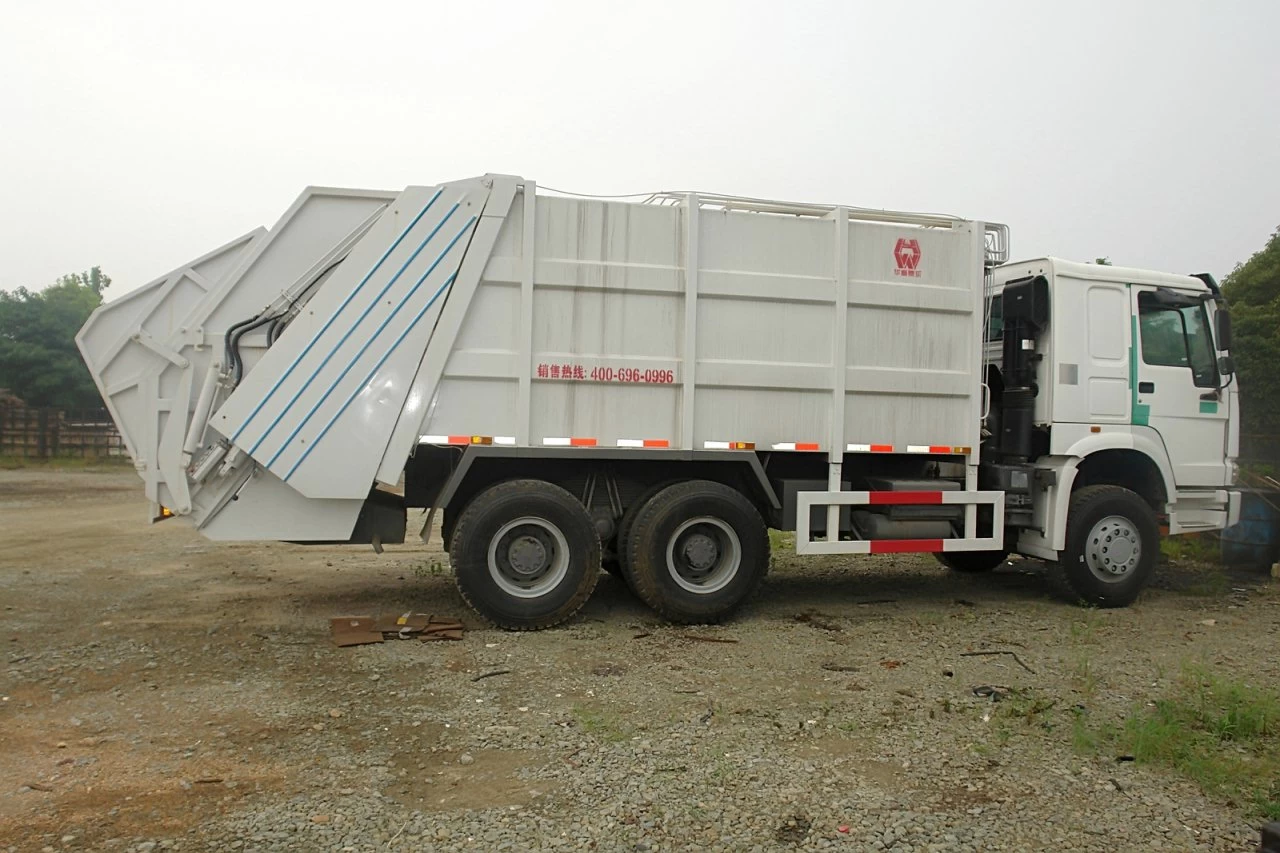

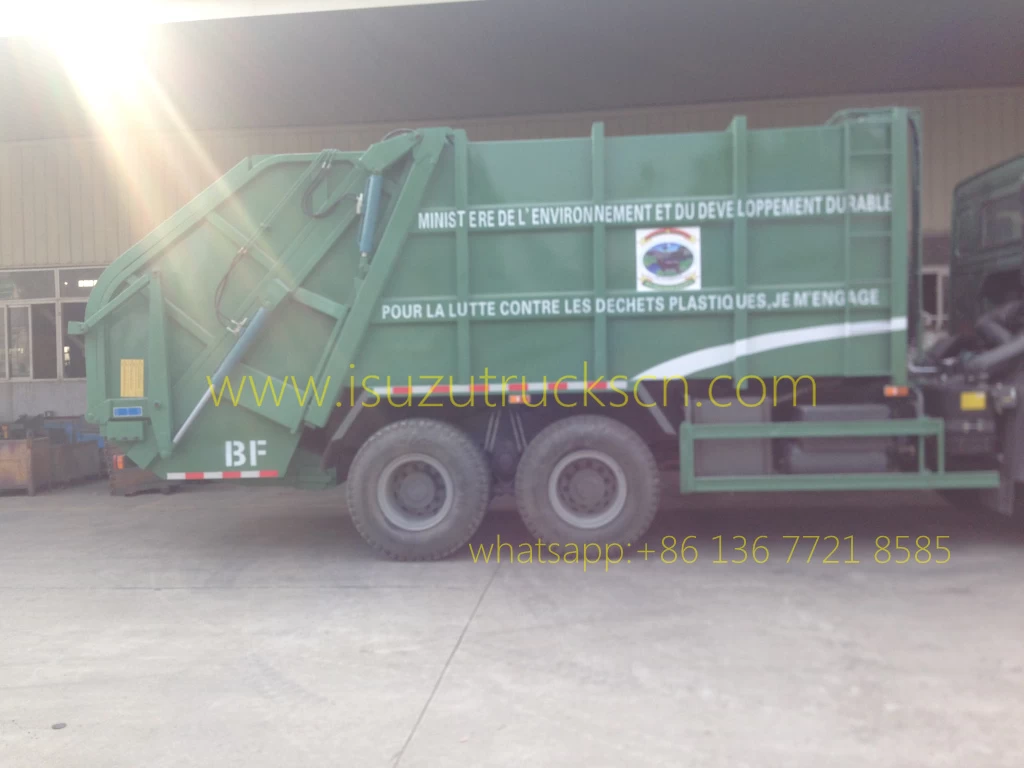

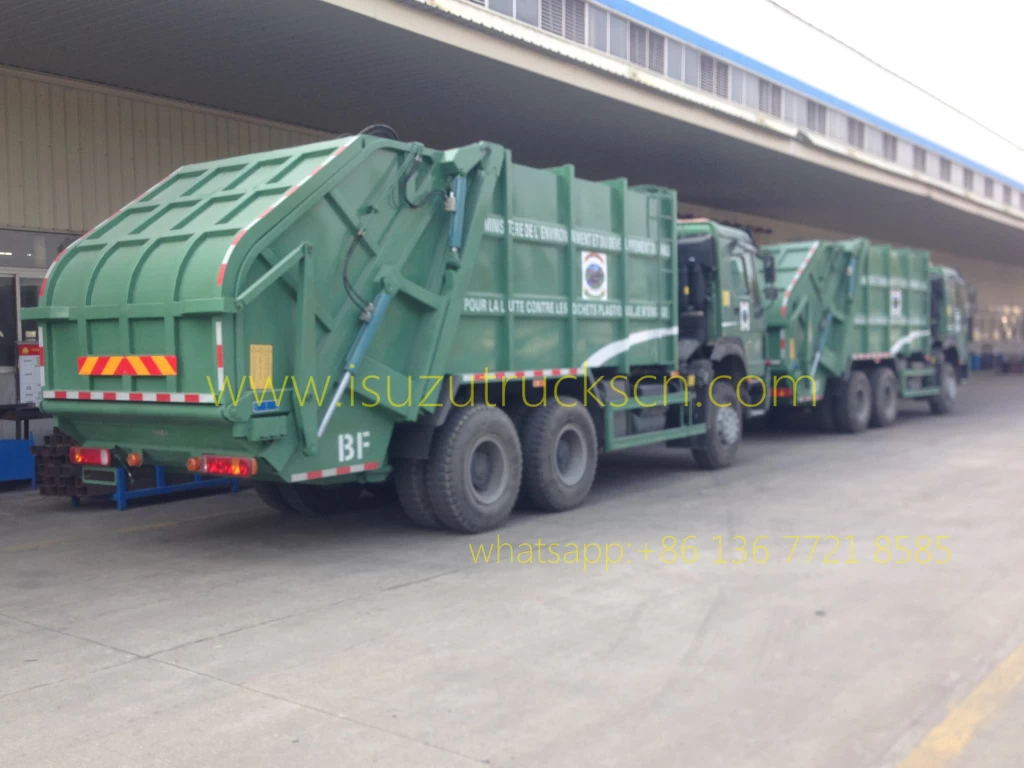

Detail pictures:

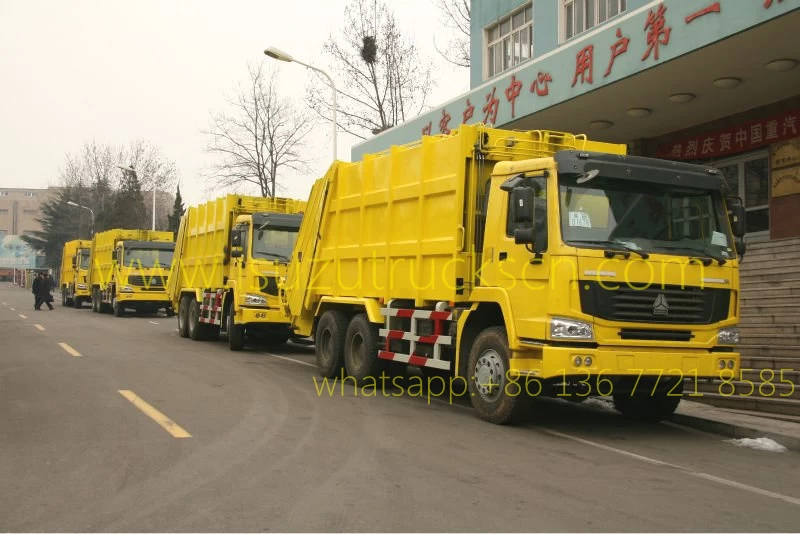

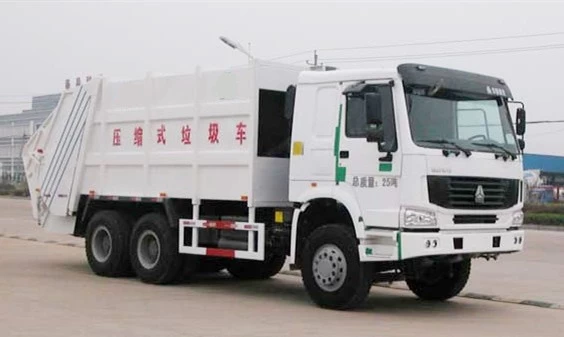

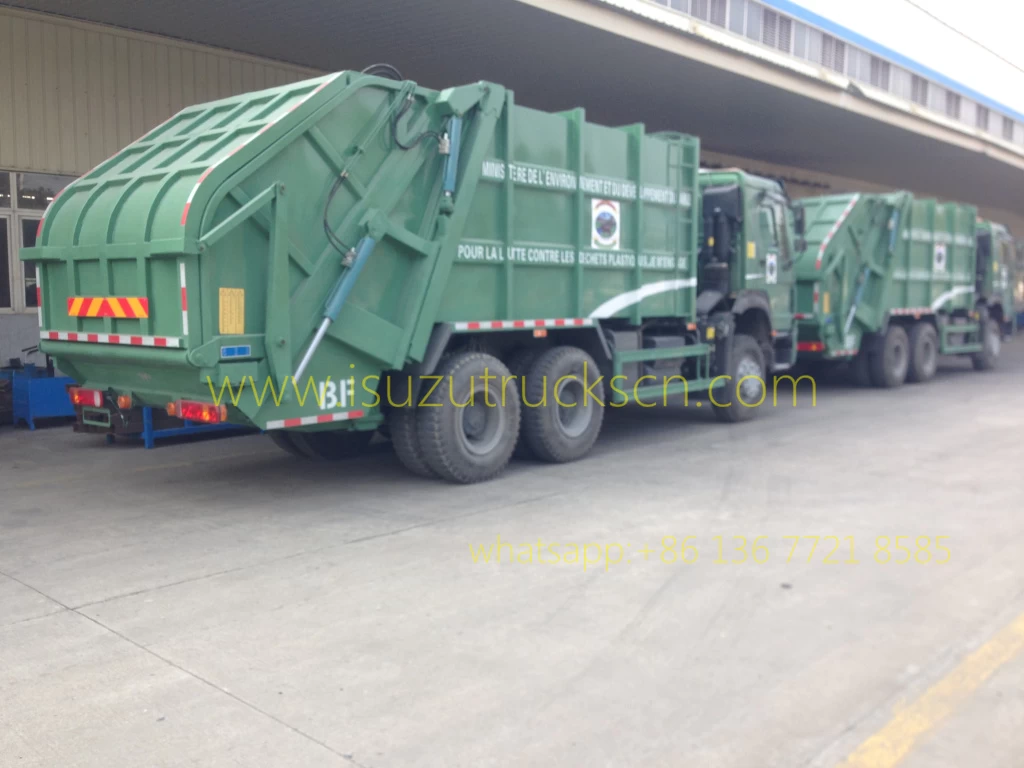

Refuse collector Garbage Compactor SINOTRUK (20 CBM) specification and pictures


Refuse collector Garbage Compactor SINOTRUK (20 CBM) specification and pictures


Refuse collector Garbage Compactor SINOTRUK (20 CBM) specification and pictures


Refuse collector Garbage Compactor SINOTRUK (20 CBM) specification and pictures

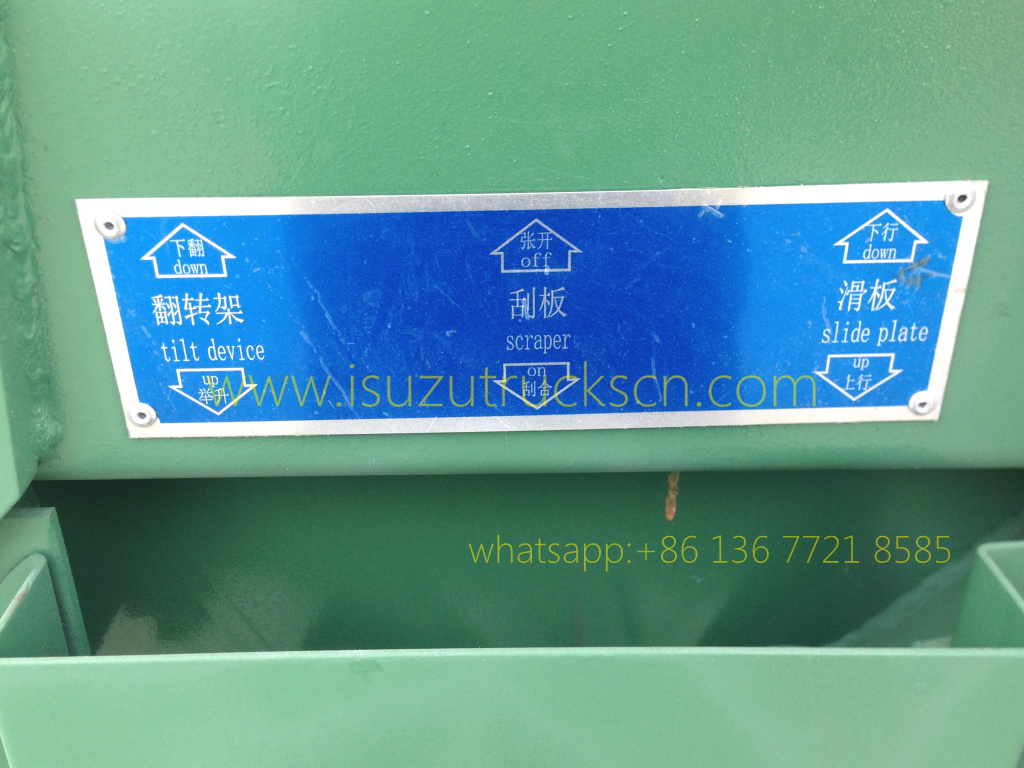

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?


Operation manual for Isuzu refuse compactor garbage trucks


Operation manual for Isuzu refuse compactor garbage trucks
