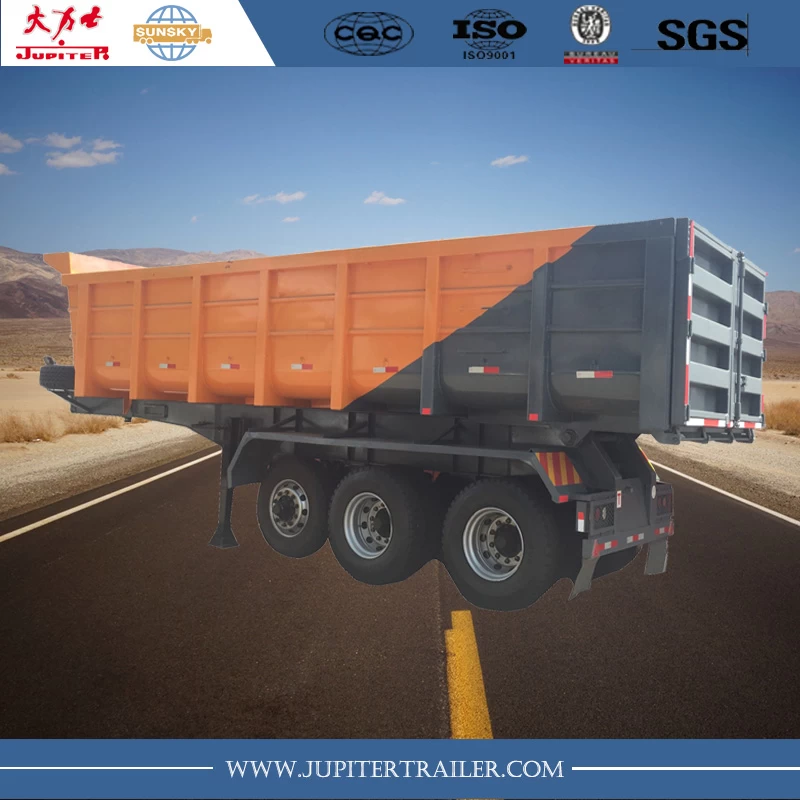

Sunsky brand 3-axle tipper semi-trailer
1.Heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B steel.
I beam welded by automotive arc-submerge process.
2.Equipped famous brand part in axles,suspension，landing gear.Higher property for your
transportation.More reliable and ensure the long life span of trailers.
3. SUNSKY Trailer have quality guarantee,some easily broken parts will be delivered with trailers.
Spare parts like tires ,axles etc. can be supplied to you in cost price!
4.Dump trailer produced by SUNSKY is your ideal equipment of transportation.Normally carrying
sand, stone,mine,garbage etc.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
27cbm-40cbm 3-axle tipper semi-trailer
|
|
Feature:
|
Carry Sand, Stone, Mine, Garbage and so on
|
|
Dimension(L*W*H):
|
9700*2480*3300mm (27CBM)
10100*2480*3300mm(33CBM)
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
The thickness of body
|
Side wall: 6mm
Bottom floor: 8mm
|
|
Model:
|
SS9600TJZT
|
|
Capacity(CBM):
|
27CBM-40CBM
|
|
Tare weight(kgs):
|
9,300kgs(27cbm)
10,500kgs(33cbm)
|
|
Kingpin:
|
The world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing gear:
|
JOST brand two-speed manual operation 19”
|
|
Tire size:
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle:
|
Original BPW-12T/ FUWA-13T
|
|
Suspension
|
Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
|
|
Brake system:
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Hydraulic system
|
Hyva brand
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool
|
|
We can build the trailers according to customer’s design and requirement
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company in Hong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30 years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
