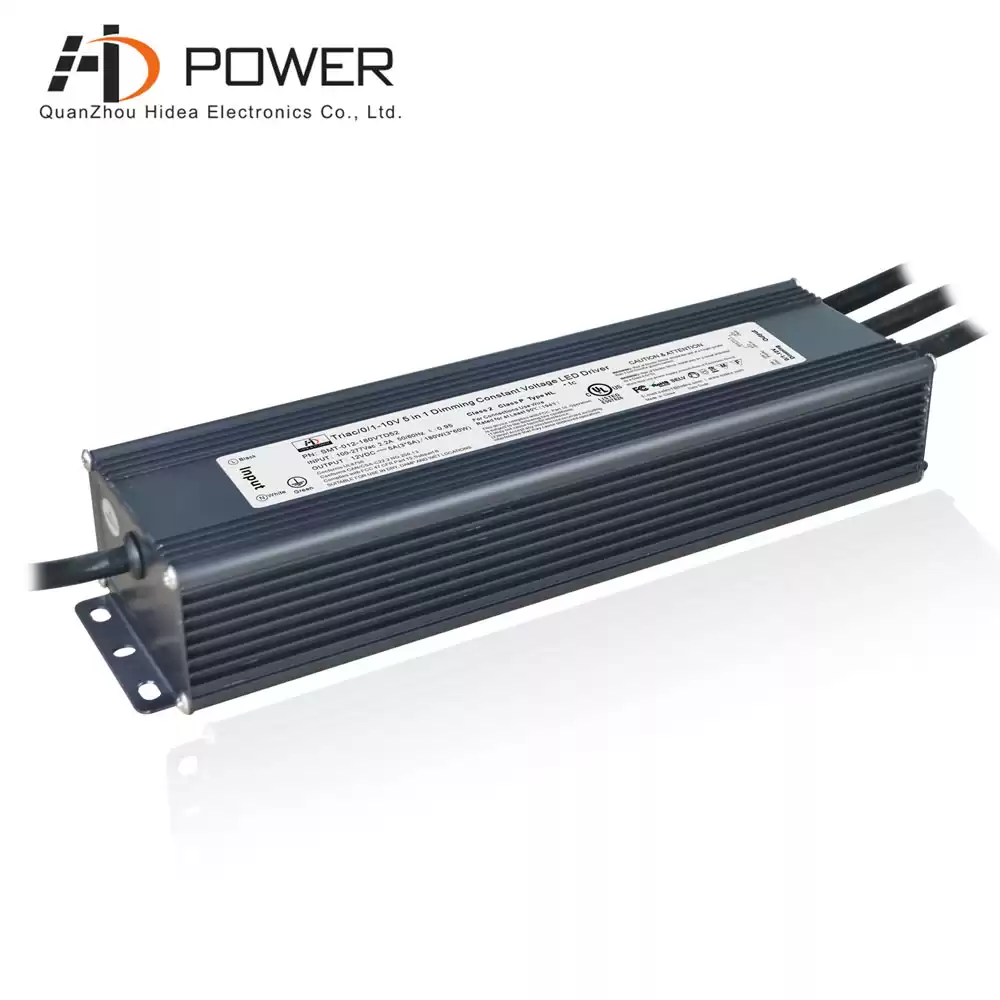

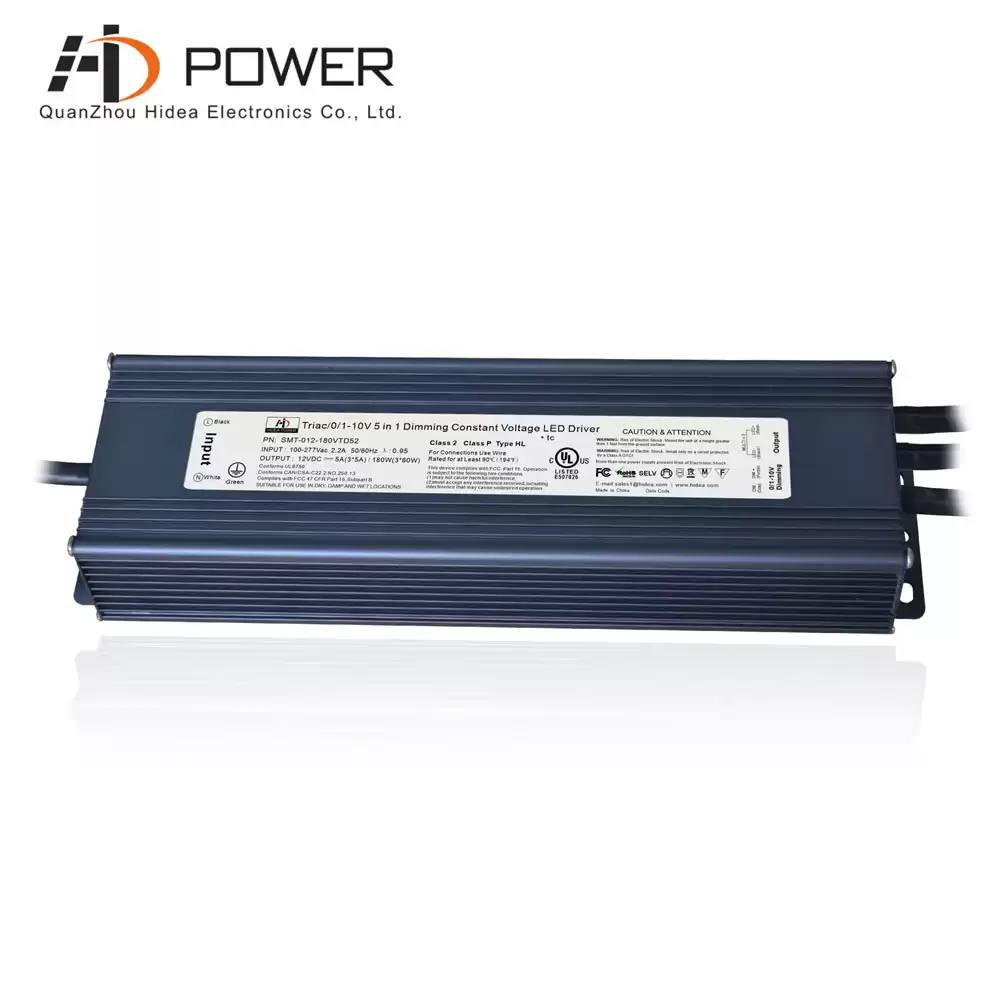

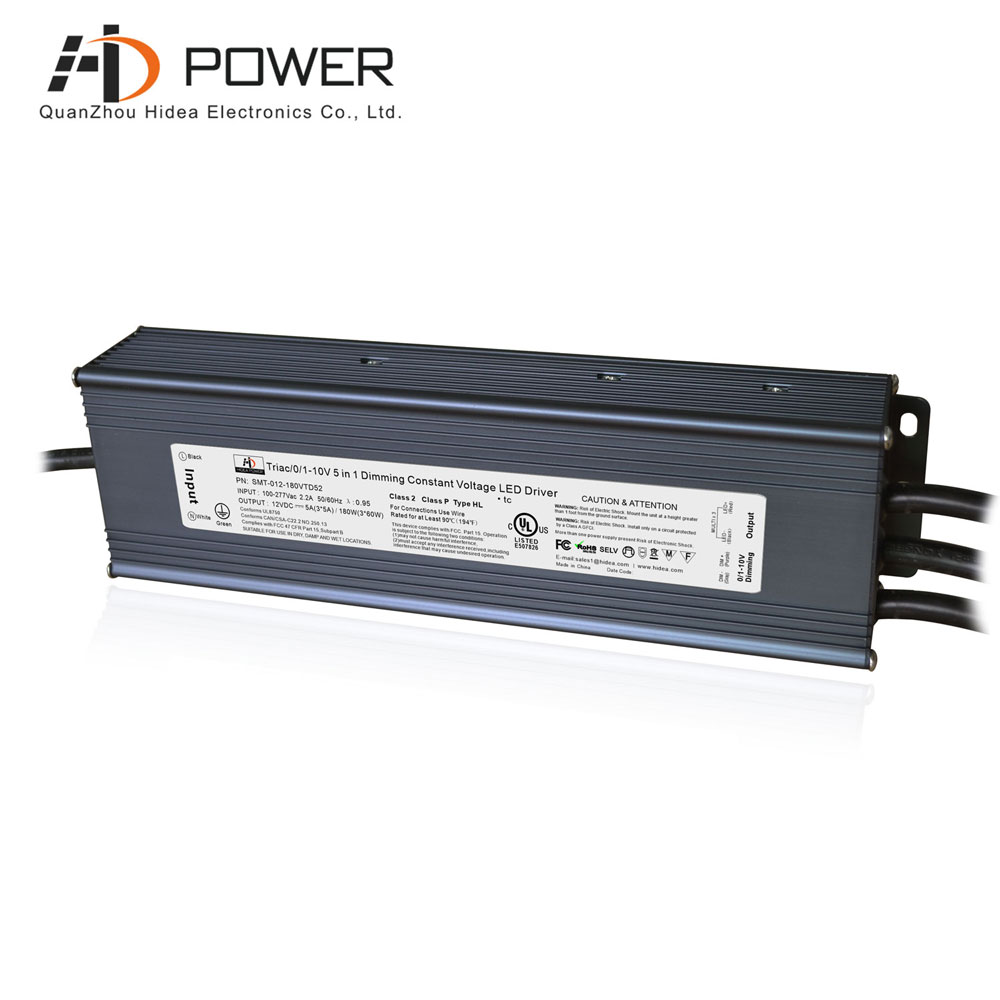

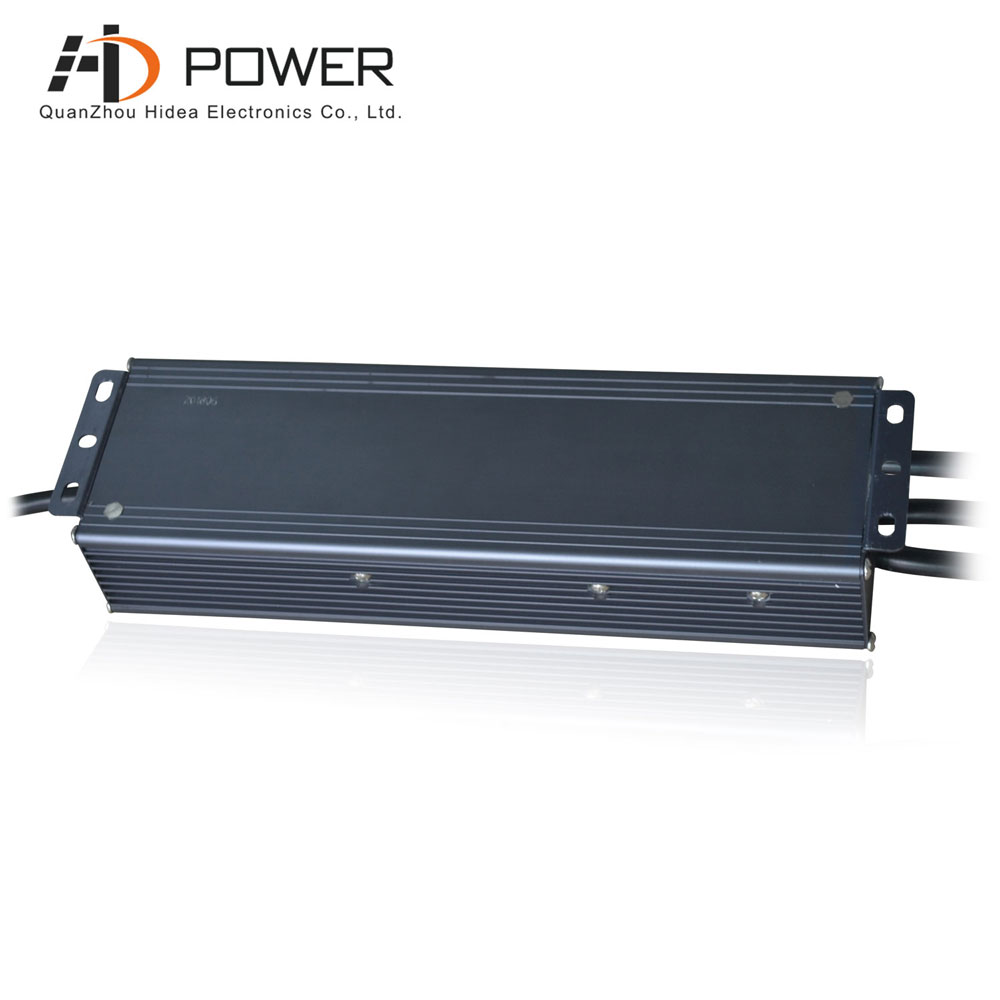

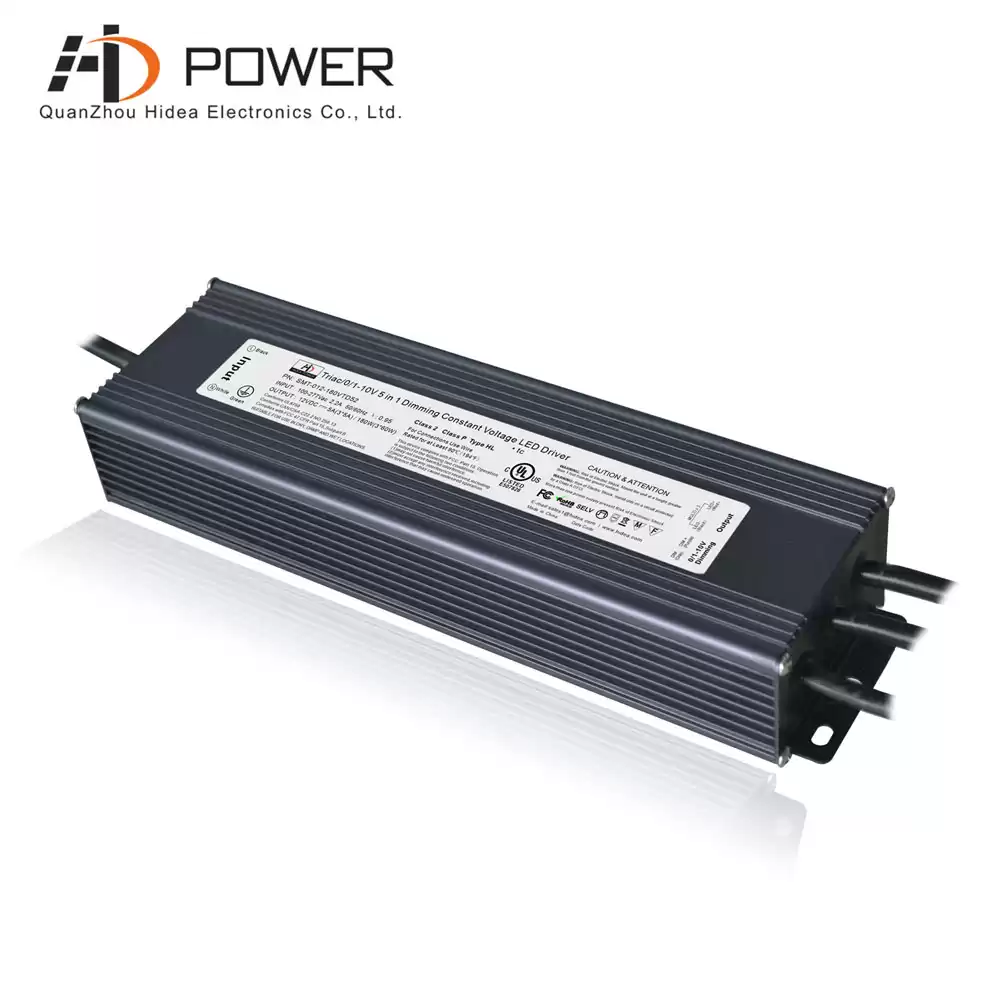

The led driver class 2 operates in 12VDC,180watt, and 15A(3*5A). Developed multiple channels to meet Class 2 standard. Bulit in PFC function and reach 0-100% dimming range. Meet UL FCC approcal and owns 7 years warranty.
Specification
|
model
|
SMT-012-180VTD52
|
SMT-024-192VTD52
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
15.0A (3*5A)
|
8.0A (2*4A)
|
|
Rated power
|
180W (3*60W)
|
192W (2*96W)
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Load Regulation
|
±1%
|
±1%
|
|
Voltage Regulation
|
±0.5%
|
±0.5%
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.94@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
Full Load Efficiency(Typ.)
|
86%@120V 88%@277VAC
|
87%@120V 89%@277VAC
|
|
AC Current(Typ.)
|
2.2A@100VAC
|
2.3A@100VAC
|
|
Inrush Current (Typ.)
|
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
|
Leakage current
|
﹤0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
|
|
Others
|
Net Weight
|
1.7Kg
|
|
Size
|
278*78*47mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

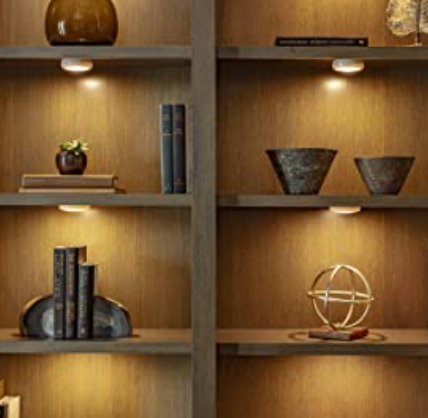

The triac dimmable led driver 12V 180W also allows to dim in 0-10V dimming mode. With high performance to fit multiple luminaires, this driver is suggested to applicated in any lighting project. Brilliant evolution puck lights is one of the choice for your reference.
Related Products
|

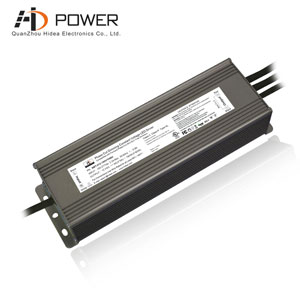

 This is a triac dimming mode Class 2 led driver. The output power is 180w (multiple out 3*60w), and the output current is 15A(3*5A).
