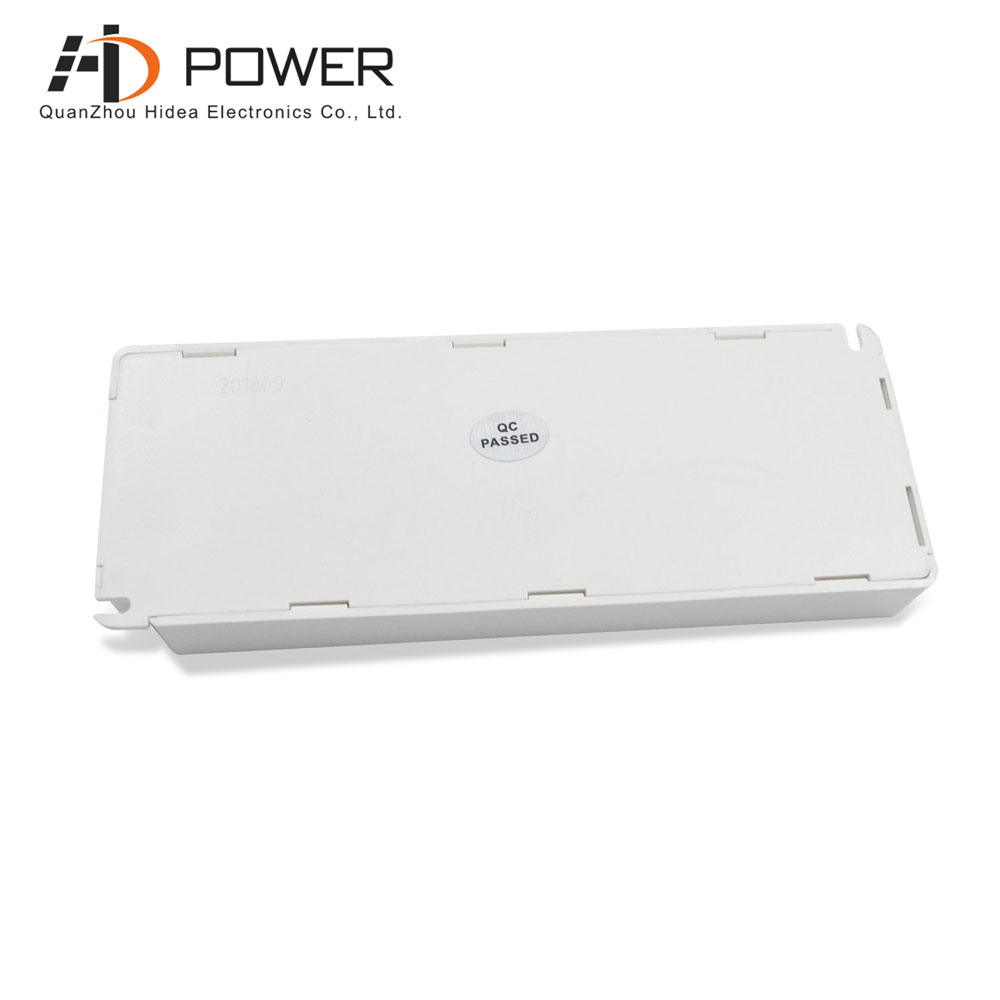

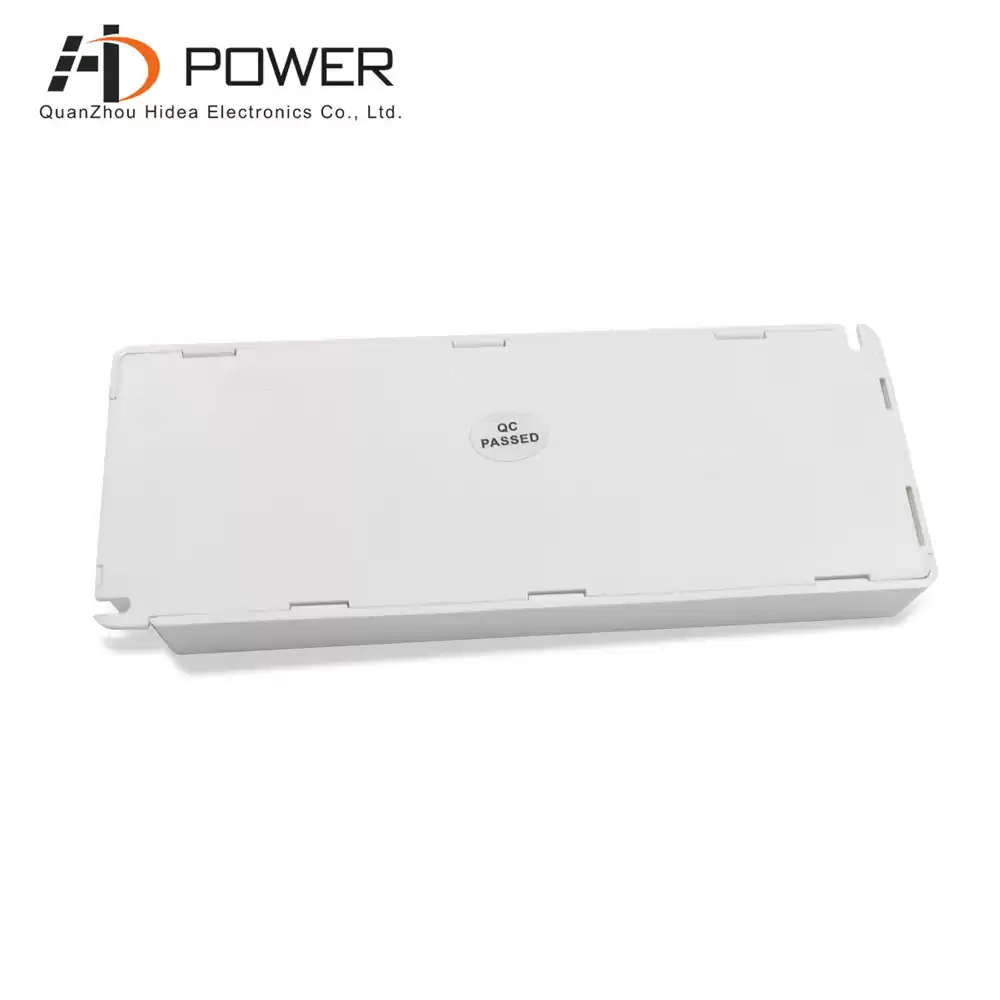

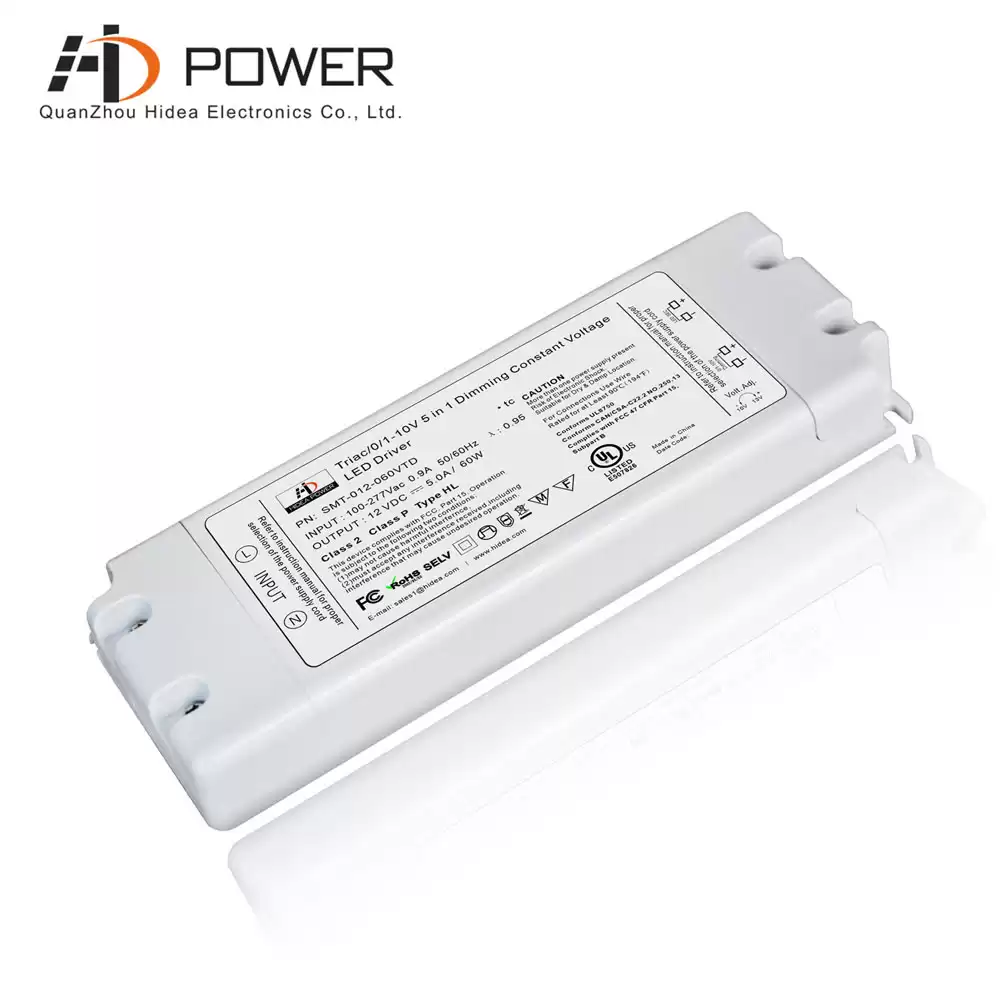

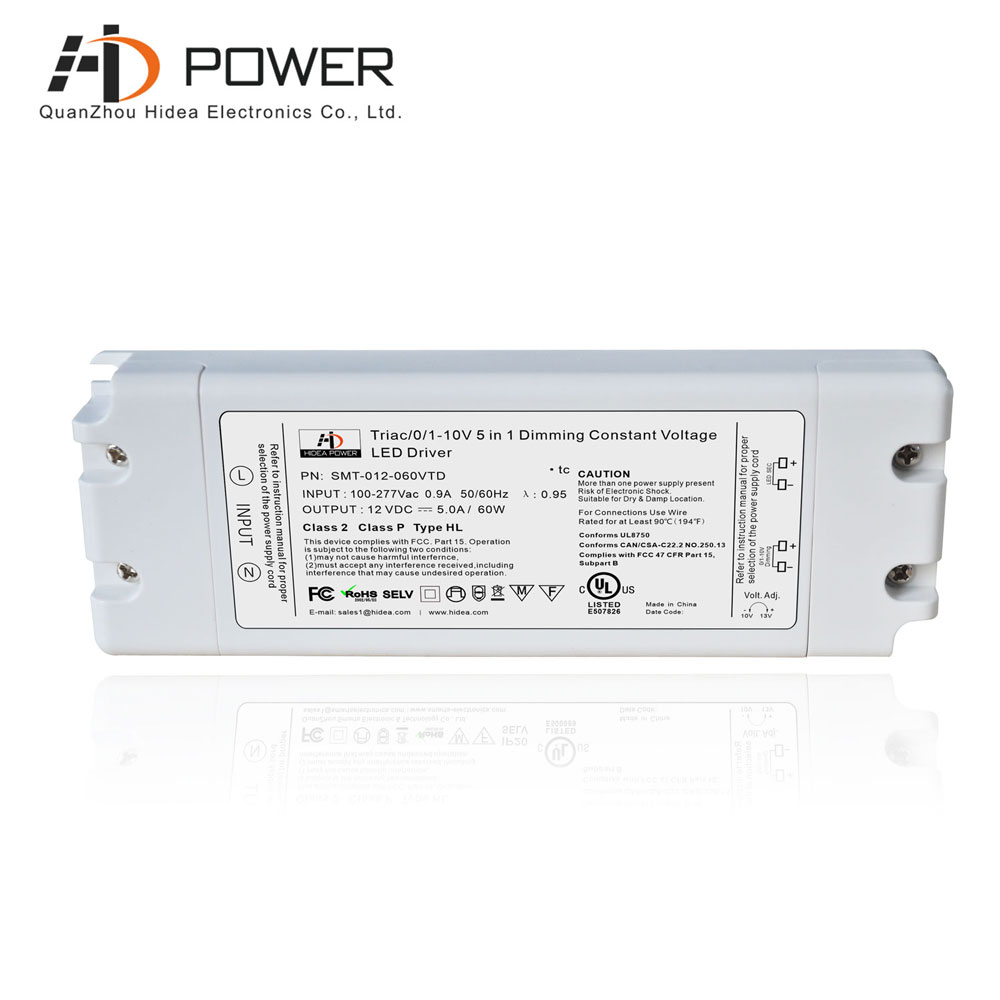

triac & 0 10v dimmable constant voltage 24v 60w led driver indoor power supply
This triac & 0 10v dimmable 60W led power supply has strong compatibility, UL certification, plastic shell design, complies with global installation lighting regulations, suitable for indoor lighting project installation and use, 7-year warranty
Specification
|
model
|
SMT-012-060VTD
|
SMT-024-060VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC 85%@277VAC
|
83%@120VAC 84%@277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
Carton size: 290*215*140mm , 20PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

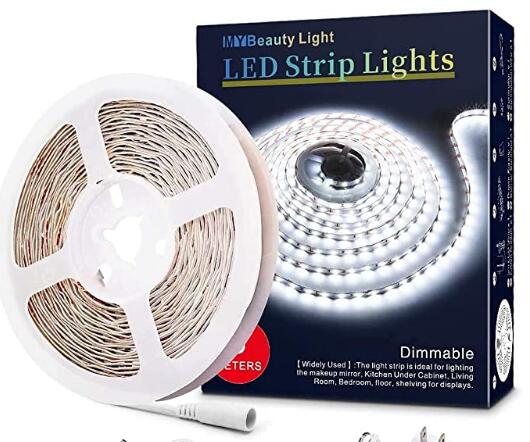

Compatible Light Type
Jesco 12v led lights strip works with unique designed dimmer, long press dimmer to adjust light brightness with dimmable led driver 60w, short press to turn on or off, and the smart led strip lights is also with memory function, which can restore to its last time color brightness to save your time effectively.
Related Products
|

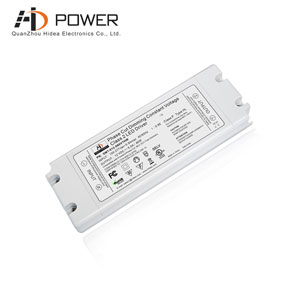

277VAC TRIAC dimmable led driver has built-in PFC function, constant voltage working mode, short circuit/overload/overtemperature protection, UL certification, mainly sold to North America.
