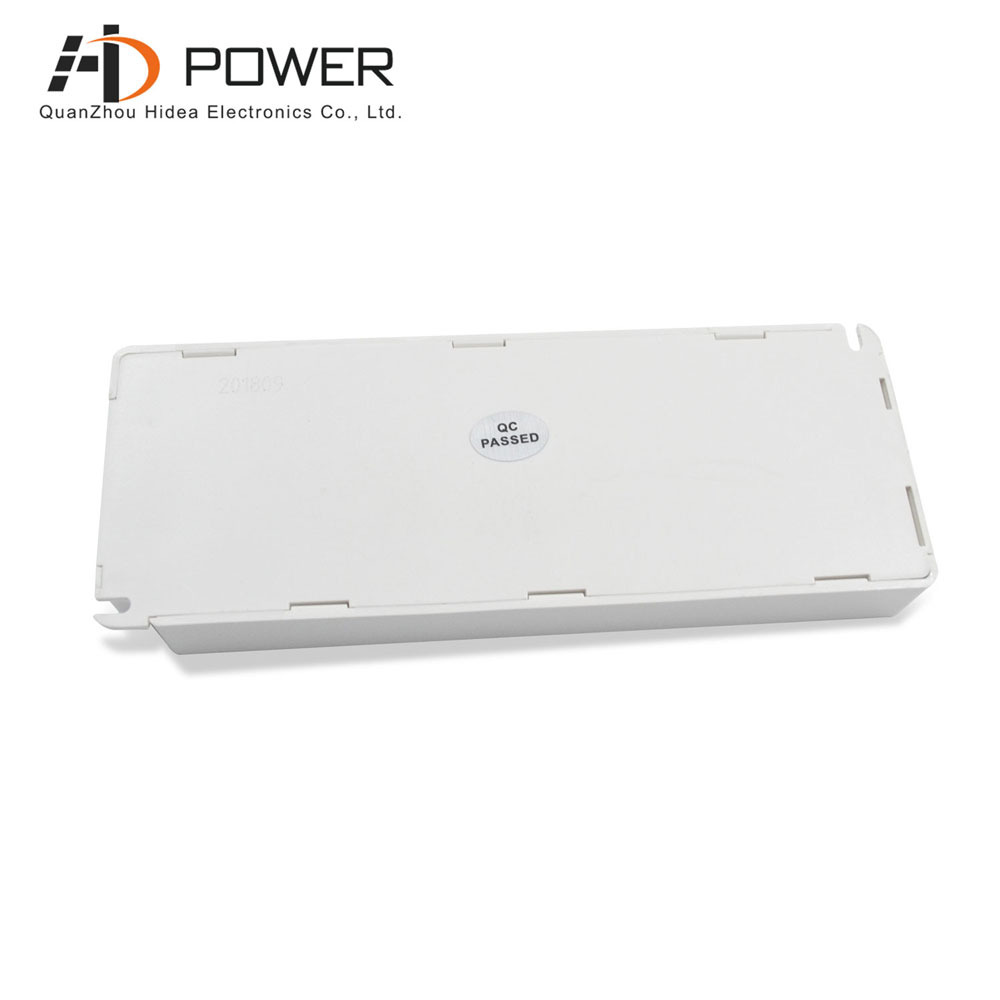

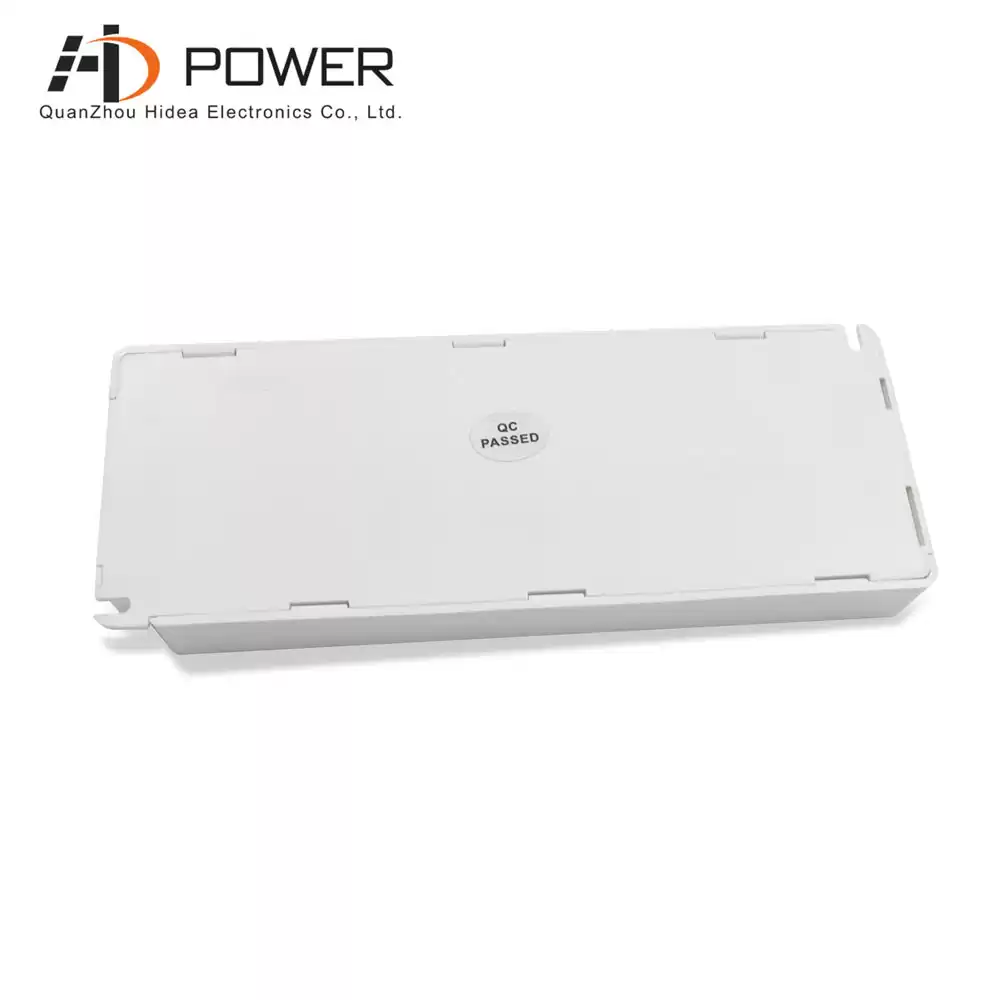

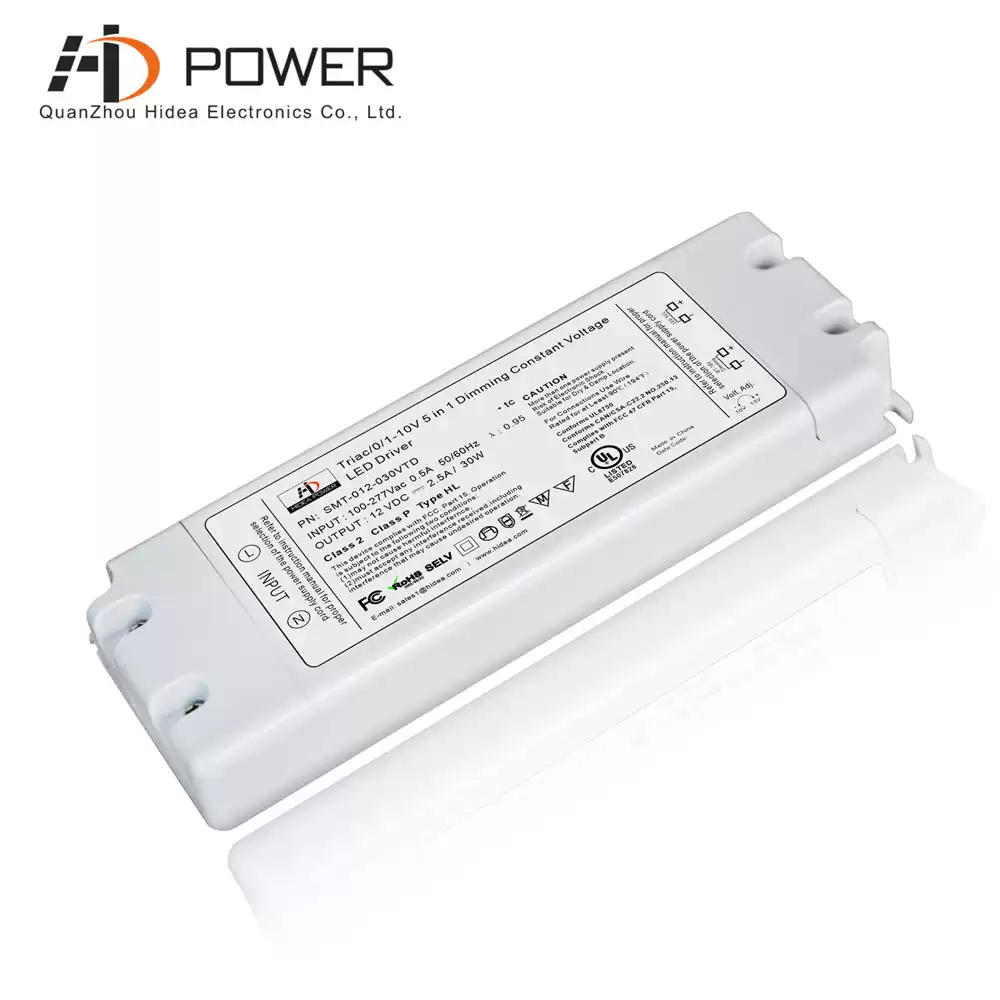

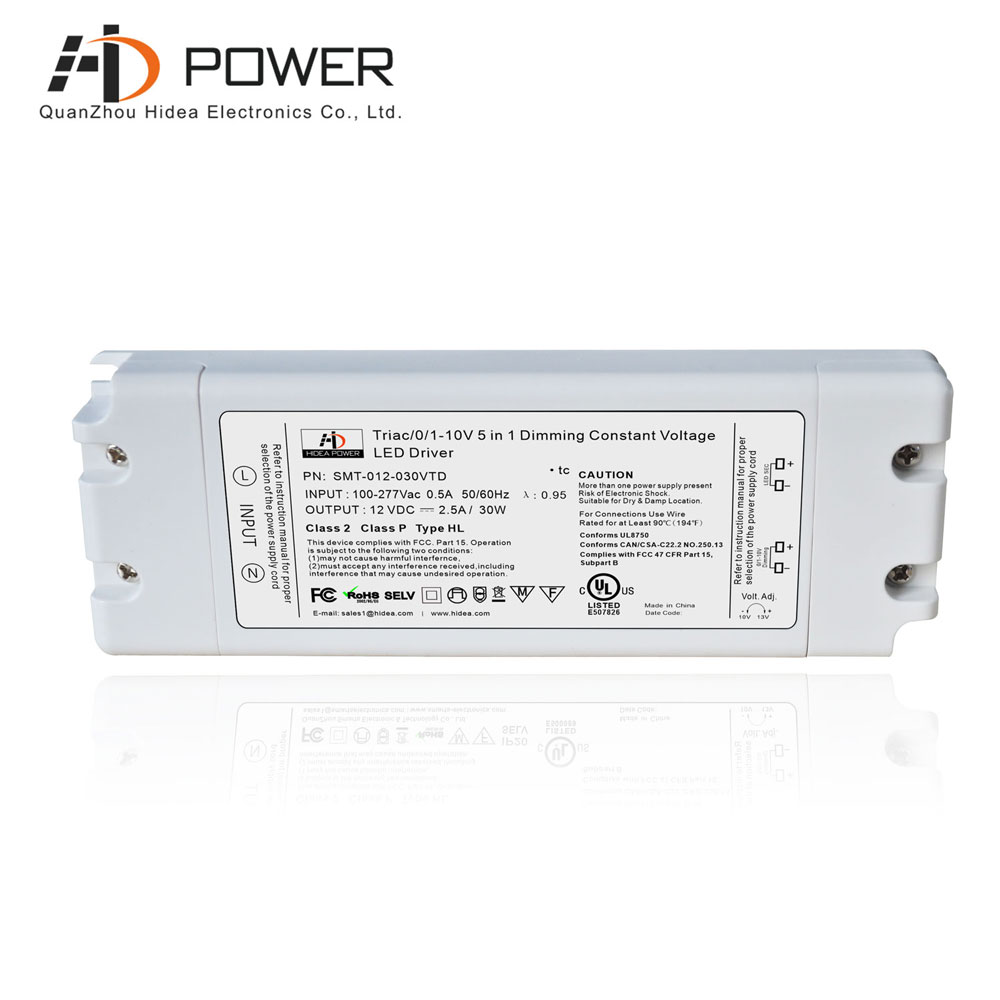

0-100% dimming range 5 in 1 0 10v dimmable led driver work with forward phase /leading edge, MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers, Lutron 0-10v dimmers.
Specification
|
model
|
SMT-012-030VTD
|
SMT-024-030VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
79%@120VAC 80%@277VAC
|
79%@120VAC 80%@277VAC
|
|
AC Current(Typ.)
|
0.5A
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
About 0.25Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
Carton size: 350*240*130mm , 40PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
