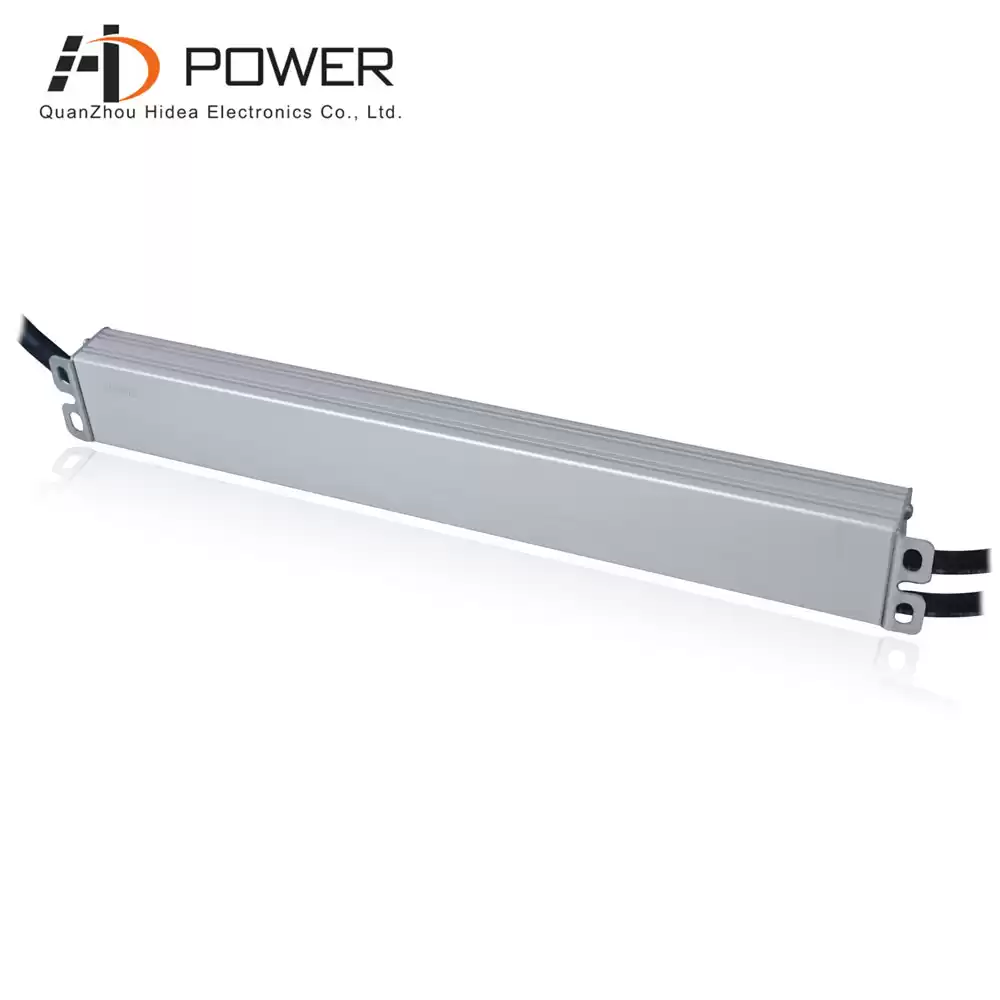

triac 0-10v dimmable waterproof led power supply 12v 100w 150w
The 12v dc led driver is widely used for the LED lighting for iconic BeveLED trim in a small yet powerful 3" aperture family.
Label
Specification
|
model
|
SMT-012-150VTDSW
|
SMT-024-150VTDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
|
|
Rated power
|
150W
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.99@277VAC
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC 87%@277VAC
|
85%@120VAC 88%@277VAC
|
|
AC Current(Typ.)
|
1.30A
|
|
Inrush Current(Typ.)
|
27.0A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% , Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
0.75Kg
|
|
Size
|
368*32*23mm(L*W*H)
|
|
packing
|
Carton size: 360*27*17.5mmmm 30pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The waterproof led power supply 12v 100w provide an excellent solution for every type of project.for the architecture lighting.
Related Products
|
 The waterproof led power supply 12v 150w is compantible well with the led lighting project LED downlight products and traditional lighting products cover the bases of nearly any commercial or residential lighting project.
Mode：SMT-012-150VM
Dimming Mode : Dali Dimming
Output Power : 150W
intput voltage：100-265VAC
Size：256*78*47MM （L*W*H）
|
