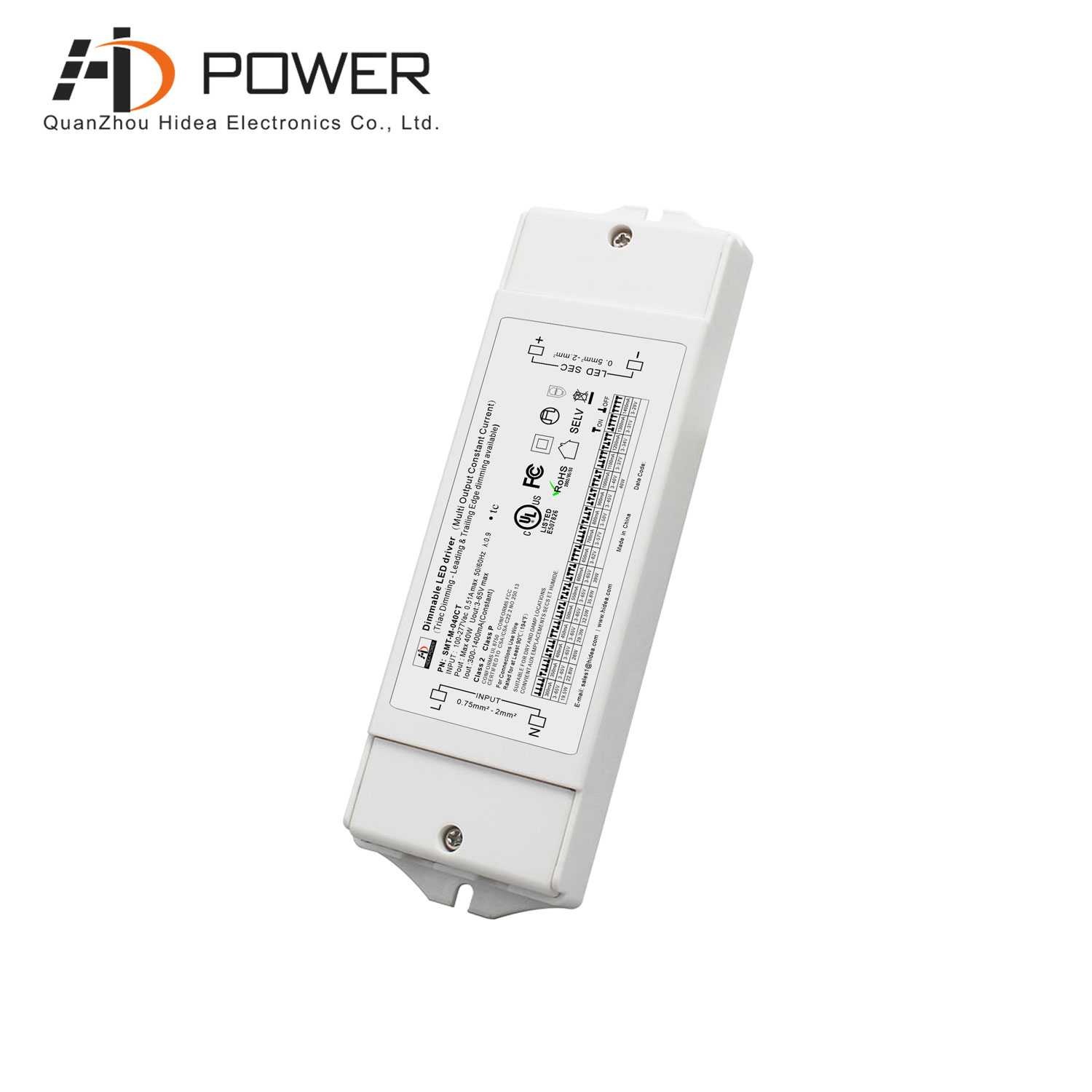

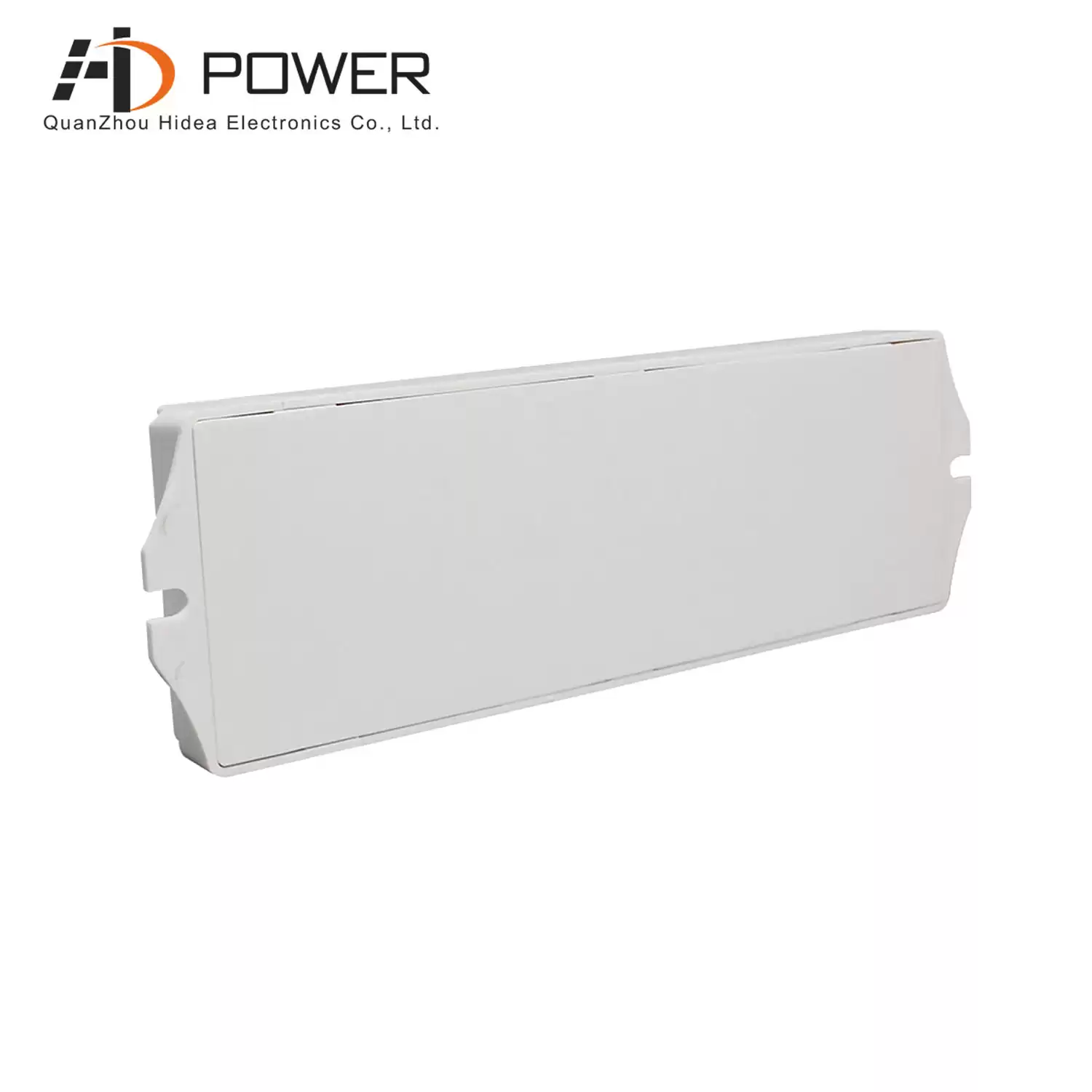

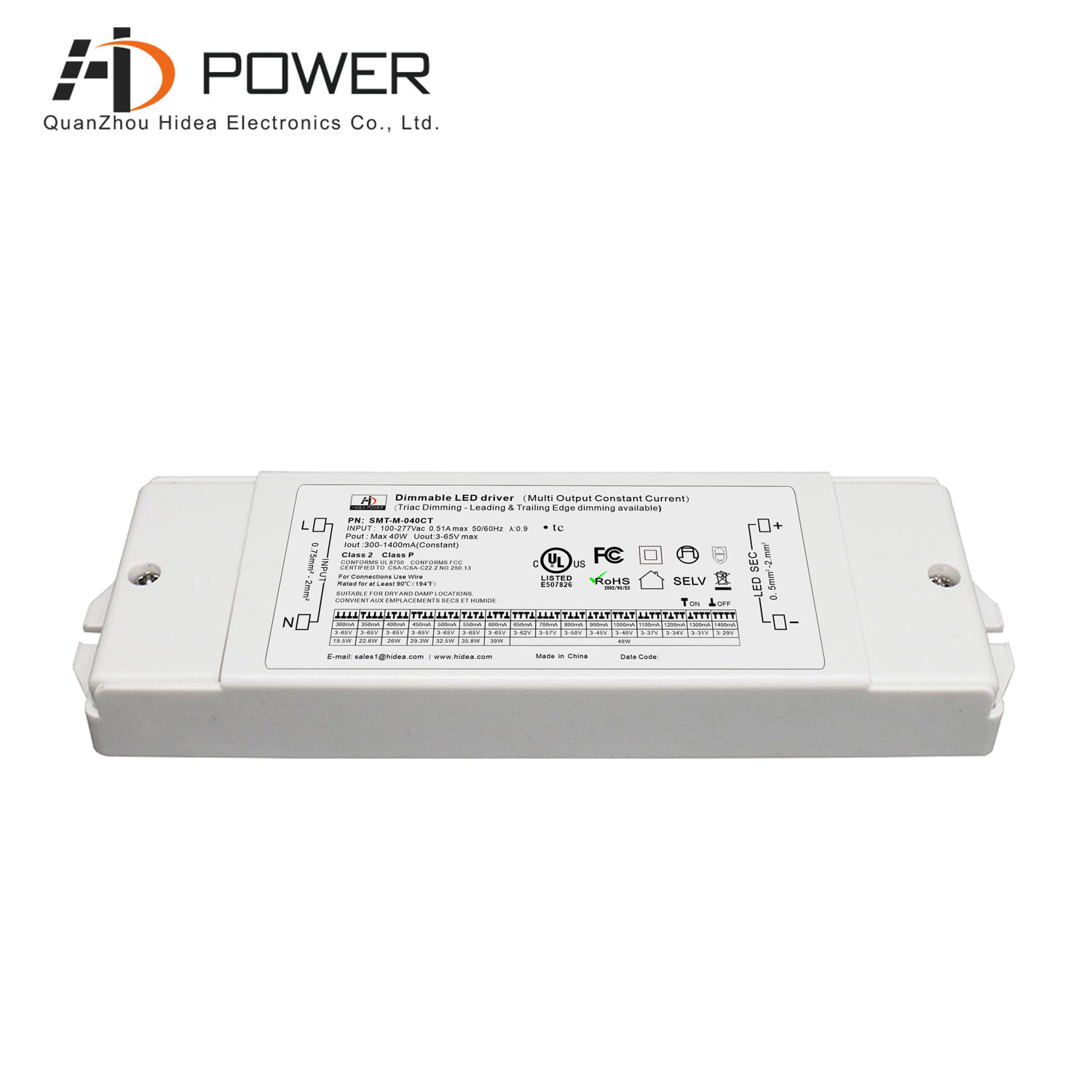

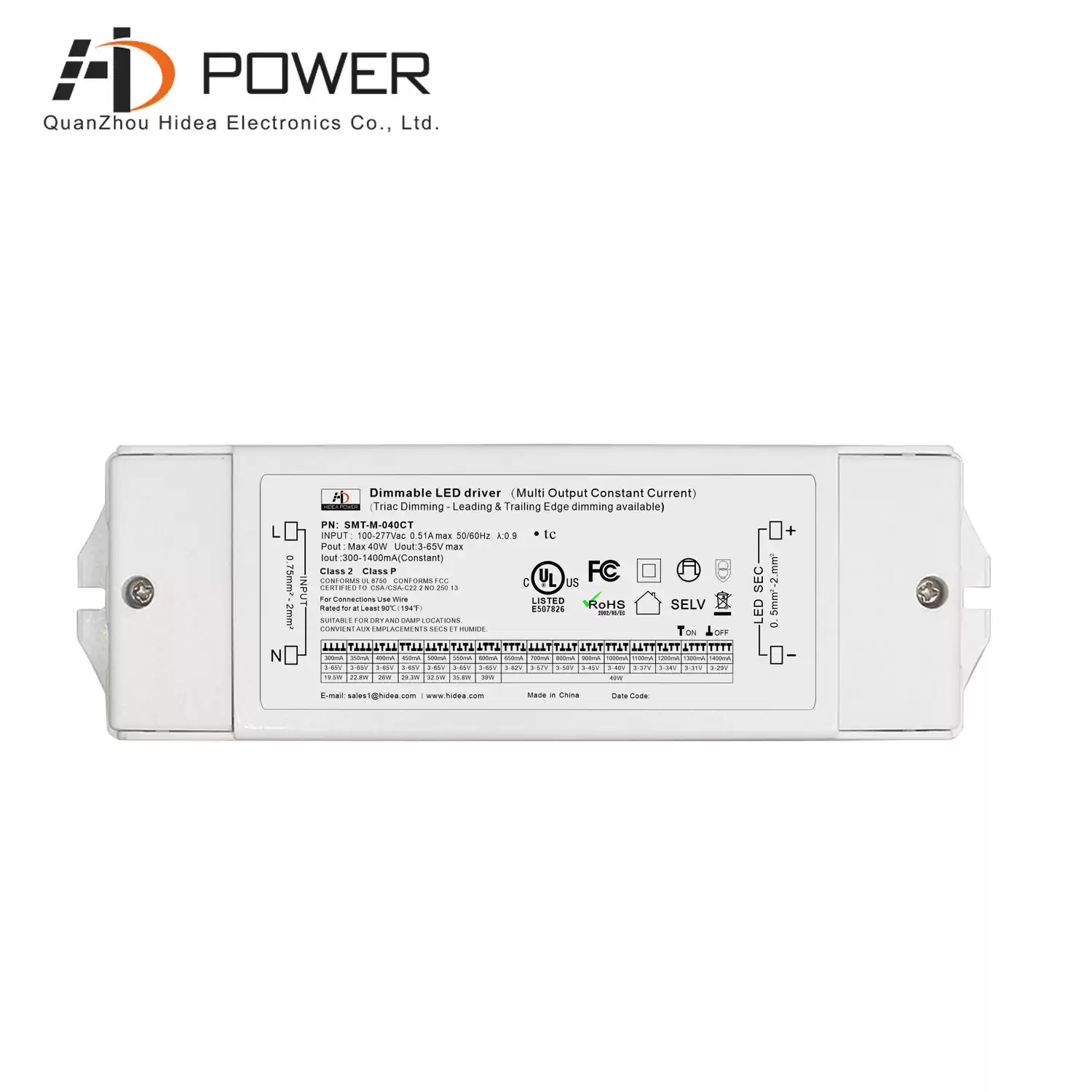

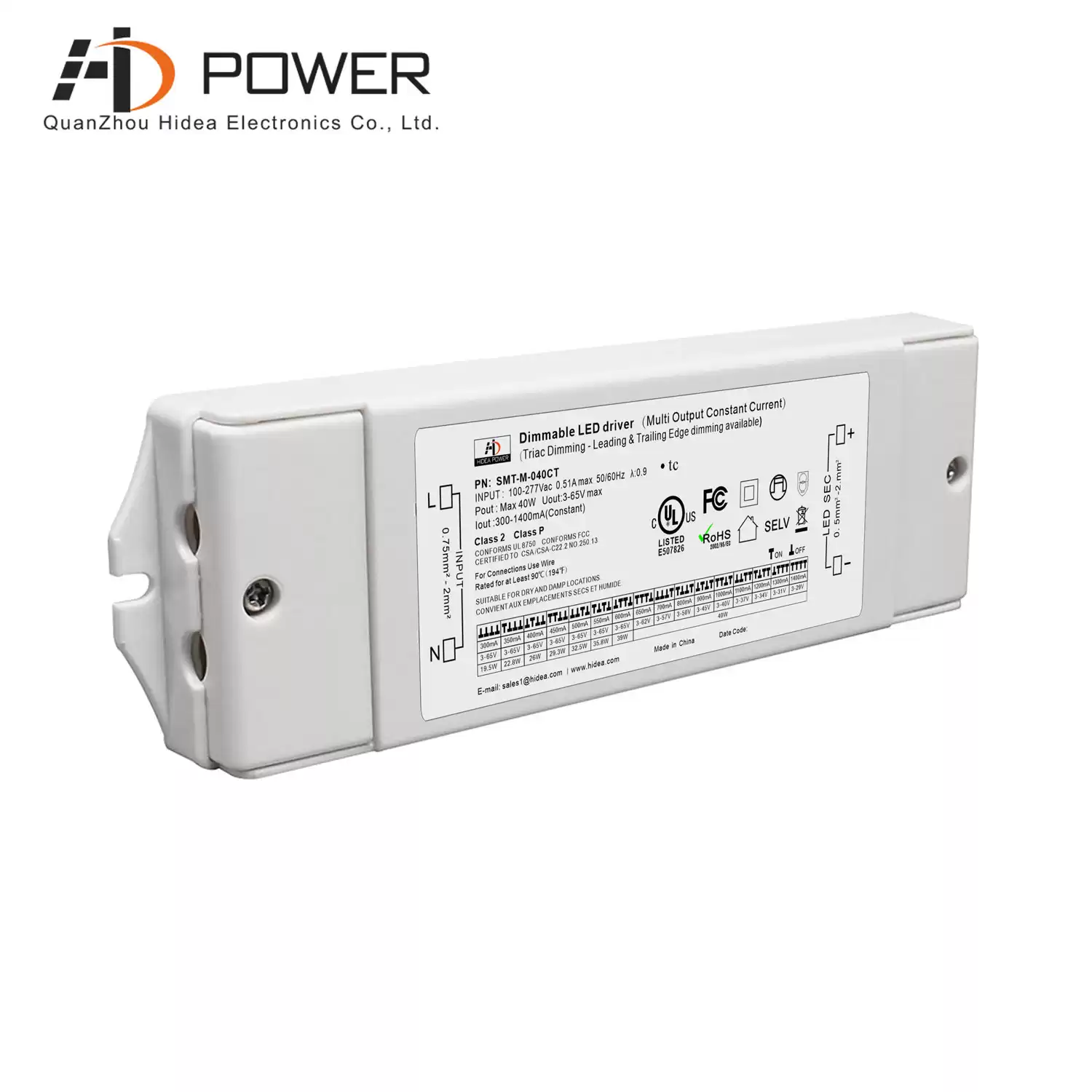

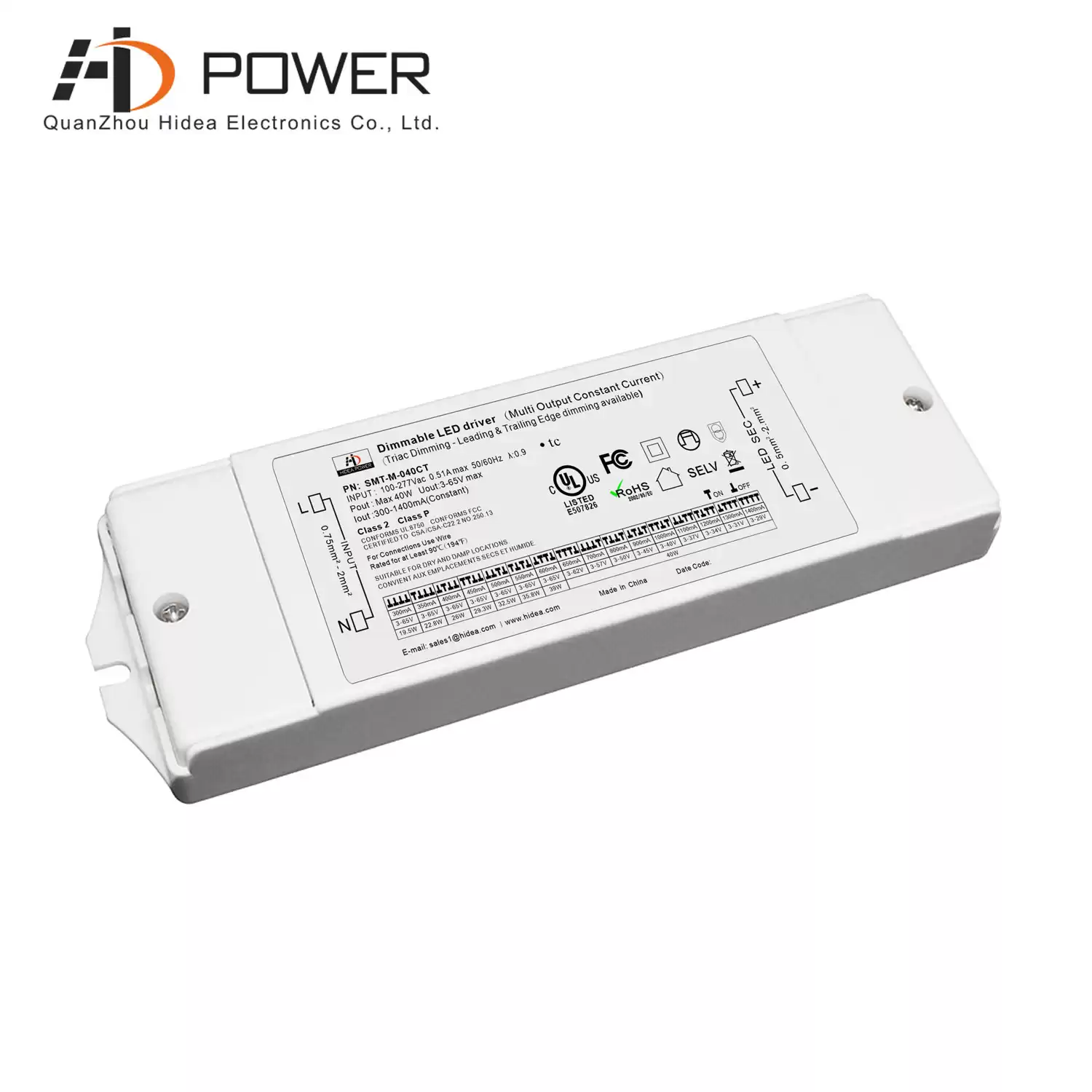

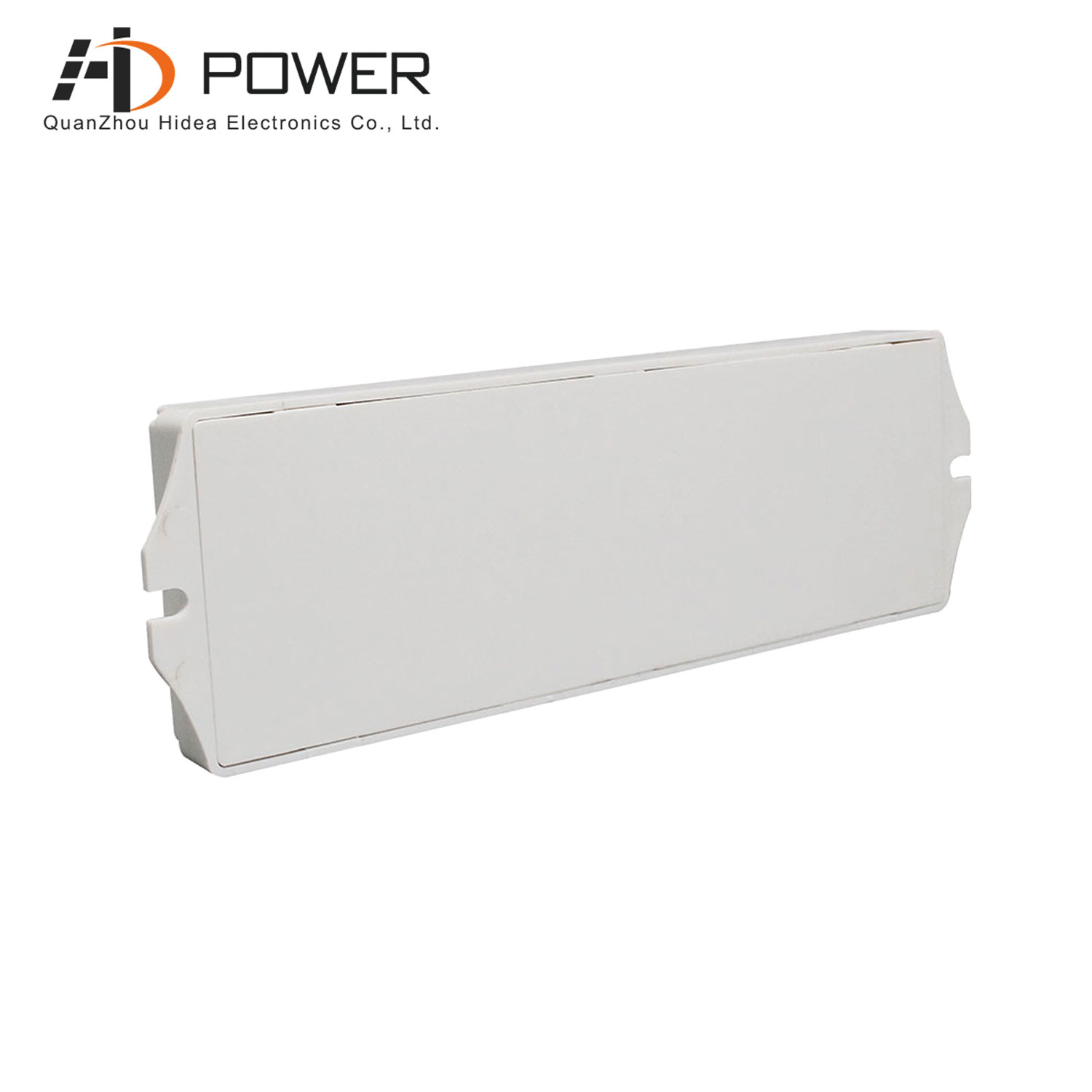

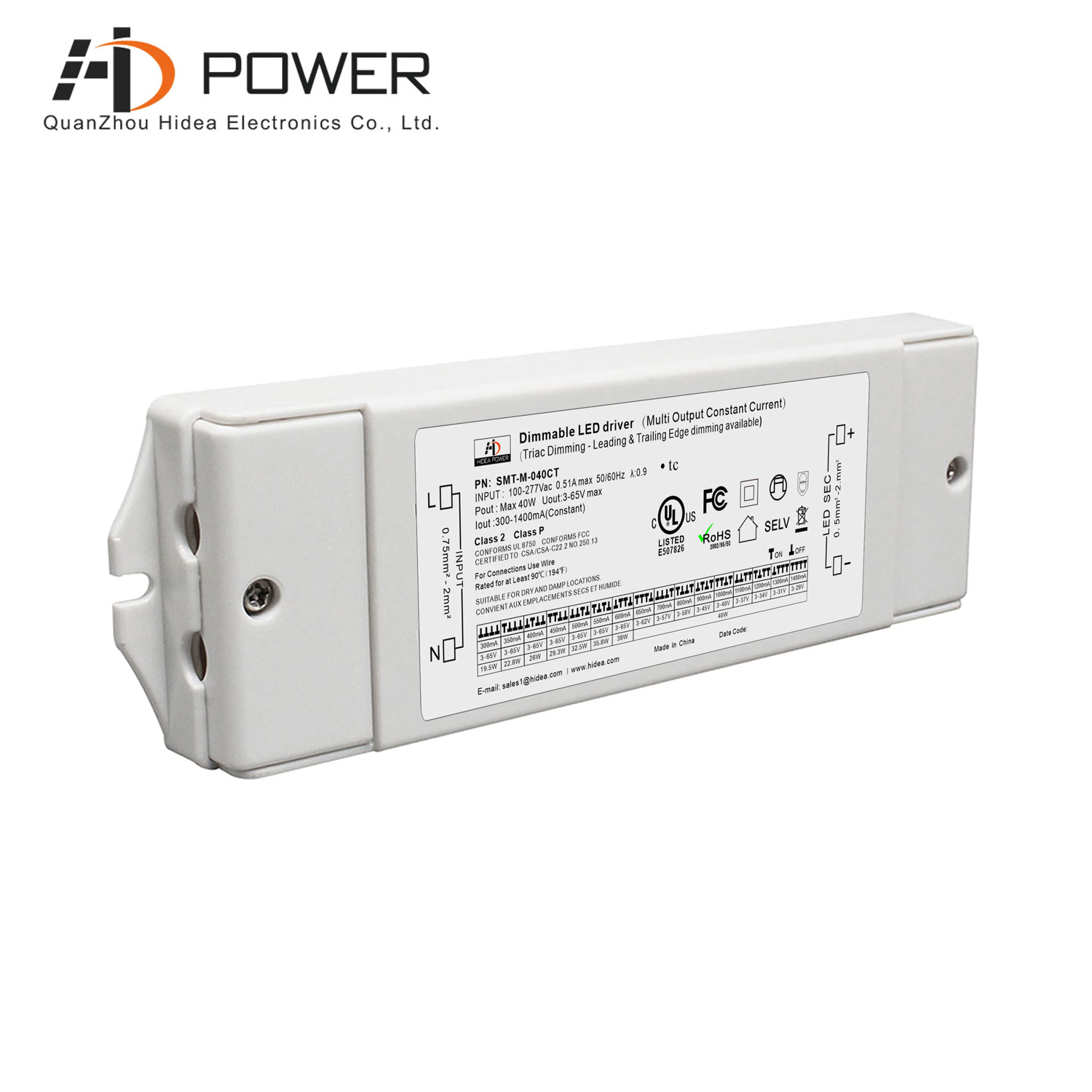

triac constant current 3-65V dimming led driver power supply 40w 350ma

277vac input voltage, 350ma 40W triac dimmable Multi-current selectable led driver built-in active PFC function, working efficiency up to 80%, suitable for indoor lighting projects, compatible with RAB Lighting's 40W LED floodlight to achieve smooth flicker-free dimming Light

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)40W
Output Voltage
Shape & SizeStandard Size
Output Current350mA
Size172*54*20mm
Weight350g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

triac constant current 3-65V dimming led driver power supply 40w 350ma

TRIAC dimmable multi-current with dip switch led driver is compatible with most triac dimmers on the market,please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

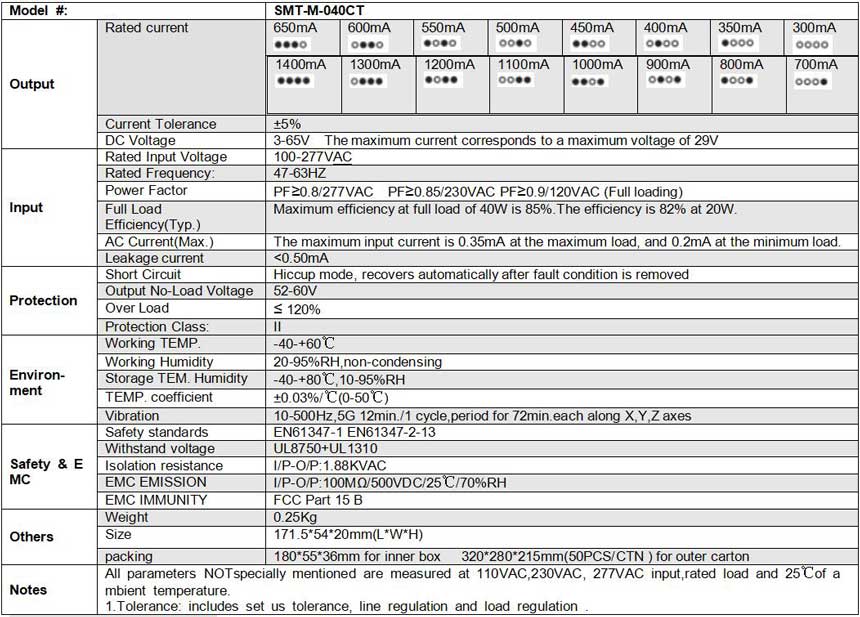

Specification

Related Products

277vac Multi-current selectable 0-10v dimmable 40W led driver, the output current is adjustable between 300ma-1400ma, it has strong compatibility and can realize flicker-free dimming

Mode：SMT-M-040CD

Dimming Mode : 0-10v dimming

Output Power : 40W

intput voltage：100-277Vac

Size：172*54*20mm（L*W*H）
