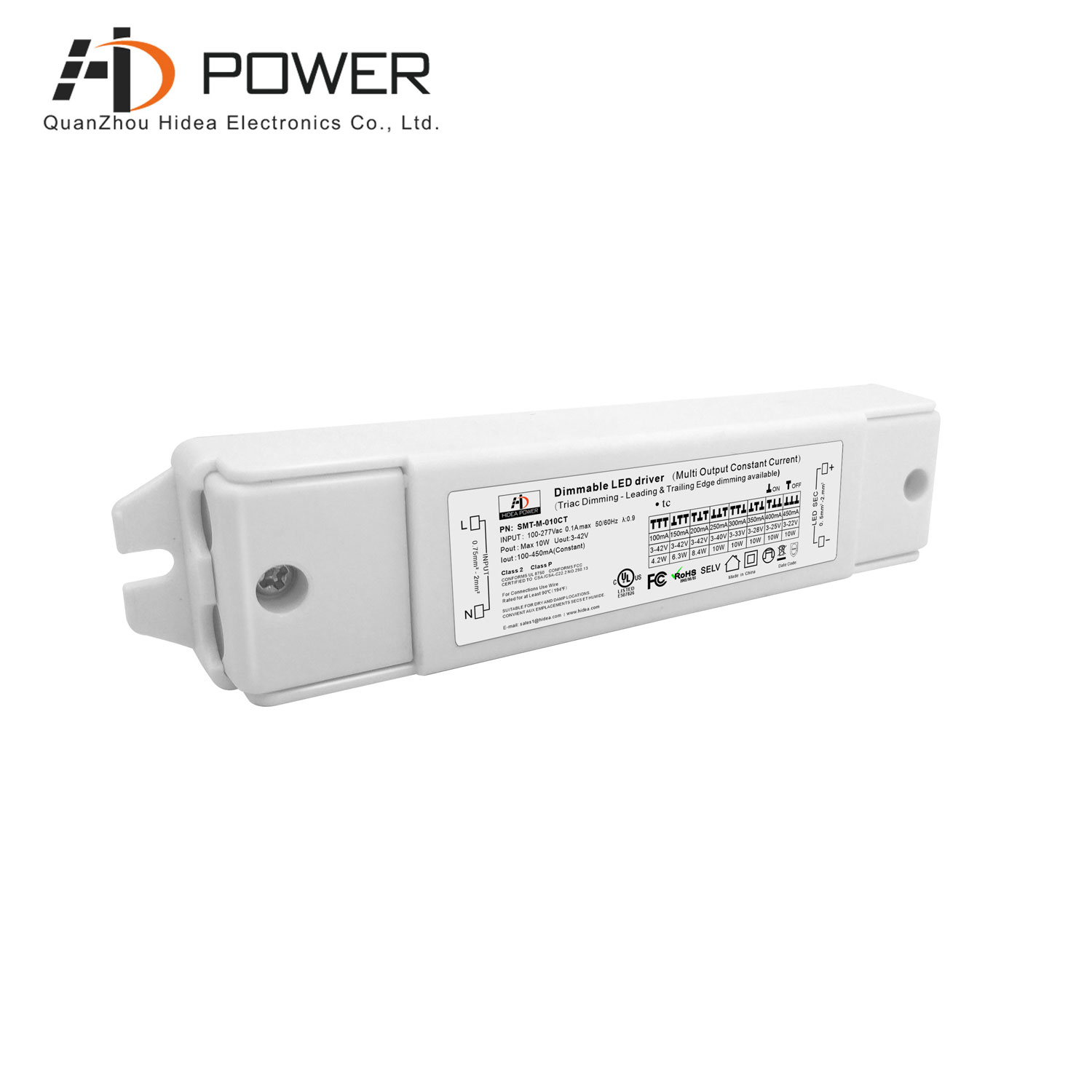

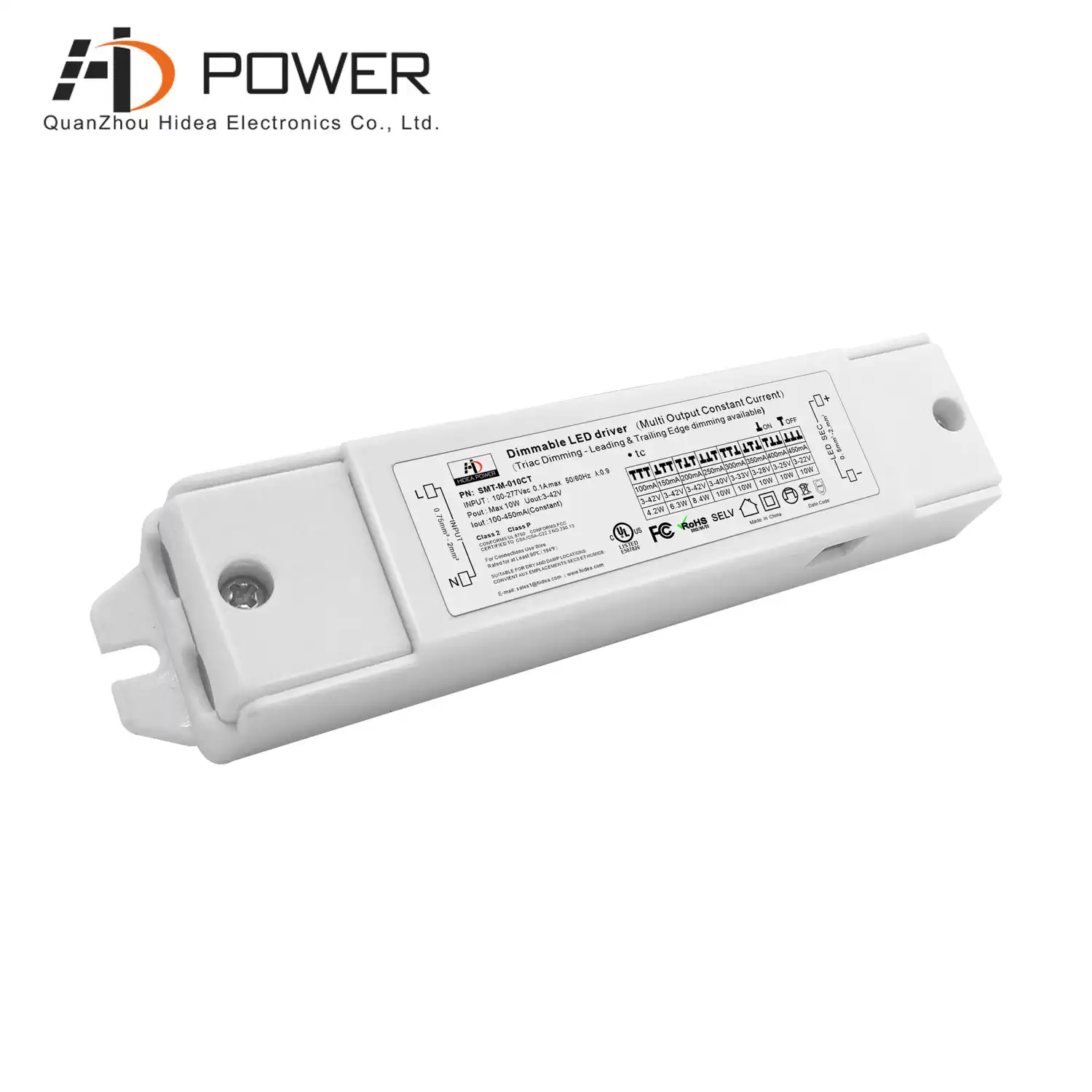

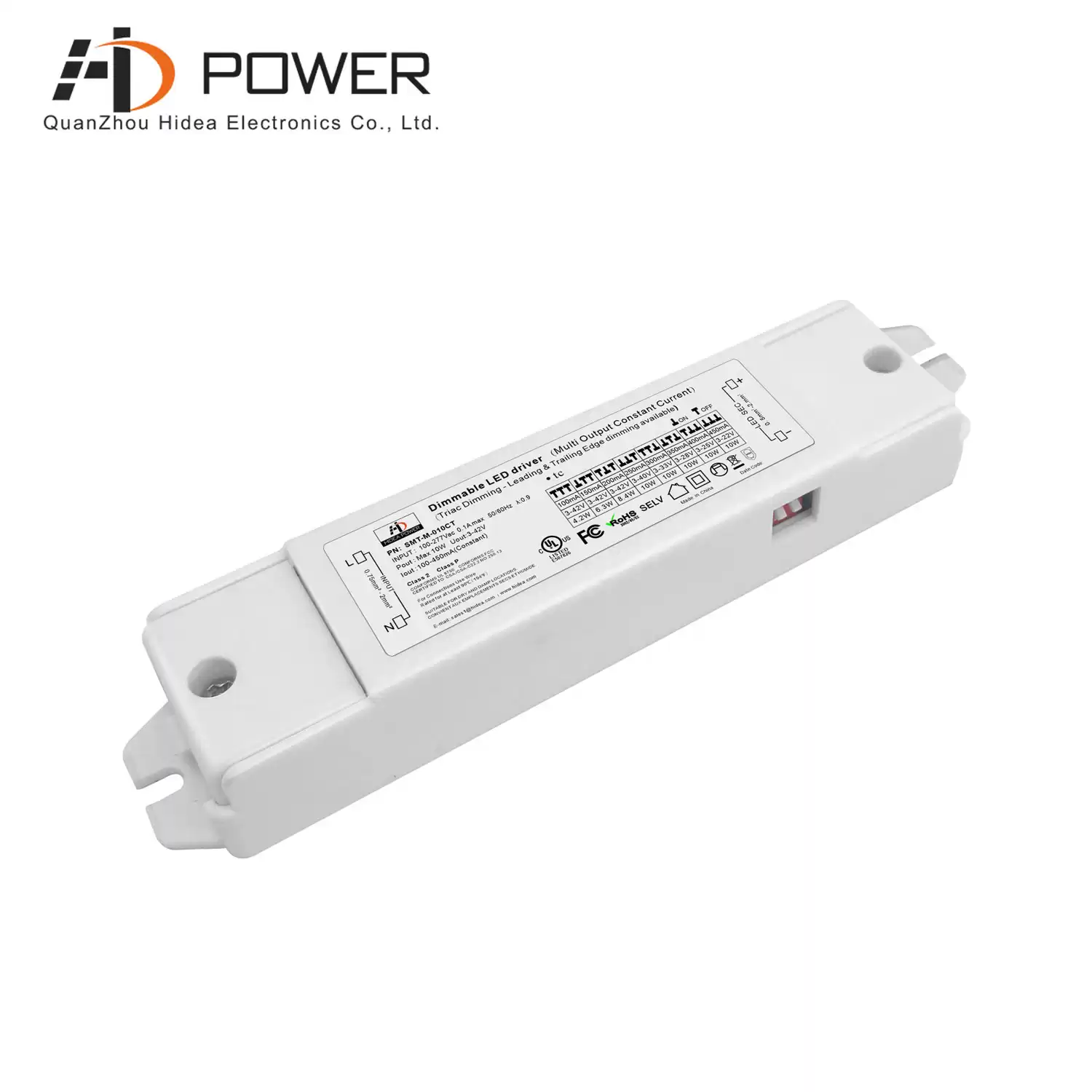

triac dimmable 400ma constant current led driver dimming power supply for led floodlight

This 10W 400MA constant current triac dimmable led driver offers up to 75% efficiency. With active PFC built in, this Multi-current selectable led driver is a perfect match for TORCHSTAR Basic's 10W LED downlight. Comes with a 7-year warranty

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)10W
Output Voltage
Shape & SizeStandard Size
Output Current400mA
Size135*30*20mm
Weight130g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

triac dimmable 400ma constant current led driver dimming power supply for led floodlight

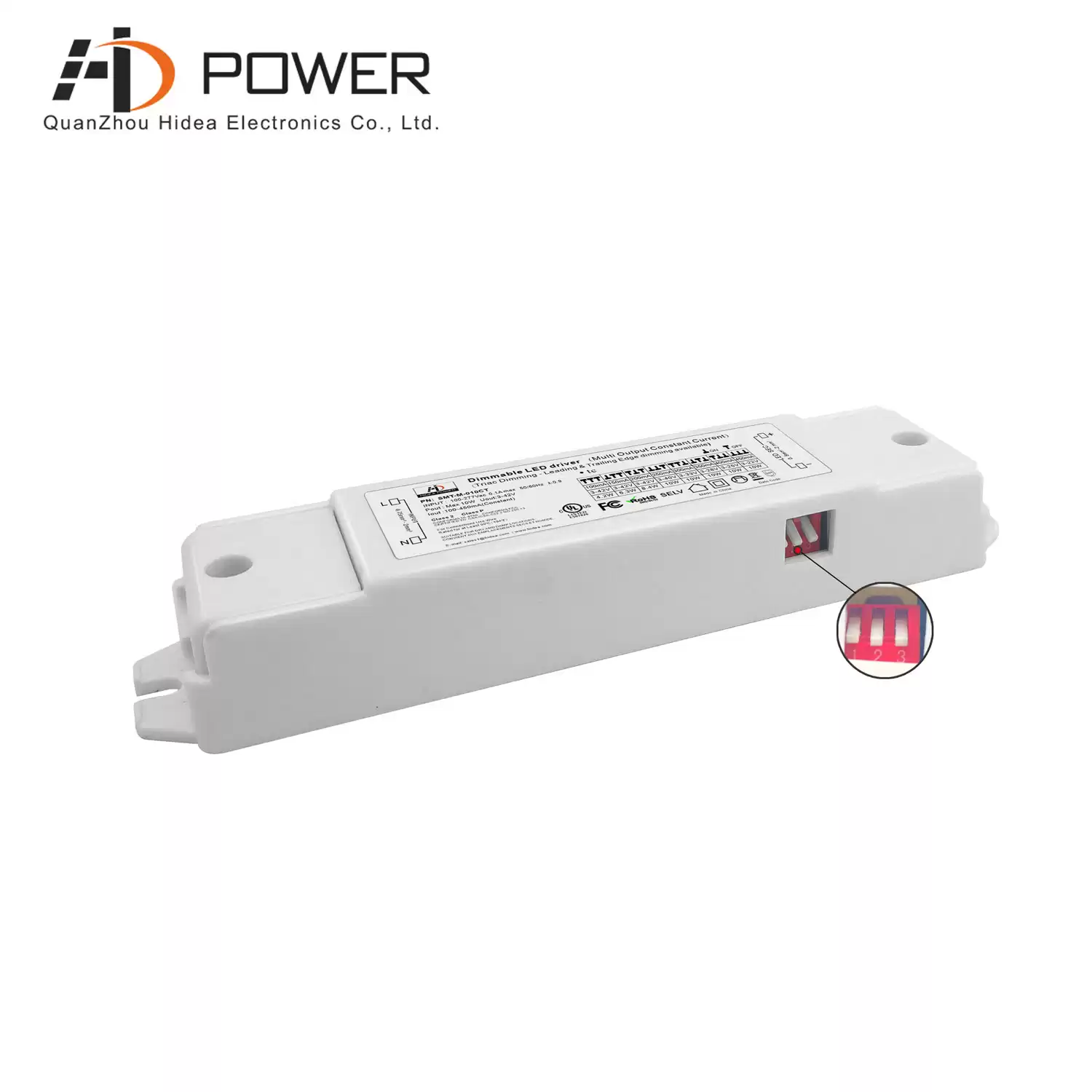

UL certified multi-current with dip switch selectable triac dimmable led driver with 100-277vac input voltage 10W 400MA. Free air convection cooling, suitable for installation in indoor dry areas, in line with global safety lighting laws, please try to use the small power dimmer, have access to a wider dimming range

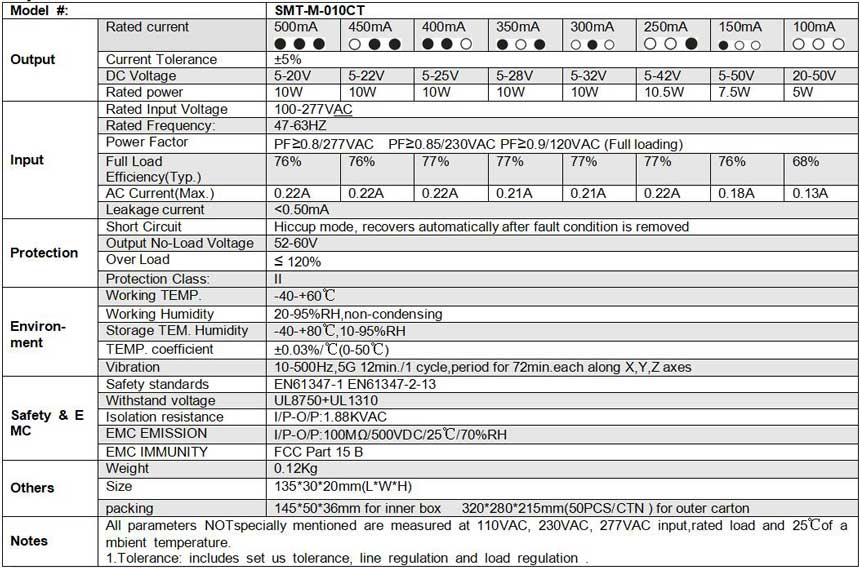

Specification

Related Products

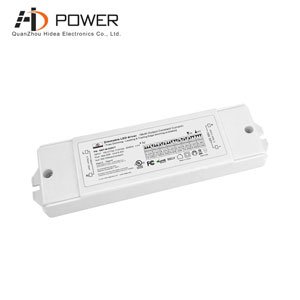

277vac 20W Triac dimmable led driver Plastic housing design, good heat dissipation, easy to install, suitable for led lighting and certain sign applications

Mode：SMT-M-020CT

Dimming Mode : triac dimming

Output Power : 20W

intput voltage：100-277Vac

Size：159.5*43*20mm（L*W*H）
