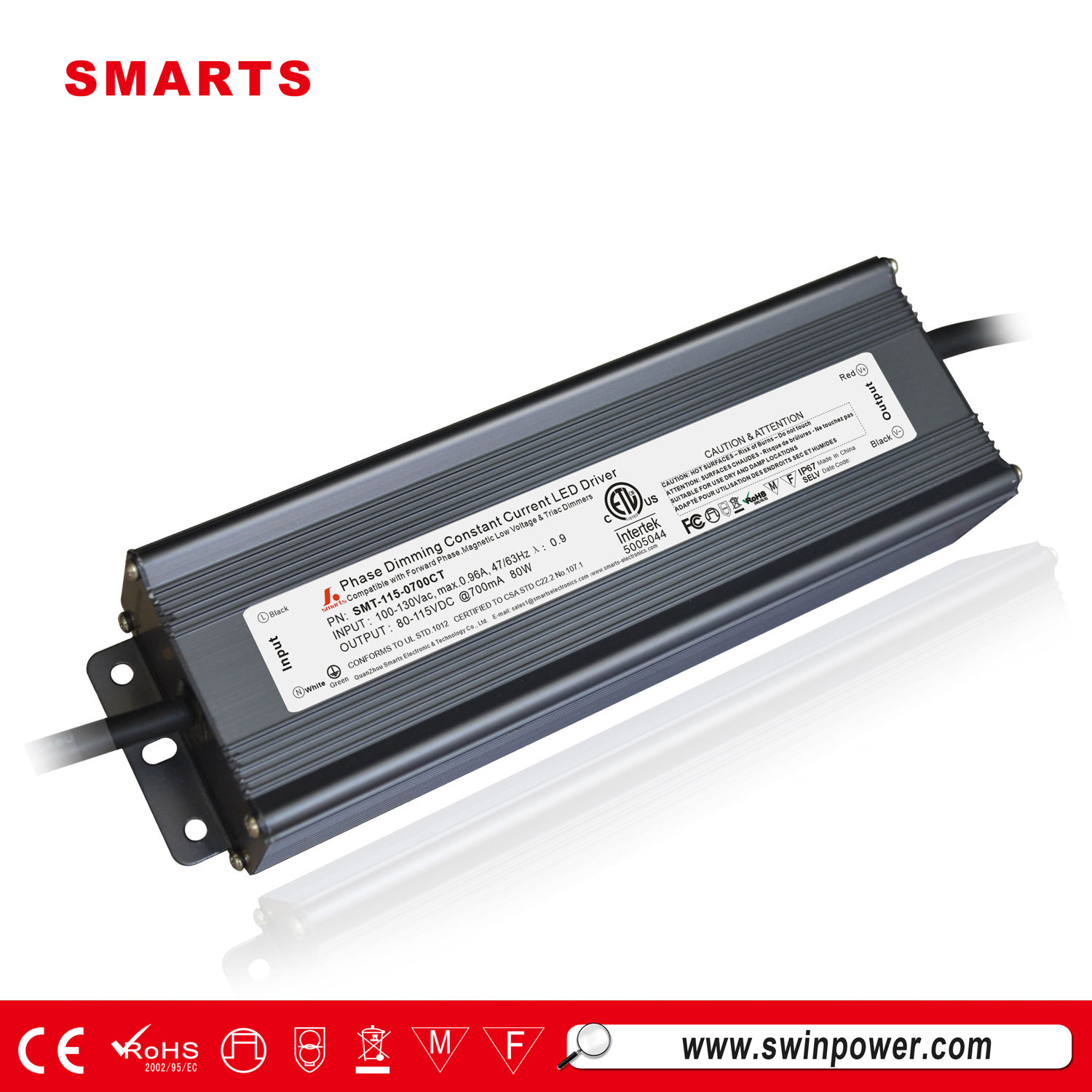

triac dimmable constant current pwm LED driver 75w 80w
Our 80w constant current pwm LED driver is an enclosure system which allows you to easily configure standard LED drivers to meet the exact needs of your applications and projects.
Specification:
|
Model
|
SMT-115-0700CT
|
SMT-090-0900CT
|
SMT-080-1050CT
|
SMT-067-1200CT
|
|
Output
|
DC Current
|
700mA
|
900mA
|
1050mA
|
1200mA
|
|
Current Accuracy
|
±5%
|
|
Voltage Range
|
80-115V
|
70-90V
|
55-80V
|
40-67V
|
|
Rated power
|
80W
|
80W
|
80W
|
80W
|
|
Input
|
Voltage Range
|
90-130VAC / 170～250VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor （Typ.）
|
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
|
|
Full Load Efficiency（Typ.）
|
>85%
|
>85%
|
>85%
|
>85%
|
|
AC Current（Typ.）
|
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over voltage
|
≦270VAC
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN-61347-1-2
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
0.34Kg/pcs
|
|
Size
|
200*68*45mm
mmm（L*W*H）
|
|
packing
|
324*298*176mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a
0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Physical size:
l Input power cord: AC (L), (N), and earth wire (G)
l Output Red is（DIM+）,Black is（DIM-）
Dimming Operation:
1. Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
2. Compatible with Leading edge or tailing edge triac dimmers.
3. please try to use the small power dimmers, which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.
Connection diagram:
Instruction:
1. This driver should be installed by qualified and professional person;
2. Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that wiring is correct before test in order to avoid light and power supply damage;
4. If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phonecall: 0086-595-22863721 ext.808 Official website: www.smarts-electronics.com / www.swinpower.com.
FAQ:
1. Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
2. Could you let me know more about ETL Multiple Listee?
Answer:
-- According to the design solution, our triac/ dali/ 0-10v dimmable led drivers are divided into 4 parts. That is to say, there will have 4 reports for our whole dimmable led driver series.
Enclosed pls. kindly check PDF file for part number of our whole series of our ETL listed dimmable led driver in each report.
-- Price for ETL Multiple listee divided into two part. ETL multiple list fee and annual fee.
ETL multiple list fee is about US$321/ per reports. Paid this fee once for multiple listee.
ETL annual fee is US$615 / per reports. And it should be paid each year.
ETL department will issue formal quotation file and charge all payment from you directly. Actual charge is subject to the quotation files ETL department issued.
3. What is the HS code for this Power supply?
Answer: HS code is 8504401400.
