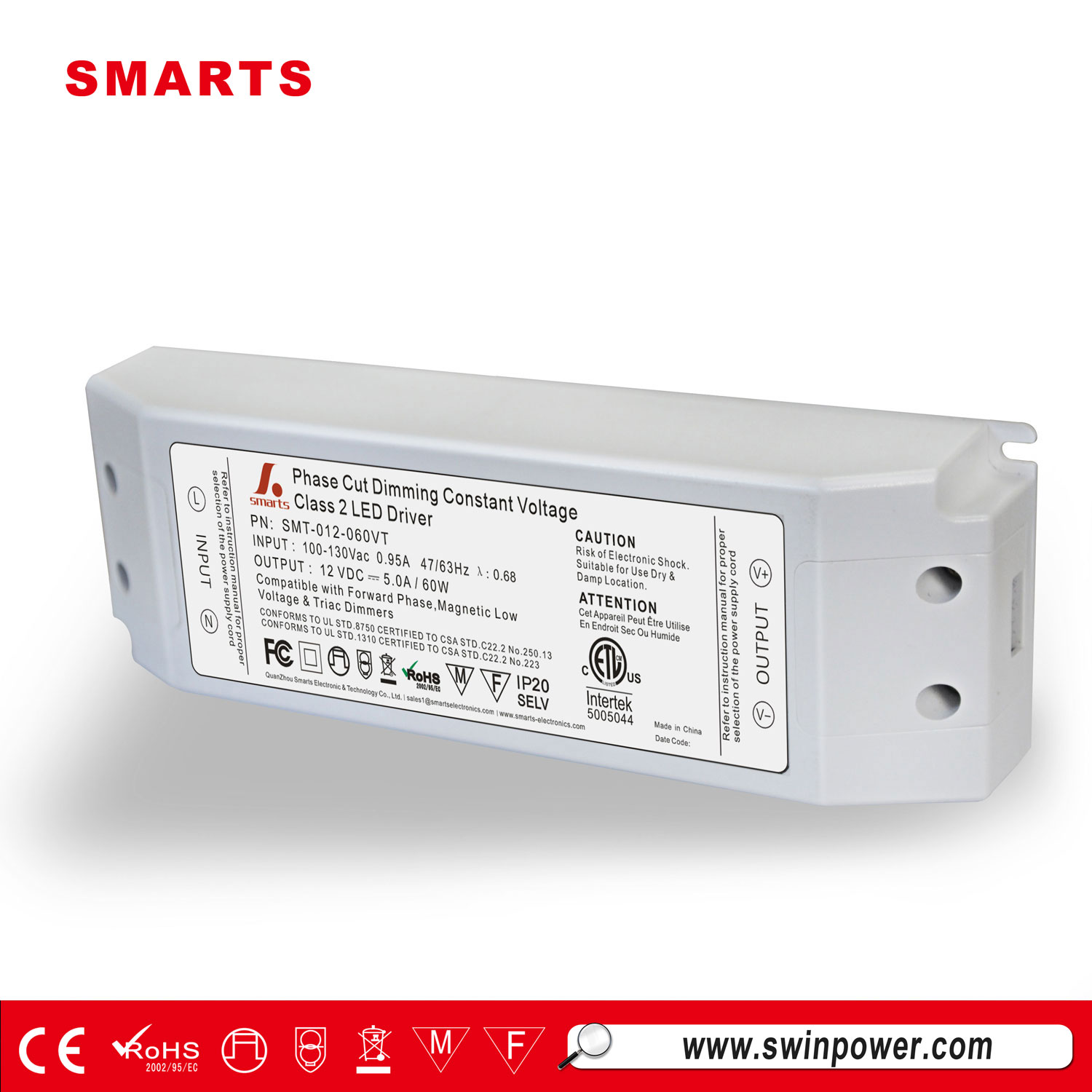

12vdc 5a waterproof dimmable power supply 40w 60w
These triac dim
mable led driver 12v are genuine and fully approved with the CE ETL ROHS safety mark. They are also suitable for SELV applications. And they will enable you to achieve the full design life from your LED lights, which should be at 8 hours per day.
Specification:
Output constant voltage
Universal AC input: 100-130VAC / 170-265VAC
Power Factor> 0.68
High efficiency >84%
Protection:short circuit/over loading/over current/ Over temperature
Full protection plastic housing
Easy installation
Cooling by free air convection
Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications and others
Compliance to worldwide safety regulations for lighting
Mechanical Specification:
|
Model
|
SMT-012-060VT
|
SMT-024-060VT
|
|
Certificates
|
ETL、CE、FCC
|
ETL、CE、FCC
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5A
|
2.5A
|
|
Rated power
|
60W
|
|
input
|
Voltage Range
|
100～130VAC / 170-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor （Typ.）
|
PF≥0.68
|
|
Efficiency（Typ.）
|
>84%
84%
|
>84%
|
|
AC Current（Typ.）
|
0.95A@110VAC
|
0.48A@220VAC
|
|
Leakage current
|
﹤0.50mA @120VAC / ﹤0.65mA @220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery automatic
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP .coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety& EMC
|
Safety standards
|
UL1310 & UL8750
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
others
|
Net. Weight
|
0.45Kg (only the dimmable Driver)
|

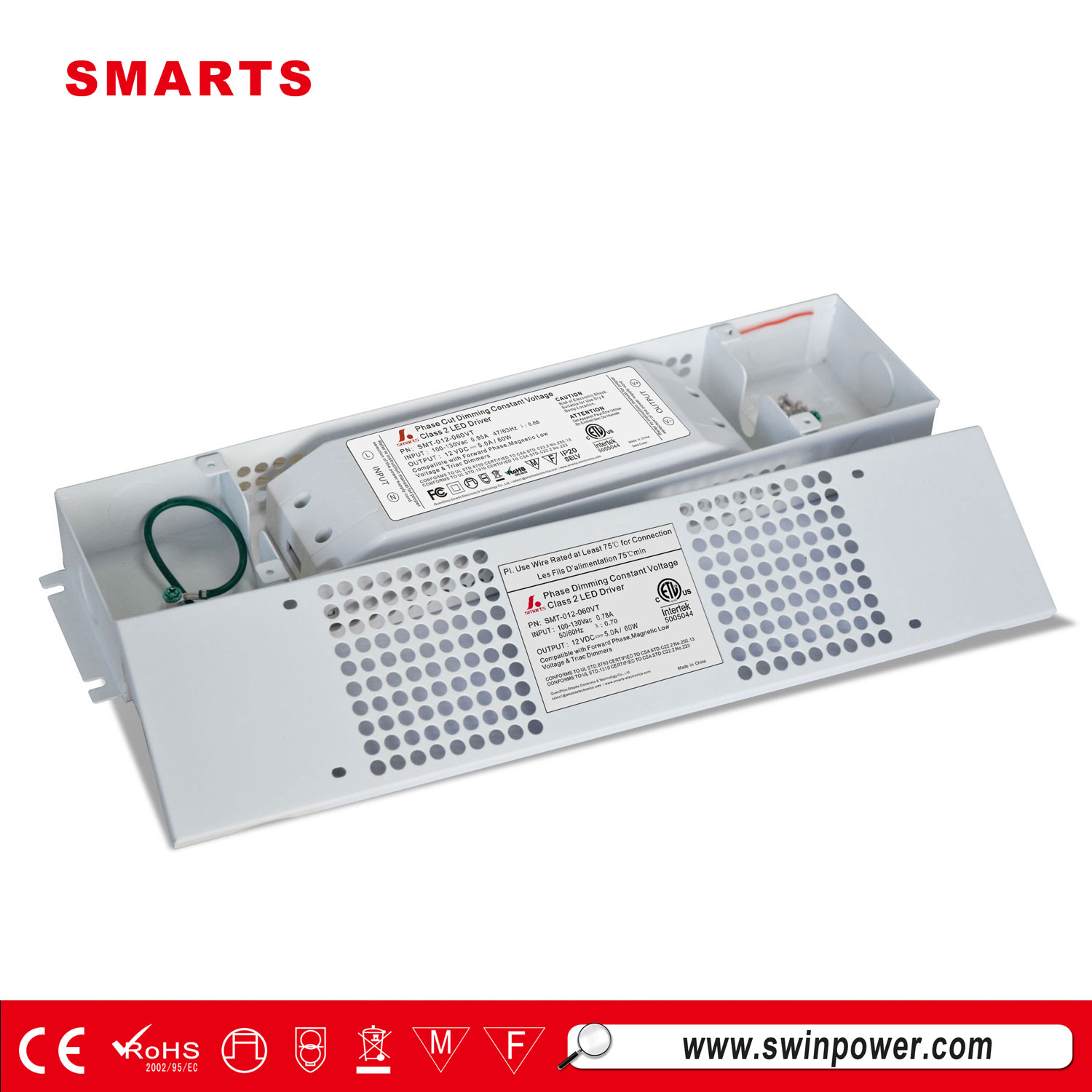

1.0Kg (Dimmable driver + junction box)
|
|
Carton Size
|
180*60*35mm（L*W*H）
|
350*77*37mm（L*W*H）
|
|
packing
|
350*195*180mm 20PCS/CTN
|
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading should be 5-100%.
|
Opreation reference:
FAQ:
1. How can you assure your quality?
We do 100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
5 years and 7 years. If any defective, we will replace in your next order.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. How about your delivery time?
3-7 working days according the order quantities.
6. Can you make OEM?
Of course, OEM ODM provided.
More information if you would like to know Smarts Electronics’ triac dimmable led driver, you can login http://www.smarts-electronics.com/ Or contact with Mr. Steven(skype: steven821228 mail:steven@smartselectronic.com.cn)
