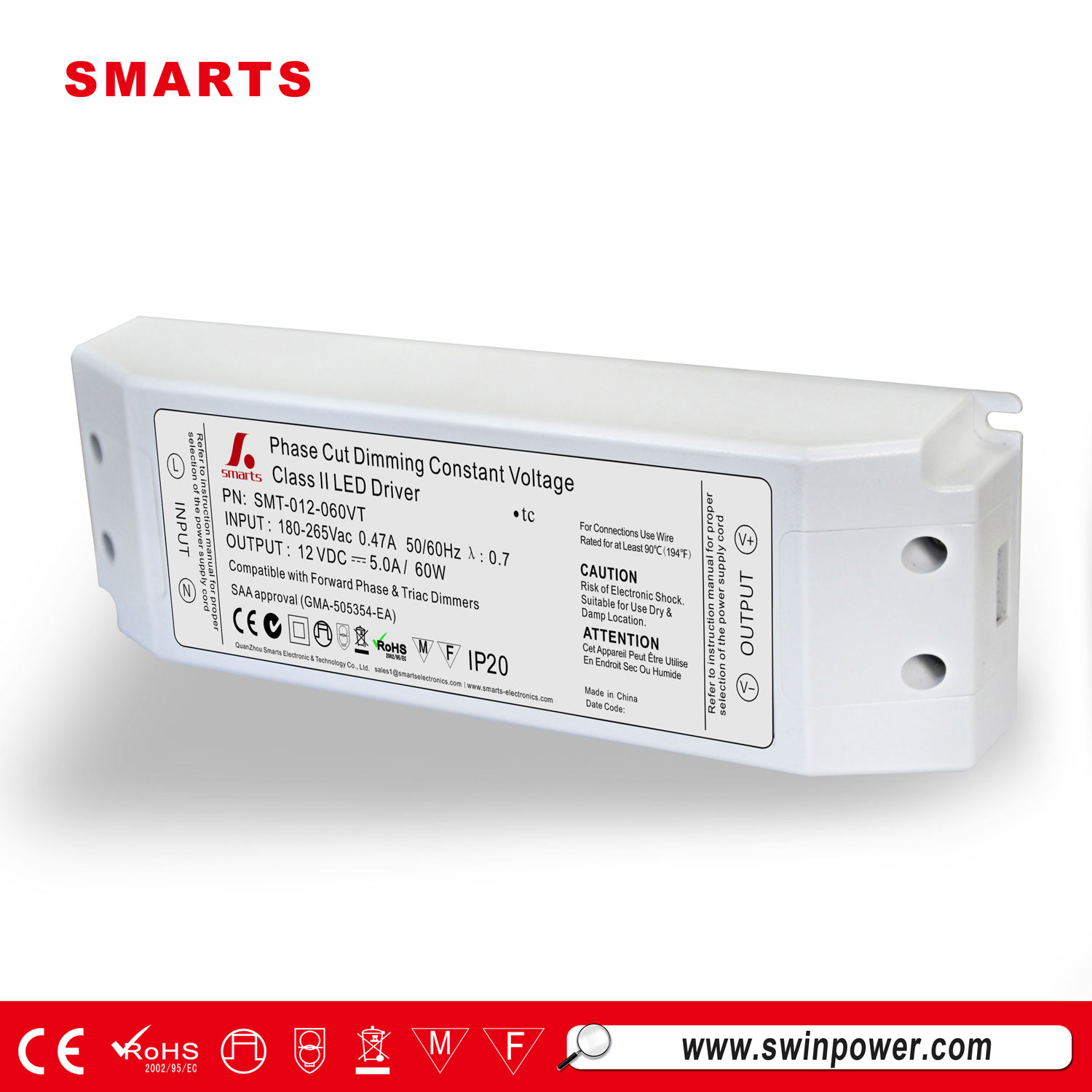

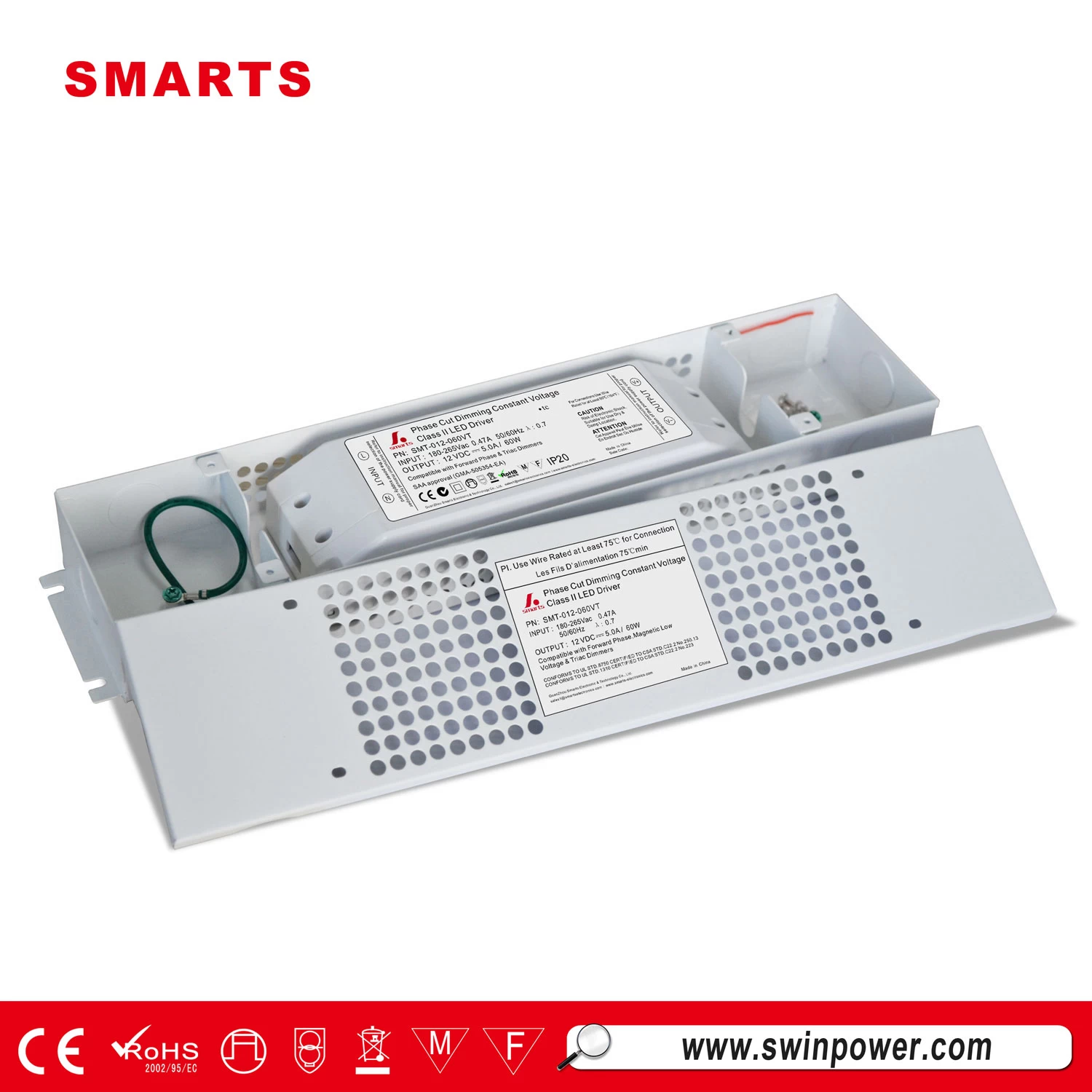

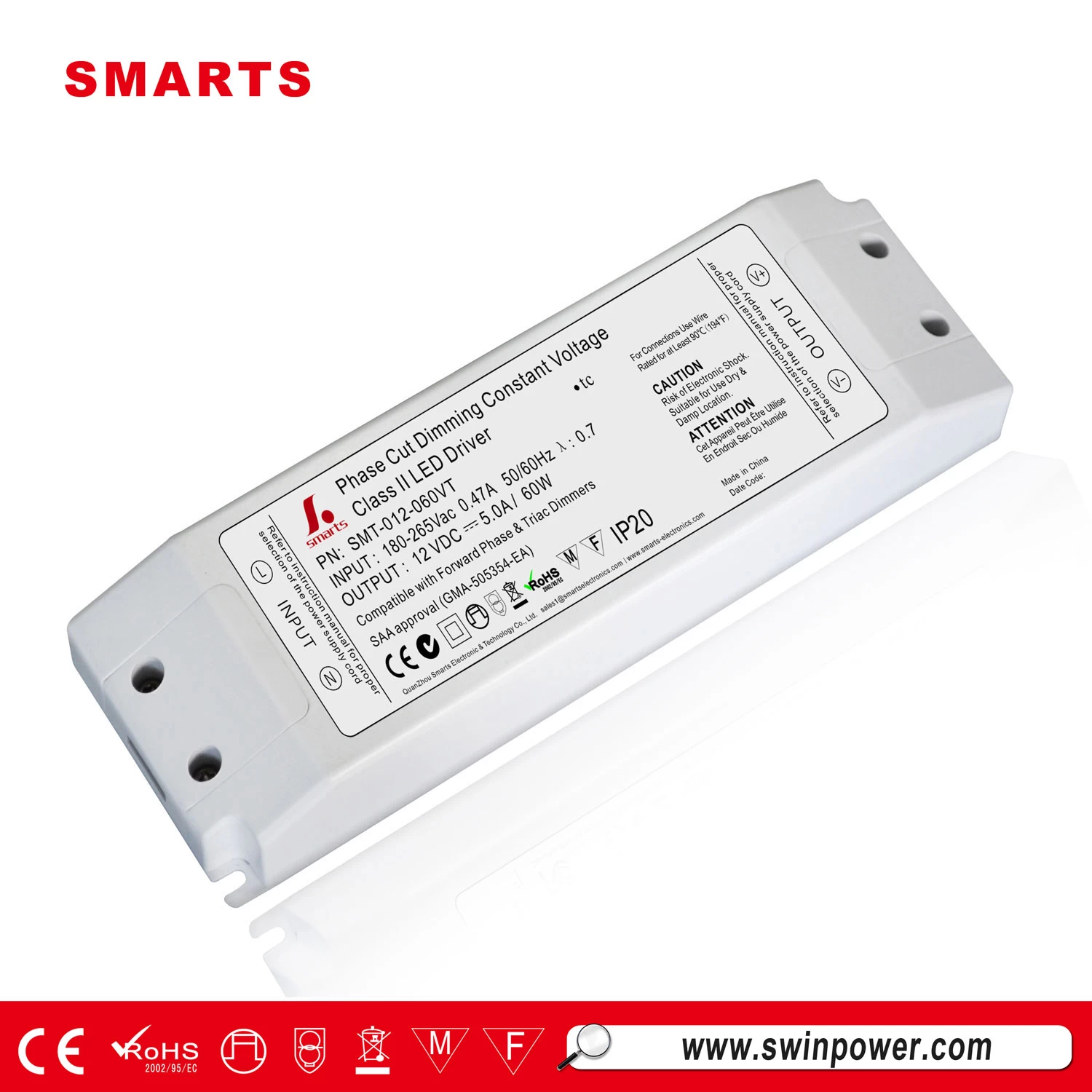

triac dimmable led driver 60w 12v dc power supply 5 amp for led lights
The led driver is no load limitation and about dimming mode is triac dimmable. This led power supply 12v is reliable, long-lasting and led power supply 60w will convert 180-265 volts down to 12 volts. With 7 Years Warranty.
Features：
·Output constant voltage
·Input voltage range 180-265VAC
·Built-in PFC function
·Efficiency >83%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·5 years warranty
|
model
|
SMT-012-060VT
|
SMT-024-060VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
5.00A
|
2.50A
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
180～265V AC
|
|
Frequency Range
|
50～60HZ
|
|
Power Factor ( Typ.）
|
PF≧0.78/180V,PF≧0.80/170V,PF≧0.81/220V,PF≧0.82/265V
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>83%
|
|
AC Current（Typ.）
|
0.58A/180VAC, 0.46A/220VAC, 0.41A/265VAC
|
|
Leakage current
|
﹤0.25mA/180V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over voltage
|
≦270VAC(180~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1/-2/-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 1.0Kg
|
|
Size
|
210*68.5*43mm（L*W*H）
|
|
packing
|
324*298*176mm （L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Our Services:
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
-
OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
-
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
-
High efficiency,long life span,reasonable&competetative price,fast lead time;
-
We have our engineer team, if you have any question about your LED applications, let us know freely.
