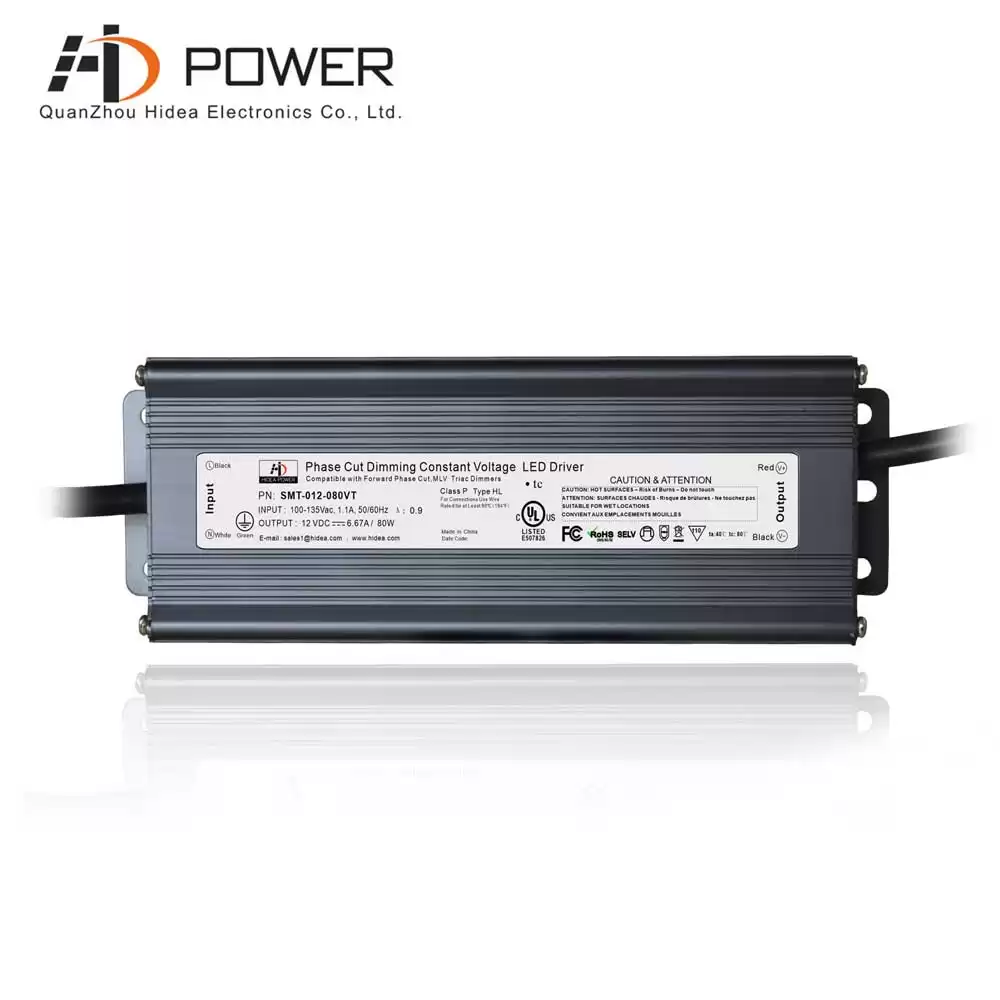

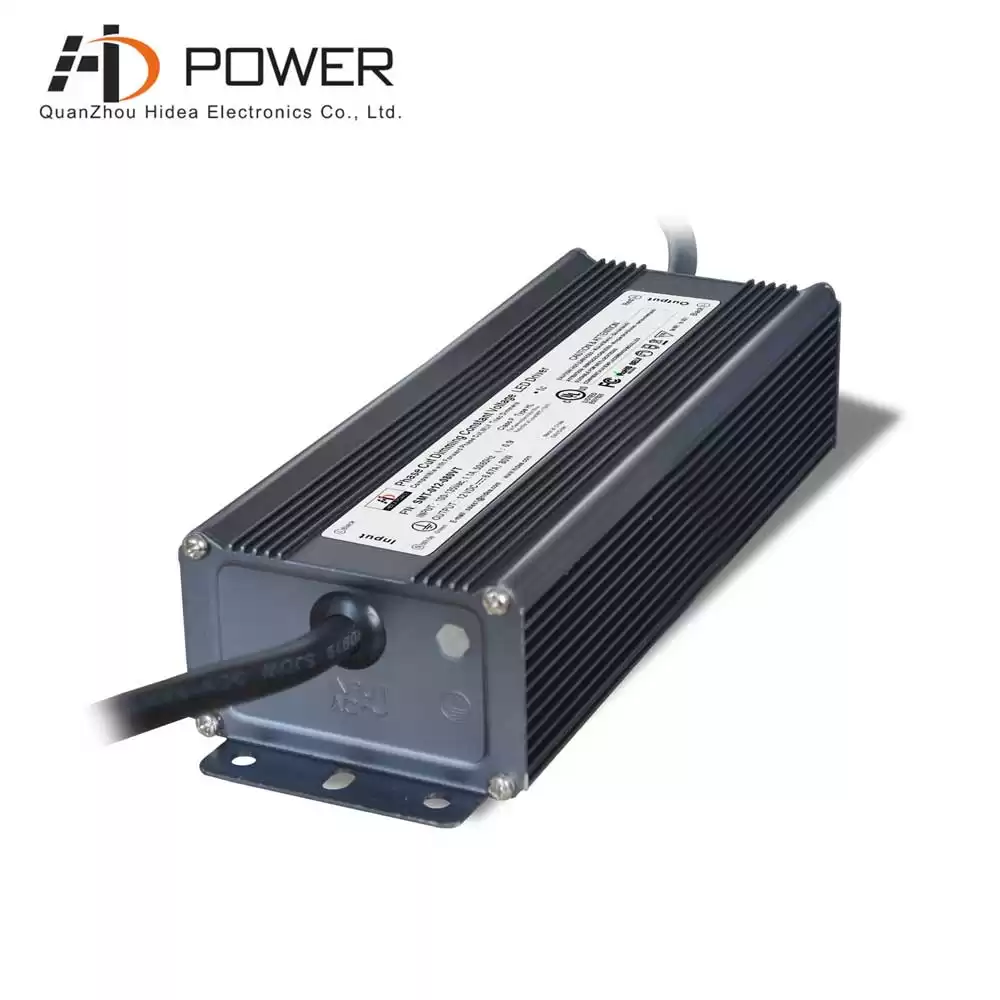

Dimmable led transformer 12v 80w are flexible, compact size and capable to withstand the toughest environment, while delivering a reliable and constant performance for MX LightForce dimming strip LED lighting applications.
Specification
|
Model
|
SMT-012-080VT
|
SMT-024-080VT(Class 2)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
6.6A
|
3.3A
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
90-135VAC/170-250VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
82%
|
85%
|
|
AC Current(Max.)
|
1.02A
|
1A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012 (12VDC) / UL8750+UL1310 Class 2 unit (24VDC)
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.95 Kg
|

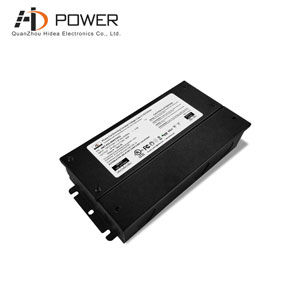

1.55Kg (with junction box)
|
|
Size
|
200*70*46mm(L*W*H)
|
350*77*57mm(L*W*H) (with junction box)
|
|
packing
|
329*279*176mm 10PCS
|
350*85*65mm 10PCS
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type

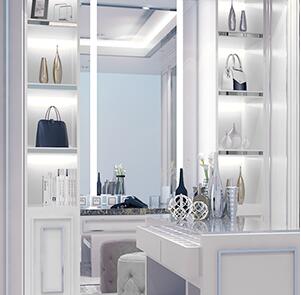

Stretching to 16.4ft, the Gusodor LED strip light is flexible enough to be mounted in various locations. Enjoy brighter lighting in your favorite places, like your mirrors, cabinets, bedroom, living room, kitchen closets, strong compatability with dimmable led transformer.
