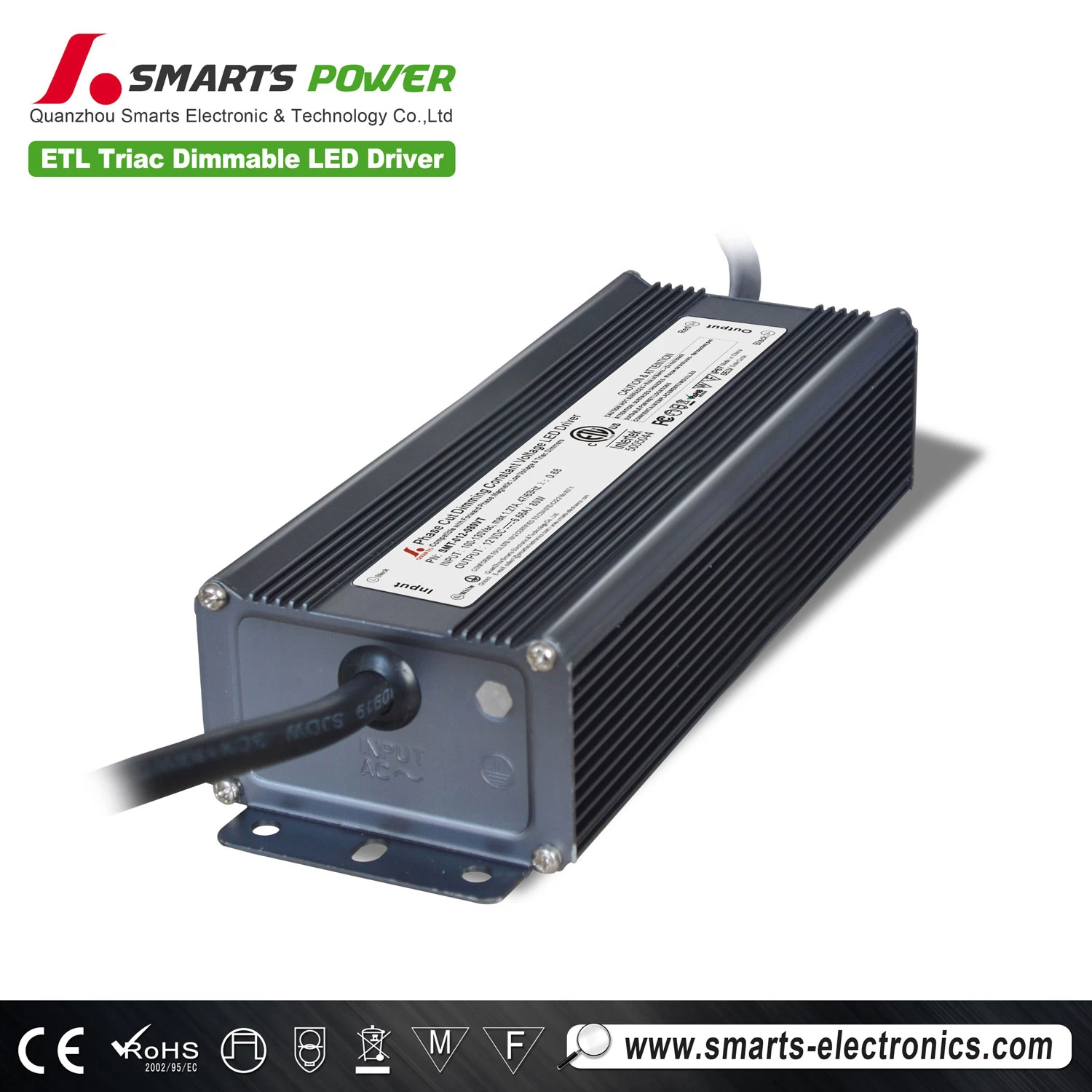

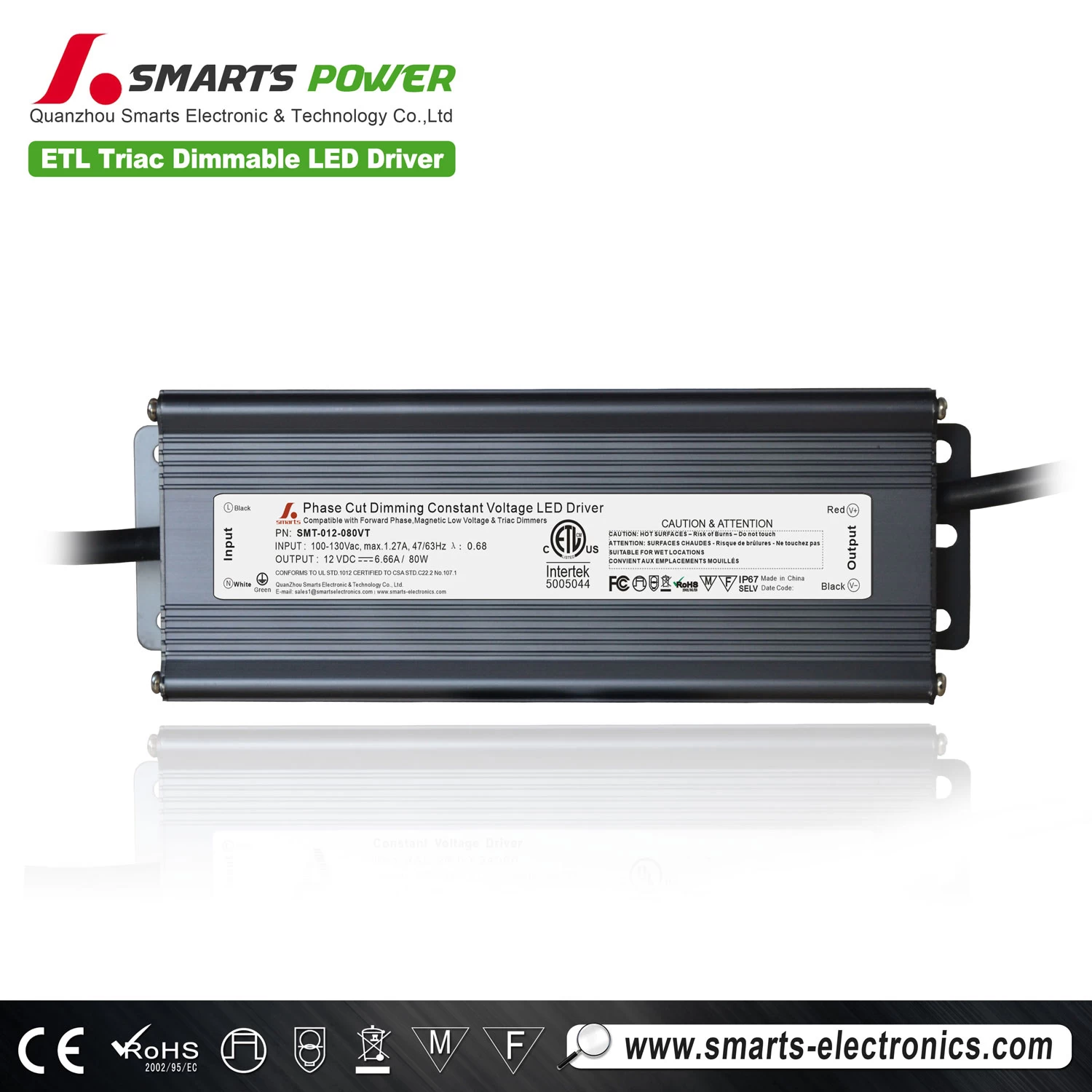

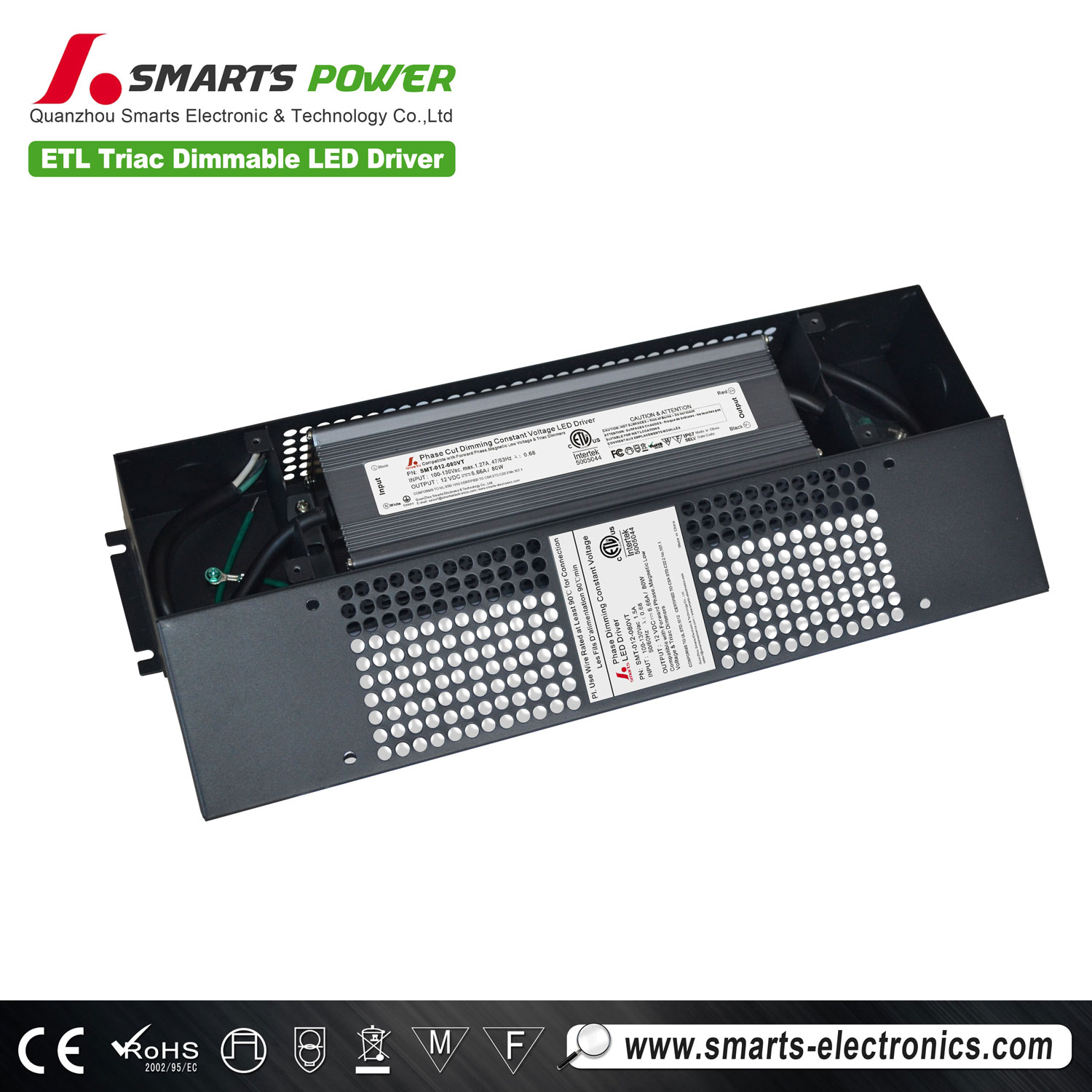

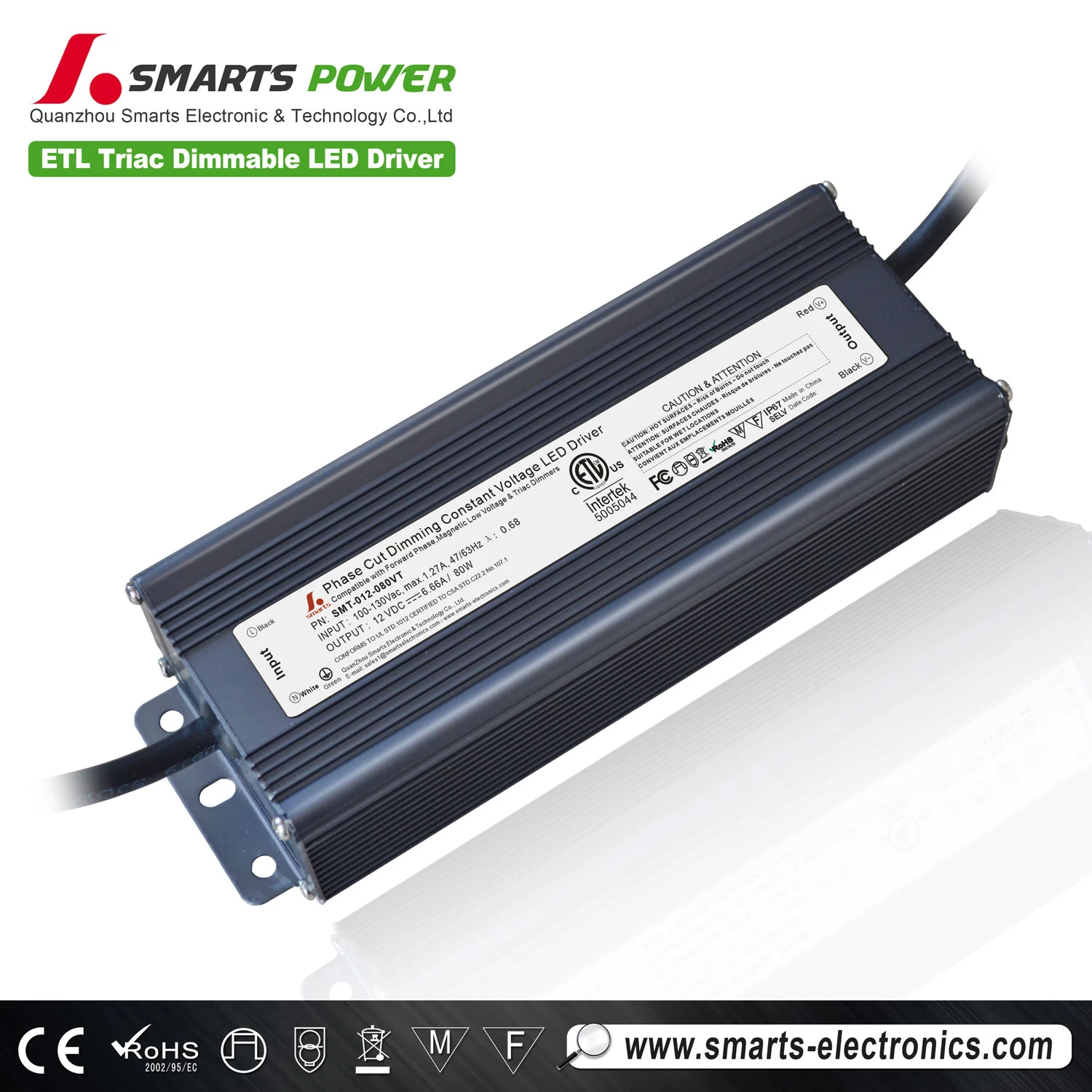

triac dimmable LED driver

LED power supply;  12v/24v dimmable led MR16 driver;  high stability triac dimmable led driver



triac dimmable LED driver

Product Description


Product parameters:

        Item No.

Input voltage(vAC)

Working Frequency
(Hz)

Output voltage
(vDC)

Output Current

power(Watt)

Working Temp.

IP rate

SMT-012-080VT

90-135vAC

170-265vAC

47~63Hz

12V

6.6A

80W

-25~50°C

IP67

SMT-024-080VT

90-135vAC

170-265vAC

47~63Hz

24V

3.3A

80W

-25~50°C

IP67


  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting

Safety:

  • Safety Standards : IEC 61347 –2–11 , EN55015,EN61000
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

12v 80W triac dimmable led driver transformer for led strip ip67
