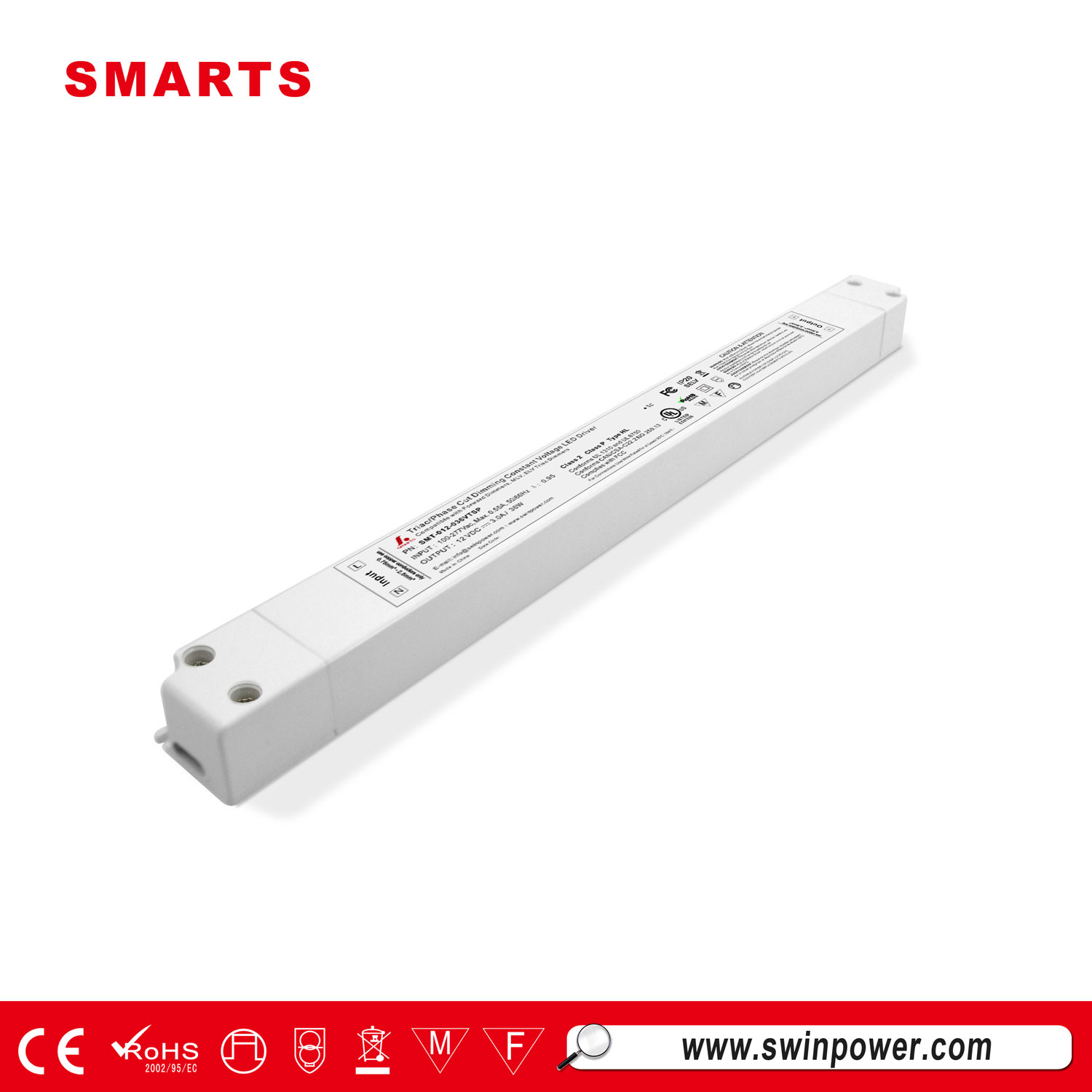

Triac Dimmable UL Led Driver 12v 300ma Small Constant Voltage Led Driver

Our SMT-012-036VTSP is 100-277vac 12vdc 36w slim type triac dimmable constant voltage led driver.the advantages as below:

Built-in PFC function / Efficiency > 82% / PF> 0.99

Dimming range: 0~100% / load: 5~100%

Protections:short circuit/over voltage/over heat
IP20 design for indoor dry or damp environment installations
Cooling by free air convection


  • Input Voltage100-277VAC
  • Output Voltage12vdc
  • Output Current300mA
  • Working Modeconstant voltage
  • Dimming modetriac dimmable
  • Size260*30*18.5mm
  • CertificationCE,UL, FCC,Class 2, Class p, type HL, RoHS

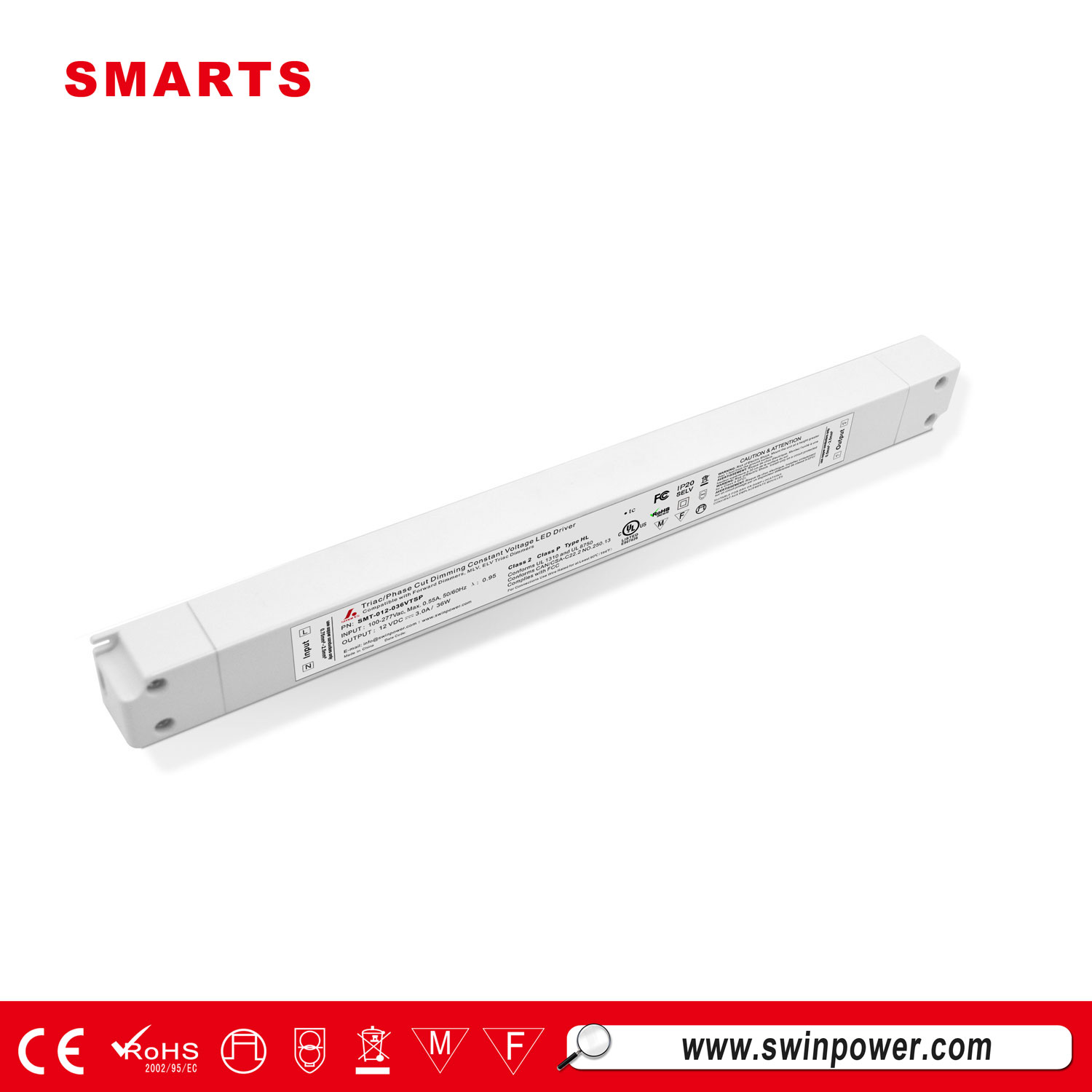

                      Triac Dimmable UL Led Driver 12v 300ma Small Constant Voltage Led Driver



Our SMT-012-036VTSP is 12vdc 36w triac dimmable constant voltage led driver,it's CE,UL, FCC,Class 2, Class p, type HL, RoHS listed,and we can provide 7 years warranty.The size is slim,very suitable for mirror lights,could save space.

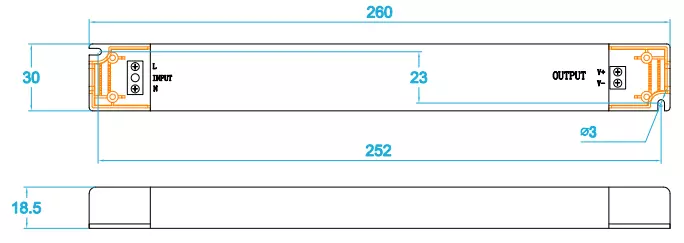

Mechanical Specification



 Smarts 36w dimmable led power supply slim led tube power supply

* Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

*Output: Red is(Possitive +),Black is(Negative -)



Dimming Operation

* Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

* Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

* Please try to use dimmers with power at least 1.5 times as the output power of the driver.

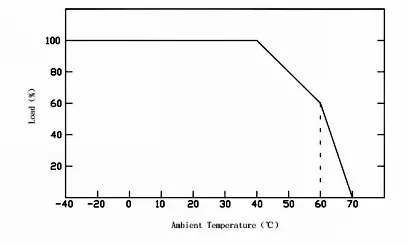

Derating Curve

  Smarts 36w dimmable led power supply slim led tube power supply

l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life



FAQ:

Can we make our company information on the label?

Answer:

--As per the policy of ETL/UL,  we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
