triac dimmable waterproof constant voltage 60W 24V led transformer

Triac/ ELV/ MLV Dimming LED driver has built-in active PFC function, power factor >0.98, constant voltage working mode, short circuit, overload protection function, dimming effect is similar to the popular magnitude 60W 24V LED transformer in the market

CertificationUL/cUL
Weight0.2KG
Size72*39*22.5mm
Shape & SizeMini Size
Output Voltage12/24Vdc
Input Voltage120Vac
Output Power(Watt)60W
Working ModeConstnat Voltage LED Driver
Dimming ModeTriac Dimming
Warranty3 years warranty

Facebook Twitter Pinterest LinkedIn 分享

Description

triac dimmable waterproof constant voltage 60W 24V led transformer

This electronic transformer 60W 24V has ultra-low load requirements and can work perfectly under 20-100% load, which can be applied to LED strip/LED tape/LED module, Residential Lighting and Commercial Lighting

Specification

Model Number	SET-12060A	SET-24060A
Output Type
Reted Power	60W	60W
Reted Voltage	12V	24V
Reted Current	5A	2.50A
Voltage Tolerance	±0.5V
Voltage Regulation	±0.5%
Load Regulation	±1%
Input Type
Voltage Range	120V
Frequency Range	47-63HZ
Efficiency(Typ.)	88%@120VAC
Total Harmonic Distortion	THD< 20%(@100% load)
Power Factor(typ.)	0.98@120VAC
AC Current(Typ.)	0.58A
Inrush Current(Typ.)	-
Leakage Current	<0.5mA/ 120VAC
PROTECTION
Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
Over Load	Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
Working Temp.	Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity	20 ~ 95% RH non-condensing
Storage temp., Humidity	-40 ~ +90, 10 ~ 95% RH
Temp .coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards	UL8750, Class 2
Safety standards	I/P-O/P:1.88KVAC
OTHERS
Dimension	2.83x1.53x0.79 inch (LWH)
Packing	-

Related Products

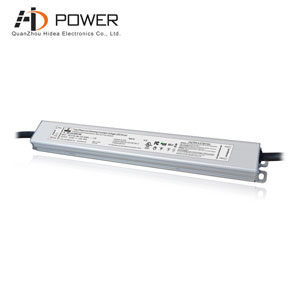

Slim size 12v 60w triac dimmable led driver aluminum housing design, suitable for outdoor lighting projects in wet areas
