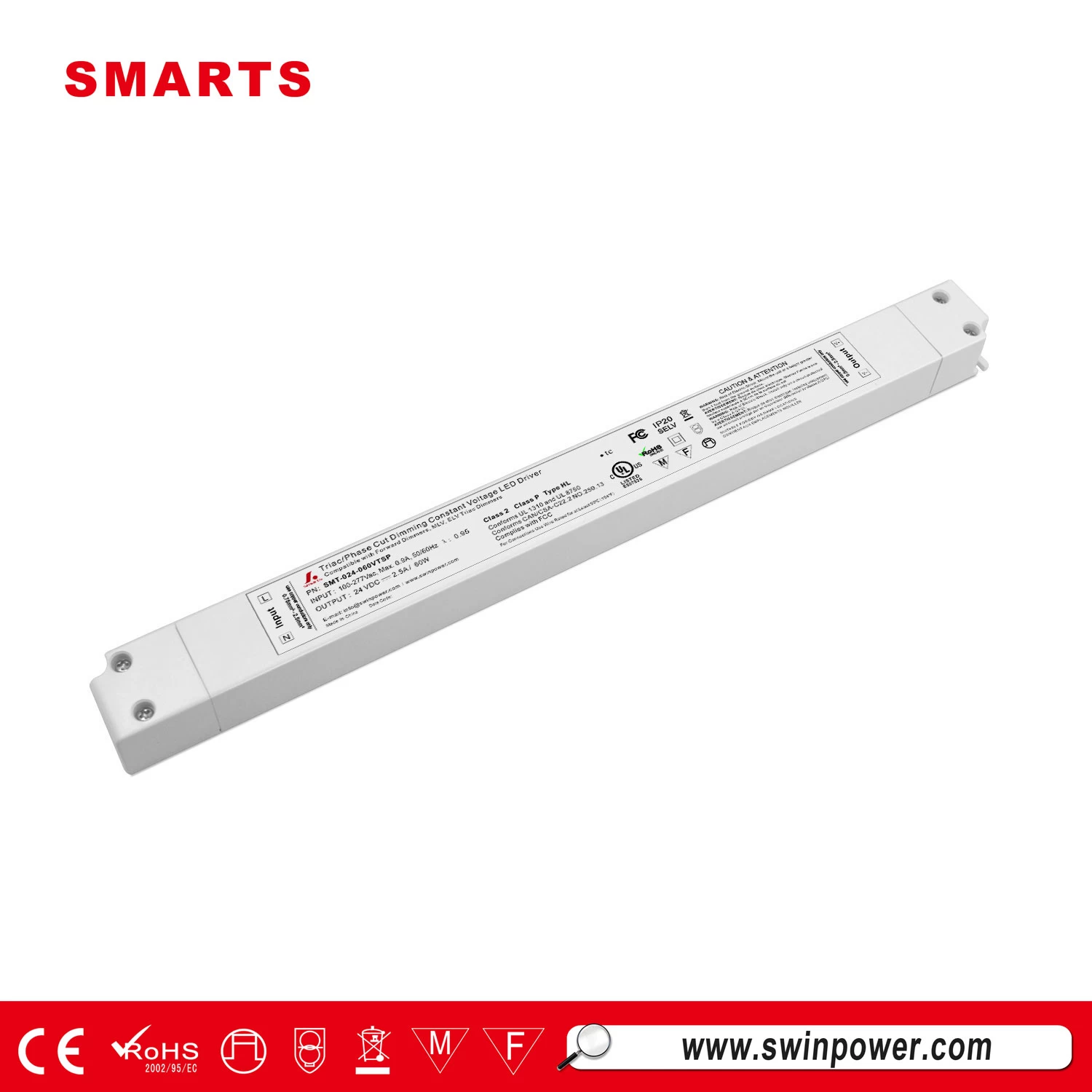

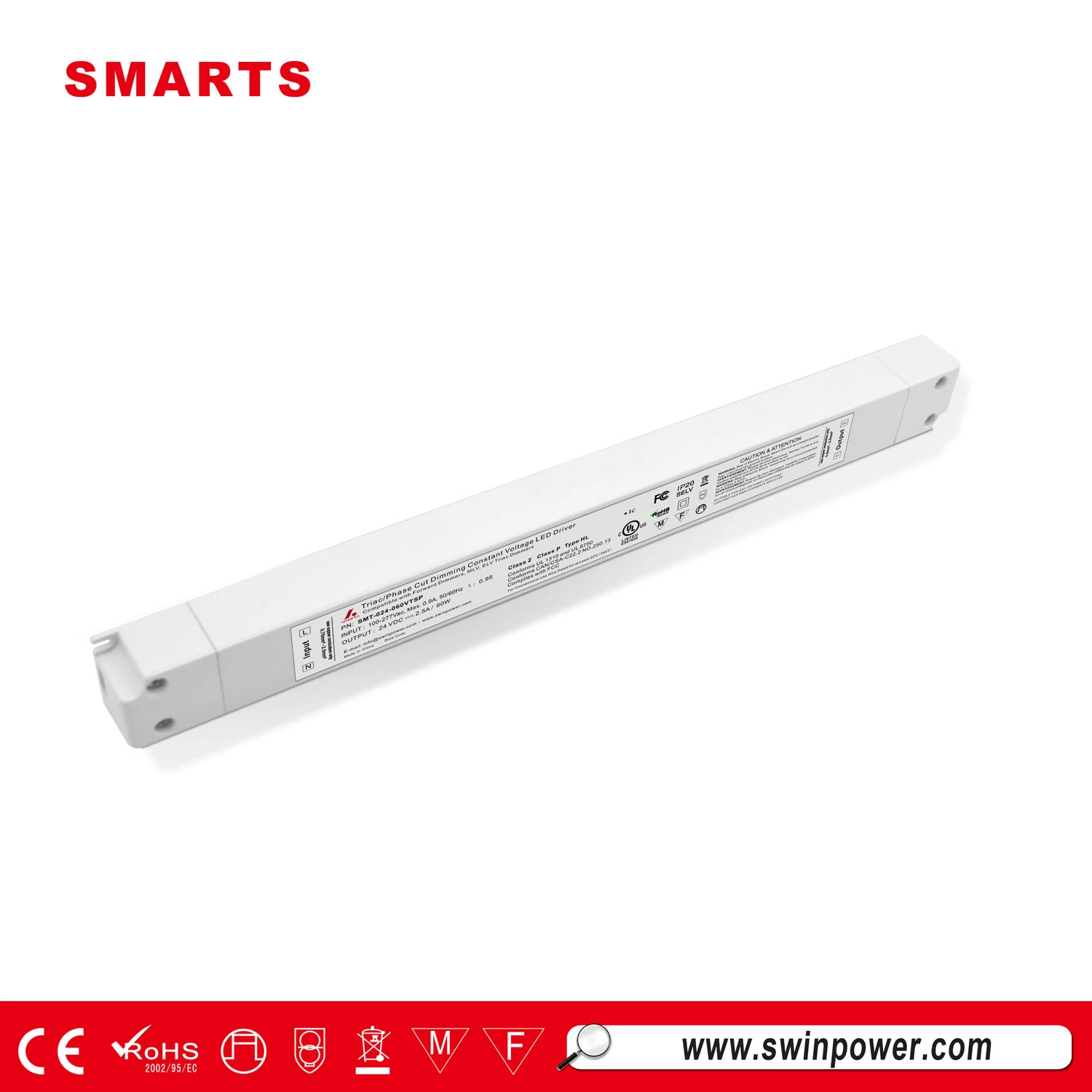

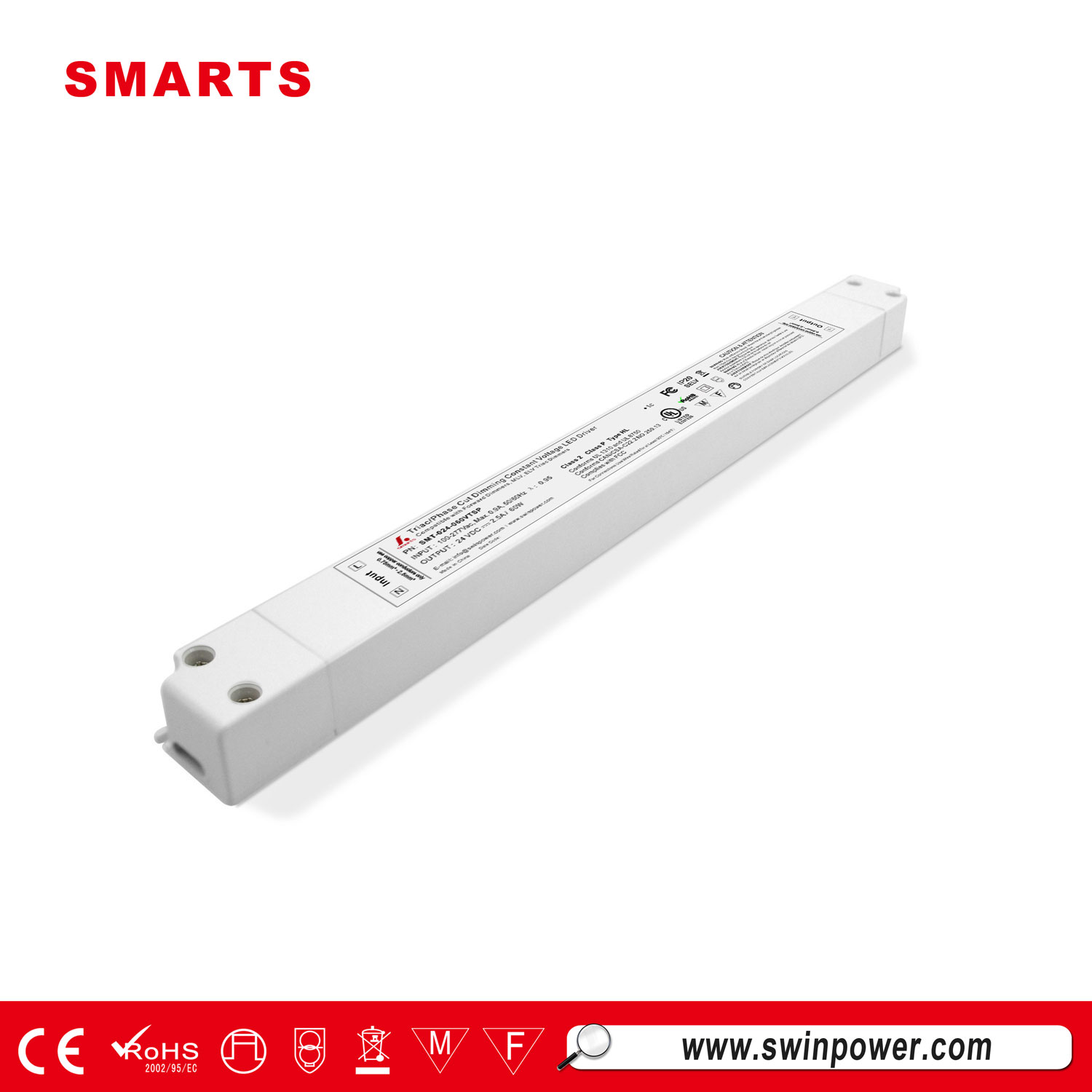

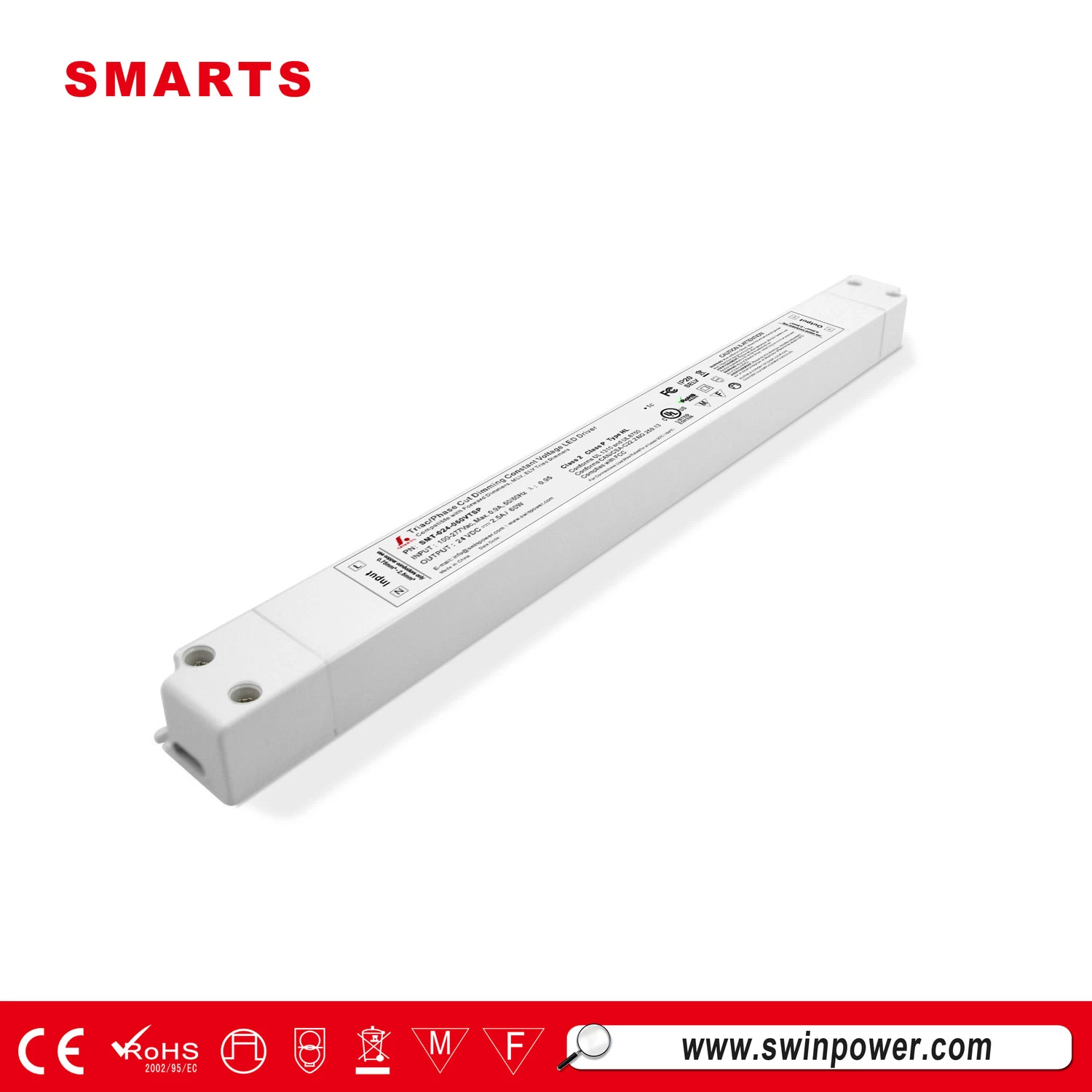

triac dimmabloe 60w 24v slim size 277v UL led driver

Ultra slim type 60W Triac dimmable 100-277VAC constant voltage led power supply + PWM signal.


  • Size300*30*18.5mm
  • Dimming modetriac dimmable
  • Working Modecv
  • Output Current2.5A
  • Output Voltage24V
  • CertificationUL/cUL,FCC,RoHS approval
  • Input Voltage100-277vac

triac dimmabloe 60w 24v slim size 277v UL led driver


UL listed, Class 2, Class P, CE, ROHS approval, built-in PFC function, Dimming range: 0~100% / load:10~100% 277v led driver constant voltage. short circuit/over voltage/over heat, IP20 design for indoor dry environment installations protections:.


Specification


model

SMT-012-060VTSP

SMT-024-060VTSP

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

5.0Amp

2.5Amp



Rated power

60W

60W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



Full Load EfficiencyTyp.

>83%

>84%



AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC



Inrush CurrentTyp.

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC



Leakage current

<0.74mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P: 2KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg



Size

300*32*20mm (L*W*H)



packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

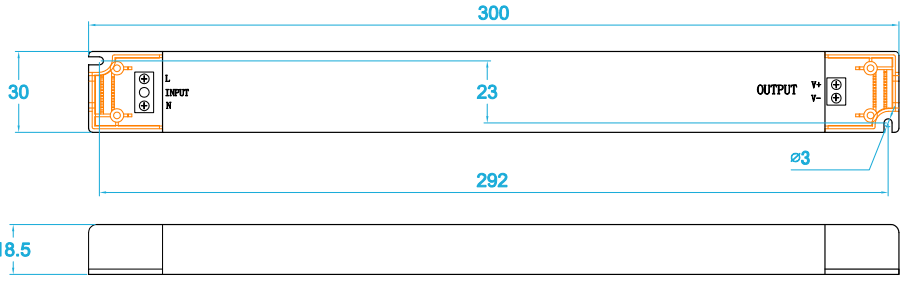

Mechanical Specification


constant voltage led power supply


² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

² Output: Red isPossitive side +,Black isNegative side -



Dimming operation


Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

Please try to use dimmers with power at least 1.5 times as the output power of the driver.


Derating Curve


triac dimmable UL led driver



What is the advantages of our 277VAC triac dimmable led drivers?

1. MAX power is 300W with UL/CUL, ETL/cETL, CE, SAA, C-TICK,Rohs approval

2. We also have different housing version / different size for your choice according to different applications..

3. Our triac dimmable led drivers can match with most of the triac dimmer control in the market.Such as LUTRON ,  LEVITON

4.  Covered 7 years warranty
