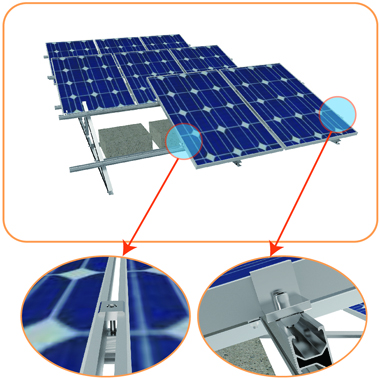

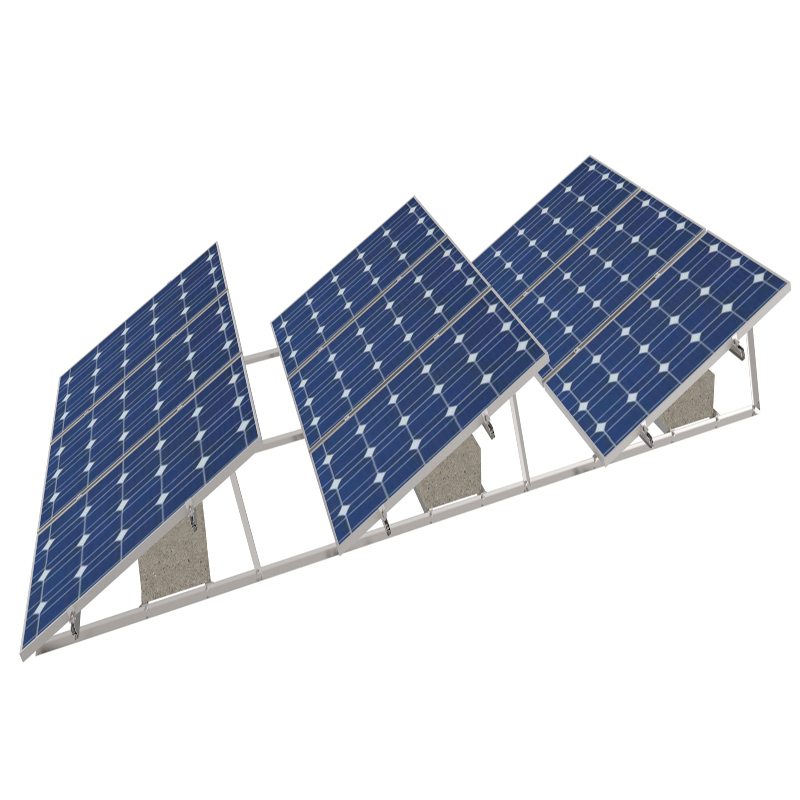

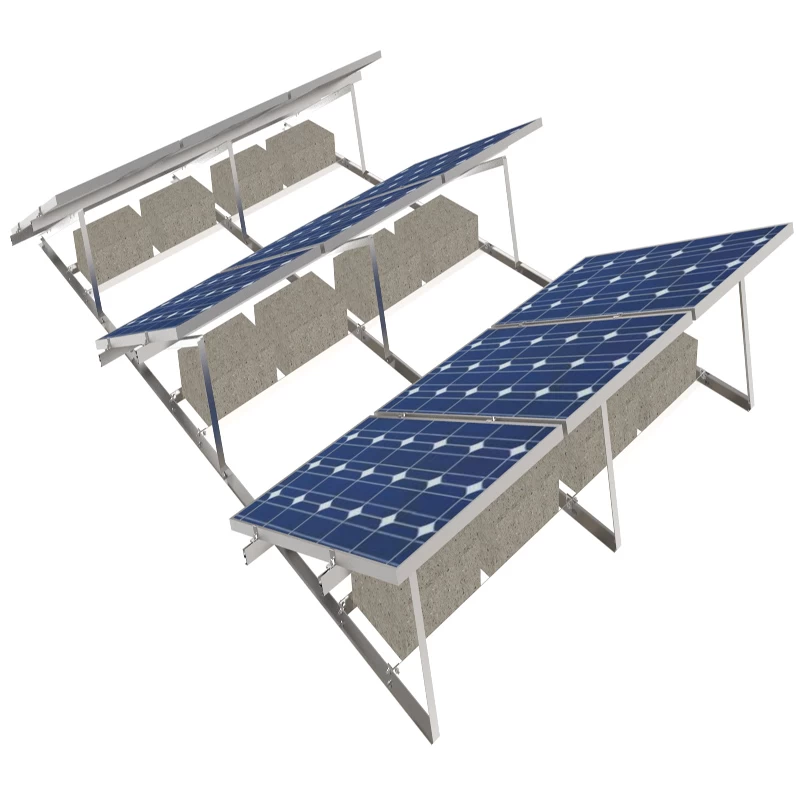

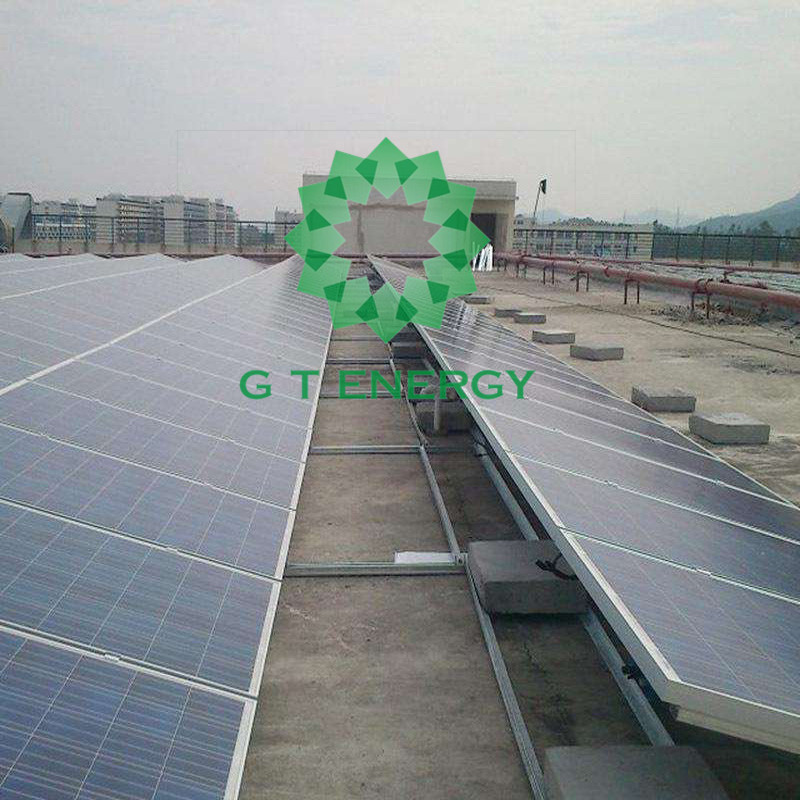

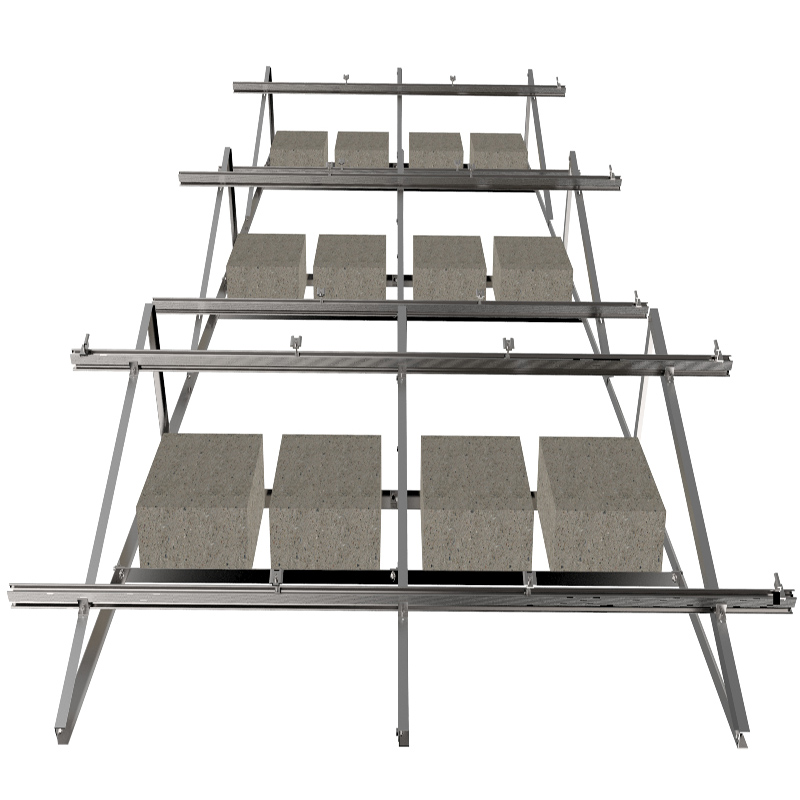

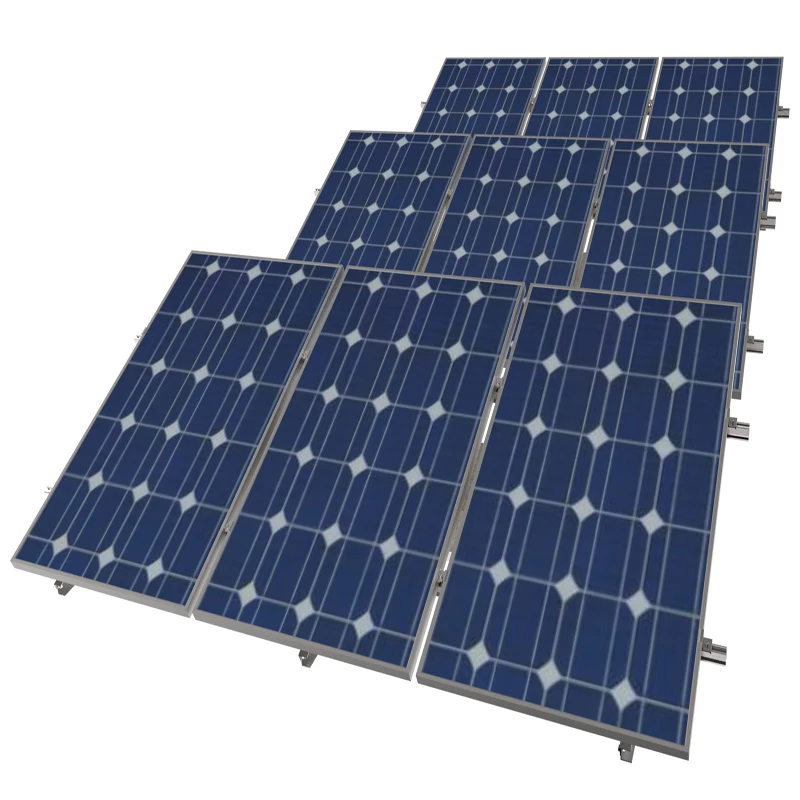

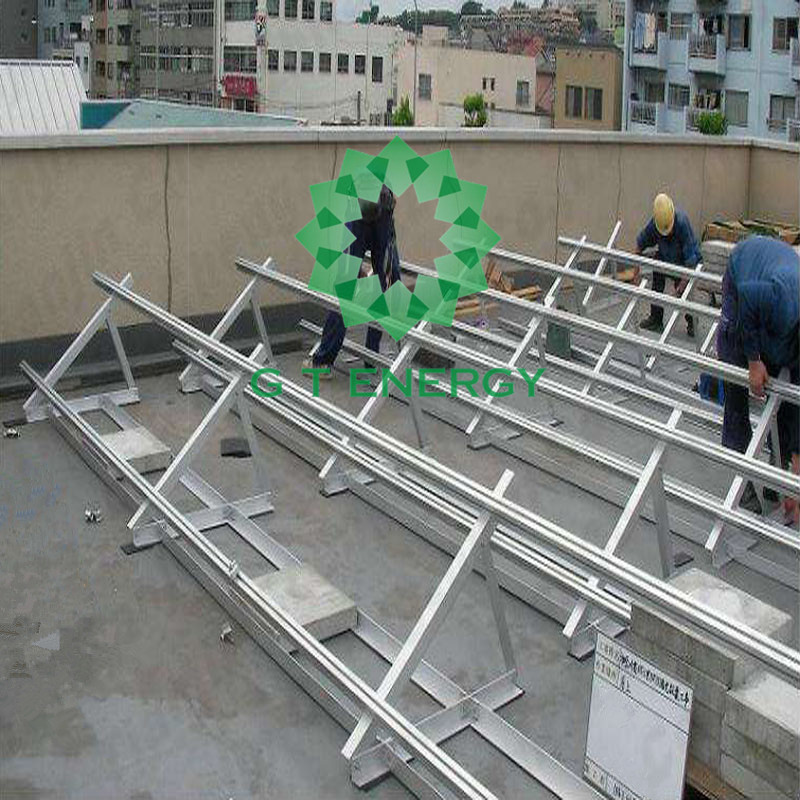

Triangle ballast roof mounting system is easy for installation and perfect for flat concrete roof.The structure of the triangular ballast system is very stable. There are rails fixed above the tripod, and the bottom is also fixed by angle aluminum. The front and rear tripods are connected to the same angle aluminum.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Triangle ballast roof mounting system
Feature:
1. Never damage the roof;
2. Simple structure,easy
installation;
3. Connect by aluminum
angular,will strengthen the stability of whole structure,also fasten the
mounting system by brick
Advantage
High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed: up to 60m/s;
Material: Al 6005-T5;
Anti-corrosive: anodized;
Warranty: 12 years;
Duration: 25 years.

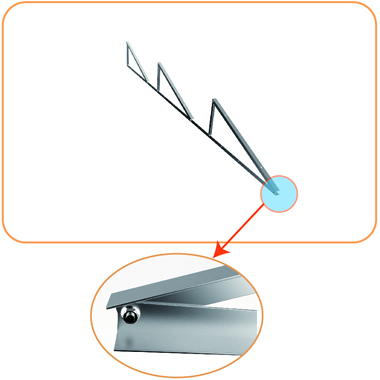

Component photos of triangle ballast roof mounting system

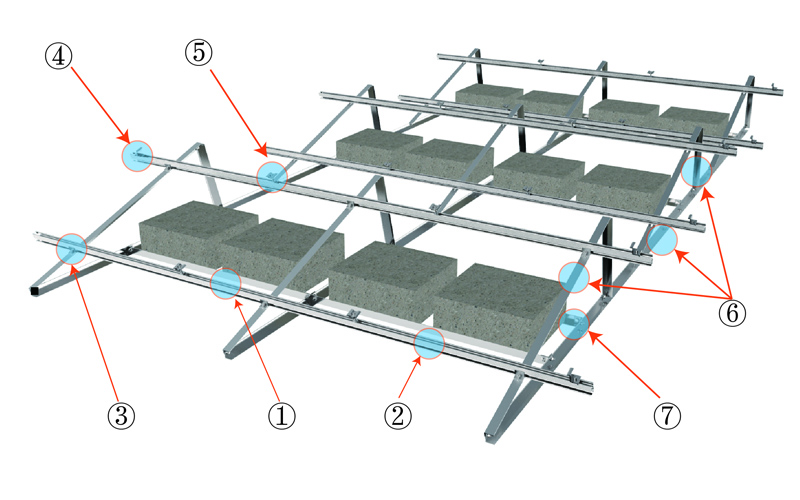

1. Solar roof rail 2. Solar roof rail splice 3. Solar rail clamp 4. Solar end clamp
5. Solar inter clamp 6. Solar aluminum angular 7. Connector for triangle ballast
roof mounting system
Installation steps of triangle ballast roof mounting system

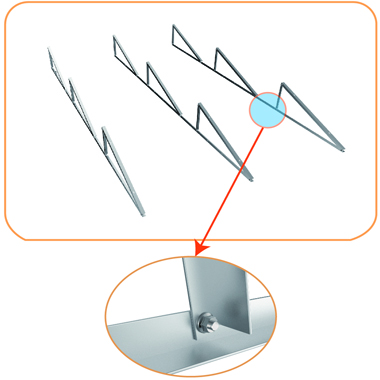

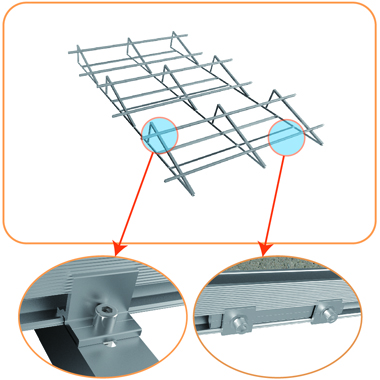

Step1：Install triangle according to the drawing Step2：Fasten triangle according to the drawing

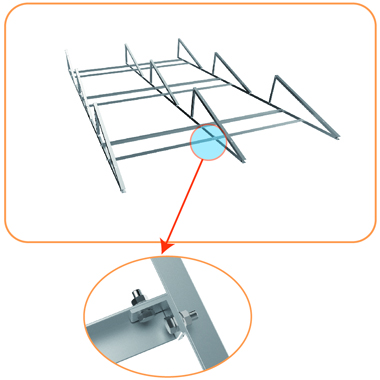

Step3：Install bottom ballast plates Step4：Install roof rails and rail splices
Connect ballast plate Rail clamp Rail splice
Step5：Fasten by inter clamp and end clamp
Inter clamp End clamp
