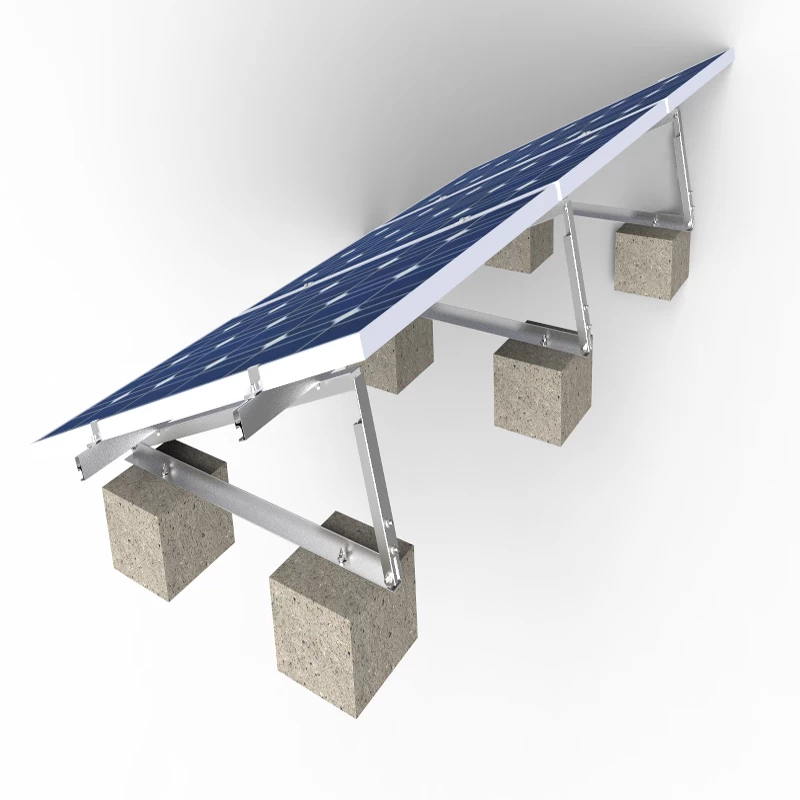

This design of solar panel frame is flexible and strong.We design two type of triangle mount-fixed triangle mount(more flexible) and tube type triangle mount(more strong).It widely used in flat concrete roof or flat ground.It is quite popular in Thailand,East west etc.It is quite flexible,light,convenient and strong.
Technical Parameters
Installation Angle
|
10°
|
Wind Load
|
60m/s
|
Snow Load
|
1.6KN/m2
|
PV Modules
|
Framed,unframed
|
Module Orientation
|
Landscape
|
Standards
|
AS/NZS 1170
|
|
DIN 1055
|
|
JIS C 8955:2011
|
|
International Building Code IBC 2009
|
|
California Building Code CBC 2010
|
Material
|
Al6005-T5(Anodized)
|
Color
|
Silvery or according to customer requirements
|
Warranty
|
15 years
|
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Effective
flat roof mounting strategies are paramount to capturing a high ROI for
commercial PV installs and overcoming design challenges. We will
provide you with the most economical and cost-effective solar
installation solutions. Our Flat Roof Solar Racking system is very
popular in the market.
Component photos
Installation steps
