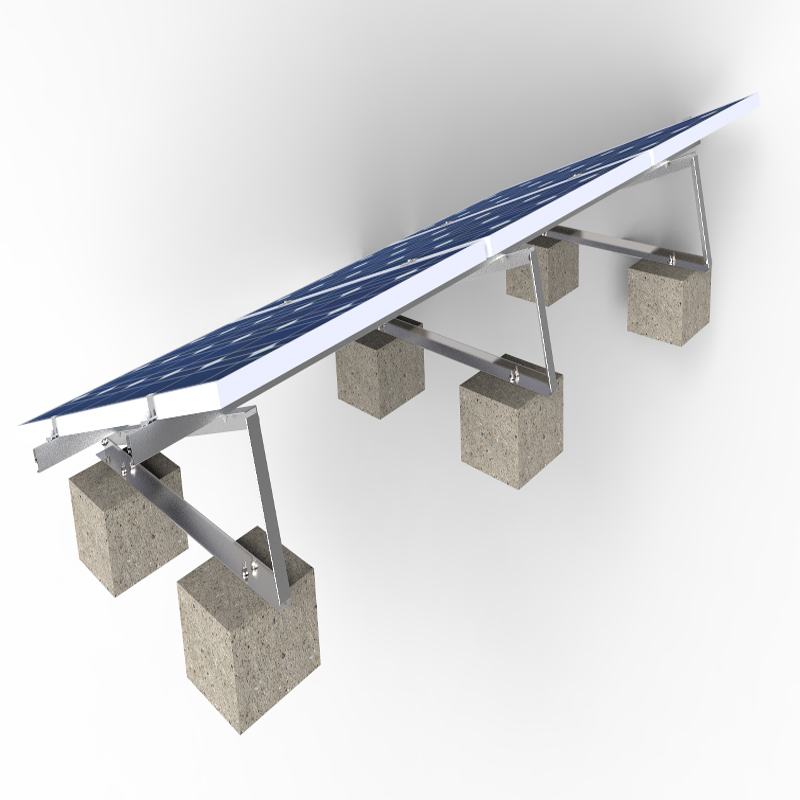

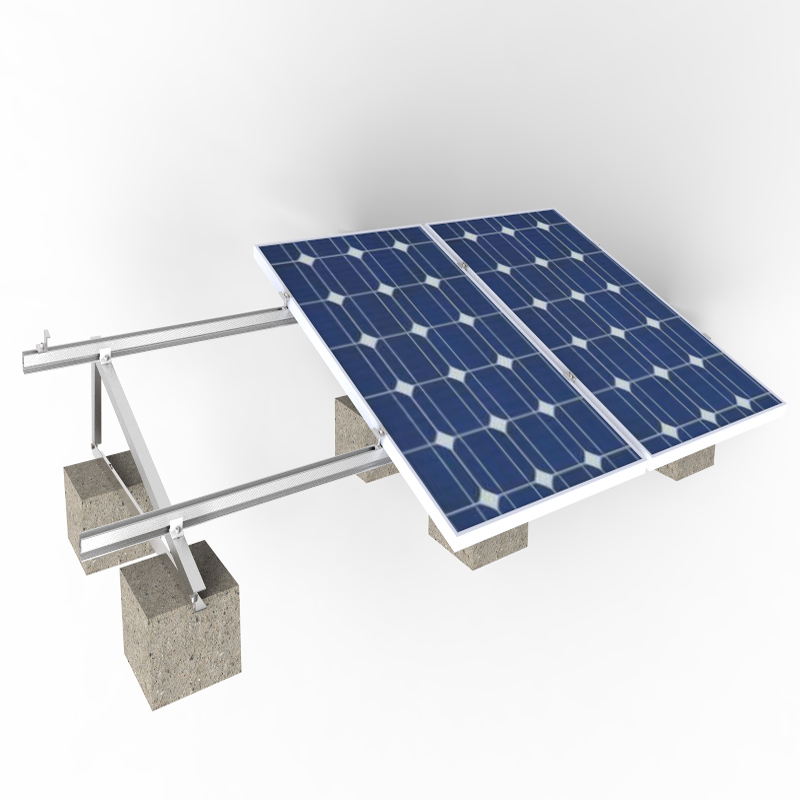

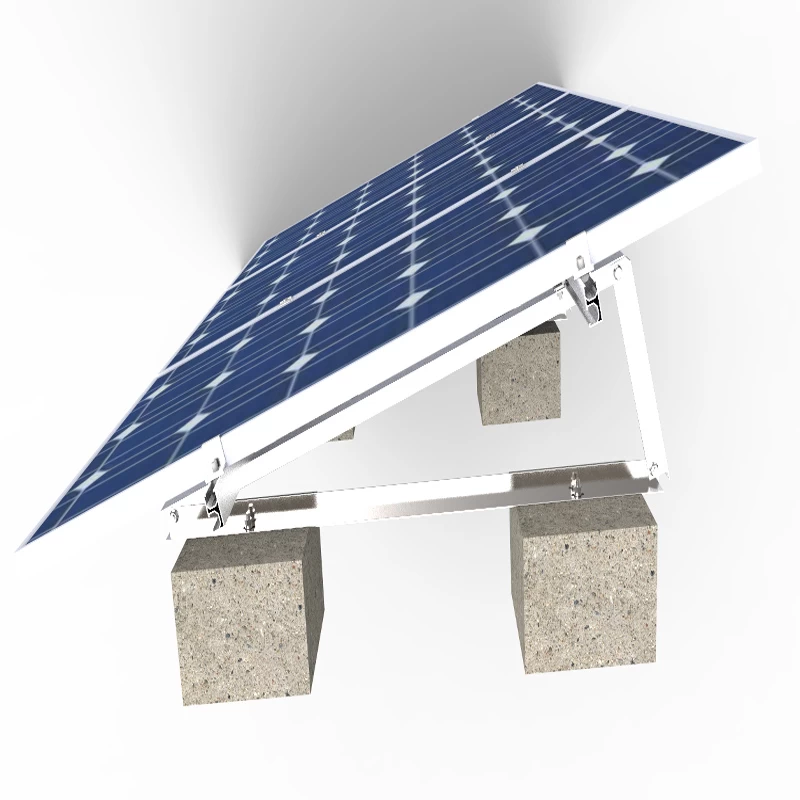

Triangle roof mount

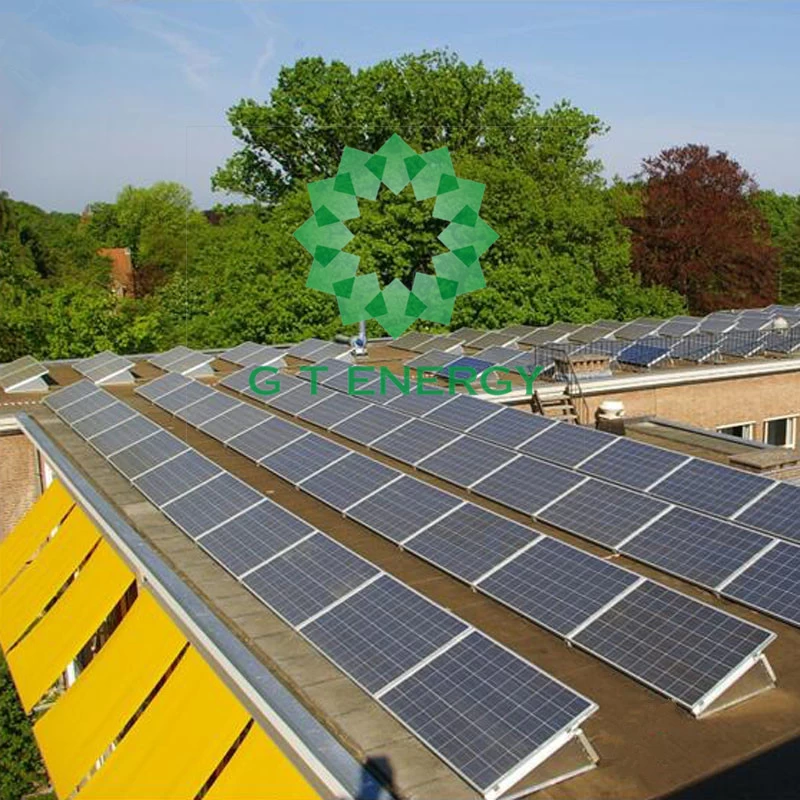

Triangle flat roof system is kind of solar mounting solutions.It widely used in flat concrete roof or flat ground.


  • Warranty12 years

This design of solar pv mounting systems is flexible and strong.Photovoltaic triangle brackets are very cheap and ideal for installation on flat roofs.

It is quite popular in Thailand,East west etc.It is quite flexible,light,convenient and strong.


Technical Parameters


Installation Angle

5-60°

Wind Load

60m/s

Snow Load

1.6KN/m2

PV Modules

Framed,unframed

Module Orientation

Landscape

Standards

AS/NZS 1170



DIN 1055



JIS C 89552017



International Building Code IBC 2009



California Building Code CBC 2010

Material

Al6005-T5(Anodized)

Color

Silvery or according to customer requirements

Warranty

12 years



Triangle roof mount


Feature:

1. The triangle roof mount is make by aluminum angular,strong structure;

2. Fasten in the concrete block by expanded bolt,ensure whole mounting system strong,stable.



Advantage


1.Easy installation;

2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);

4.Max wind speed:up to 60m/s;

5.Anti-corrosive:anodized;

6.Duration:25 years.

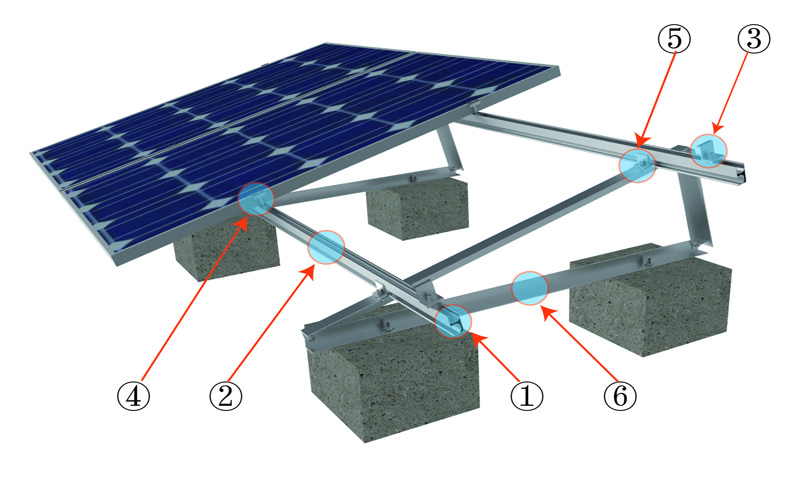

Component photos of  triangle roof mount

roof mounting system

Solar roof rail Solar roof rail splice Solar end clamp Solar inter clamp

     1. Solar roof rail               2. Solar roof rail splice              3. Solar end clamp                 4. Solar inter clamp


Solar rail clamp Solar triangle

    5. Solar rail clamp                   6. Solar triangle


Installation steps of  triangle roof mount

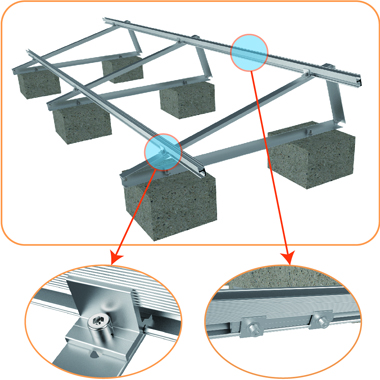

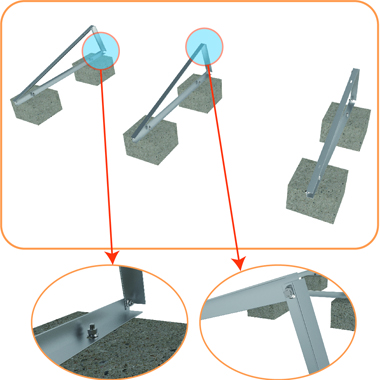

Step1:Install triangles according to the drawing          Step2:Install roof rails and rail splices



triangle roof mount     Solar triangle mounting systems

       Install expansion bolt              Install triangle                                    Rail clamp                           Rail splice

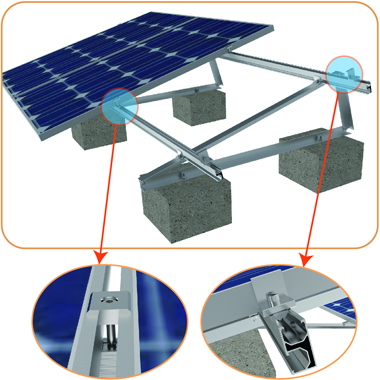

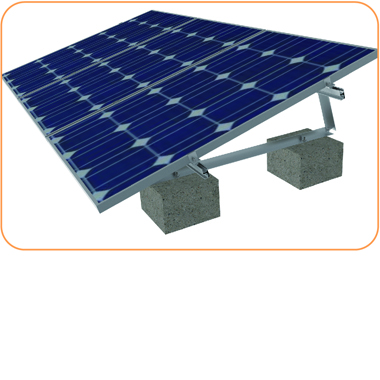

Step3:Fasten panel by inter clamps and end clamps     Step4: Installation completion diagram

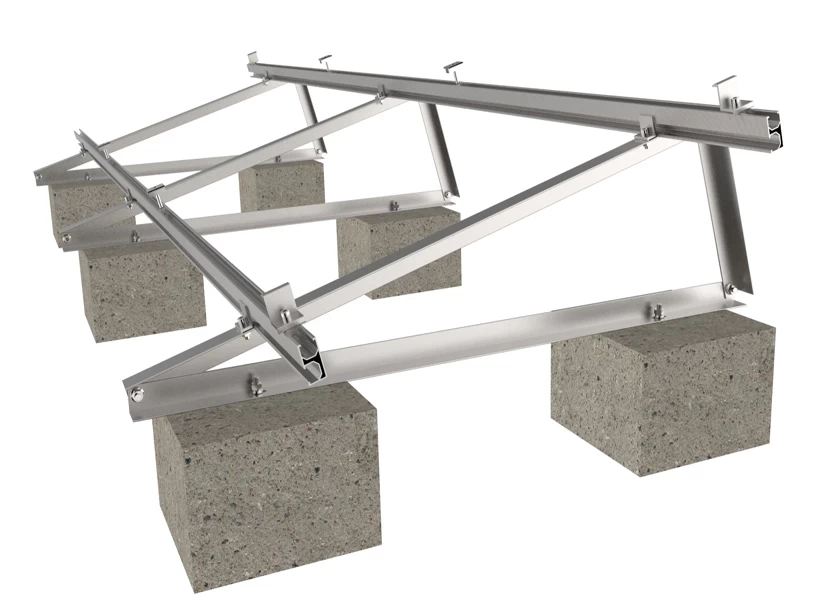

solar triangle roof mount     flat roof solar triangle racking

               Inter clamp                          End clamp




Component photos

solar panel mount kit


Installation steps

solar panel support


Photovoltaic triangle brackets


flat roof solar triangle racking


solar panel flat roof triangle mounting ballast
