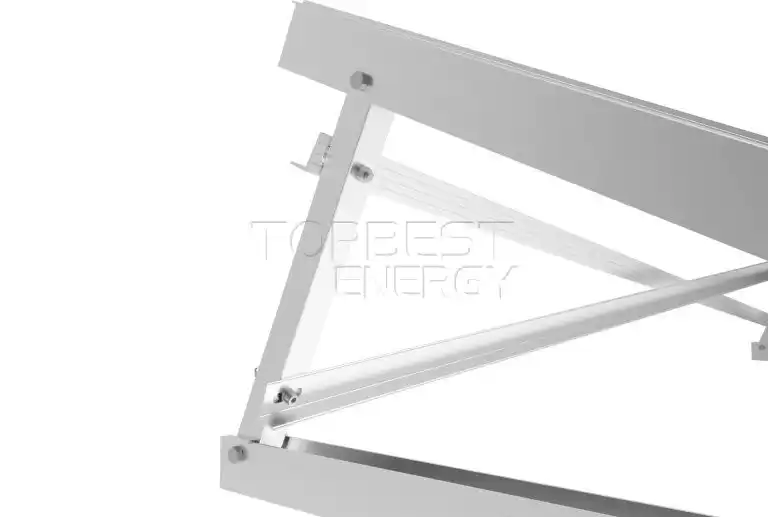

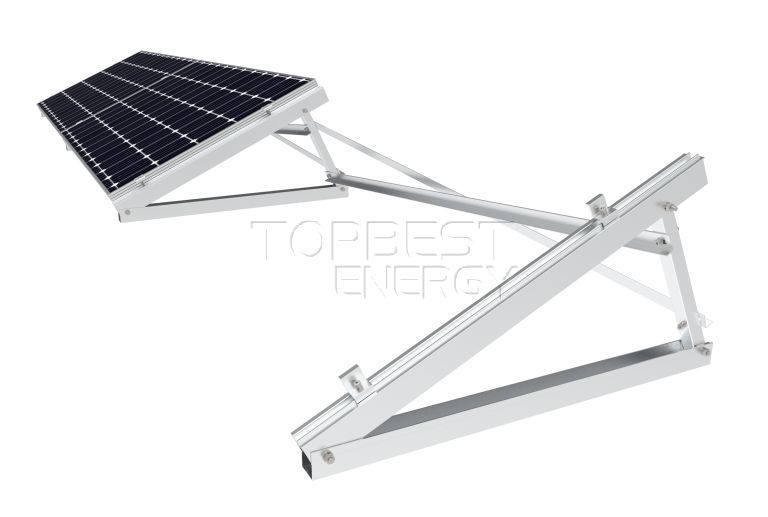

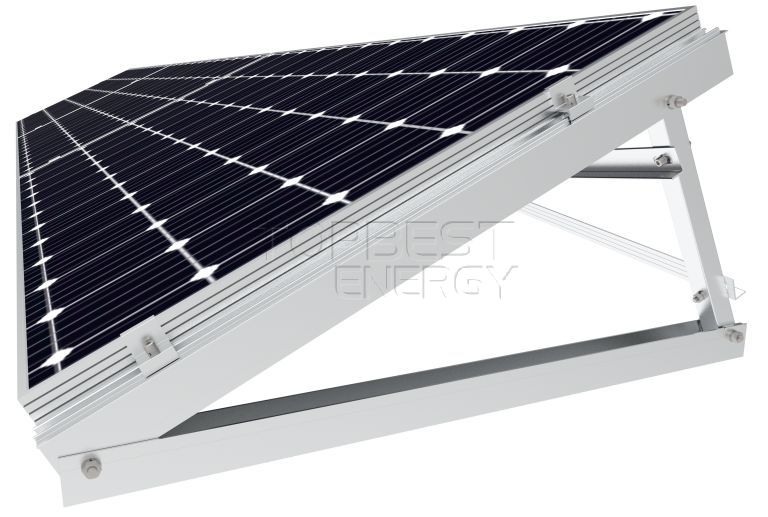

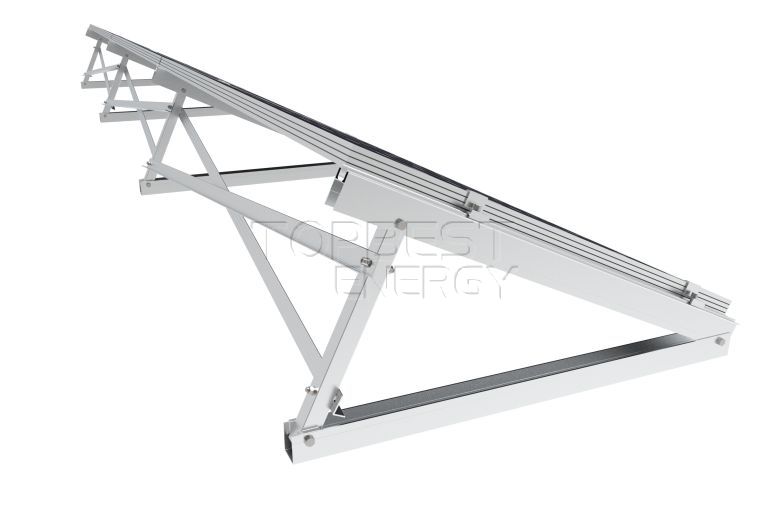

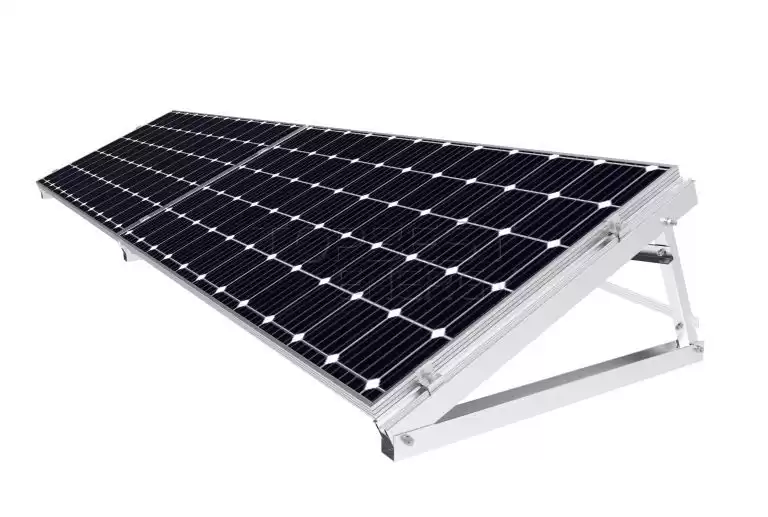

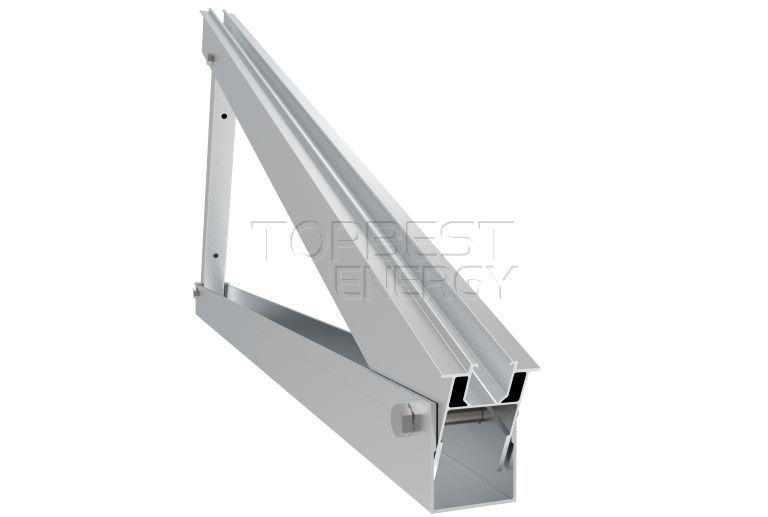

Triangle Roof PV Mounting Bracket

Non-Adjustable Tri-Bracket System is easy to install and has good stability. It is widely used on the concrete foundation or metal sheet roof. The simple yet strong rack structure enables it to mak the best of the existing rooftop, Effective and densely populated modules greatly increase the intalle capacity.



Triangle Roof PV Mounting Bracket

Triangle Roof PV Mounting Bracket Tri-Bracket System is easy to install and has good stability. It is widely used on the concrete foundation or metal sheet rooftop solar projects. The simple yet strong rack structure enables it to make the best of the existing rooftop, Effective and densely populated modules greatly increase the intalle capacity.
☆ Safety and Good Stability

The system designed by skilled engineers can meet the international standards, The main support components should be tested to ensure the strength,stable and safe.


Easy installation

All components are pre-install which help saving labor cost and time


☆ Various Solution

This system is suitable for almost solar panel on the residential and commercial projects

Technical Parameters

Installation Site: Flat Roof or Metal Roof
Material: Anodized Aluminum 6005-T5
Tit Angle: Customized(0-60 degree)
PV Modules: Framed, Frameless
Module Layourt: As Designed Portrait or Landscape
Wind load: 60m/s
Snow Load: 1.4KN/m2
Building height: up to 20m
Standards: AS/NZS 1170& DIN 1055
Warranty: 10 years warranty

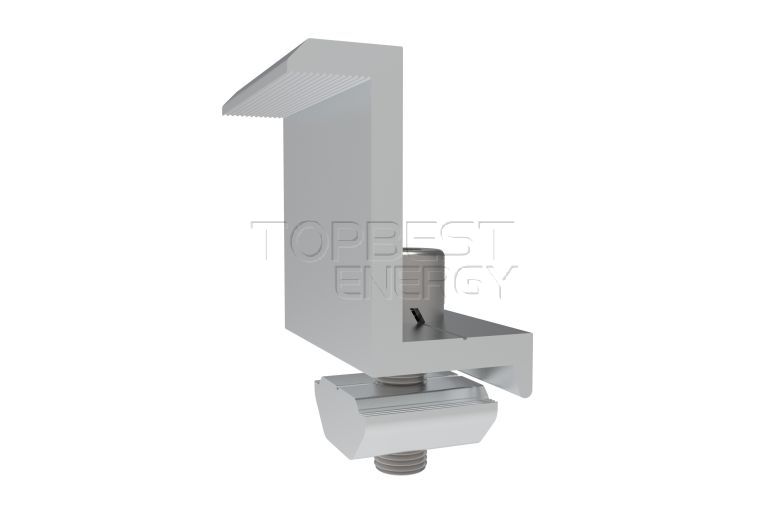

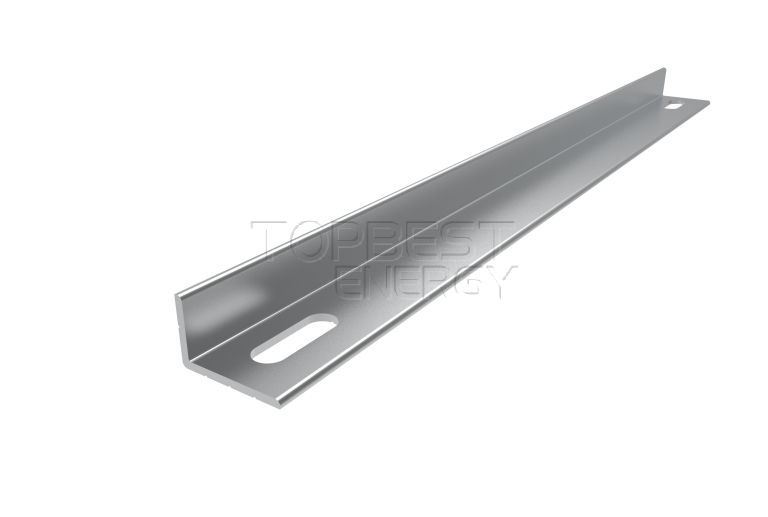

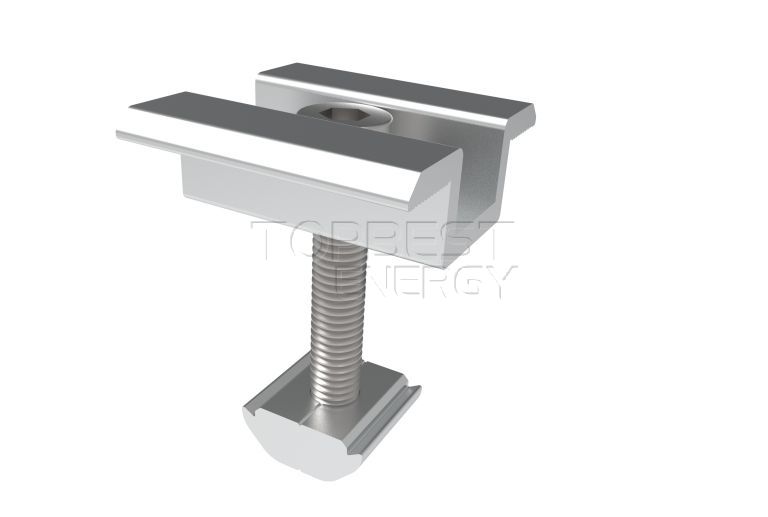

Components
