Weight: 2.9KG
|
Dimensions: 49cmx45cmx5.8cm
|
Port isolation：36 VDC
|
Current Range : 4-25 mA
|
Voltage：24 VDC
|
|
Tribus Communication Rate ： • 25 megabits per second • 32-bit CRC protected • 32-bit DMA, fully isolated
|
|

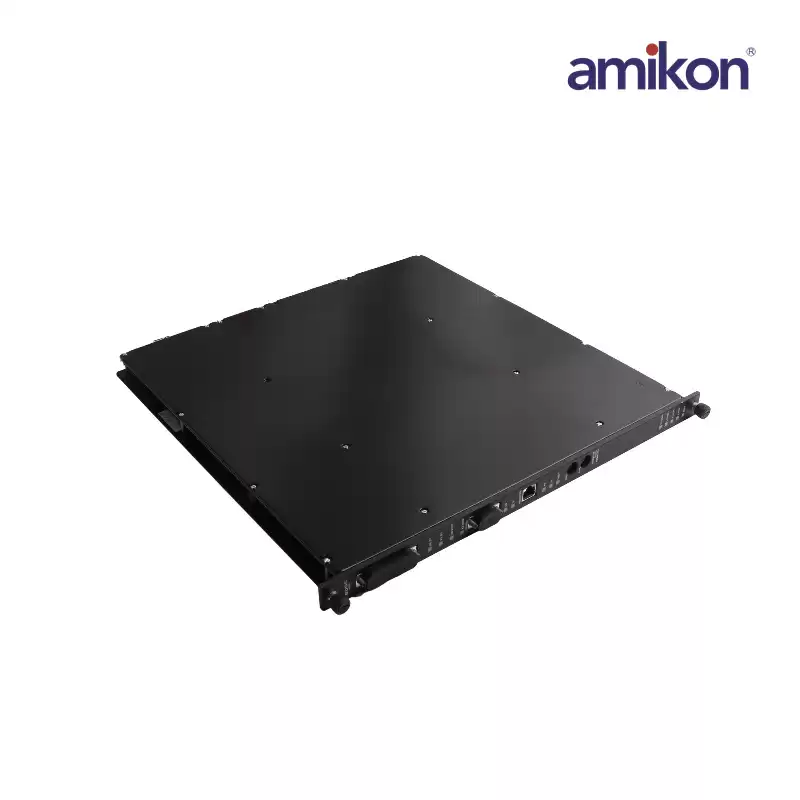

Full Description : The Tricon Communication Module (TCM), which is compatible with only Tricon v10.0 and later systems, allows the Tricon to communicate with TriStation 1131, other Tricon or Trident controllers, Modbus master and slave devices, and external hosts over Ethernet networks.
|
|

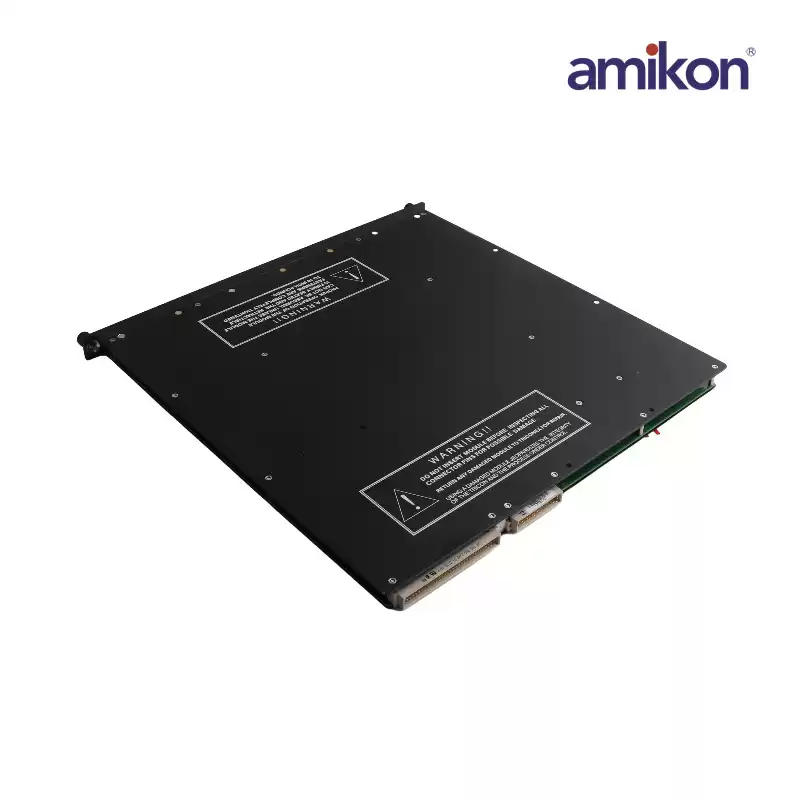

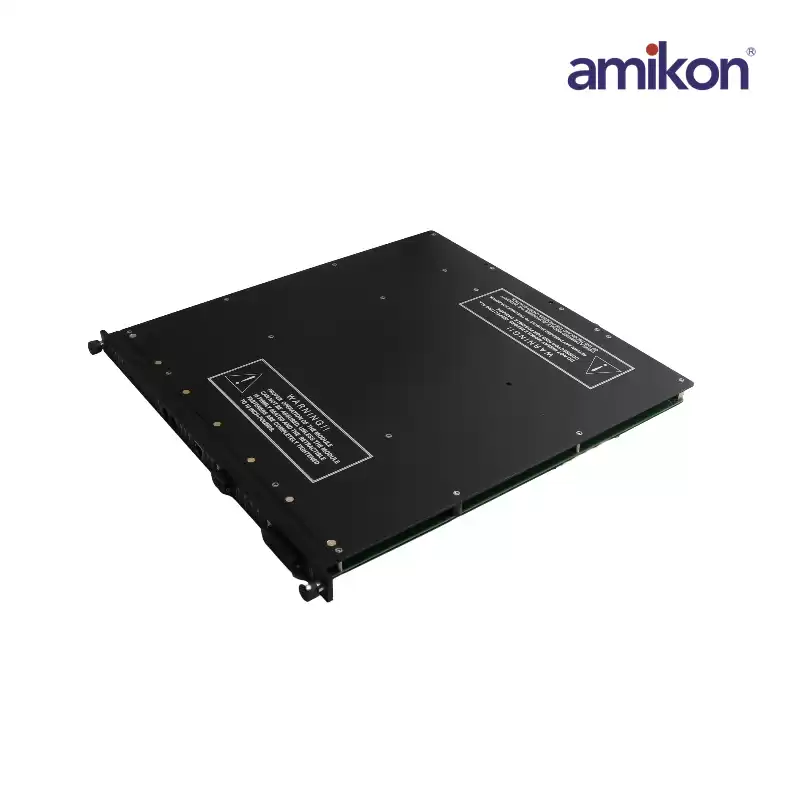

Triconex Invensys 3008 Main Processor
|
Triconex 3008 is Main Processor. Model 3008 Main Processors (MP) are available for Tricon v9.6 and later systems.Three MPs must be installed in the Main Chassis of every Tricon system. Each MP independently communicates with its I/O subsystem and executes the user-written control program.
• Test all basic processor and floatingpoint instructions and operating modes
• Validate user memory by means of the TriBus hardware-voting circuitry
• Verify the shared memory interface with each I/O communication processor and channel
|
