Products Detail:

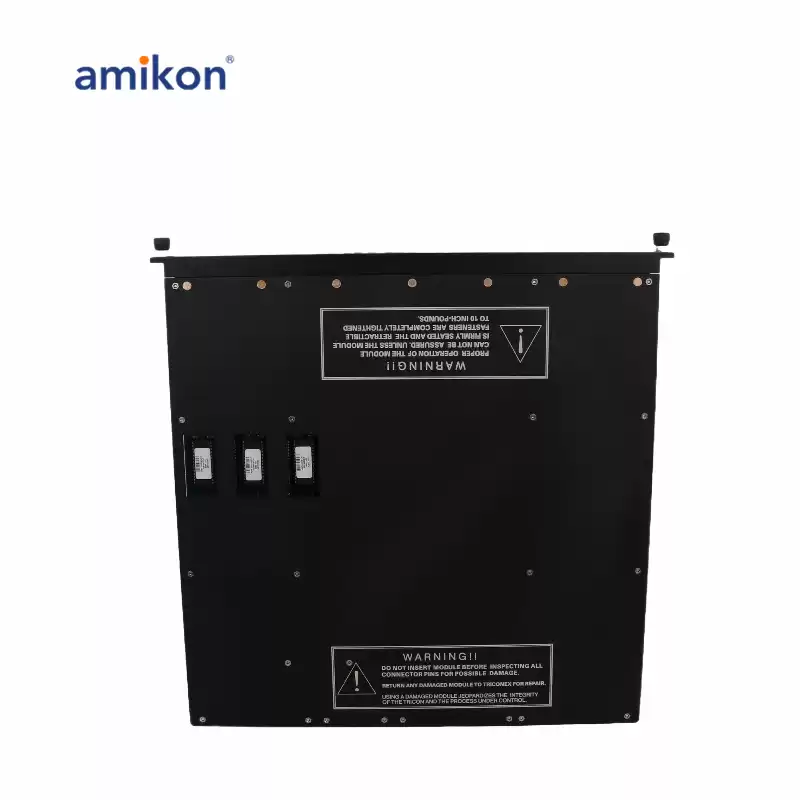

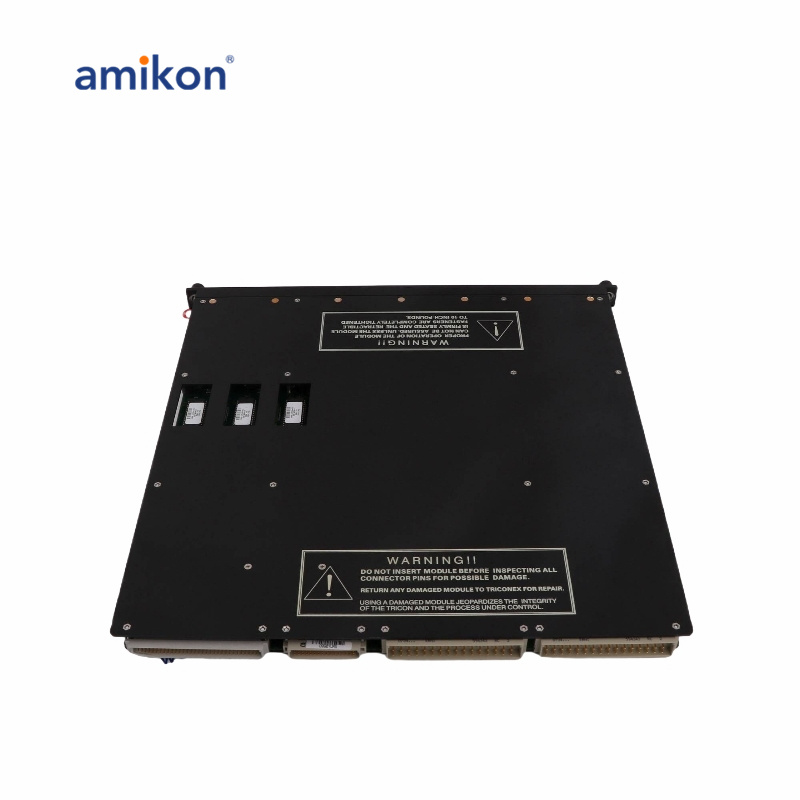

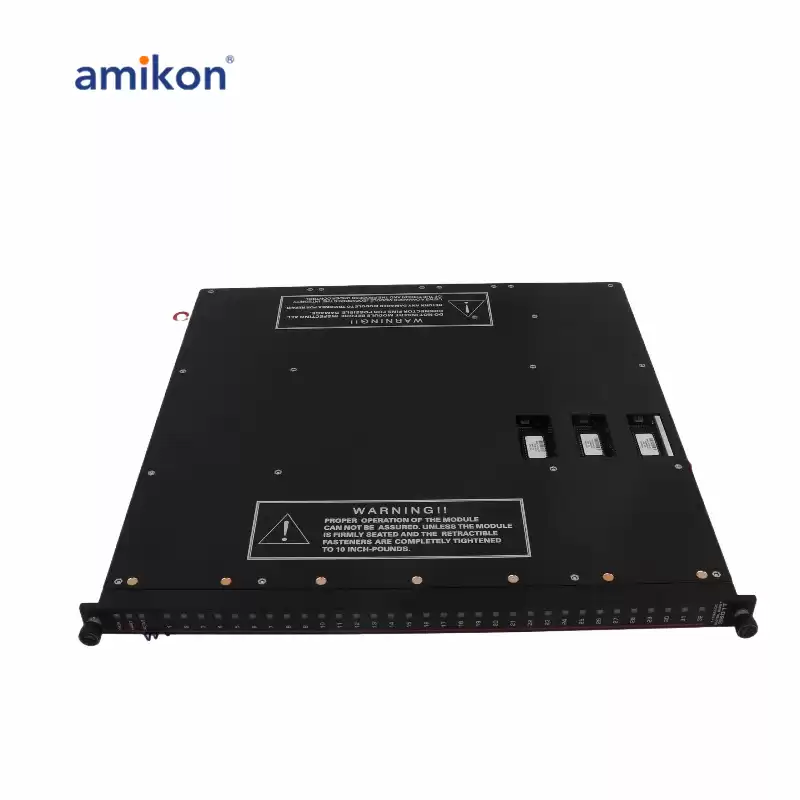

The Triconex 3501T is a 32-point, non-commoned, isolated digital input module designed for use with Triconex safety PLCs. It is specifically built for hazardous areas, offering reliable performance in environments where safety is critical. The module operates within a wide voltage range of 90 to 155 VAC/VDC and features a switching level of >86 VAC/VDC for off-to-on transitions and <28 VAC/VDC for on-to-off transitions.
The 3501T has a nominal turn-on current of 6-9 mA and a typical hysteresis of 32 VAC/VDC, ensuring precise and stable operation. Its input delay is <8 ms for off-to-on and <15 ms for on-to-off transitions, ensuring fast and accurate signal processing.
Each input point on the 3501T is isolated from the others and from the module ground, offering maximum point isolation of 1,500 VDC/2,500 VDC, which adds an extra layer of safety, especially in environments with electrical noise or potential fault conditions.
With its robust features, the 3501T is an ideal choice for industrial applications, providing safety, reliability, and diagnostic capabilities that enhance system performance in critical and hazardous environments.
FAQ:
1. What is the switching level for the 3501T?
The module has a switching level of >86 VAC/VDC for off-to-on transitions and <28 VAC/VDC for on-to-off transitions, ensuring reliable signal detection and operation.
2. What is the input delay for the 3501T module?
The input delay is very fast, with a <8 ms delay for off-to-on transitions and a <15 ms delay for on-to-off transitions, ensuring real-time control and responsiveness.
3. Can the 3501T be used in hazardous environments?
Yes, the 3501T is specifically designed for use in hazardous areas. Its isolation features, wide voltage range, and diagnostic capabilities make it well-suited for applications in critical and potentially dangerous environments.
