About product:
The Pepperl+Fuchs Interface Boards were successfully tested with Triconex I/O cards, achieving a 100% pass rate. Each channel was tested by connecting the appropriate signals to the field side of the Pepperl+Fuchs modules, with results displayed via a test program on the Triconex system monitor.
The following Intrinsic Safety Termination Assemblies with Galvanic Isolators are rated for 24 V DC:
-3503E / 3505E
-ISTA-TR-DI-350X-118289 / KFD2-SH-Ex1.T.OP (32-point Digital Input)
-ISTA-TR-DI-SR2-350X-118271 / KFD2-SR2-EX1.W.LB (1-channel module, 16-point Digital Input)
-ISTA-TR-DI-SR2-350X-118271 / KFD2-SR2-Ex2.2S (2-channel module, 16 + 16 points Digital Input)
These results demonstrate the compatibility and reliability of the Pepperl+Fuchs Interface Boards when used in conjunction with Triconex I/O cards.

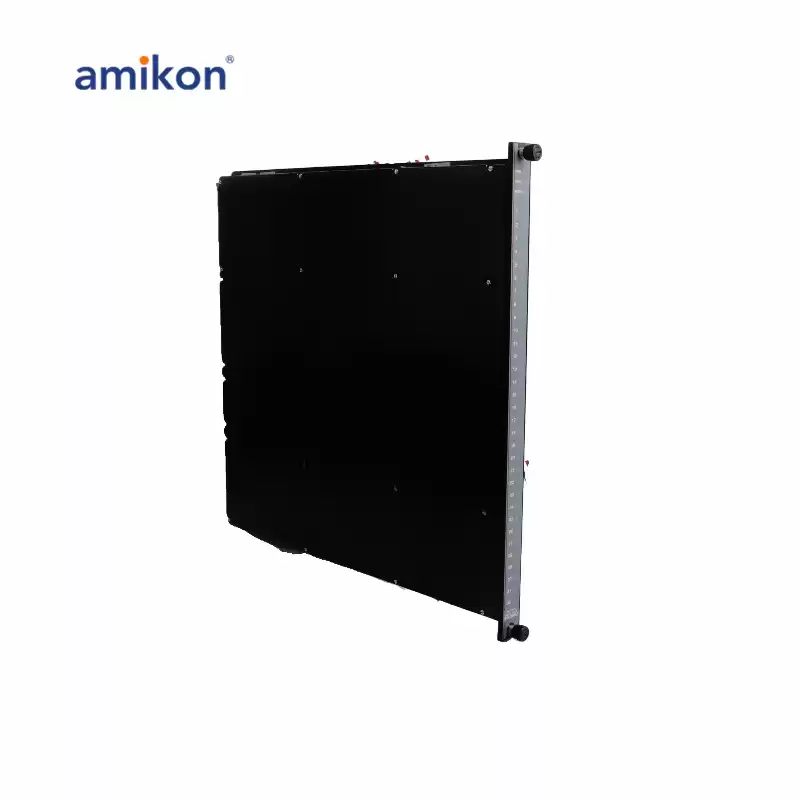

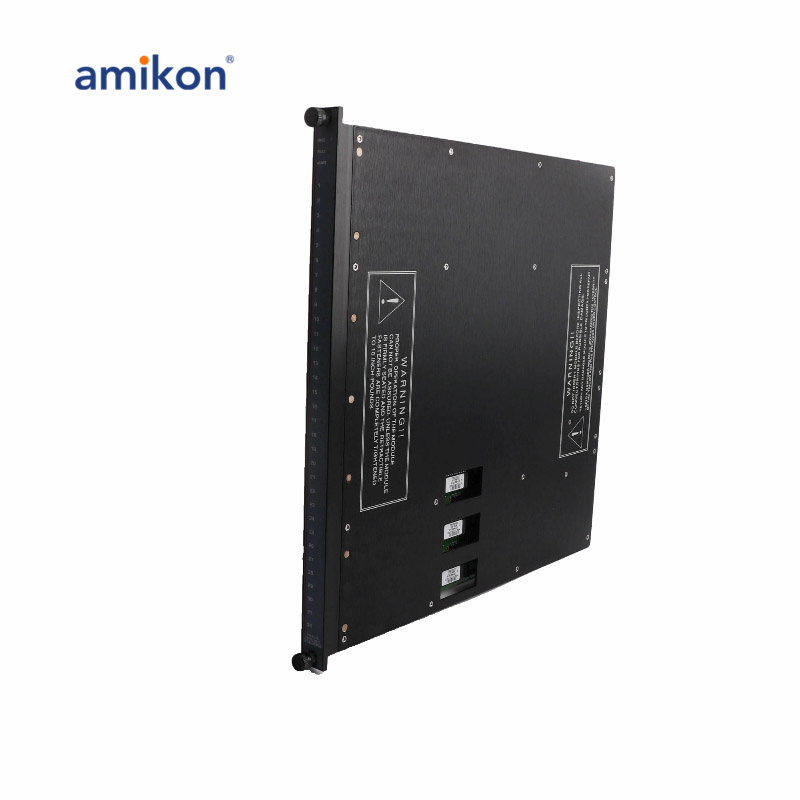

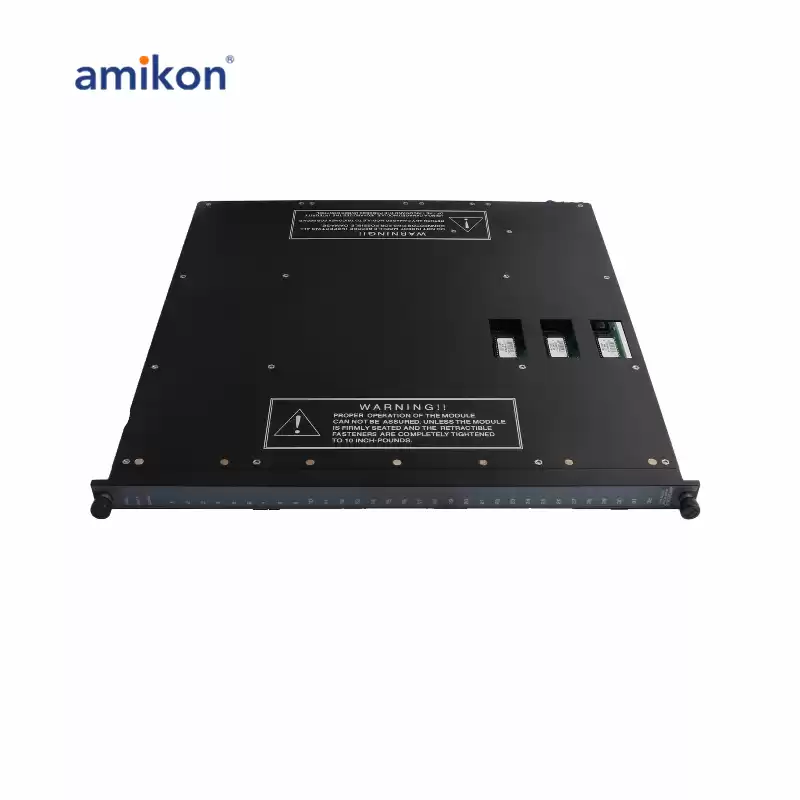

TRICONEX 3503E Digital Input Module FAQ:
1. What is the primary function of the TRICONEX 3503E Digital Input Module?
The TRICONEX 3503E Digital Input Module is designed to provide reliable digital input signals for the Triconex safety and control systems. It interfaces with various field devices, enabling the monitoring and control of critical processes.
2. How many input channels does the 3503E module support?
The 3503E module supports up to 32 digital input channels.
3. What is the input voltage range for the 3503E module?
The module typically operates with input voltages ranging from 10 to 30 V DC.
