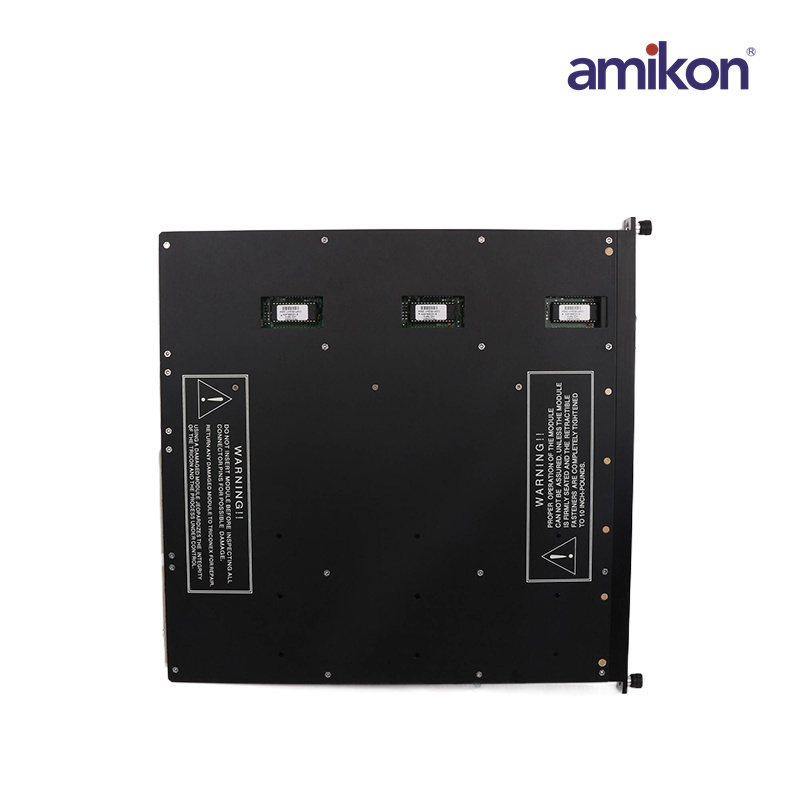

Triconex 3504E Digital Input Module

Weight: 2.45KG

Dimensions ：49x45.3x6.8c

Voltage:24 or 48 VDC

Typical Hysteresis:4 VDC/7 VDC

Nominal Turn-On:2-3 mA

Full Description:nvensys 3504E Digital Input Module Points   64, commoned, DC coupled

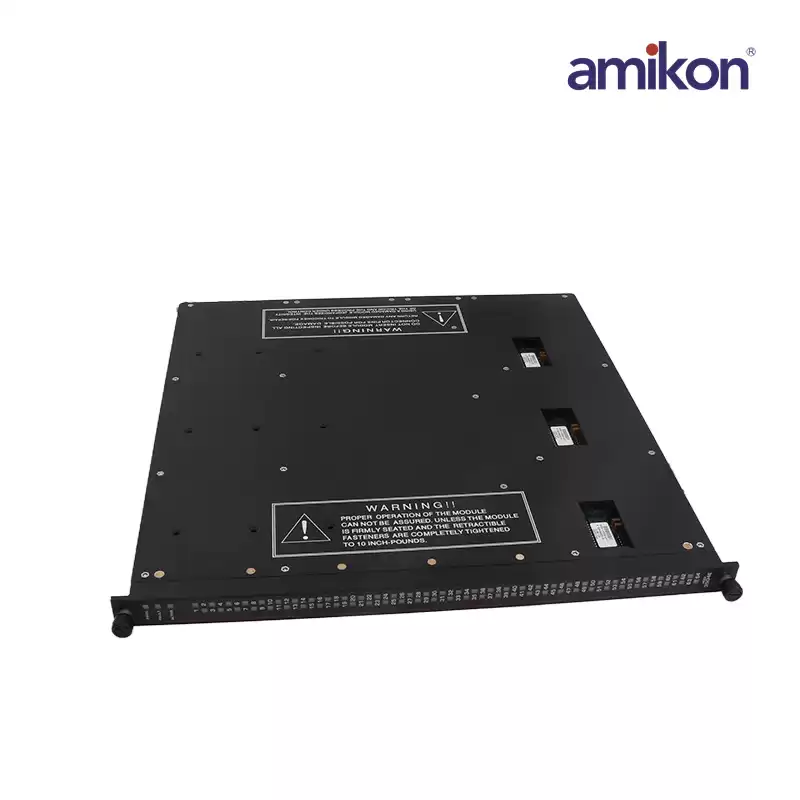

Triconex 3504E  Digital Input Module

Triconex 3504E is TMR Digital Input Module. The model 3504E High Density Digital Input Module continuously verifies the ability of the Tricon to detect transitions to the opposite state. On this TMR module, all critical signal paths are 100 percent triplicated for guaranteed safety and maximum availability. Each channel conditions signals independently between the field and the Tricon.

Each 64-point digital input (DI) module has three isolated channels which independently process all data input to the module. A microprocessor on each channel scans each input point, compiles data and transmits it to the main processors on demand.
