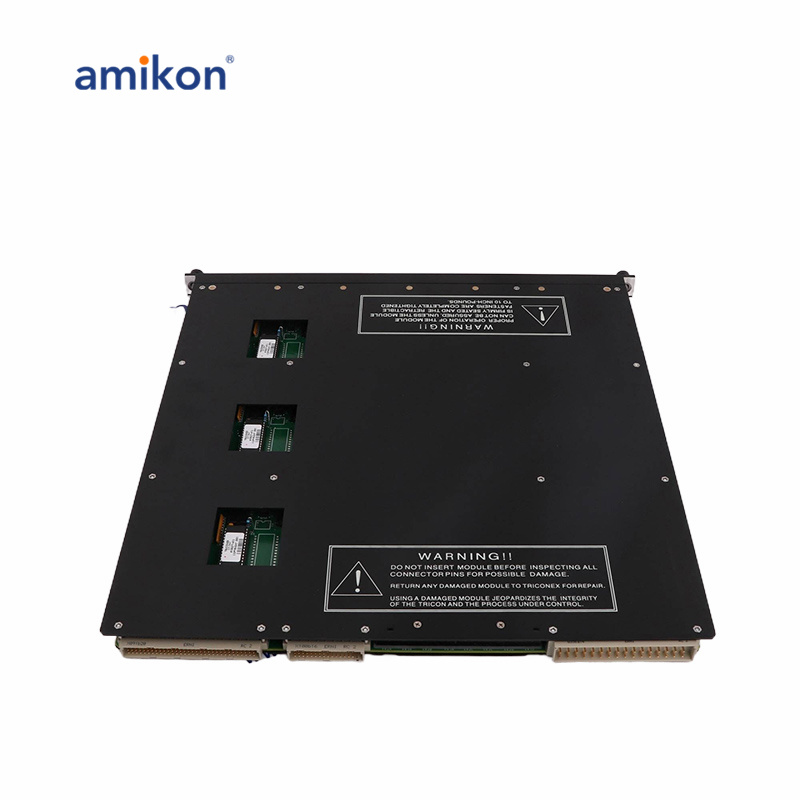

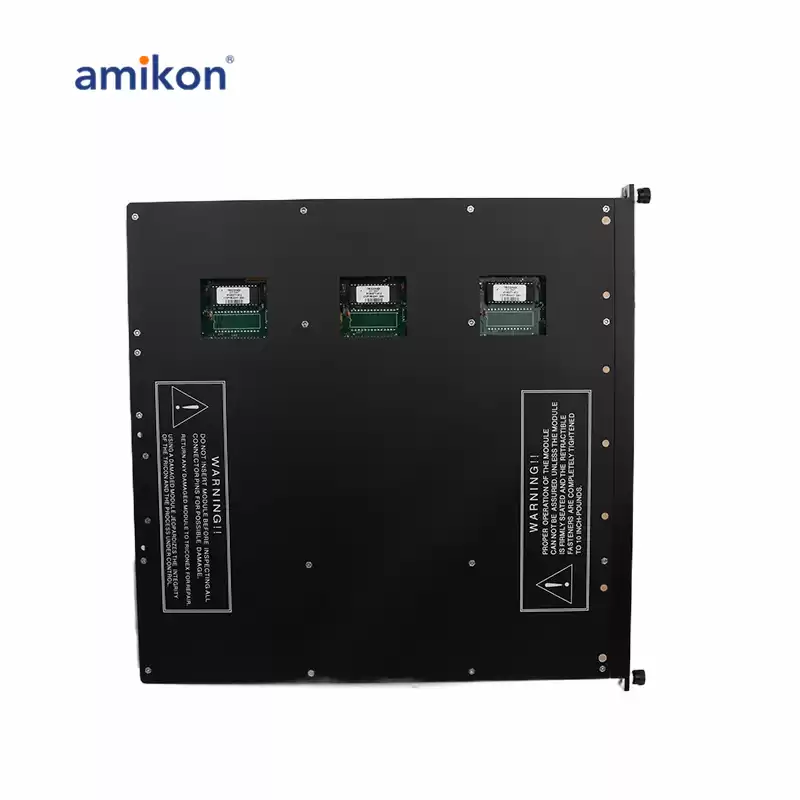

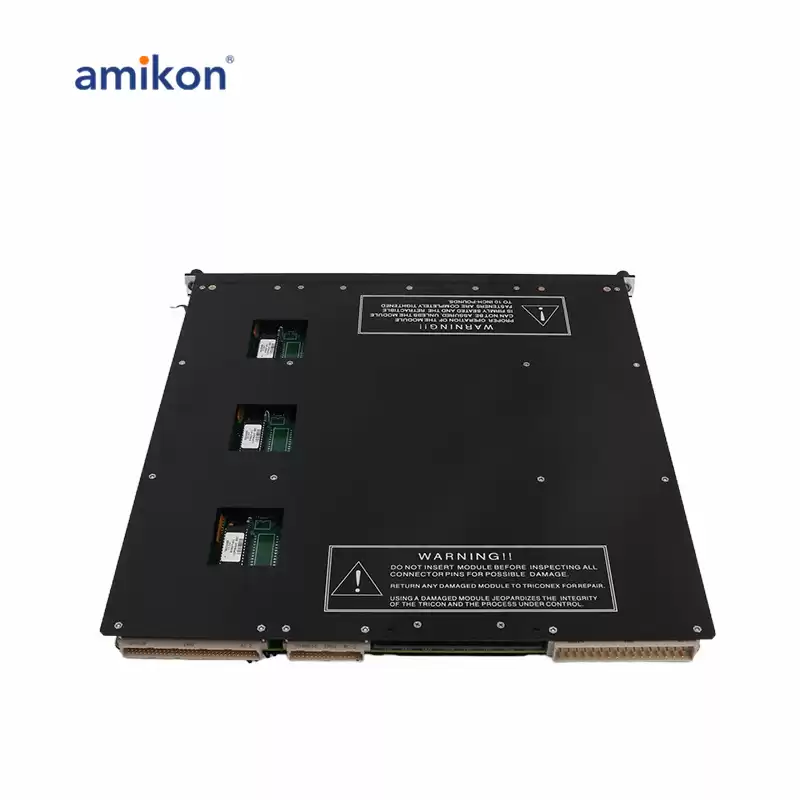

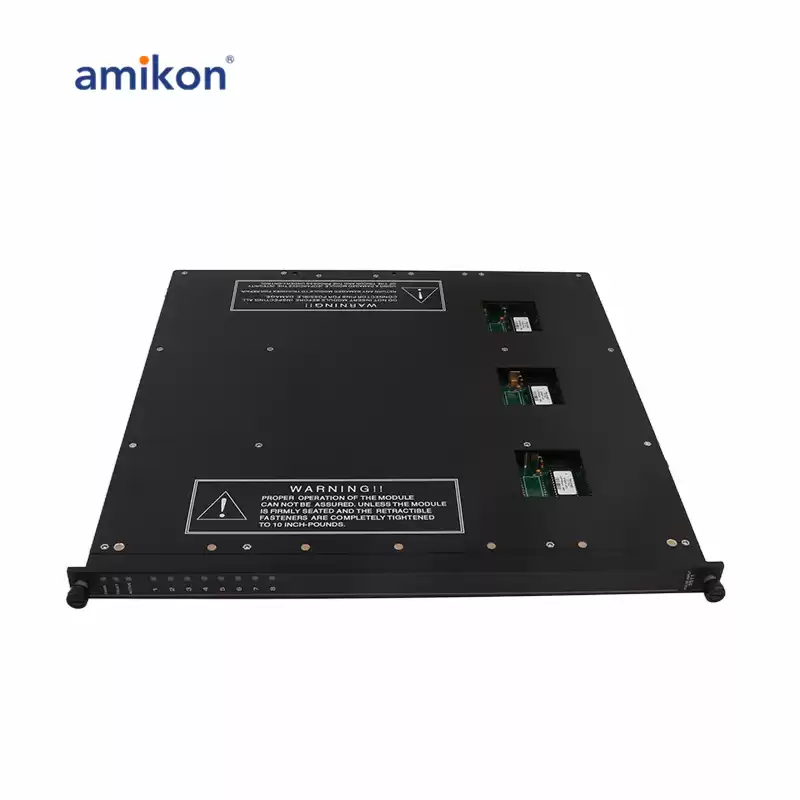

The Model 3511 Pulse Input (PI) Module is designed to provide eight highly sensitive, high-frequency inputs, optimized for use with non-amplified magnetic speed sensors commonly found in rotating equipment such as turbines or compressors. It operates by sensing voltage transitions from magnetic transducers and accumulating these transitions over a selected time window for rate measurement. The resulting pulse count is then used to generate a frequency or RPM, which is transmitted to the Main Processors. This module offers a high level of accuracy, with pulse count measurement to a resolution of 1 microsecond.
Manufacturer : Triconex
Product No. : 3511
Product type : Pulse Input Module
Type : TMR
Input Signals : 8, non-commoned
Resolution : 16 bits
Accuracy : 1000 Hz to 20,000 Hz, ± 0.01%
Color Code : Light Purple
Weight : 3.03 Kg
FAQ:
1. What is the main function of the Triconex 3511 Pulse Input (PI) Module?
The Triconex 3511 PI Module is designed to provide high-frequency pulse input from magnetic speed sensors, commonly used in rotating equipment such as turbines, compressors, and pumps. It accumulates pulse counts over a selected time window to generate frequency or RPM values, which are then transmitted to the main processor for monitoring and control.
2. How many pulse inputs does the Triconex 3511 module support?
The 3511 PI Module offers eight pulse inputs, allowing it to handle multiple sensor signals simultaneously, making it ideal for monitoring several pieces of rotating equipment.
3. What types of sensors are compatible with the Triconex 3511 PI Module?
The module is optimized for use with non-amplified magnetic speed sensors, which are typically used in applications like turbines, compressors, and other rotating machinery. These sensors generate voltage transitions that the module can detect and convert into a frequency or RPM measurement.
