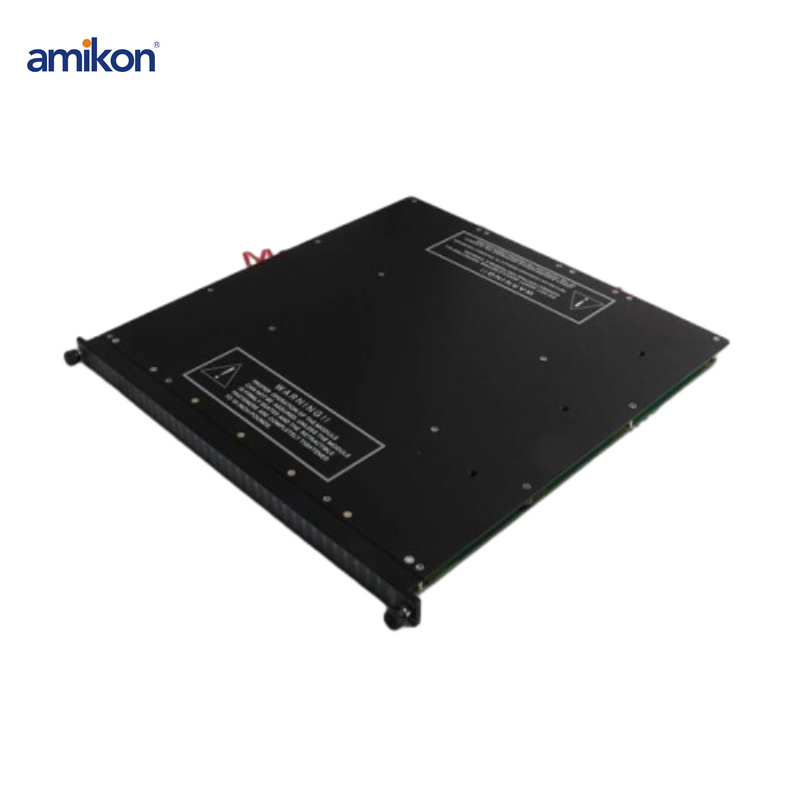

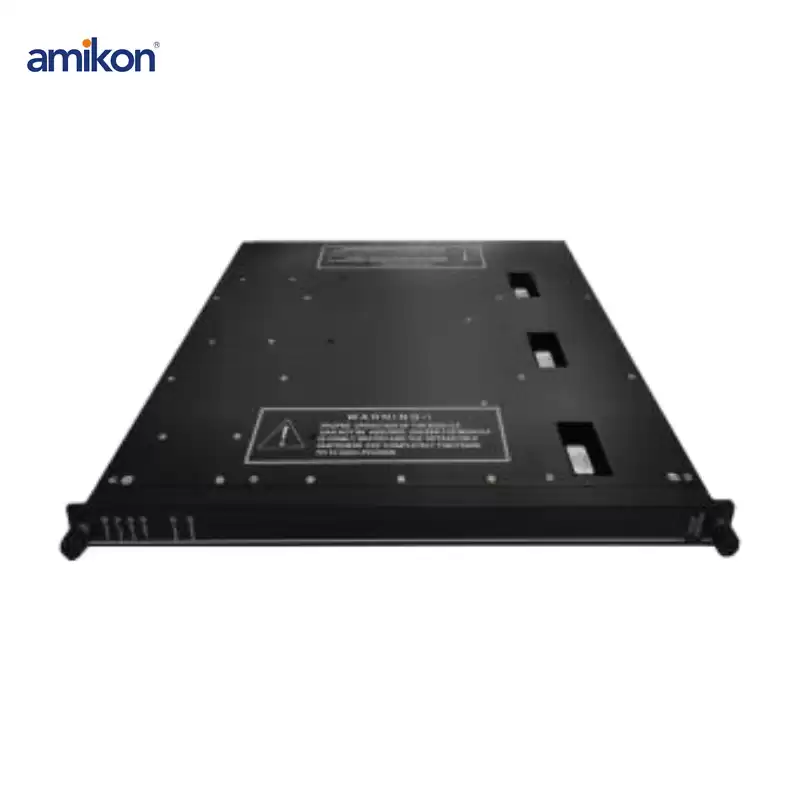

Triconex 3564 Digital Input Module
|
Model Number
|
3564
|
Weight:
|
0.28 kg
|
|
Brand Name
|
Triconex
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Product Description
64-Point Digital Input
Modules
Each 64-point Digital Input (DI)
module has three isolated channels
which independently process all data
input to the module. A microprocessor
on each channel scans each input point,
compiles data and transmits it to the
Main Processors on demand. Then
input data is voted at the Main Proces
sors just prior to processing to ensure
the highest integrity.
All Digital Input Modules sustain
complete, ongoing diagnostics for each
channel. A failure on any channel acti
vates the Fault indicator which in turn
activates the chassis alarm. A TMR
module is guaranteed to operate prop
erly in the presence of a single fault and
may operate properly with certain kinds
of multiple faults.
All Digital Input Modules support hot-
spare modules and require a separate
external termination panel (ETP) with a
cable interface to the Tricon backplane.
Each module is mechanically keyed to
prevent improper installation in a
chassis.
Features Specification
Color code Dark red
Number of input points 64,
commoned
Recommended input range 15–30 VDC
Maximum voltage 36 VDC
Switching level: Off to On 12 VDC typical, 15 VDC worst-case
Switching level: On to Off 8 VDC typical, 6 VDC worst-case
Typical hysteresis 4 VDC
Nominal turn-on 2 mA to 3 mA
Input impedance > 3.0 kΩ nominal
Input delay: Off to On < 2 ms
Input delay: On to Off < 2 ms
Point isolation, opto-isolated 1500 VDC minimum
Status indicator: On or Off State 1 per point
Status indicator: Module status Pass, Fault, Active, Power
Logic power < 10 watts
Nominal field power load 0.2 watts per On point, 0.5 watts @ maximum field voltage
Leakage current to chassis @ 60 Hz Not applicable
Input toggle rates1: Maximum Every 100 ms
Input toggle rates1: Minimum, On state Not required
Input toggle rates1: Minimum, Off state Not required
On glitch of Off point2: Duration < 2 ms maximum
On glitch of Off point2: Voltage < VIN
On glitch of Off point2: Duty cycle 50%, typical
Impedance < 10 Ω
