Products Detail:

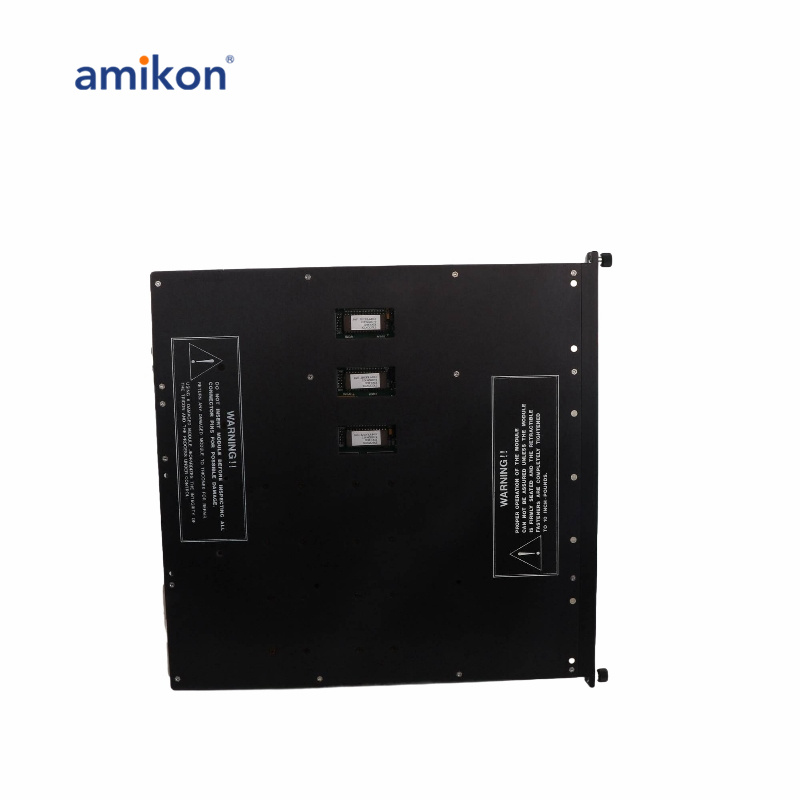

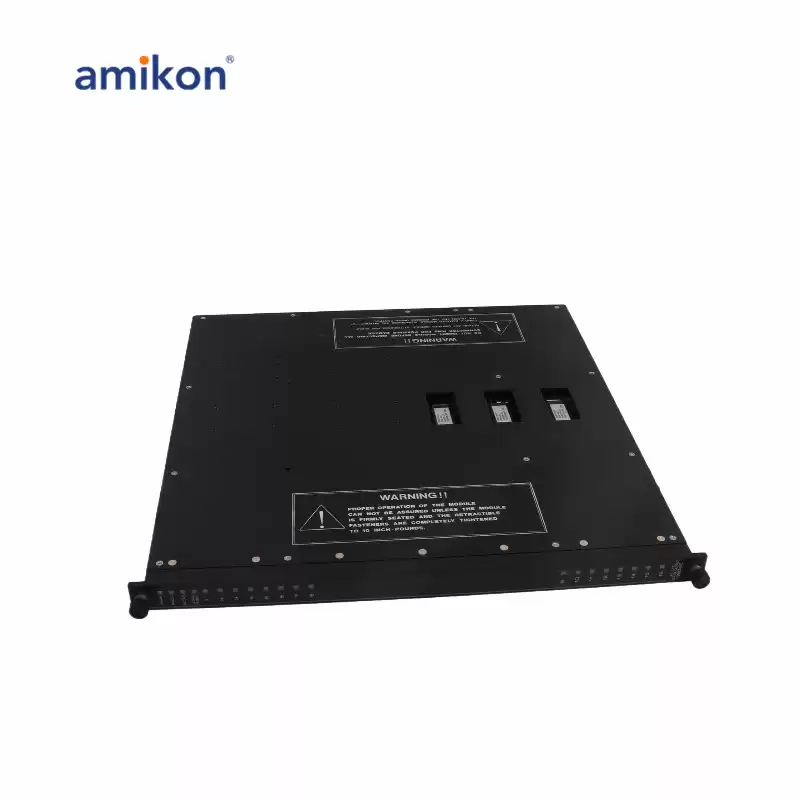

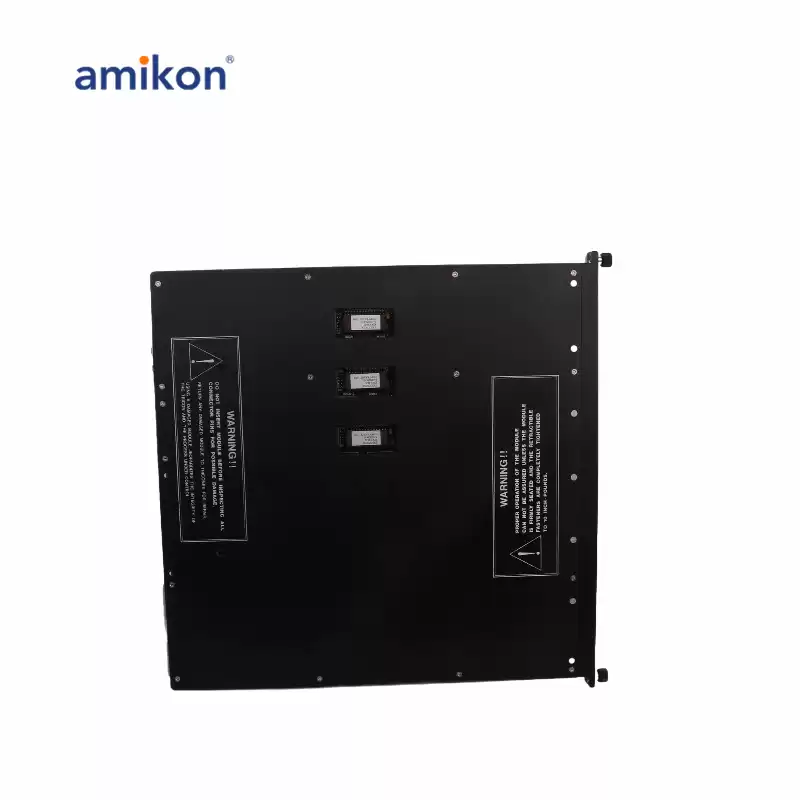

The Triconex 3604E is a 16-point, 24VDC, non-commoned, optically isolated, Triple-Modular Redundant (TMR) digital output module designed for the Triconex Tricon family of safety controllers. It offers high availability and fault tolerance, making it ideal for critical control applications in safety-critical environments.
This module features 16 independently programmable outputs, all with 24VDC output voltage, and utilizes optical isolation to protect against electrical noise and signal interference. The TMR architecture ensures redundancy, which enhances system reliability by providing continuous operation even in the event of a fault.
The 3604E is SIL3 certified in accordance with EN50495, which is the highest level of safety certification, ensuring its suitability for safety-instrumented systems. While the module has been discontinued by the manufacturer, it remains a reliable choice for many safety-critical industries where high uptime and fault tolerance are essential.
Manufacturer : Triconex
Product No. : 3640E
Model : Digital Output Modules 24VDC 16 Point TMR
Nominal Voltage : 24 VDC
Type : TMR
Output Signals : 16, non-commoned
Voltage Range : 22-45 VDC
Voltage Drop : < 4V, typical
Current Ratings, Maximum : 2A per point 10A surge/10 ms
Load Leakage : 2 mA maximum
Fuses (on Field Termination) : 1 per output, 2.5A fast-acting
Model : Digital Output Modules 24VDC 16 Point TMR
Point Isolation : 1500 VDC
Color Code : Dark blue
