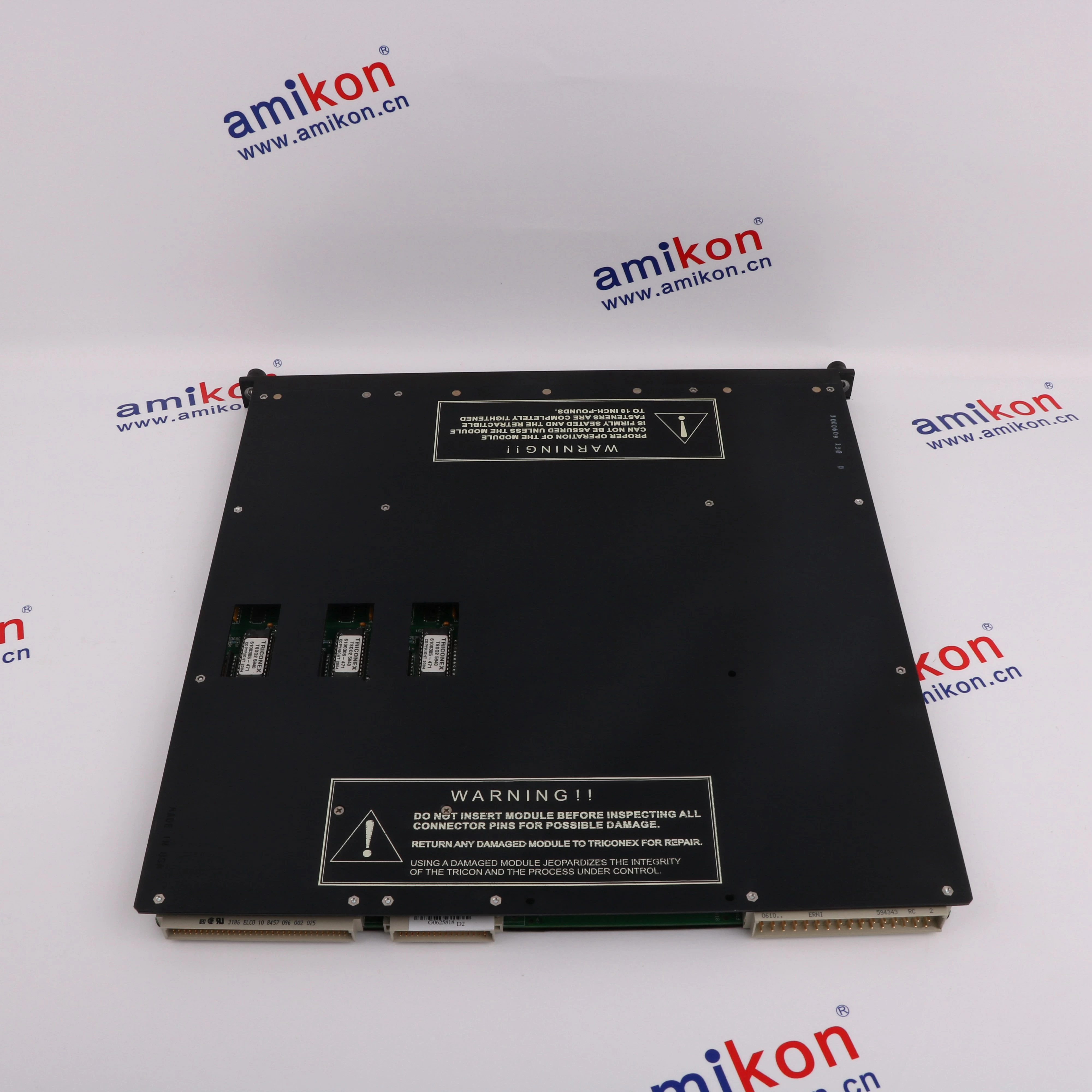

Triconex 3624 24Vdc Supervised Digital Output
Email: sales@amikon.cn
16-Point Supervised and
32-Point Supervised/Non-
Supervised Digital Output
Modules
Designed for the most critical control
programs, Supervised Digital Output
(SDO) modules meet the needs of
systems whose outputs remain in a
single state for extended periods of time
(in some applications, for years). An
SDO module receives output signals
from the Main Processors on each of
three channels. Each set of three signals
is then voted upon by a fully fault-
tolerant quadruplicated output switch
whose elements are power transistors, so that one voted output signal is passed
to the field termination.
Each SDO module has voltage and
current loopback circuitry coupled with
sophisticated online diagnostics that
verify the operation of each output
switch, the field circuit and the pres-
ence of a load. This design provides
complete fault coverage without the
need to influence the output signal.
The modules are called “supervised”
because fault coverage is extended to
include potential field problems. In
other words, the field circuit is super-
vised by the SDO module so that the
following field faults can be detected:
• Loss of power or blown fuse
• Open or missing load
• A field short resulting in the load
being energized in error
• A shorted load in the de-energized
state
INFORMATION
|
Model Number
|
3625
|
|
Type
|
TMR, Supervised DO
|
|
Output Signals
|
16, commoned
|
|
Voltage Range
|
16-30 VDC
|
|
Maximum Voltage
|
36 VDC
|
|
Power Module Load
|
< 10 watts
|
|
Current Ratings, Maximum
|
0.7A per point
4.8A surge per 10 ms
|
|
Minimum Required Load
|
30 mA
|
|
Load Leakage
|
4 mA maximum
|
|
Point Isolation
|
1,500 VDC
|
|
Color Code
|
Turquoise green
|
