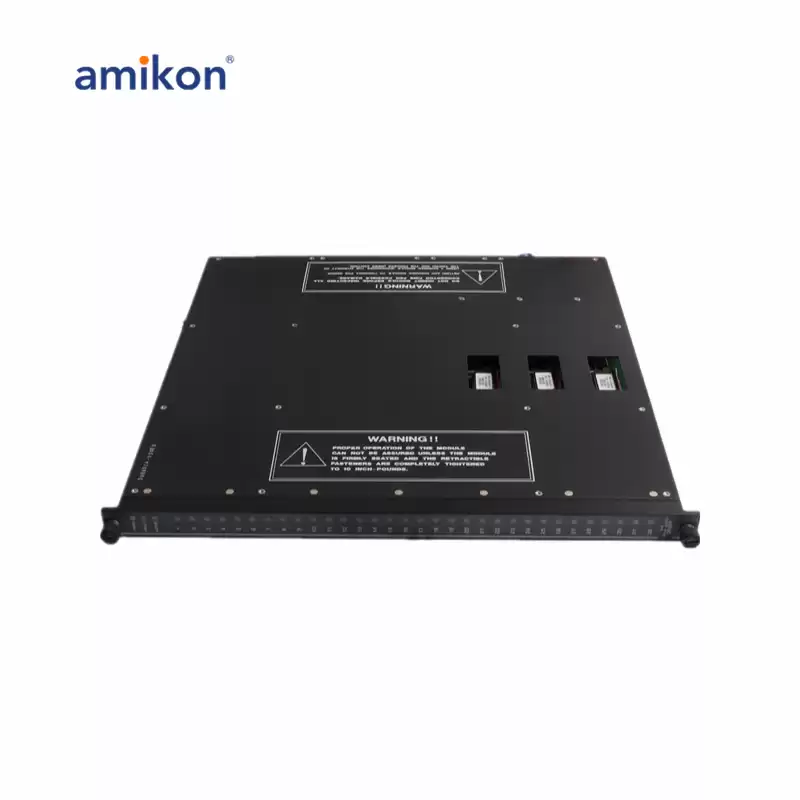

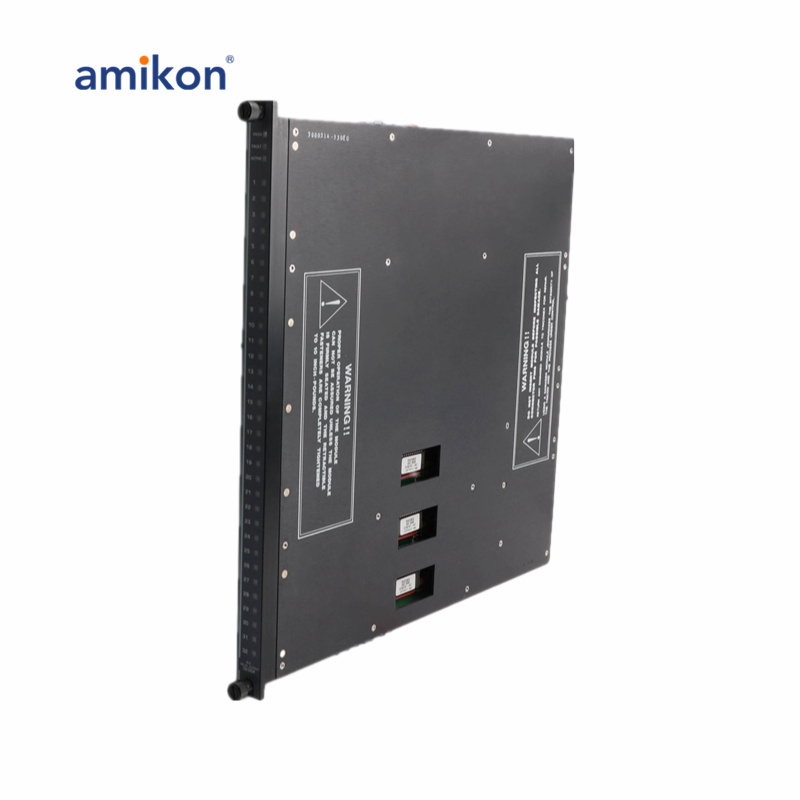

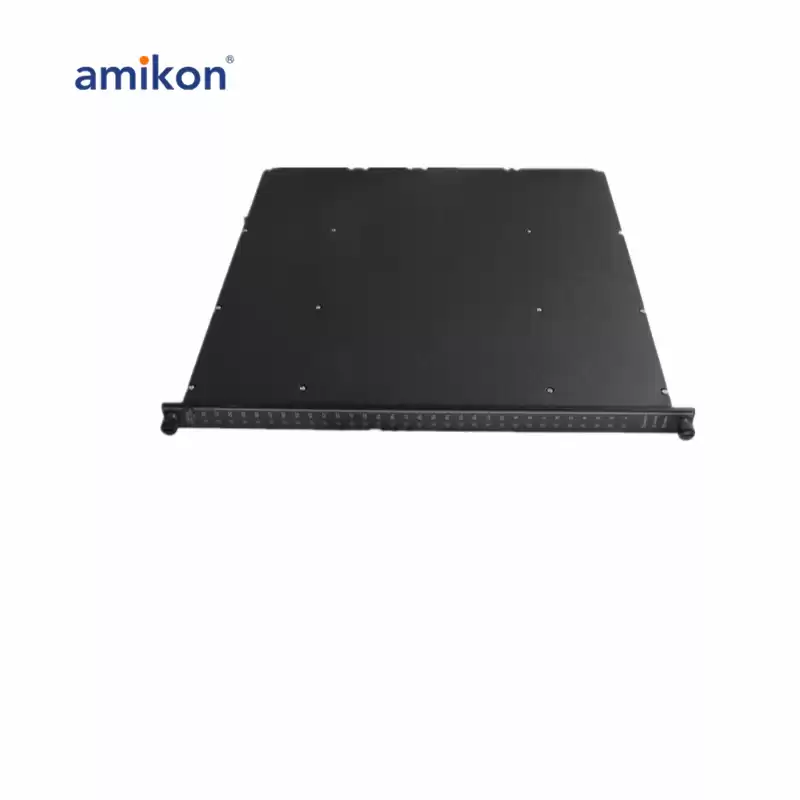

Triconex 3636R Digital Relay Module

Brand new and original sealed//Same Day Shipment

Triconex 3636R is Digital Relay Output Module.The power modules, located on the left side of the chassis, convert line power to DC power appropriate for all Tricon modules.
3636R Description:	Terminal strips for system grounding, incoming power and hardwired alarms are located on the lower left corner of the backplane.
	Incoming power should be rated for a minimum of 240 watts per power supply.Fuses 1 per output (2.5A fast-acting) Diagnostic Indicators Output Status Module Status 1 per point PASS, FAULT, ACTIVE
	Type Non-triplicated, RO Points 32, non-commoned Voltage Range 125 VAC/VDC, maximum Current Load 2A, maximum Minimum Permissible Load 10 mA, 5 VDC Switching Power
