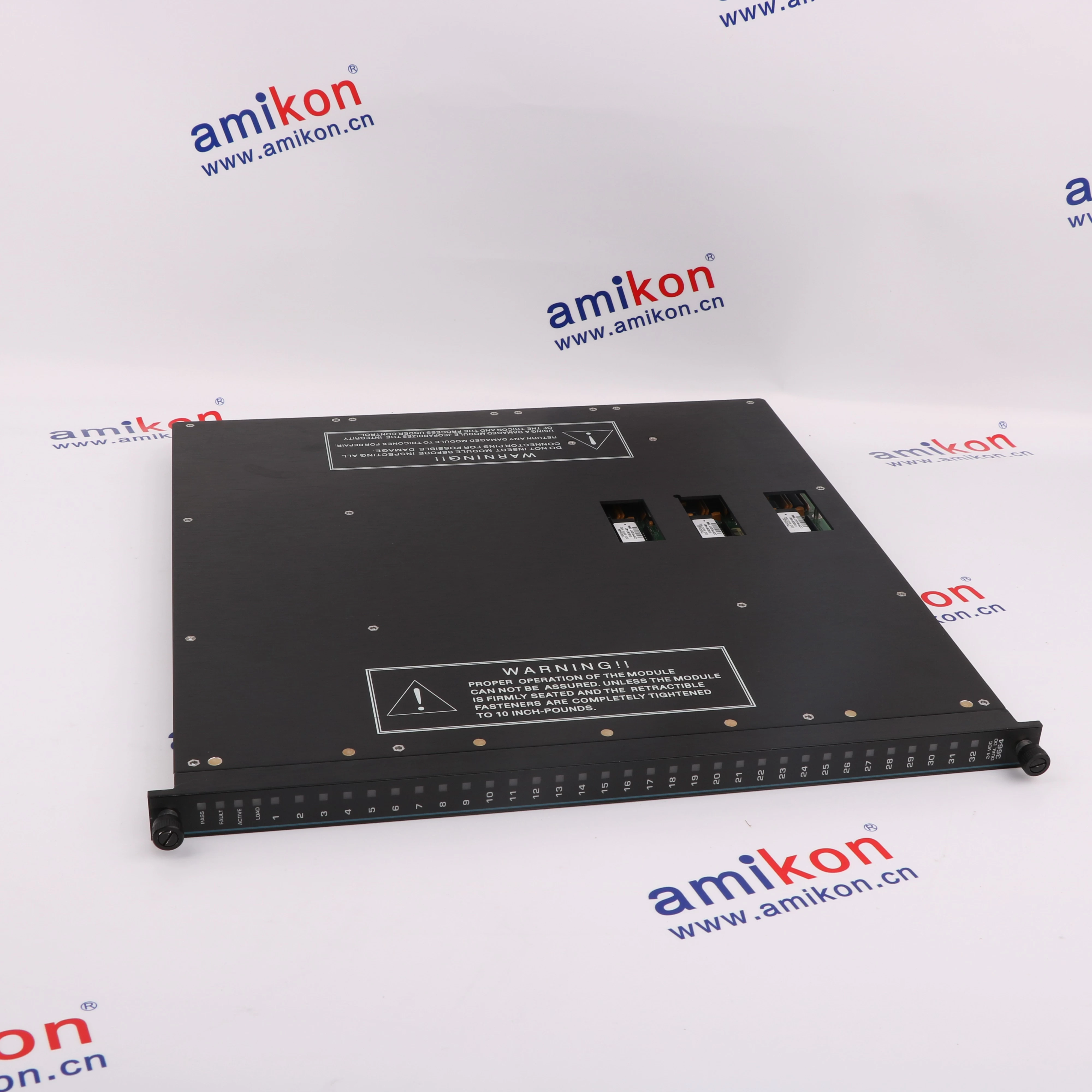

Dual Digital Output Module

Dual Digital Output (DDO) modules receive output signals from the Main Processors along a single parallel or series path, and applies a 2-out-of-3 voting process individually to each switch. The switches produce one output signal which is then passed to the field termination. While the quadru- plicated output circuitry on TMR modules provides multiple redundancy for all critical signal paths, dual circuitry provides just enough redun- dancy to ensure safe operation. DDO modules are optimized for those safety- critical control programs where low cost is more important than maximum availability.

DDO modules have a voltage-loopback circuit which verifies the operation of  each output switch independently of the presence of a load and determines whether latent faults exist. Failure of the detected field voltage to match the commanded state of the output point activates the LOAD/FUSE alarm indi- cator.

In addition, ongoing diagnostics are performed on each channel and circuit of a DDO module. Failure of any diag- nostic on any channel activates the Fault indicator, which in turn activates the chassis alarm signal. A dual module operates properly in the presence of most single faults and may operate properly with some kinds of multiple faults, but stuck-Off faults are an exception. If one of the output switches has a stuck-Off fault, the output goes to the Off state and a glitch may occur during switch-over to a hot-spare module.

DDO modules support hot-spare capa- bility, which allows online replacement of a faulty module. Each module is mechanically keyed to prevent improper installation in a configured chassis.


INFORMATION

Model Number 3664
Nominal Voltage 24 VDC
Type Dual DO, serial (recommended for de-energize-to-trip control programs)
Output Signals 32, commoned
Voltage Range 16-30 VDC
Maximum Voltage 36 VDC
Voltage Drop < 1.5 VDC, typical
Power Module Load < 10 watts
Current Ratings, Maximum 2A per point
10A surge per 10 ms
Load Leakage 2 mA maximum
Fuses (on Field Termination) n/a—self-protecting
Point Isolation 1,500 VDC minimum
Color Code Dark blue
