About product:
On June 15th, 1999, the Pepperl+Fuchs Interface Boards were successfully tested with Triconex I/O cards, achieving a 100% success rate. Each channel was thoroughly evaluated by connecting the corresponding signal to the field side of the Pepperl+Fuchs modules, with the results displayed on the Triconex system monitor.
The system includes the following Intrinsic Safety Termination Assemblies with Galvanic Isolators, operating at 24 V DC:
3664: ISTA-TR-DO-SD-36XX-118274 / KFD2-SD-Ex1.48 (1-channel module) with 16 + 16 points of Digital Output at 24 V DC.
ISTA-TR-DO-SL2-36XX-118273: KFD2-SL2-Ex2.B (2-channel module) with 32 points of Digital Output at 24 V DC.
STA-TR-DO-SL2-36XX-118288: KFD2-SL2-Ex2 (2-channel module) with 32 points of Digital Output at 24 V DC.
This setup demonstrates the compatibility and reliability of the interface boards within the Triconex system.

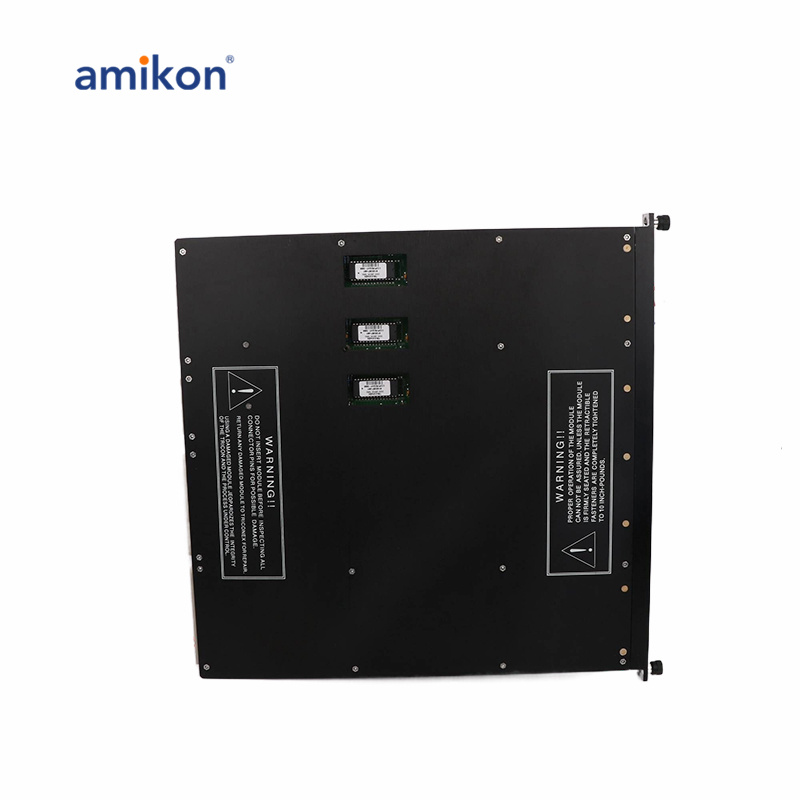

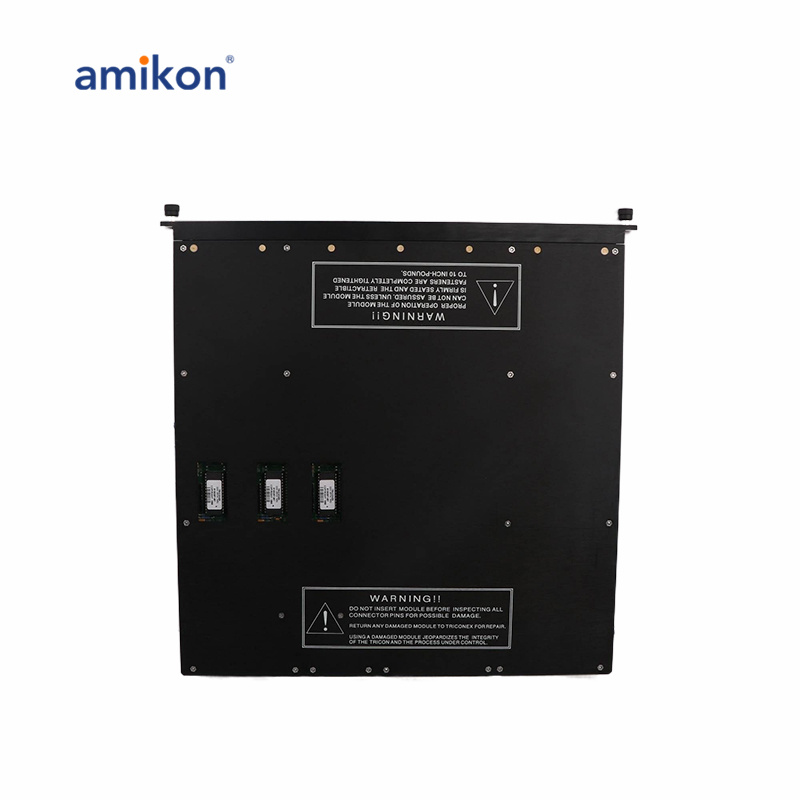

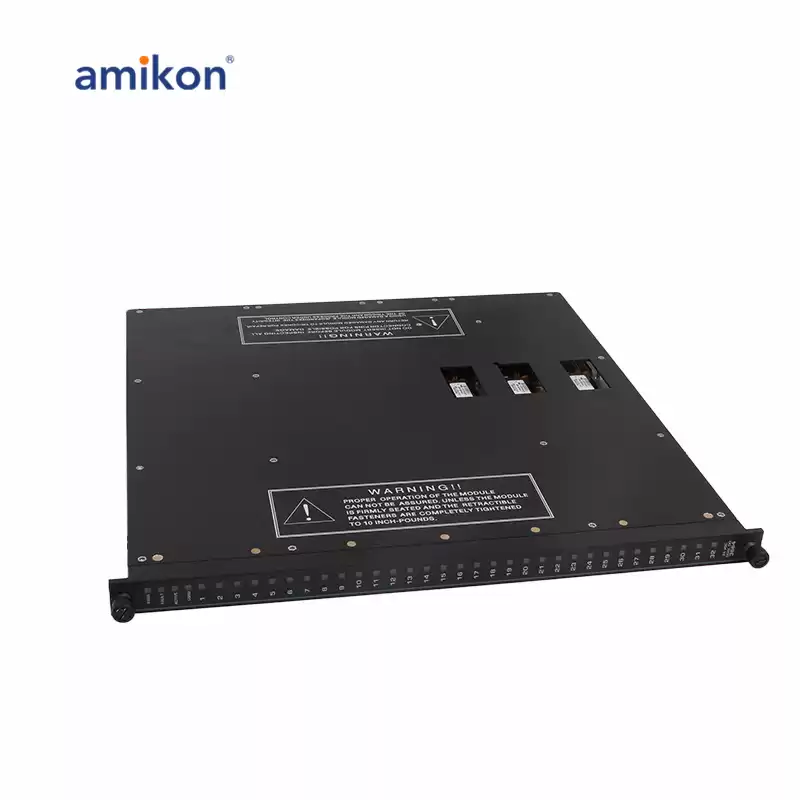

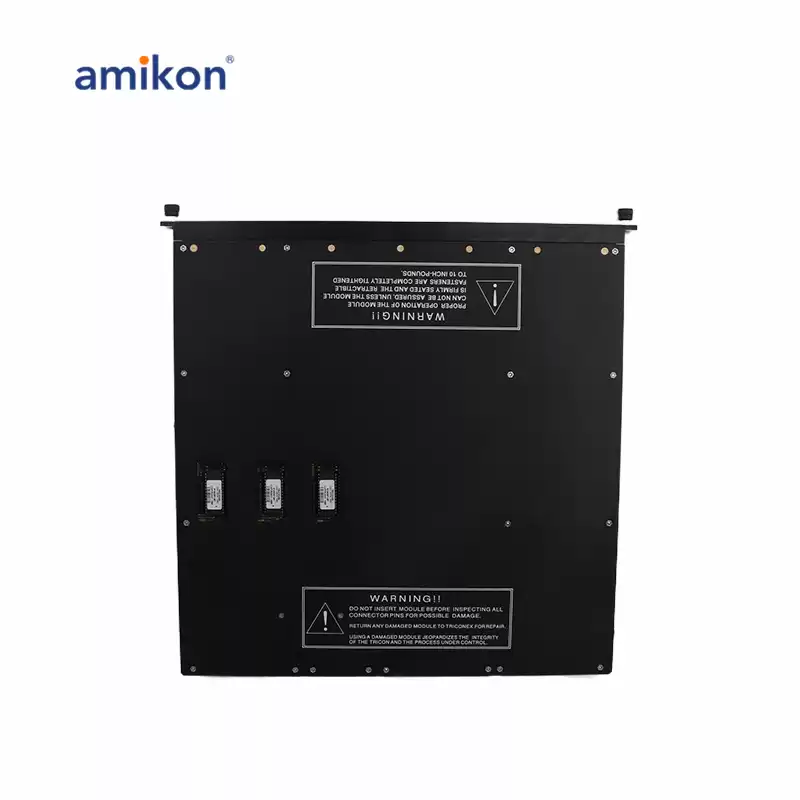

TRICONEX 3664 Digital Output Module FAQ:
1. What is the function of the TRICONEX 3664 Digital Output Module?
The TRICONEX 3664 Digital Output Module is designed to provide digital output signals to control various devices in industrial automation systems. It facilitates communication between the Triconex control system and field devices.
2. How many channels does the TRICONEX 3664 module have?
The TRICONEX 3664 module features 16 output channels, each capable of controlling 24 V DC devices.
3. What is the voltage rating for the outputs of the TRICONEX 3664?
The module operates with a digital output voltage of 24 V DC.
