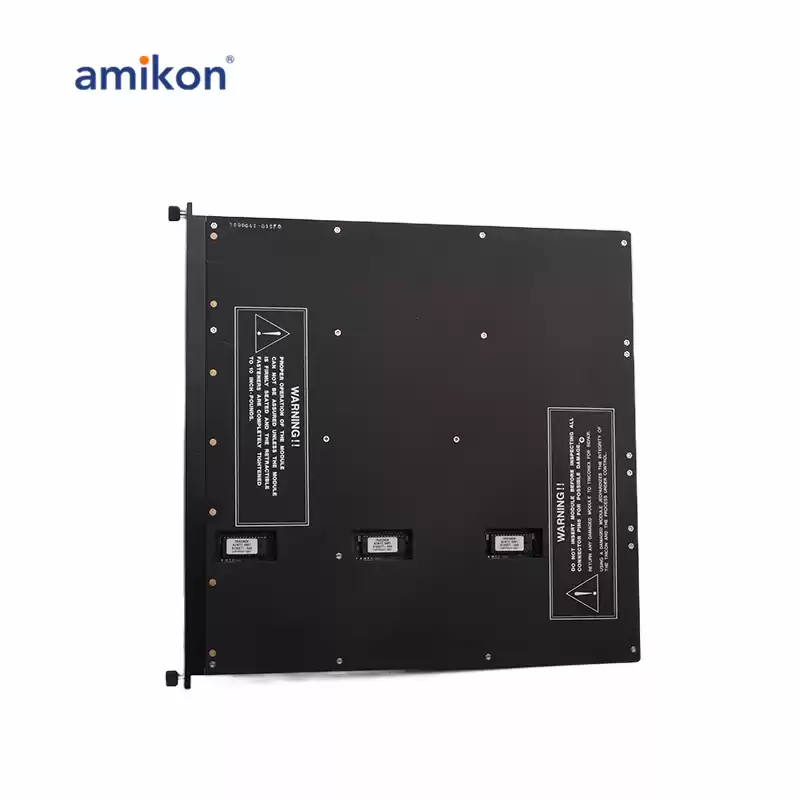

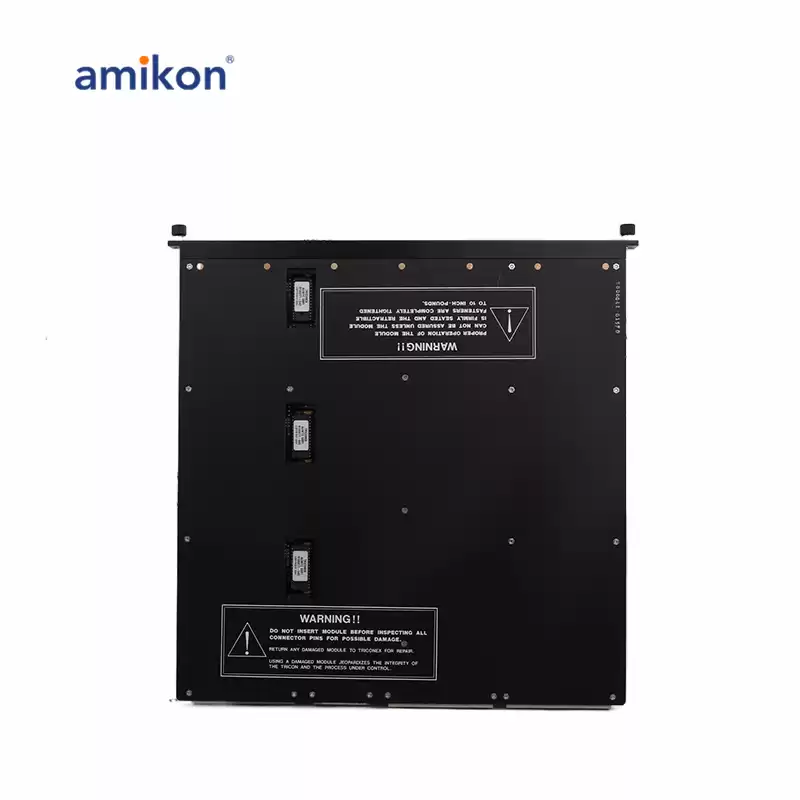

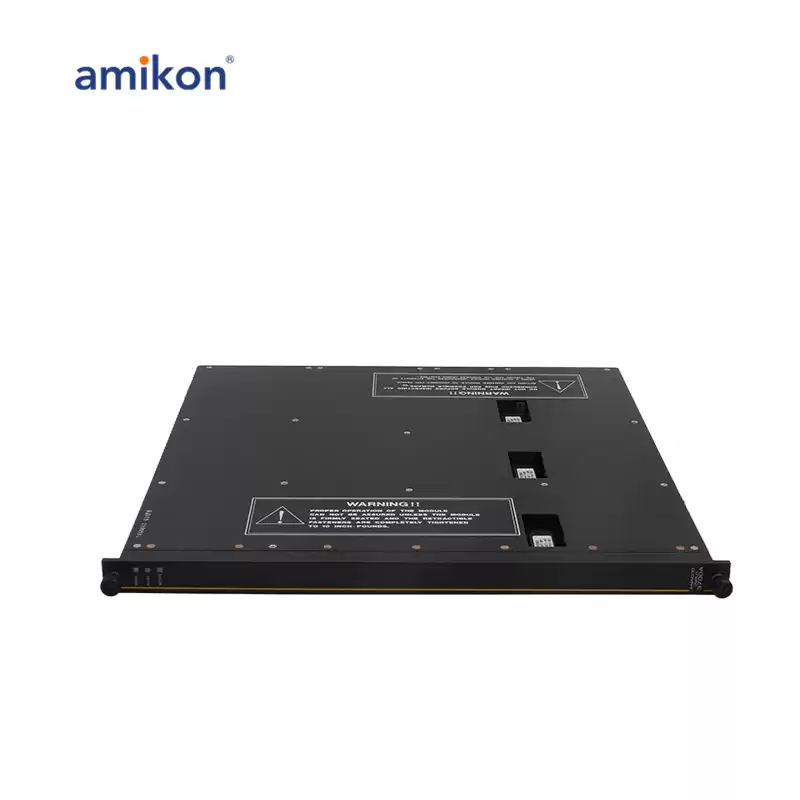

Triconex 3700A Analog Input Module

Triconex 3700A is TMR Analog Input Module. An analog input (AI) module includes three independent input channels.Each input channel receives variable voltage signals from each point, converts them to digital values, and transmits the values to the three main processor modules on demand.

3700A Description:

Voltage  0-5V, + 6% (only 3700A) Type  TMR, AI No. of Input Points  32, diff, DC coupled Isolated Points  No Input Update Rate  55 ms Resolution  12 bits Accuracy  < .15% of FSR, from 0° to 60°C

Input Resistance (load)  30 MΩ (DC), min. Power-Off Resistance  30 KΩ (DC), typical
Common Mode Rejection  -80 dB (DC-100Hz), typical

Leg-to-Leg Isolation  200 KΩ, typical Normal Mode Rejection @ 8Hz -3 dB @ 60Hz -17 dB@ 120Hz  -23 dB Input Overrange 150 VDC/115 VAC Protection  continuous Current Range  0-20 mA, 250 Ω shunt
